ULTRAGRID Tiles Double Garage Floor Kit 6x6M, Parking Bay Chequer Infill

ULTRAGRID Tiles Double Garage Floor Kit 6x6M, Parking Bay Chequer Infill

In stock - ready to ship
$1,749
$2,100 $1,749
Save $351
Taxes included. Shipping calculated at checkout.

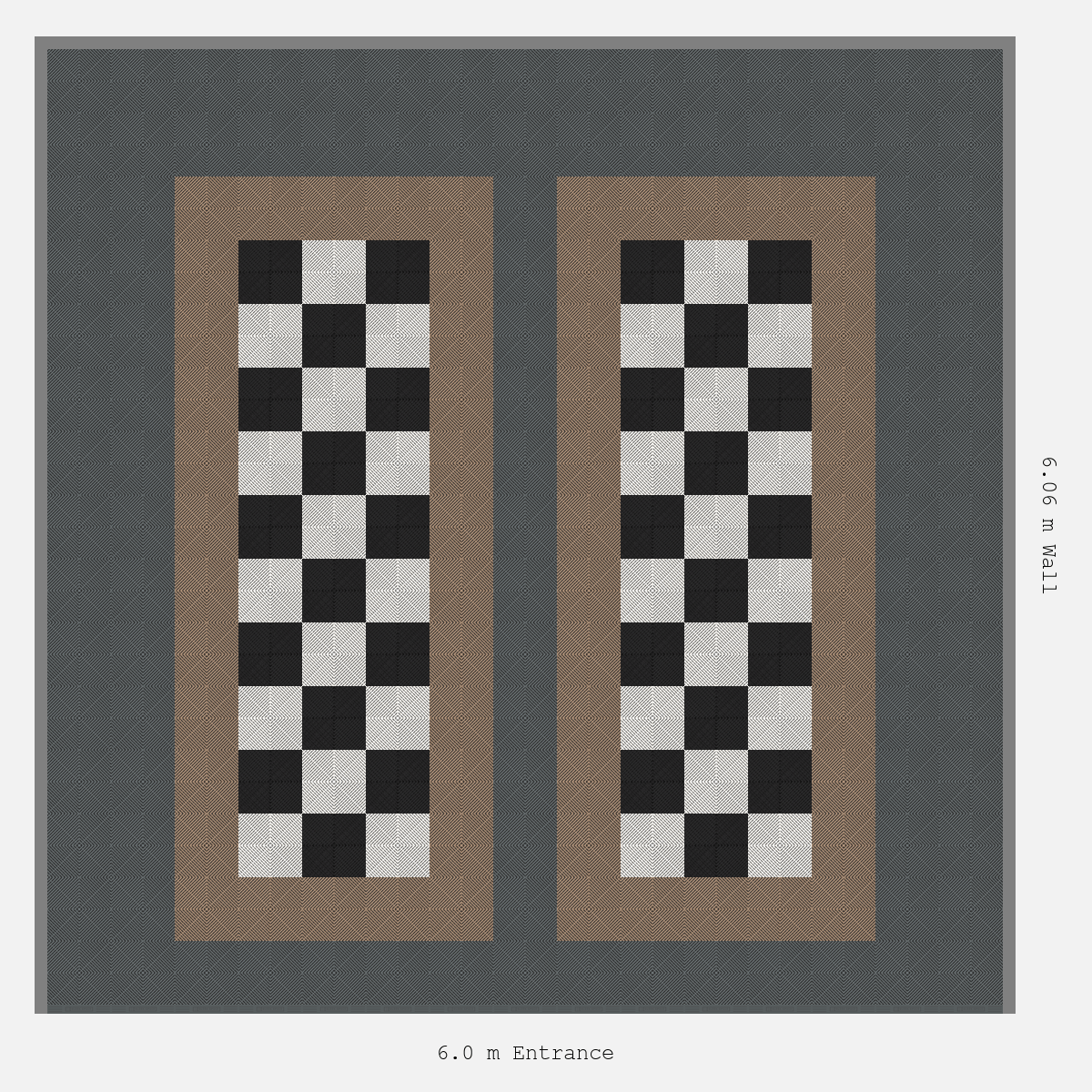

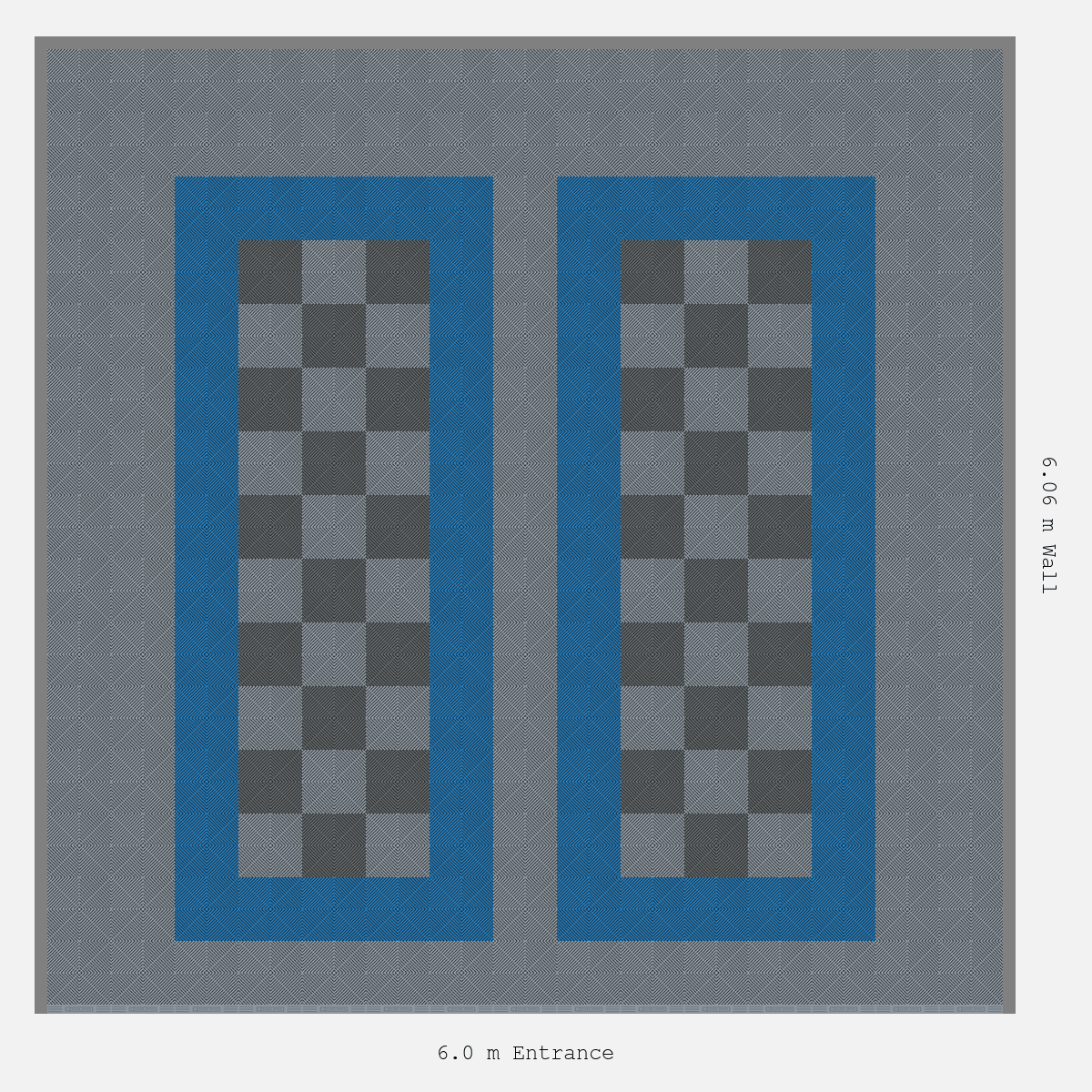

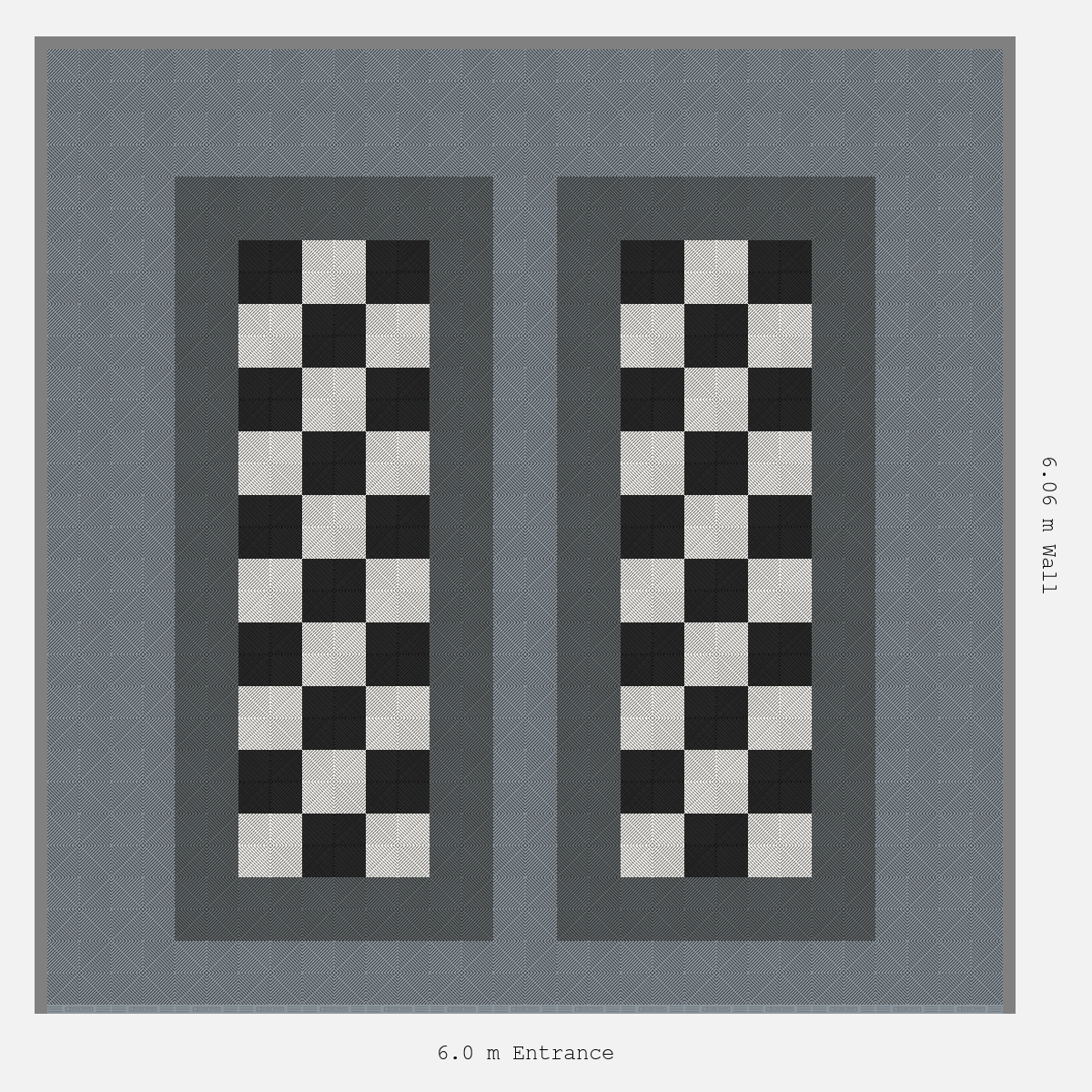

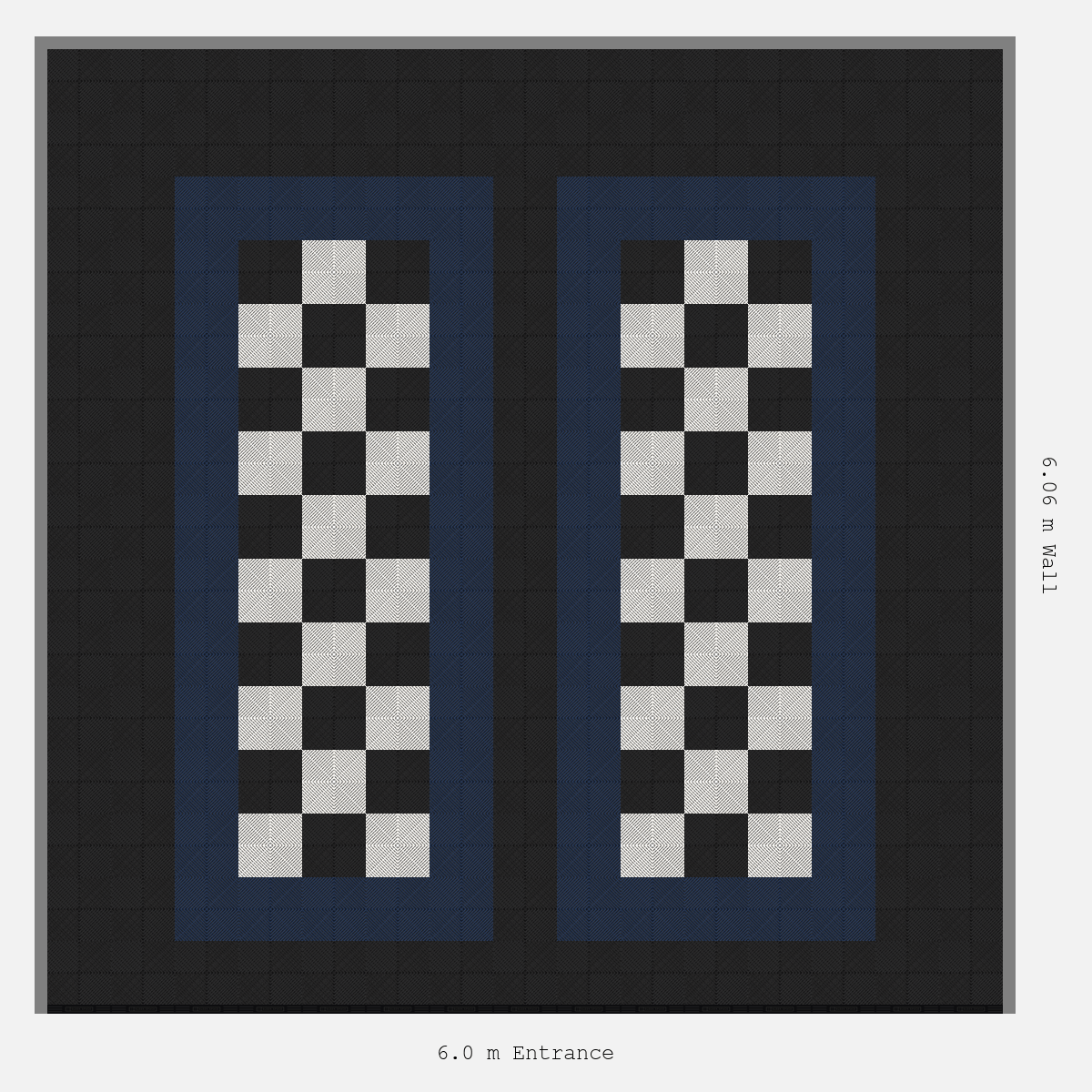

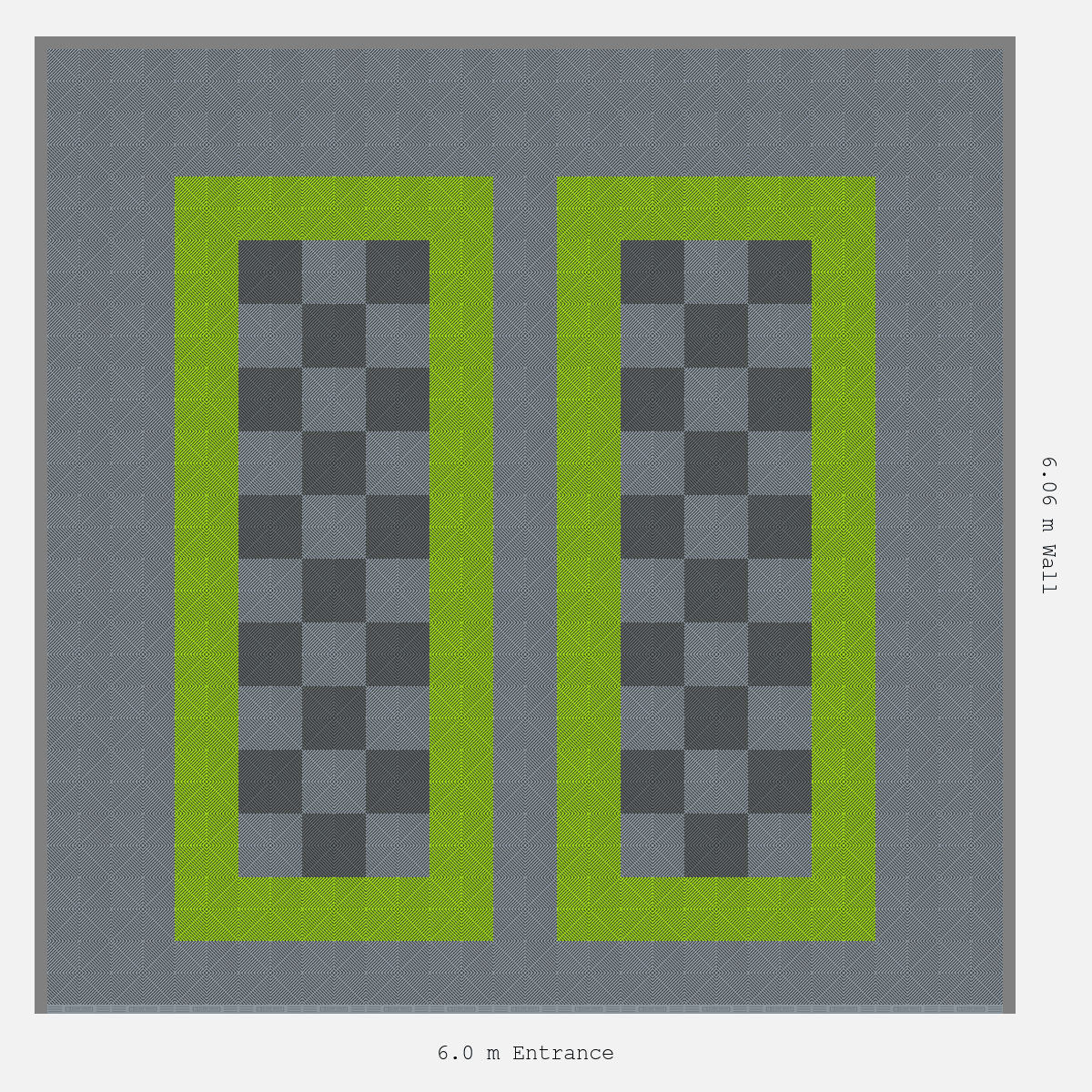

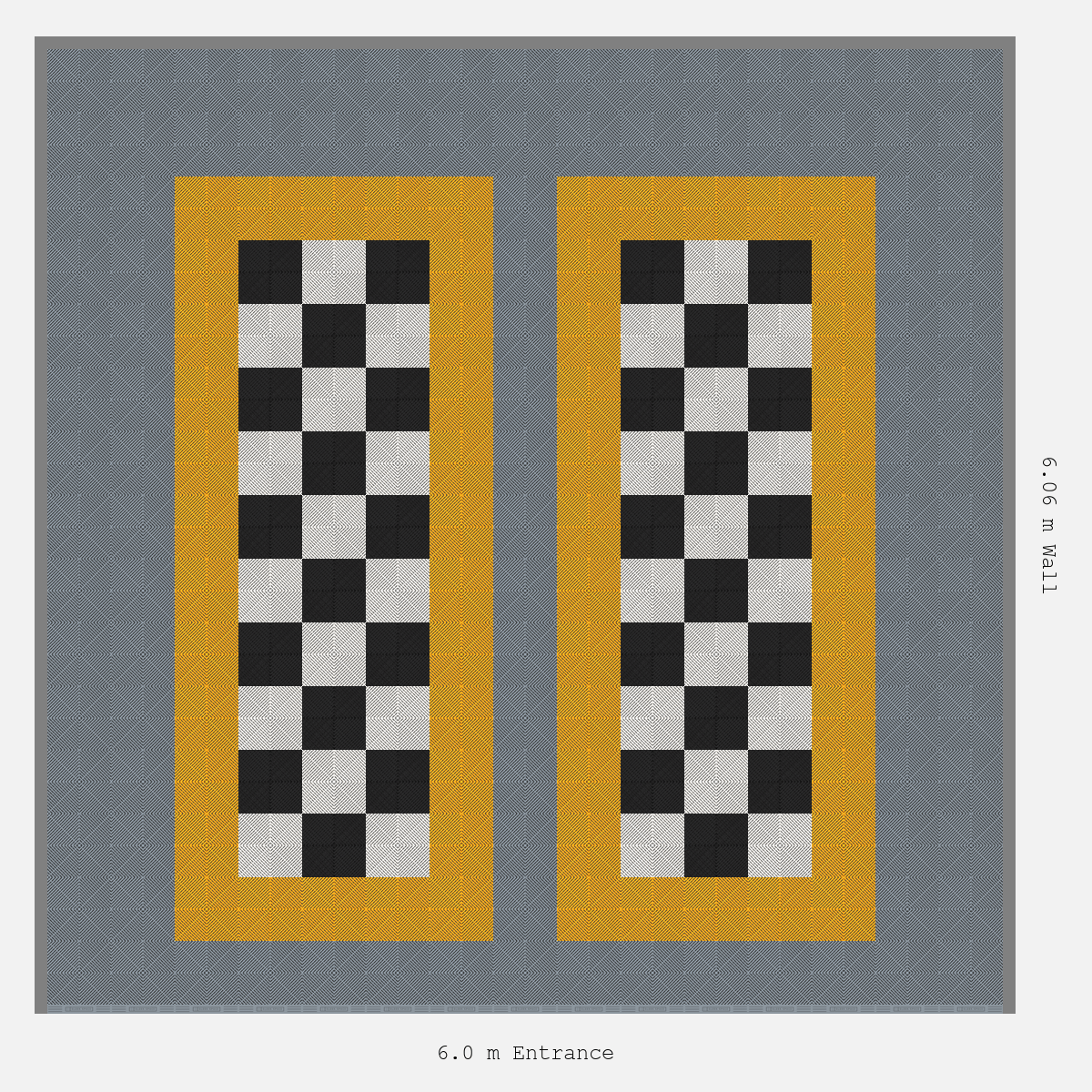

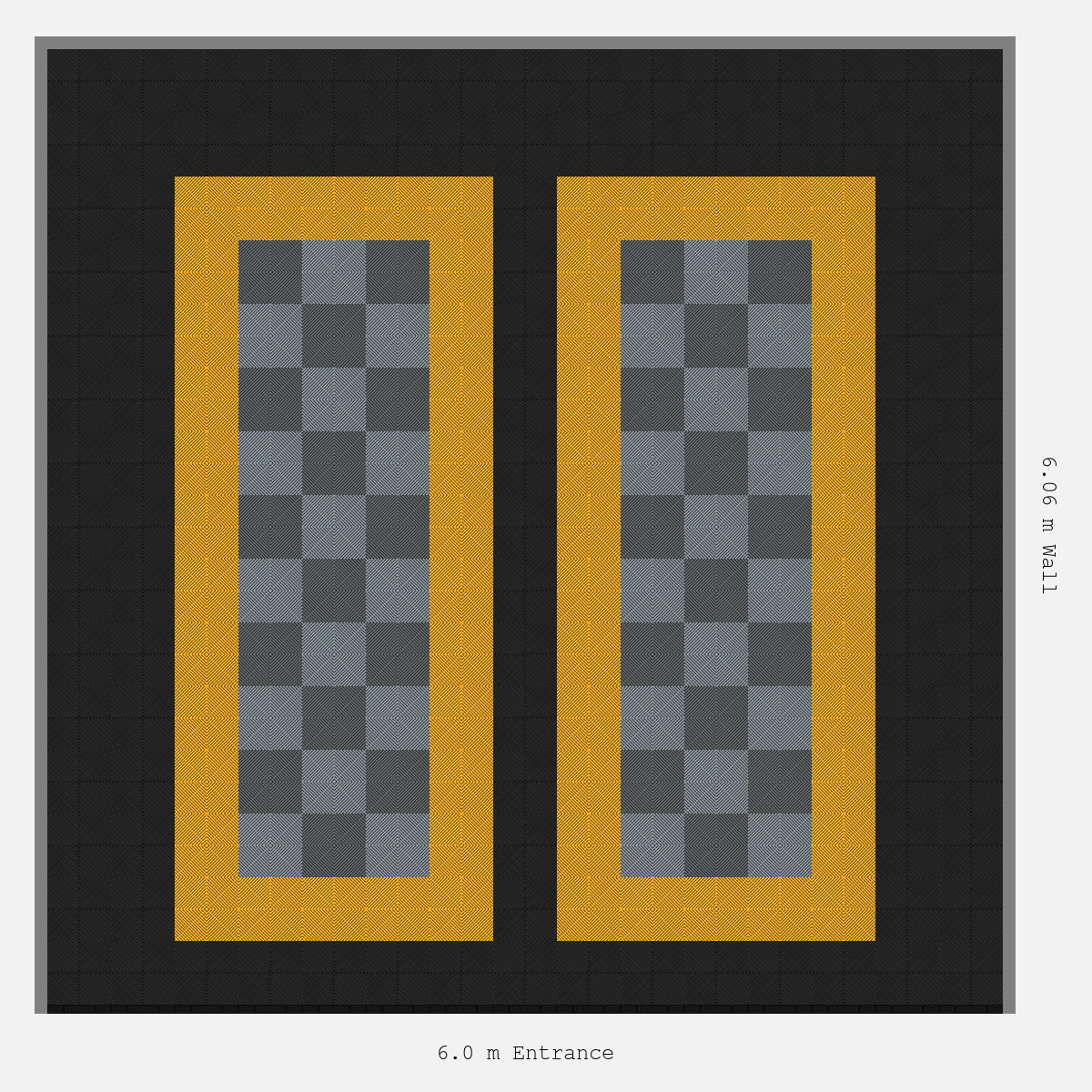

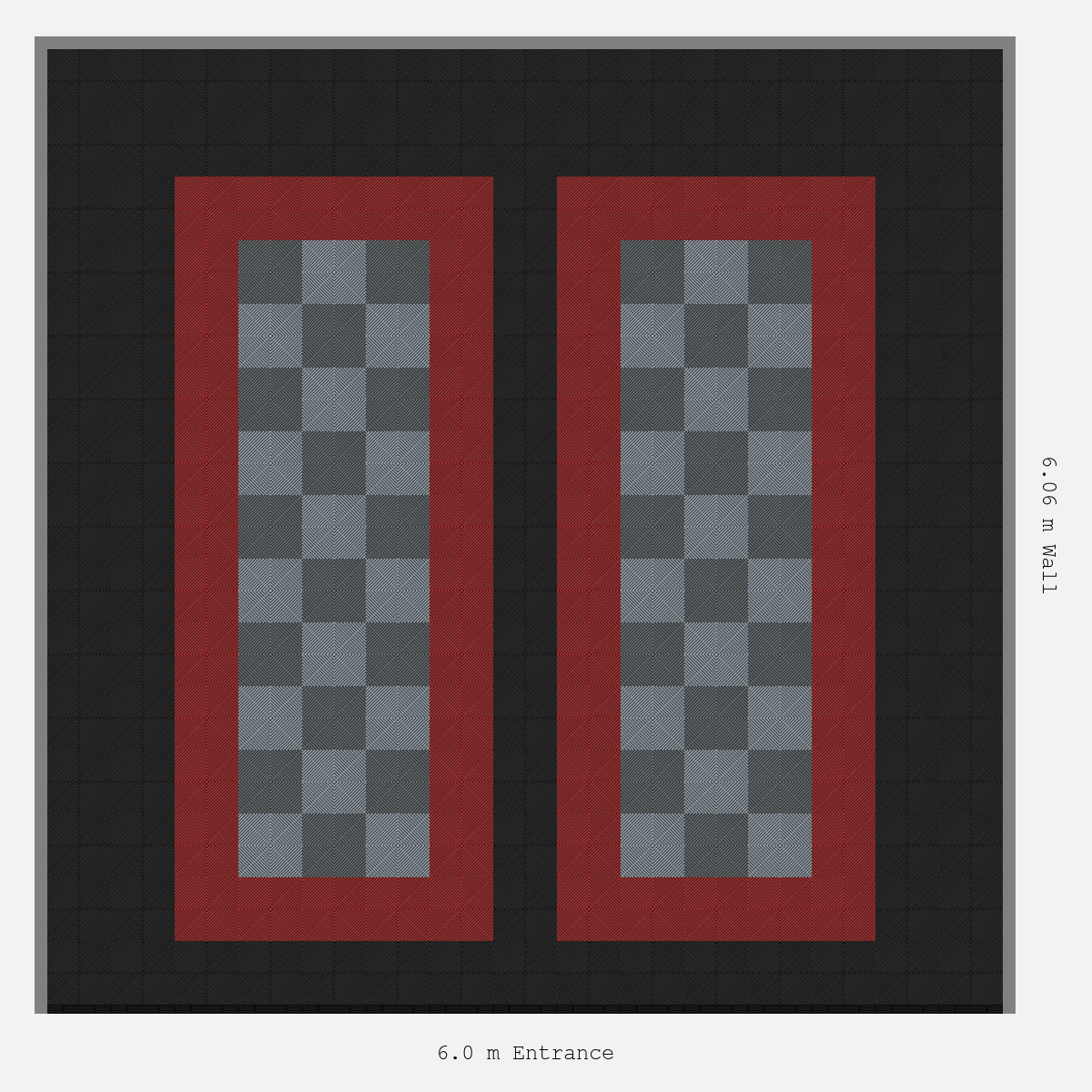

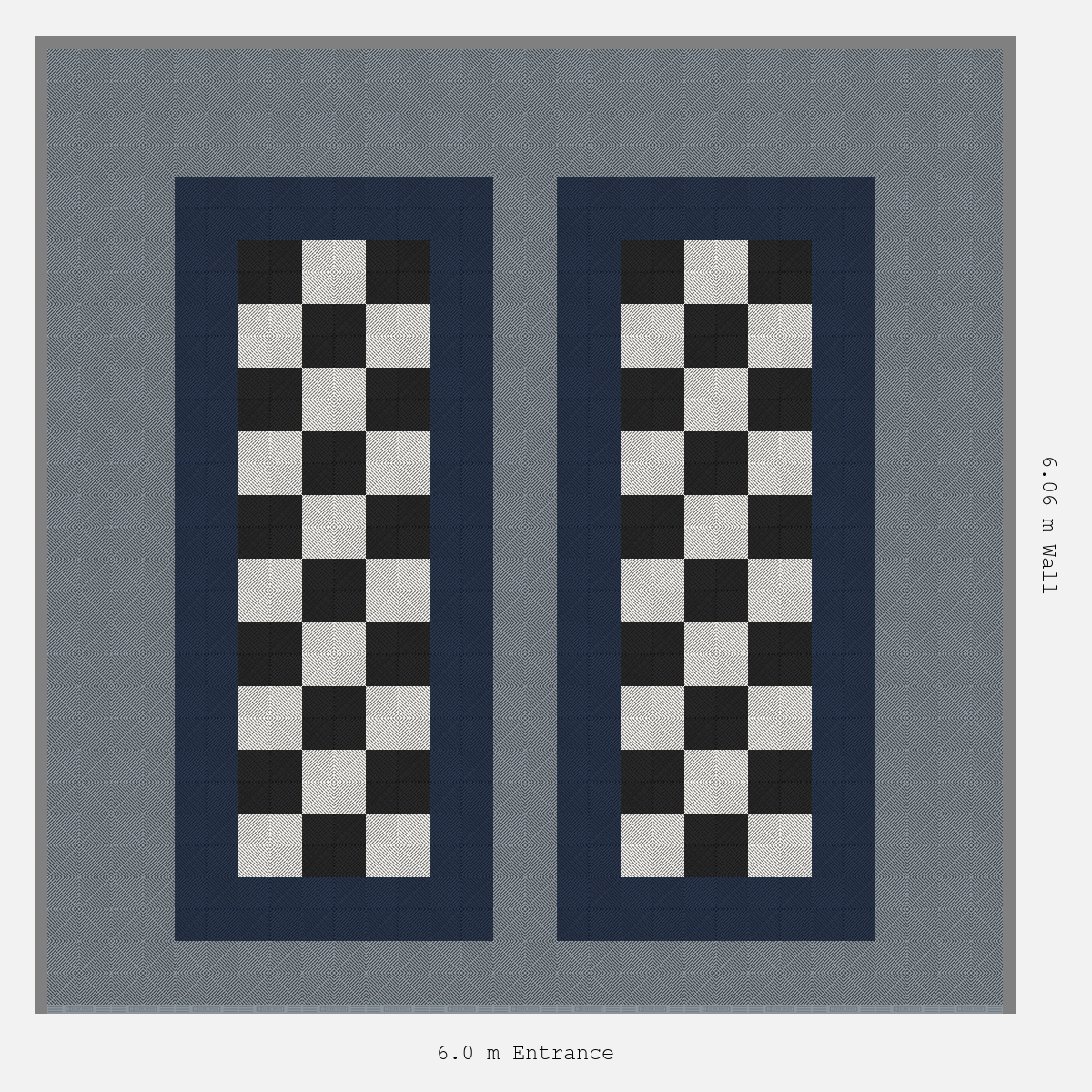

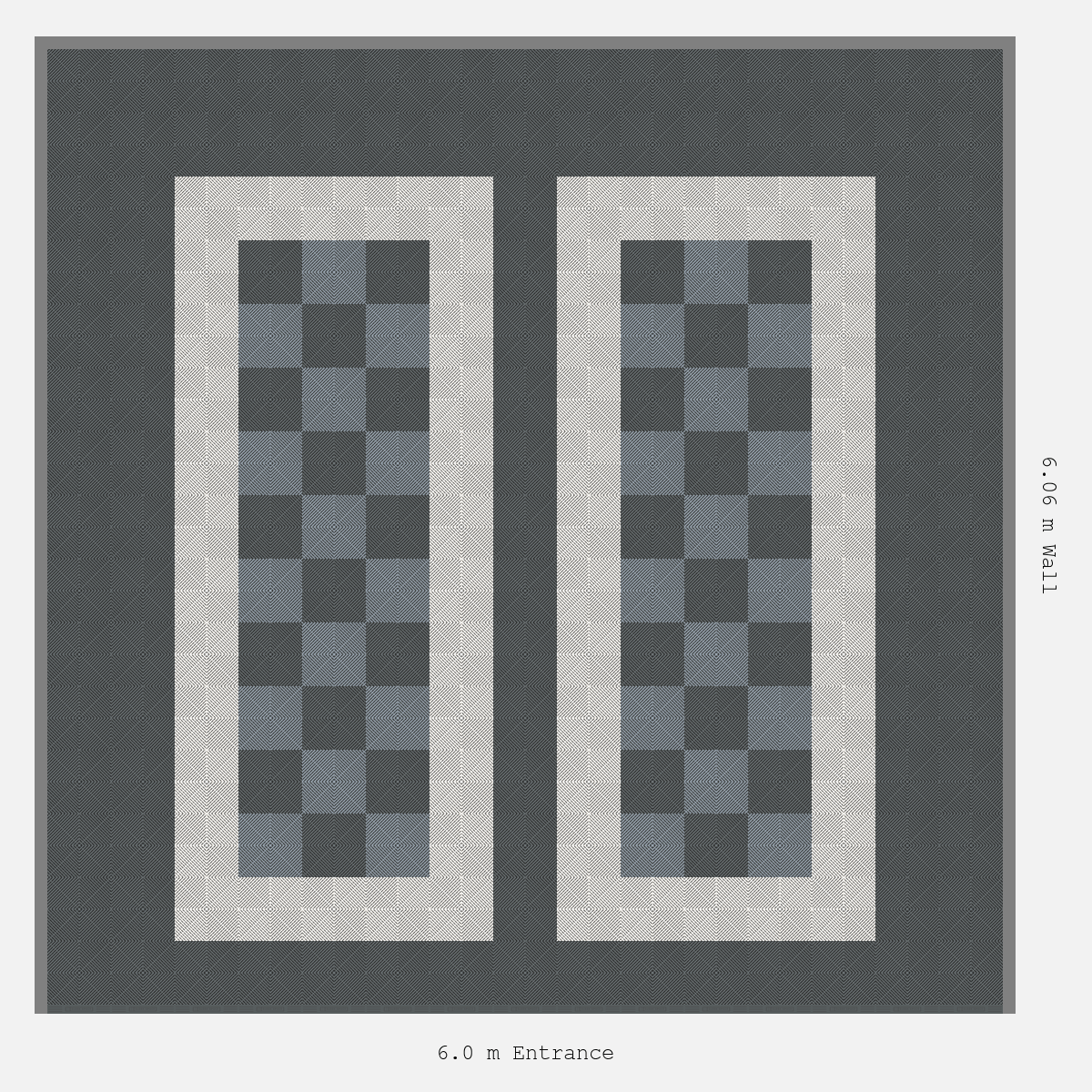

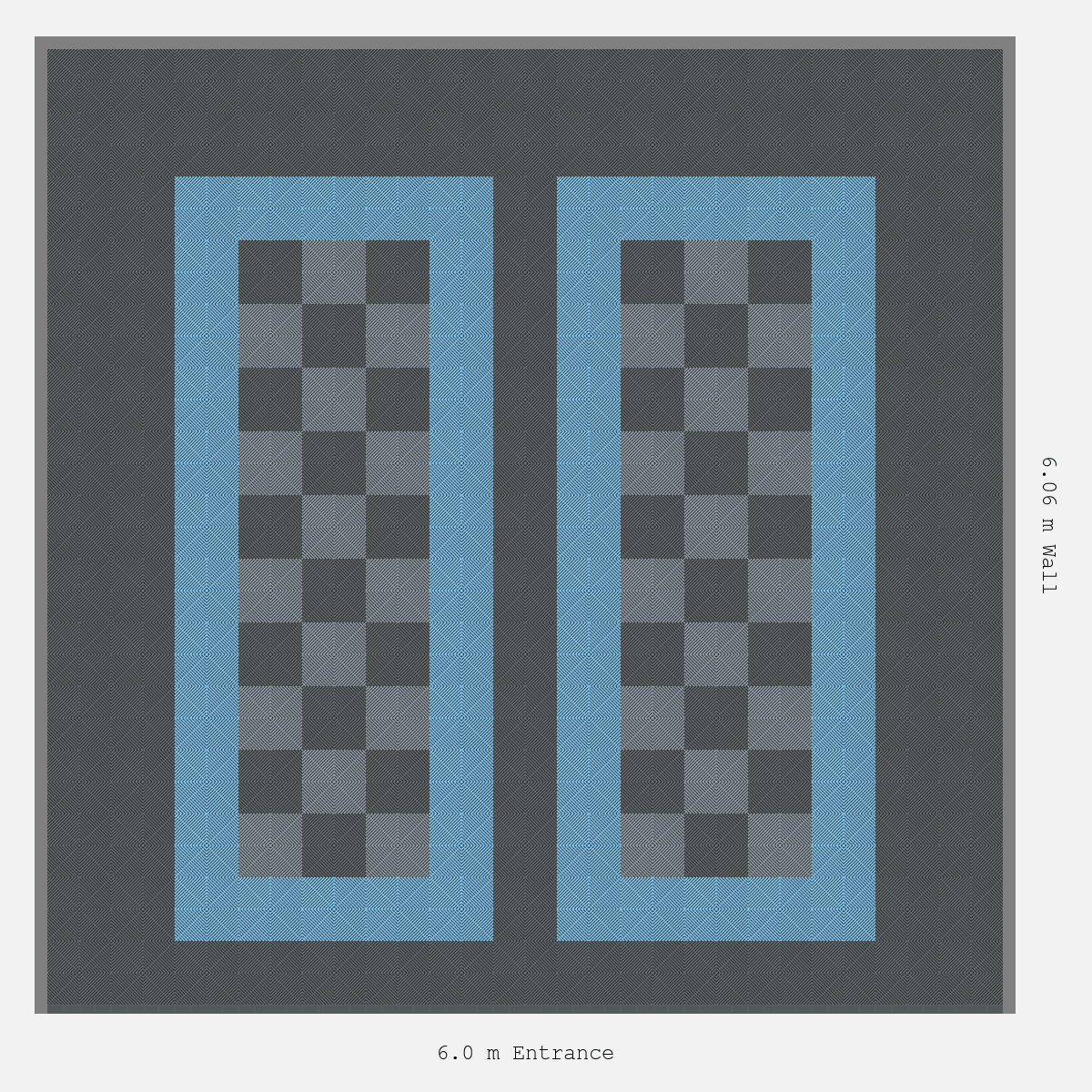

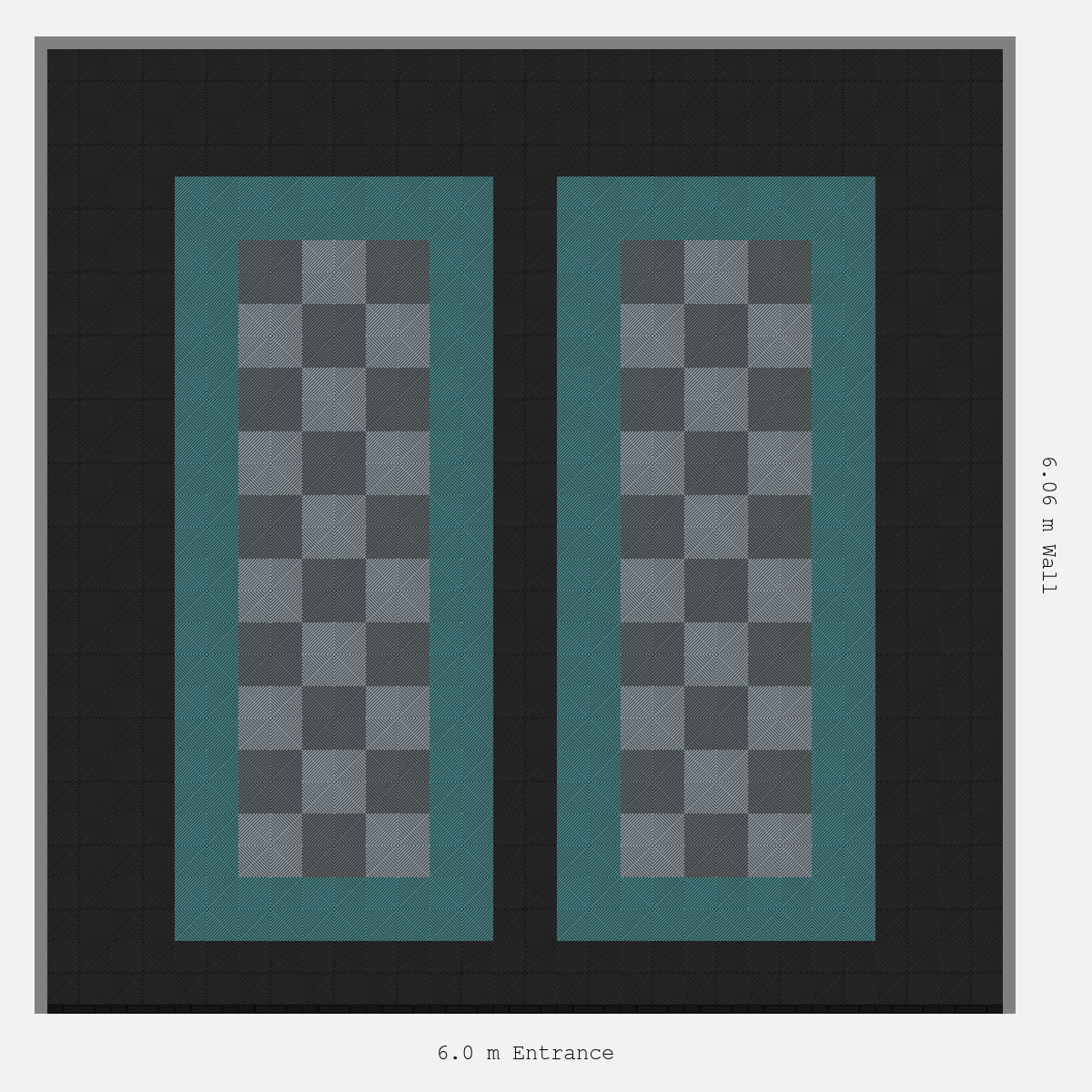

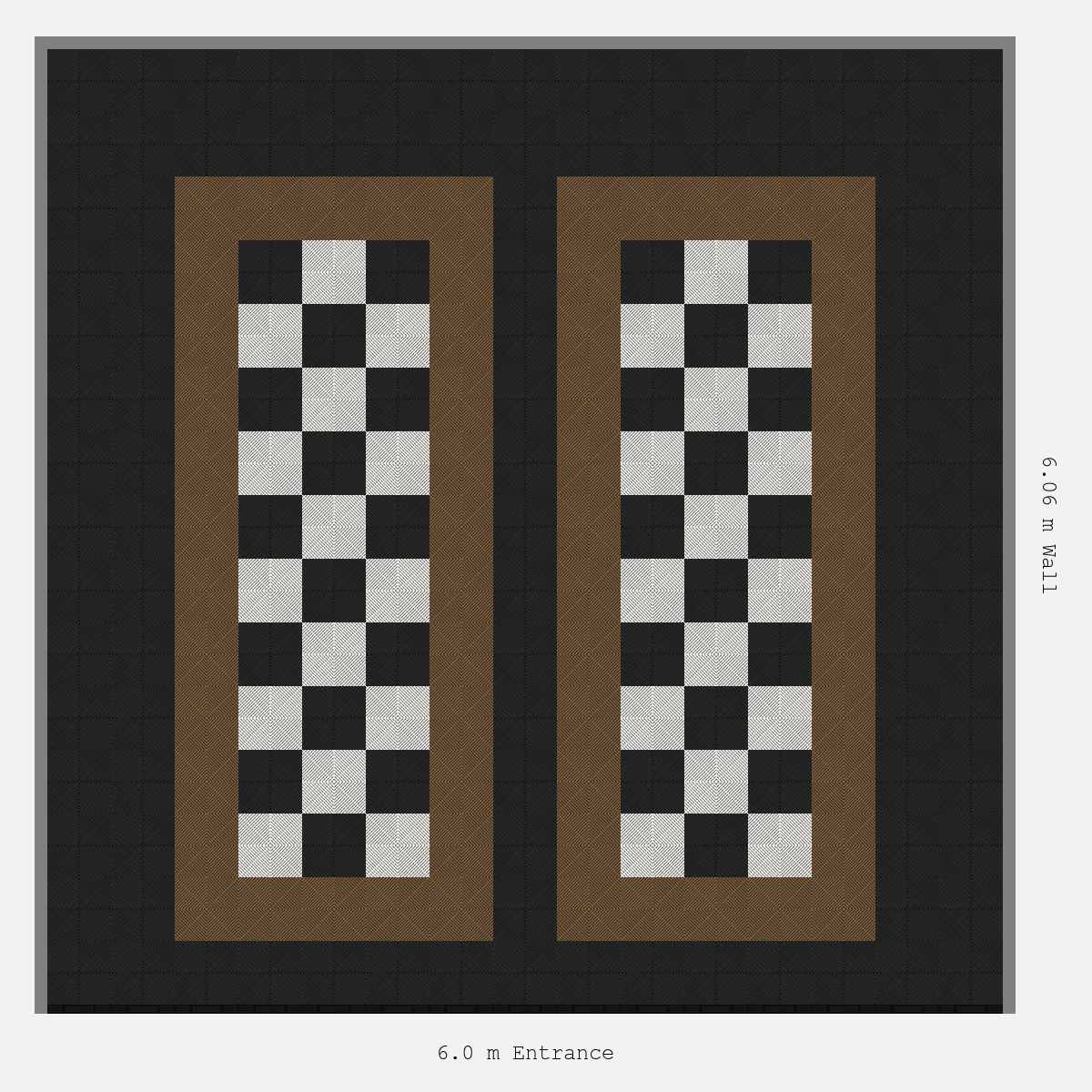

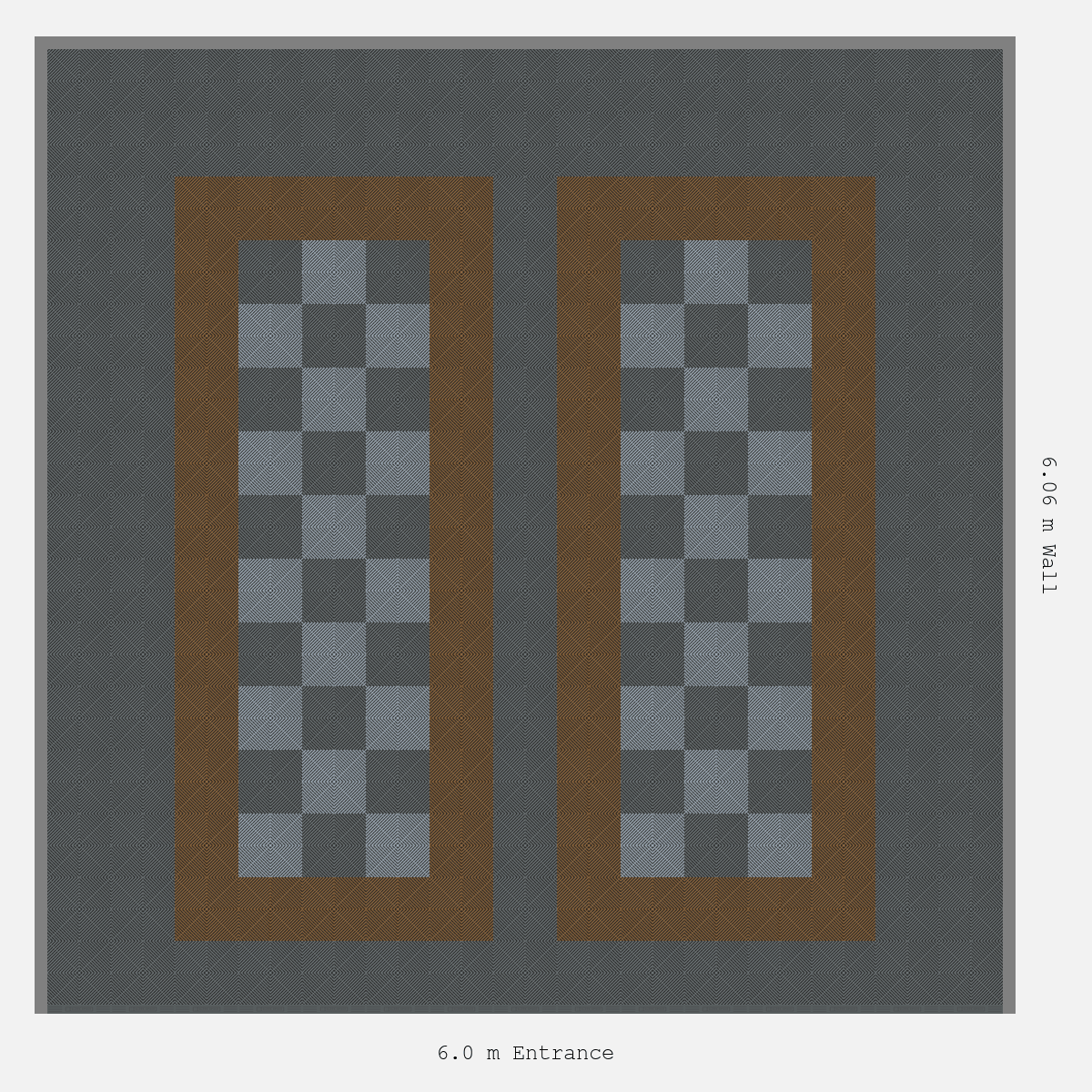

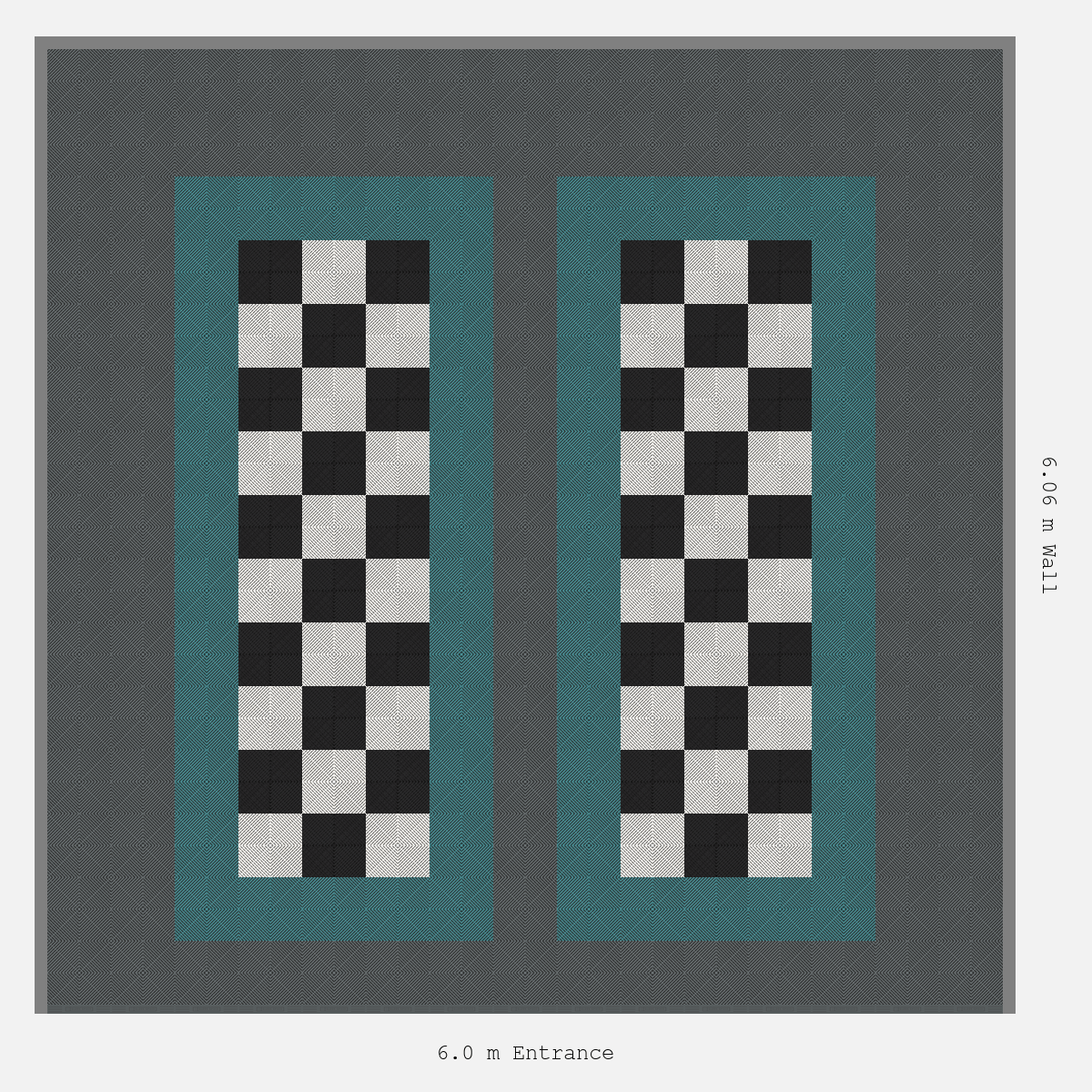

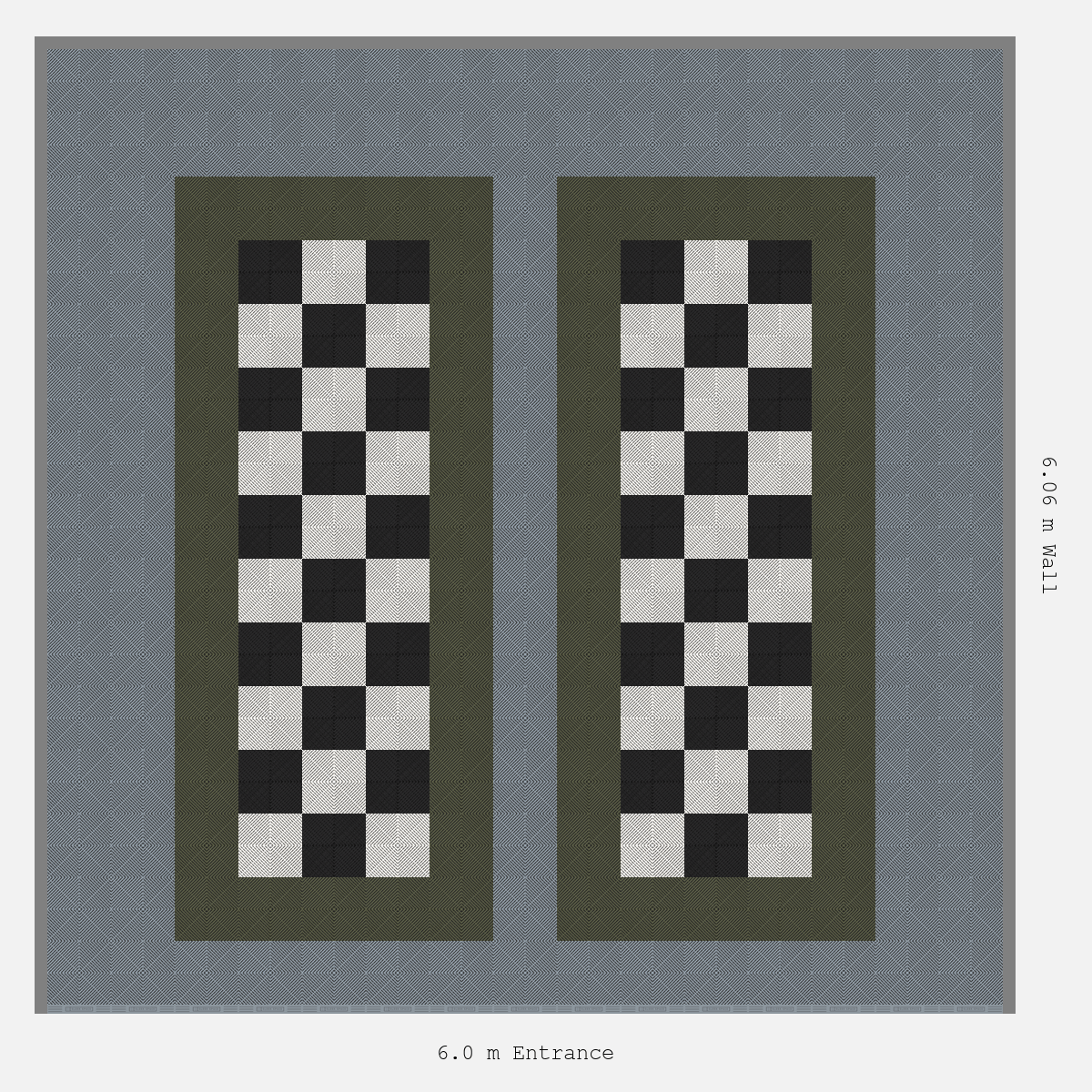

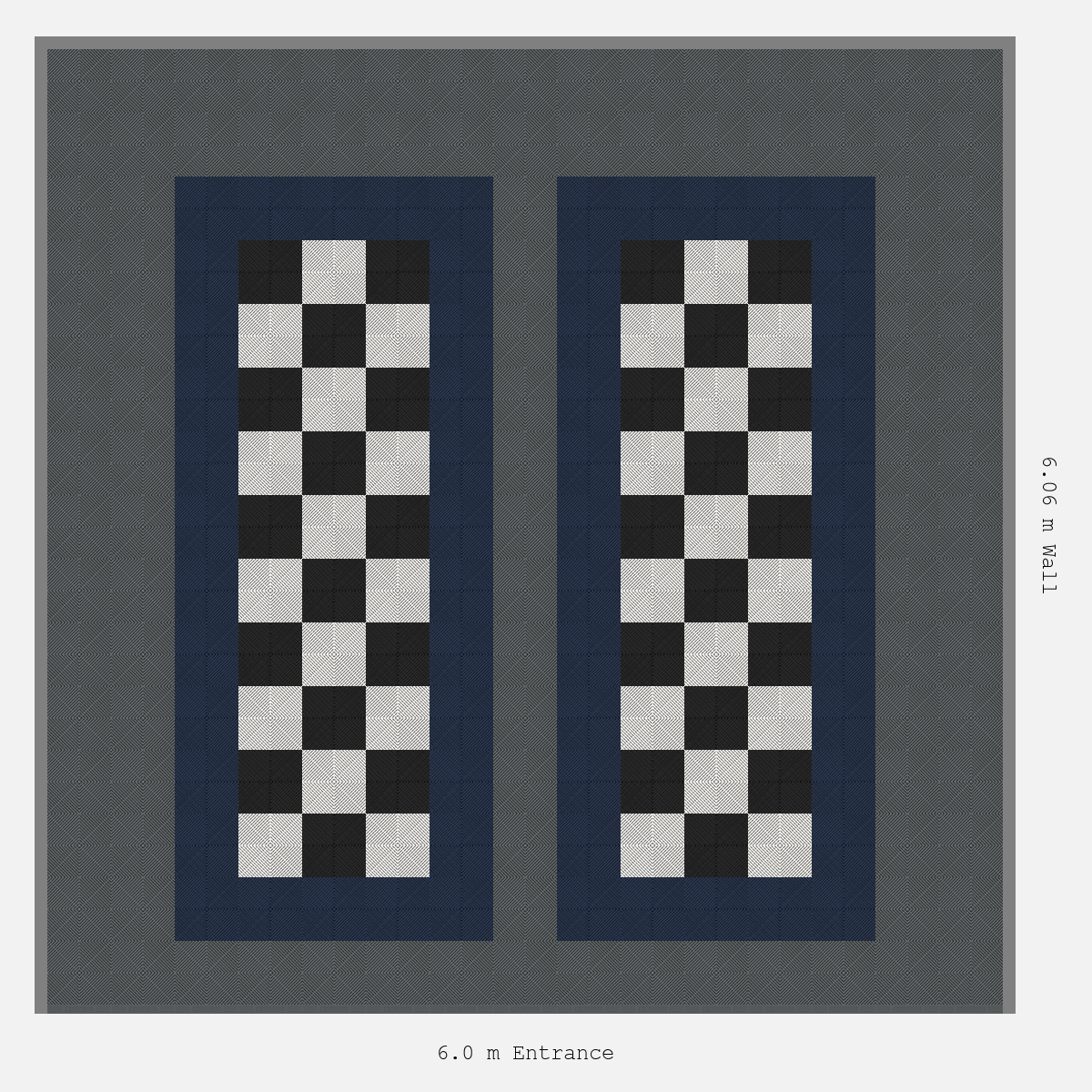

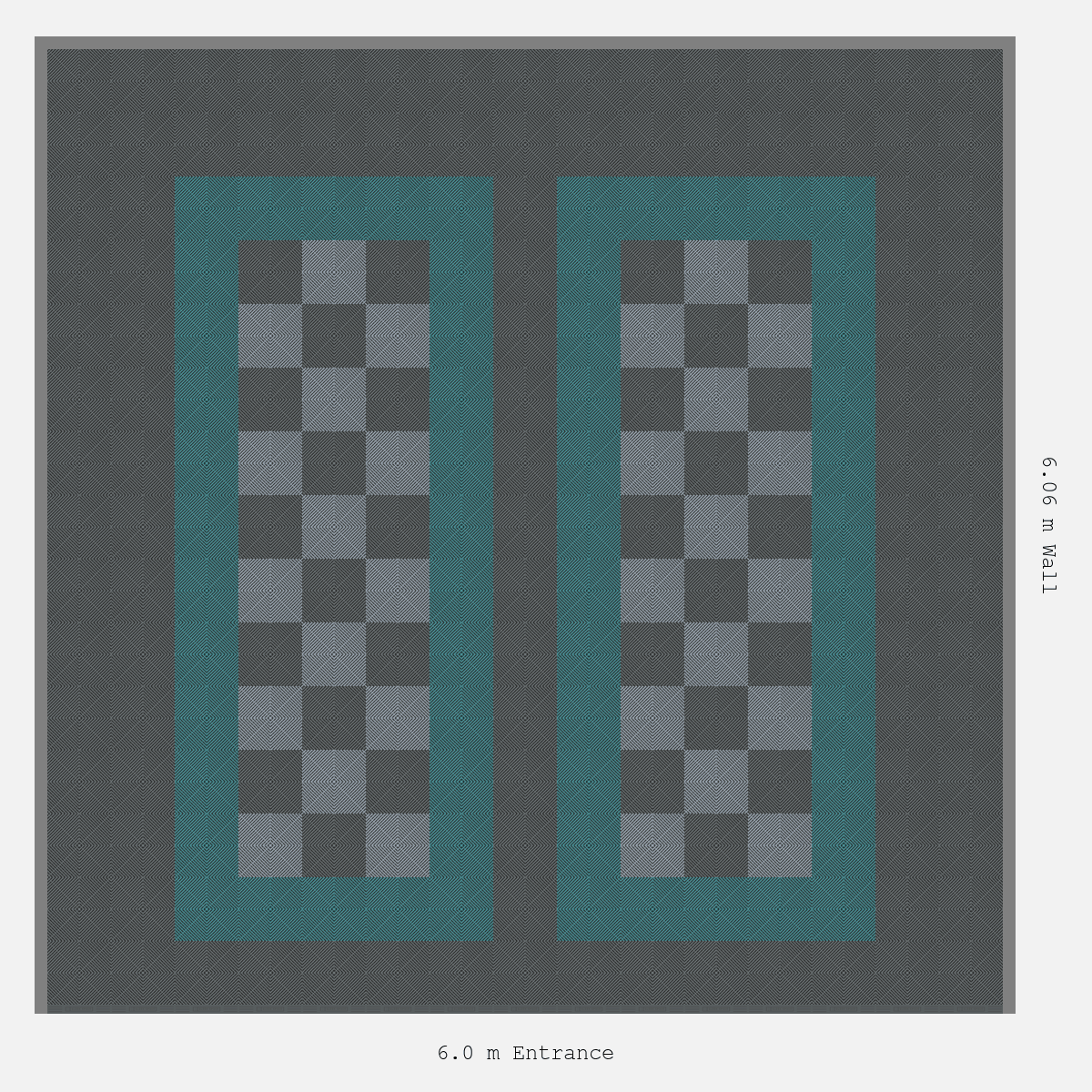

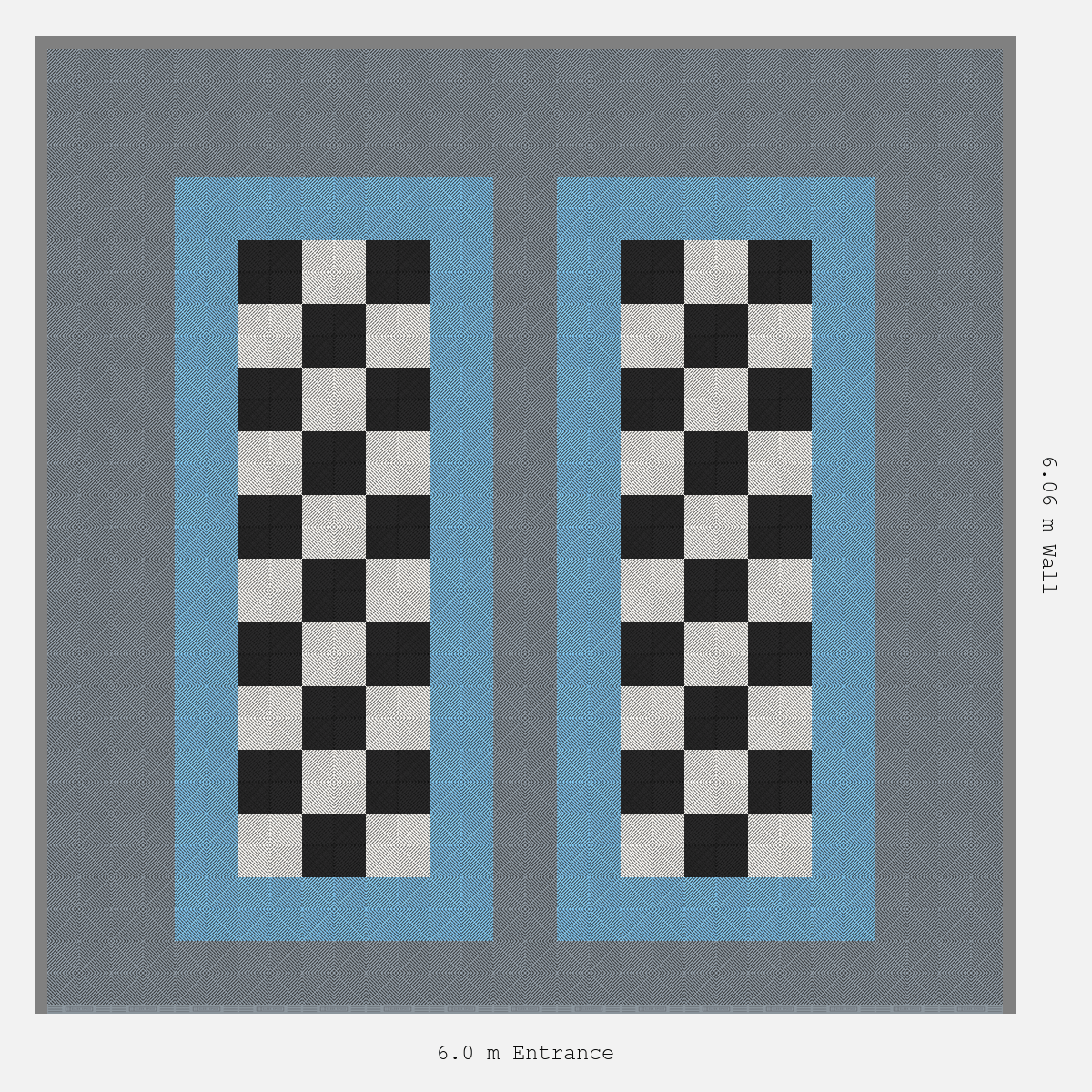

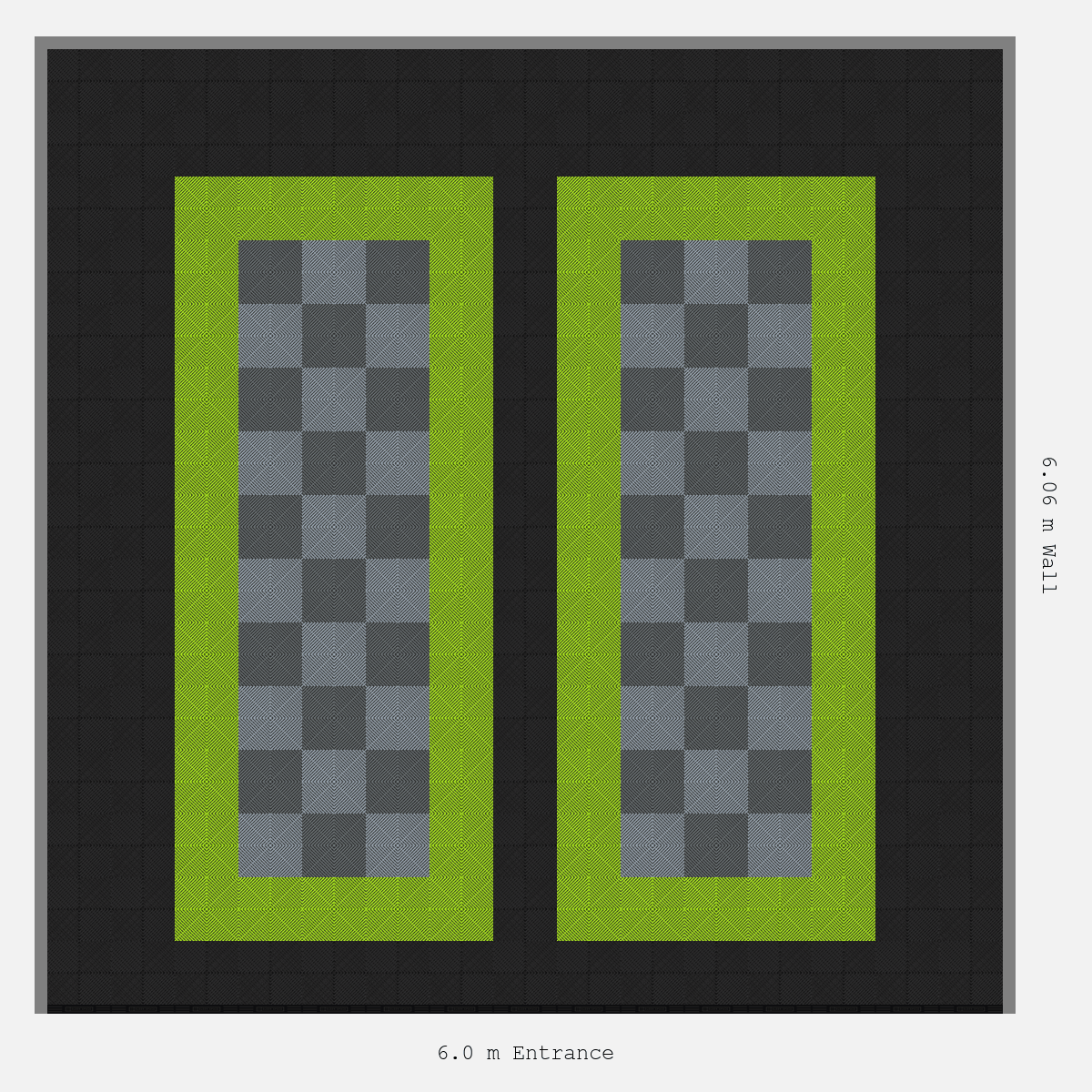

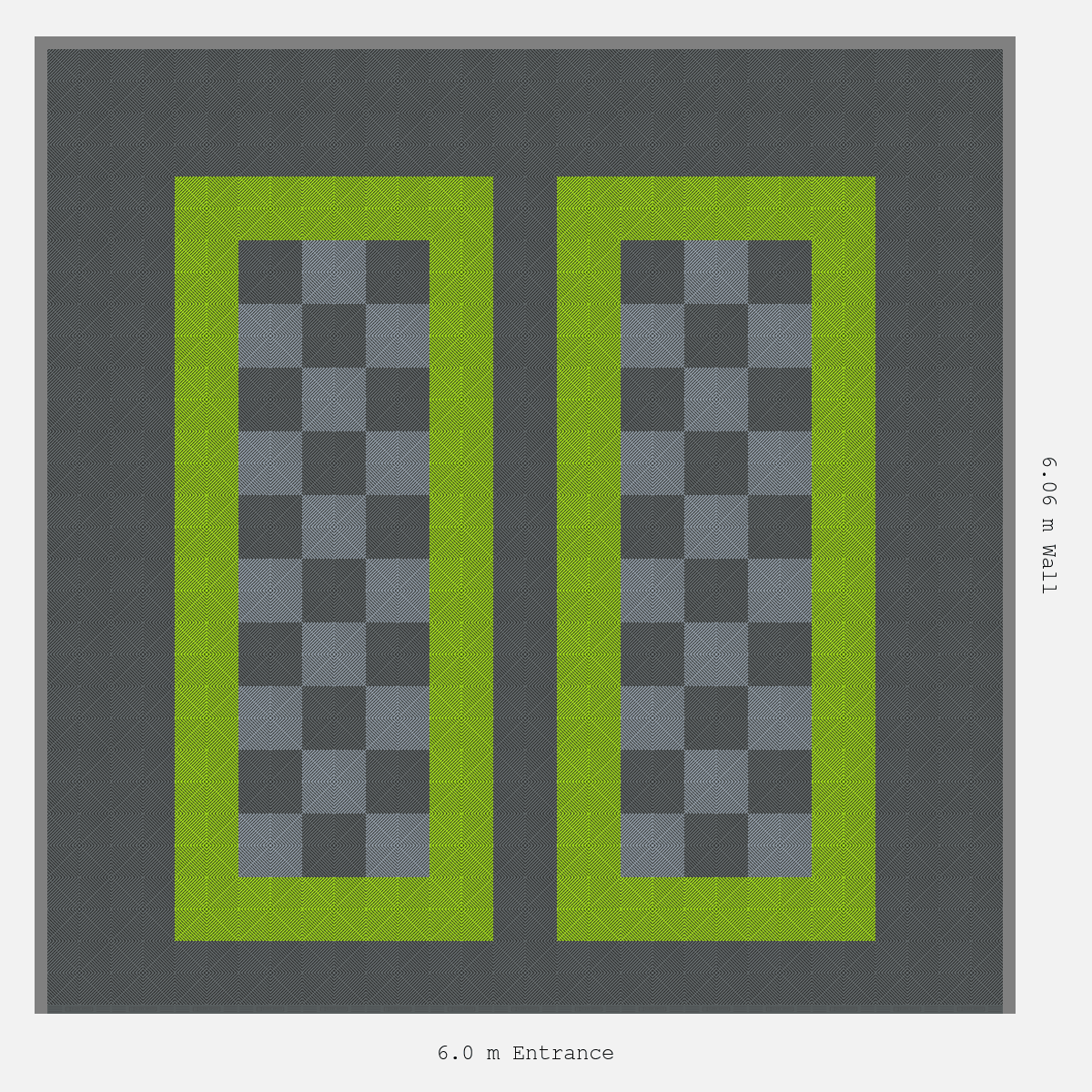

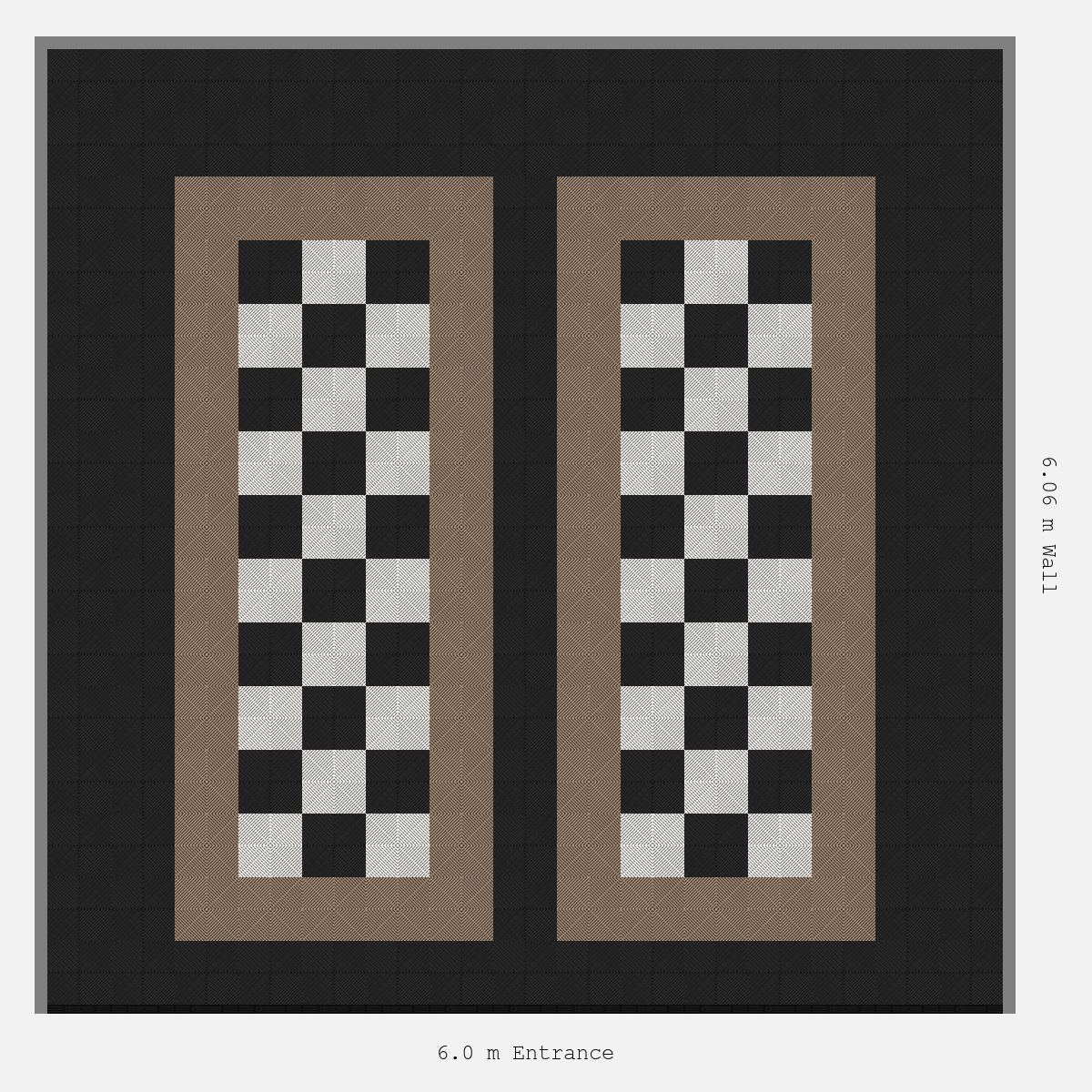

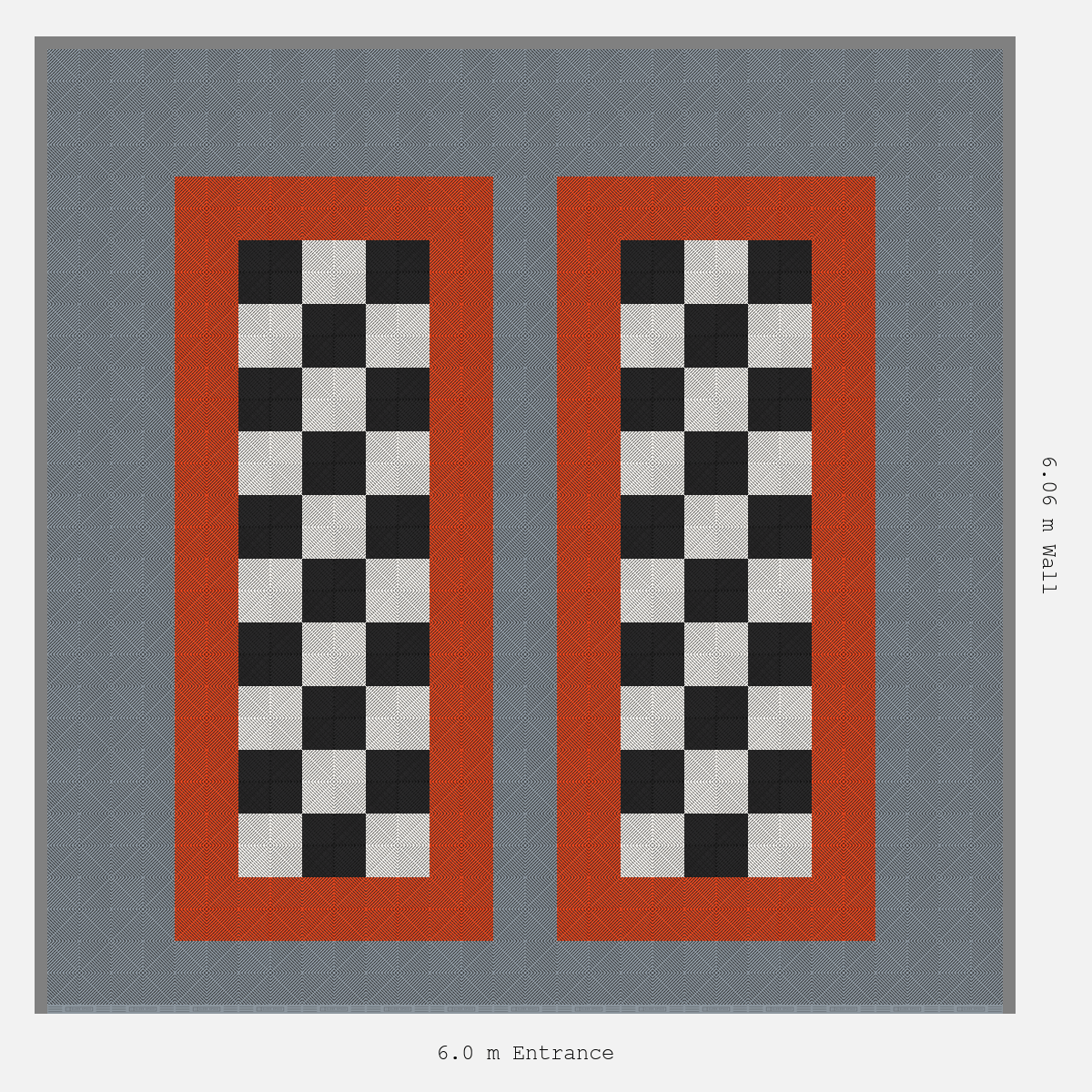

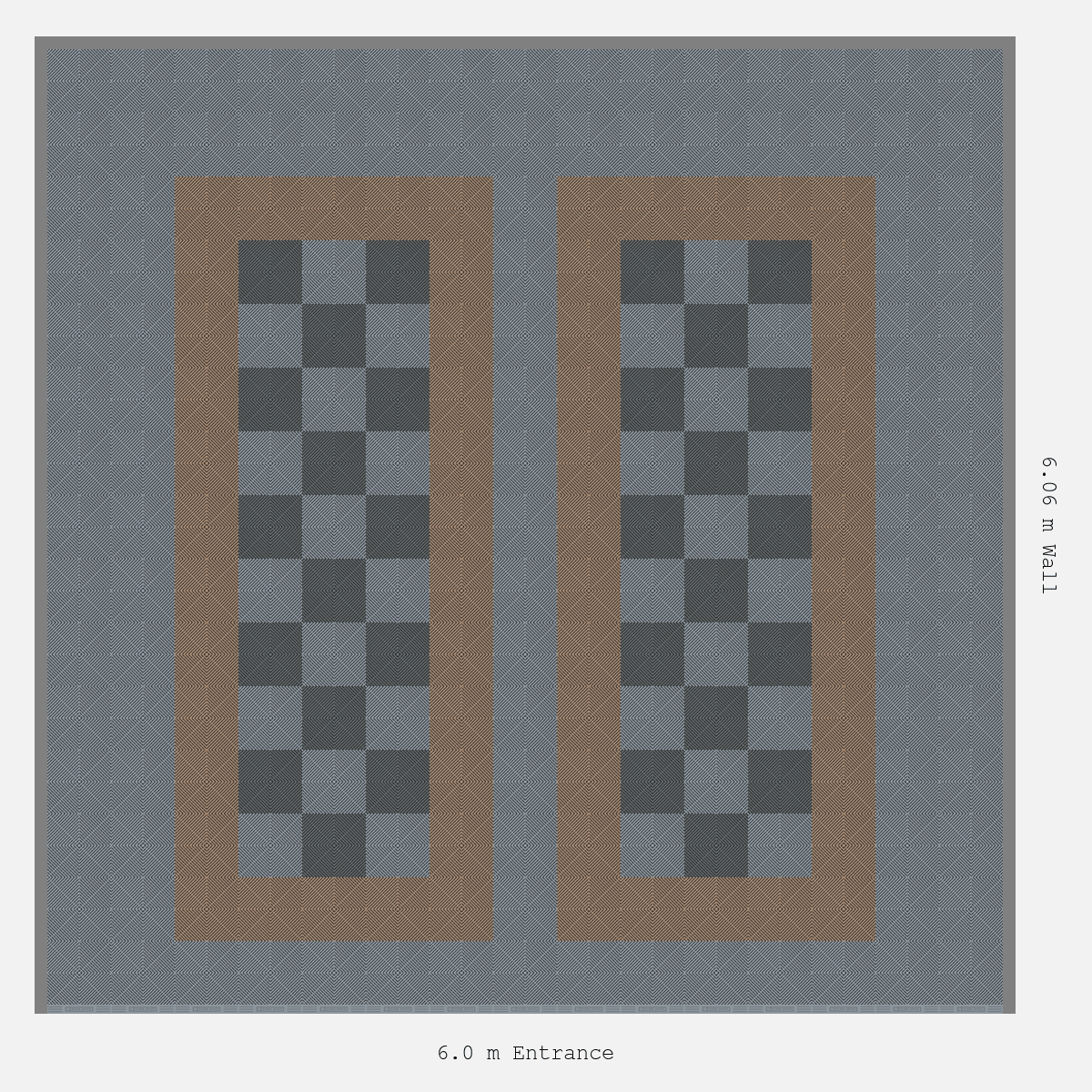

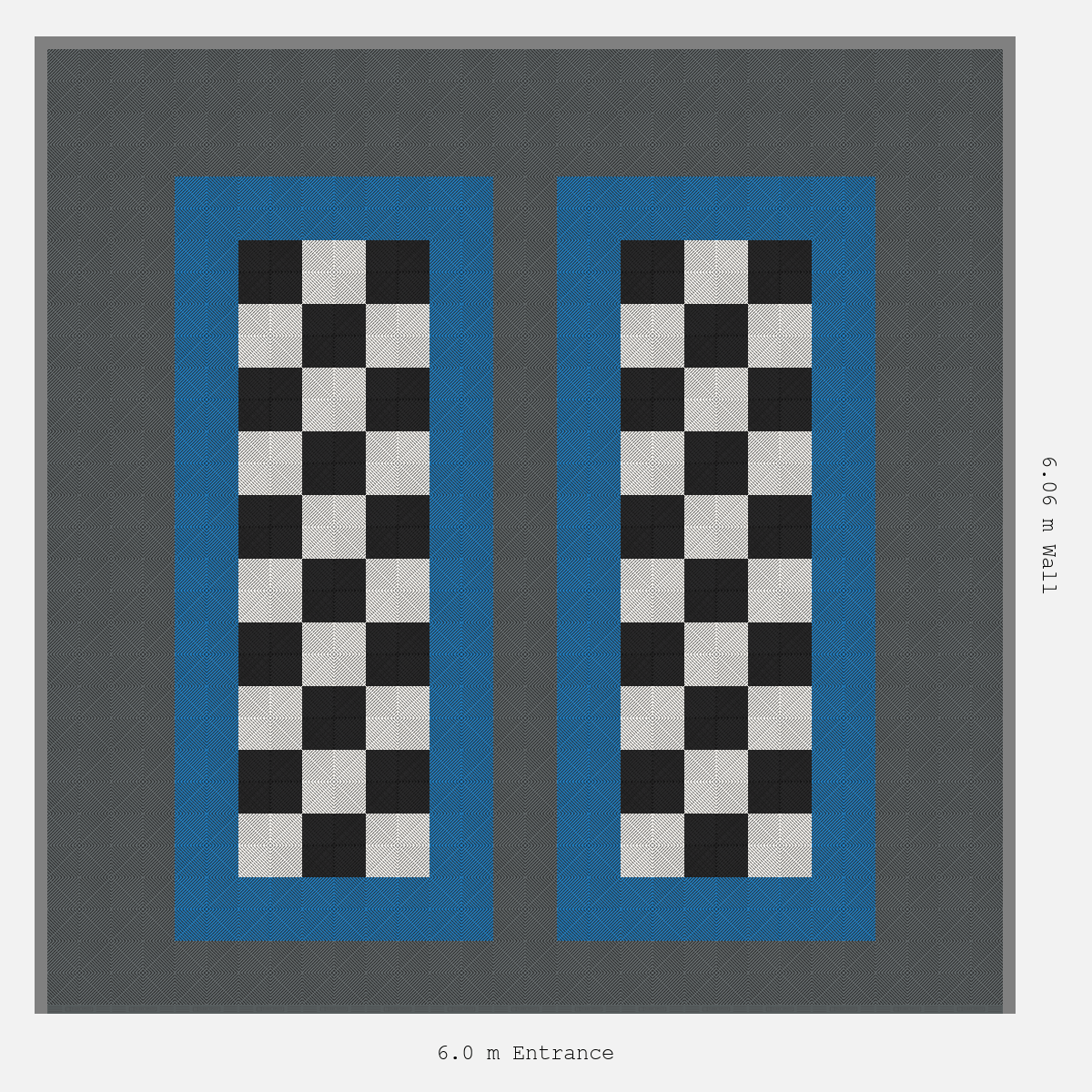

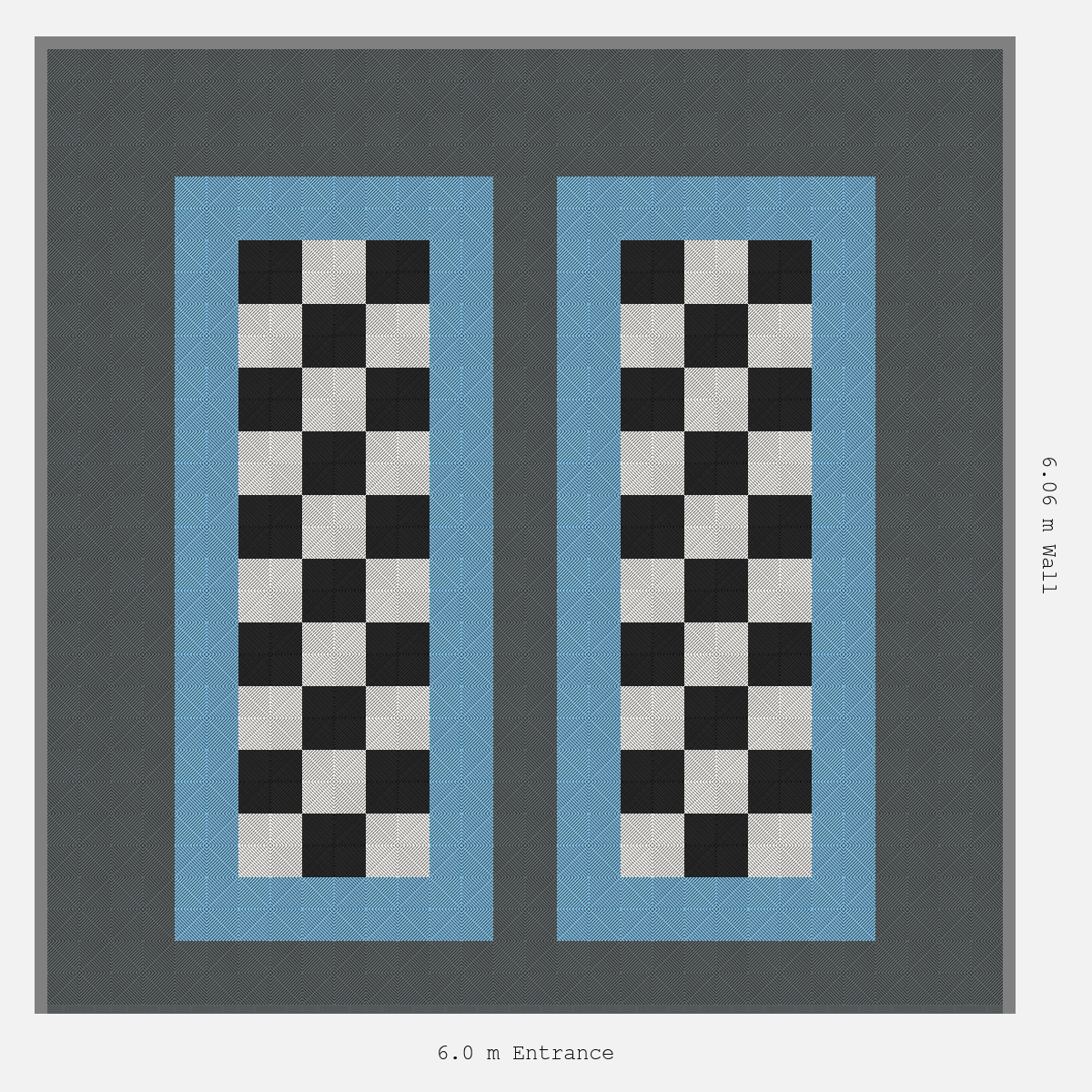

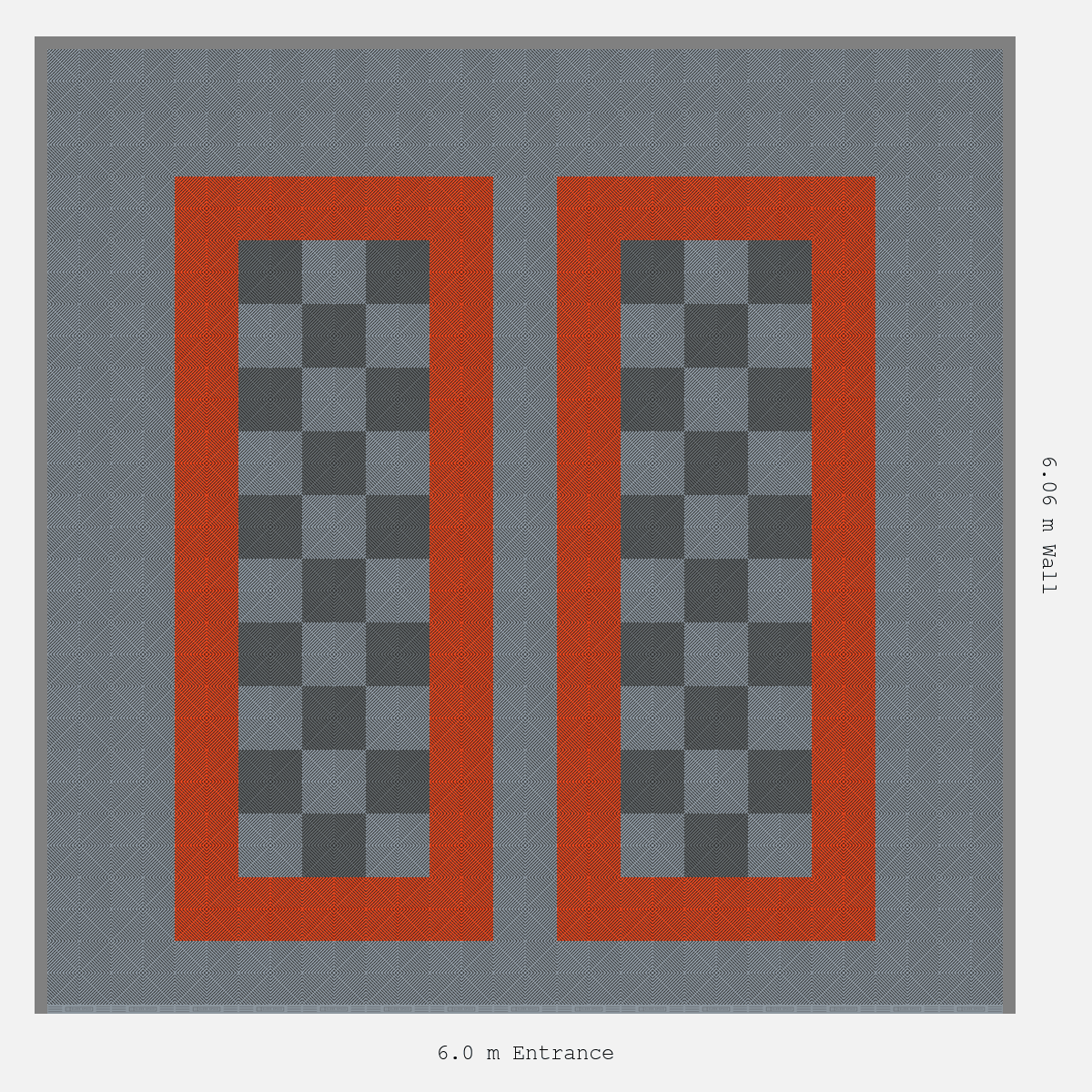

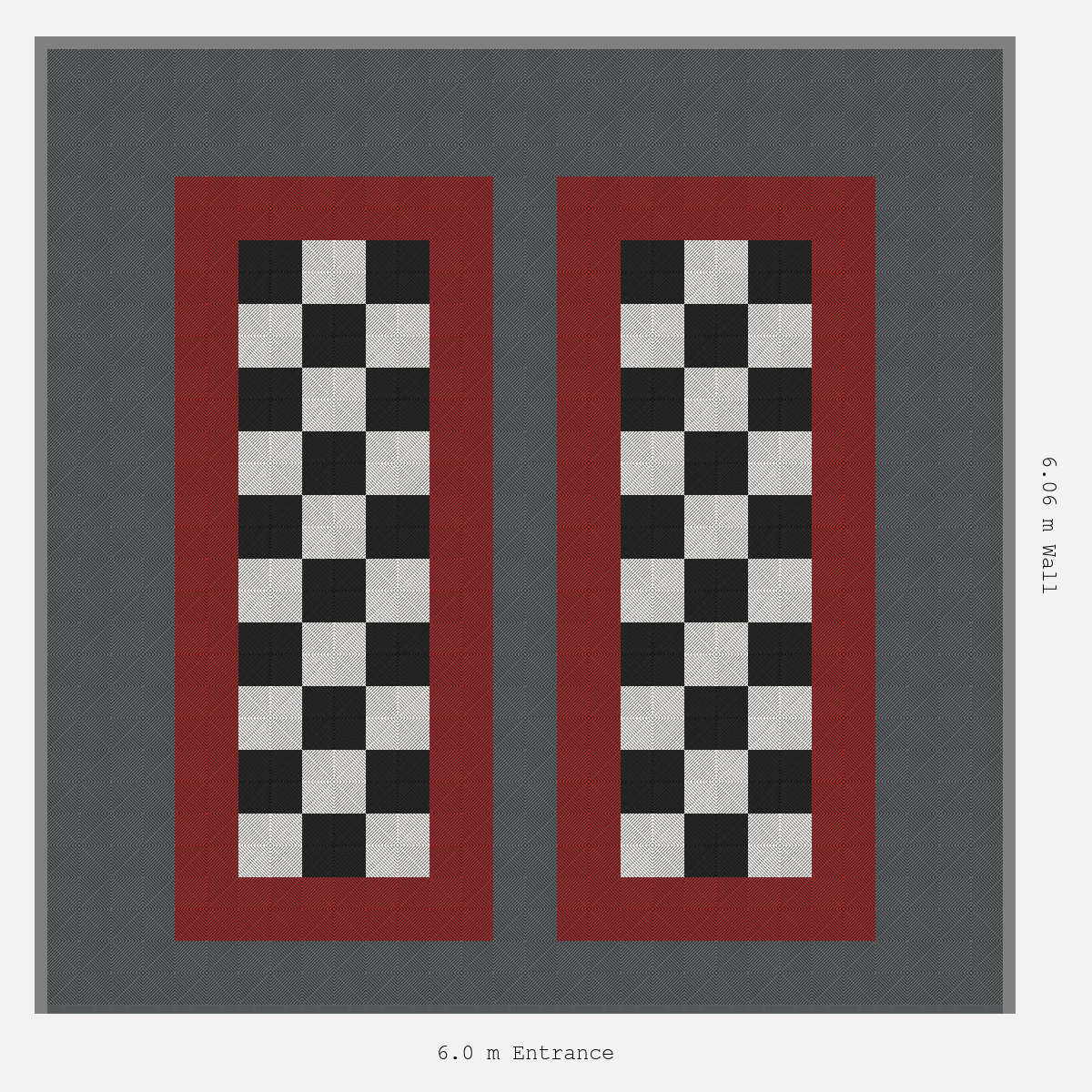

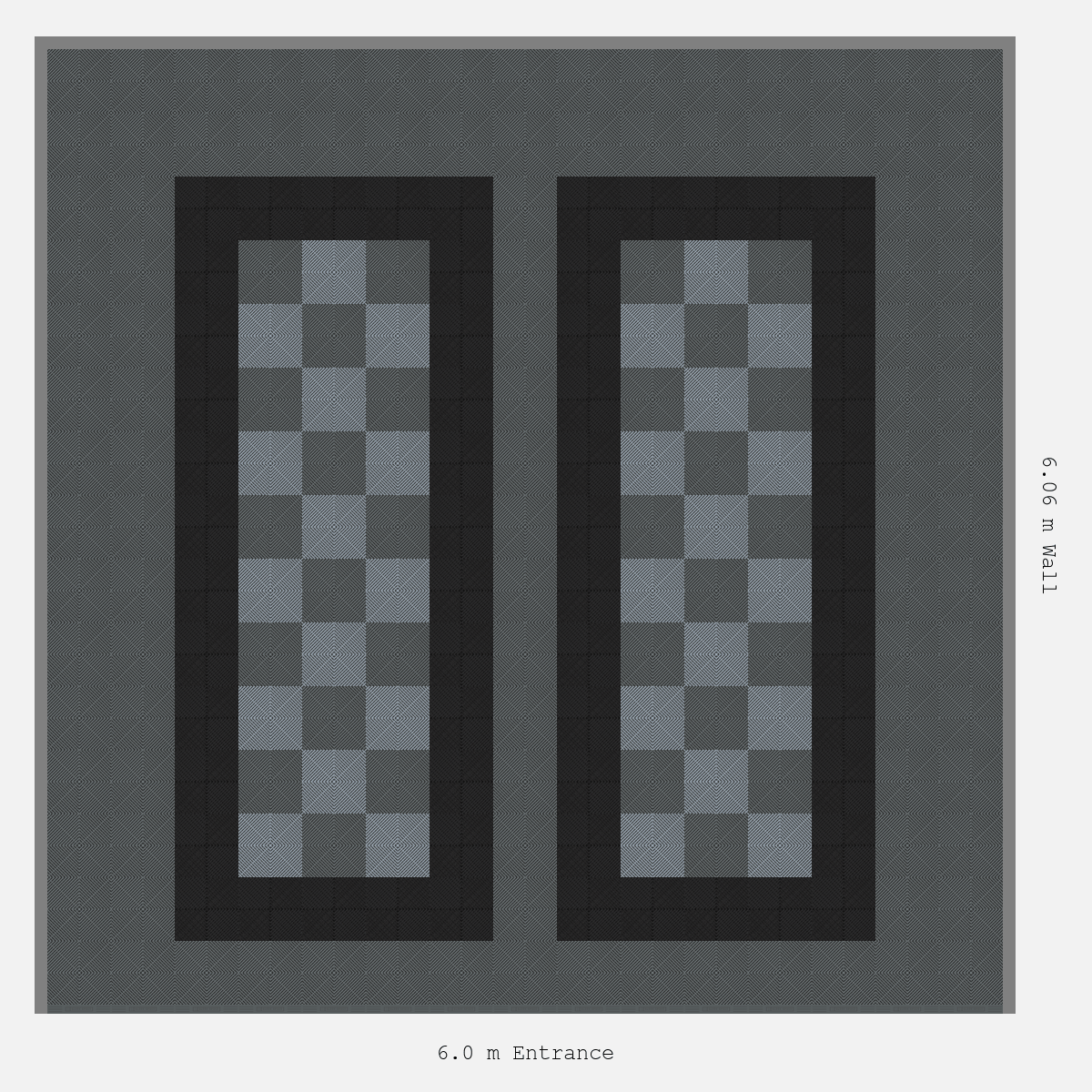

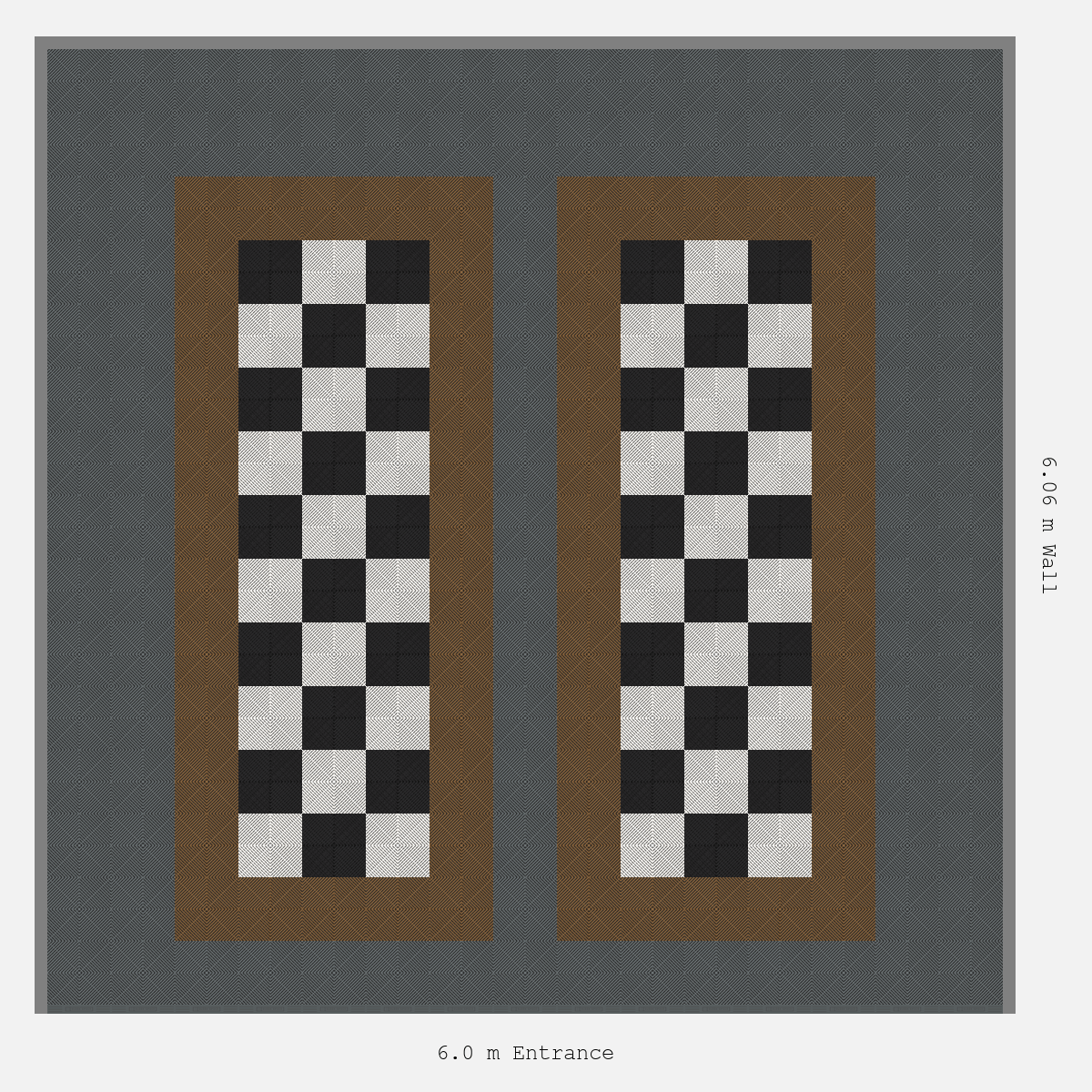

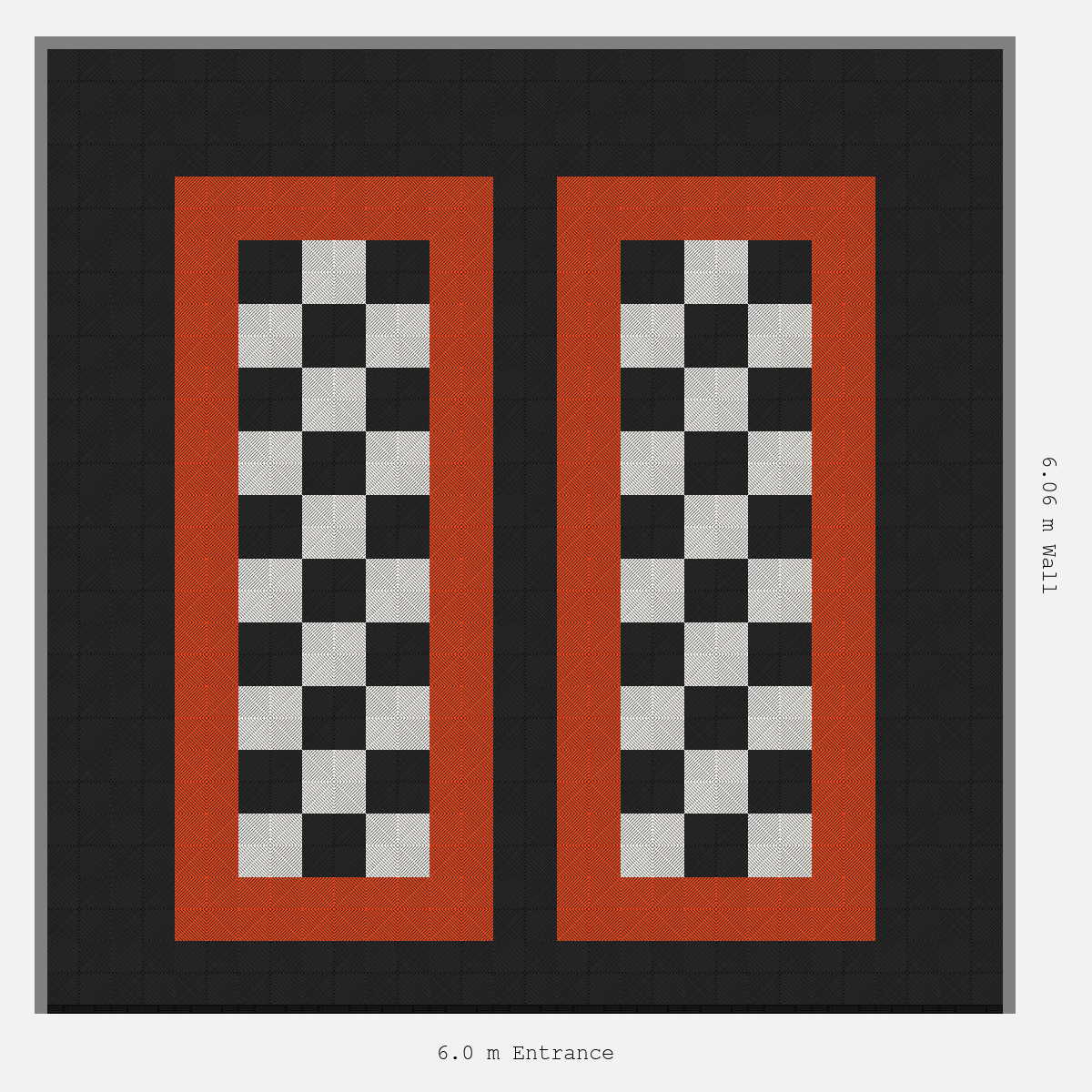

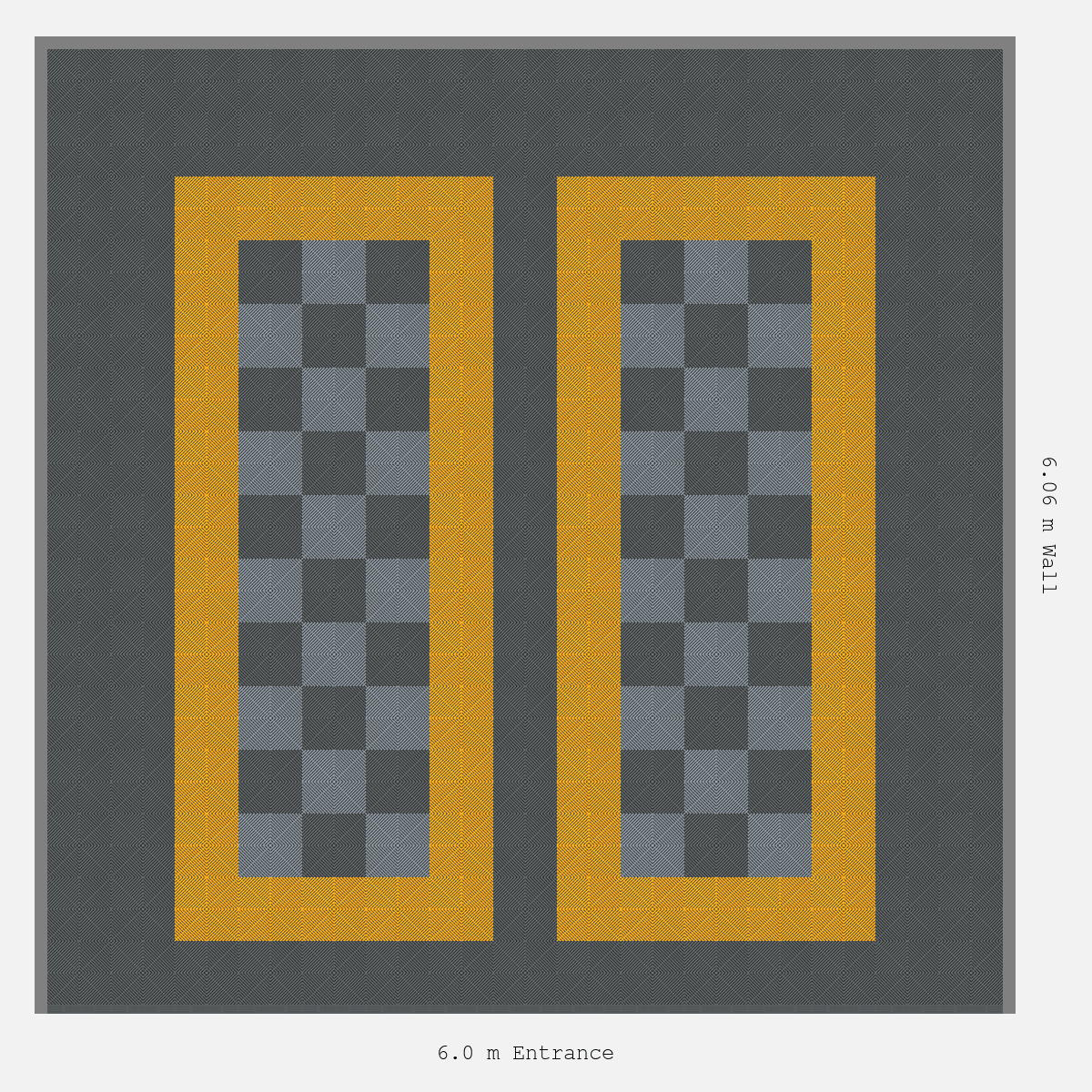

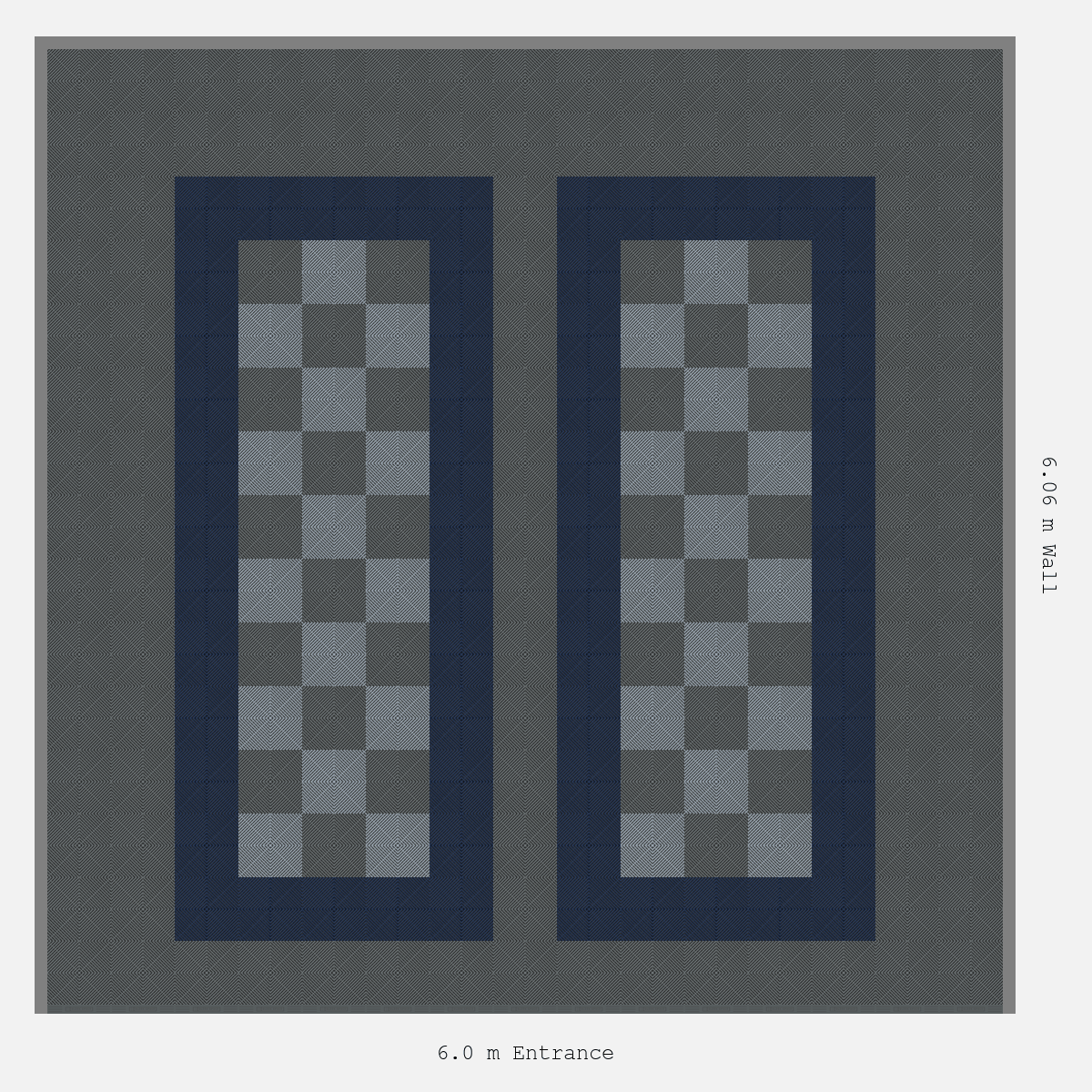

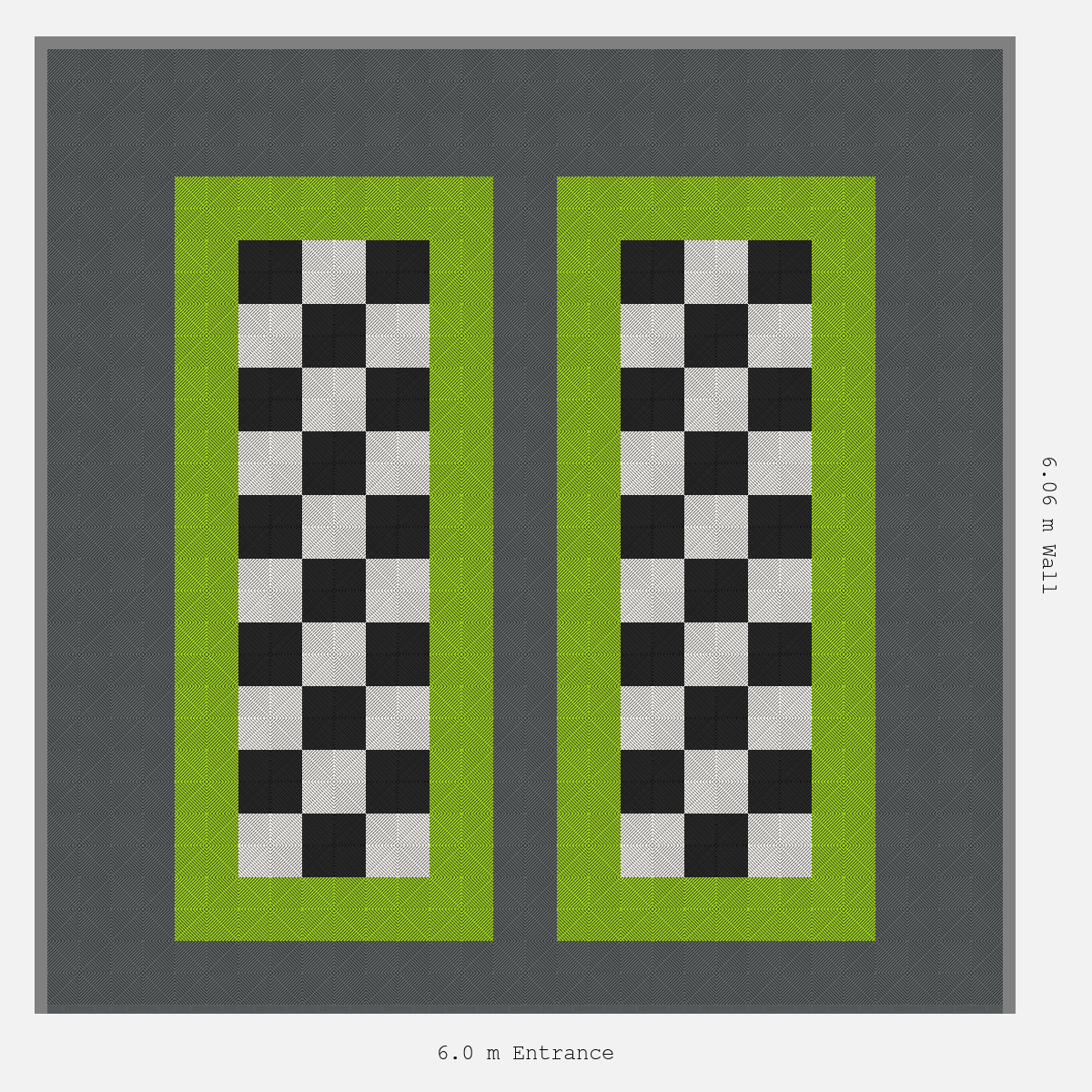

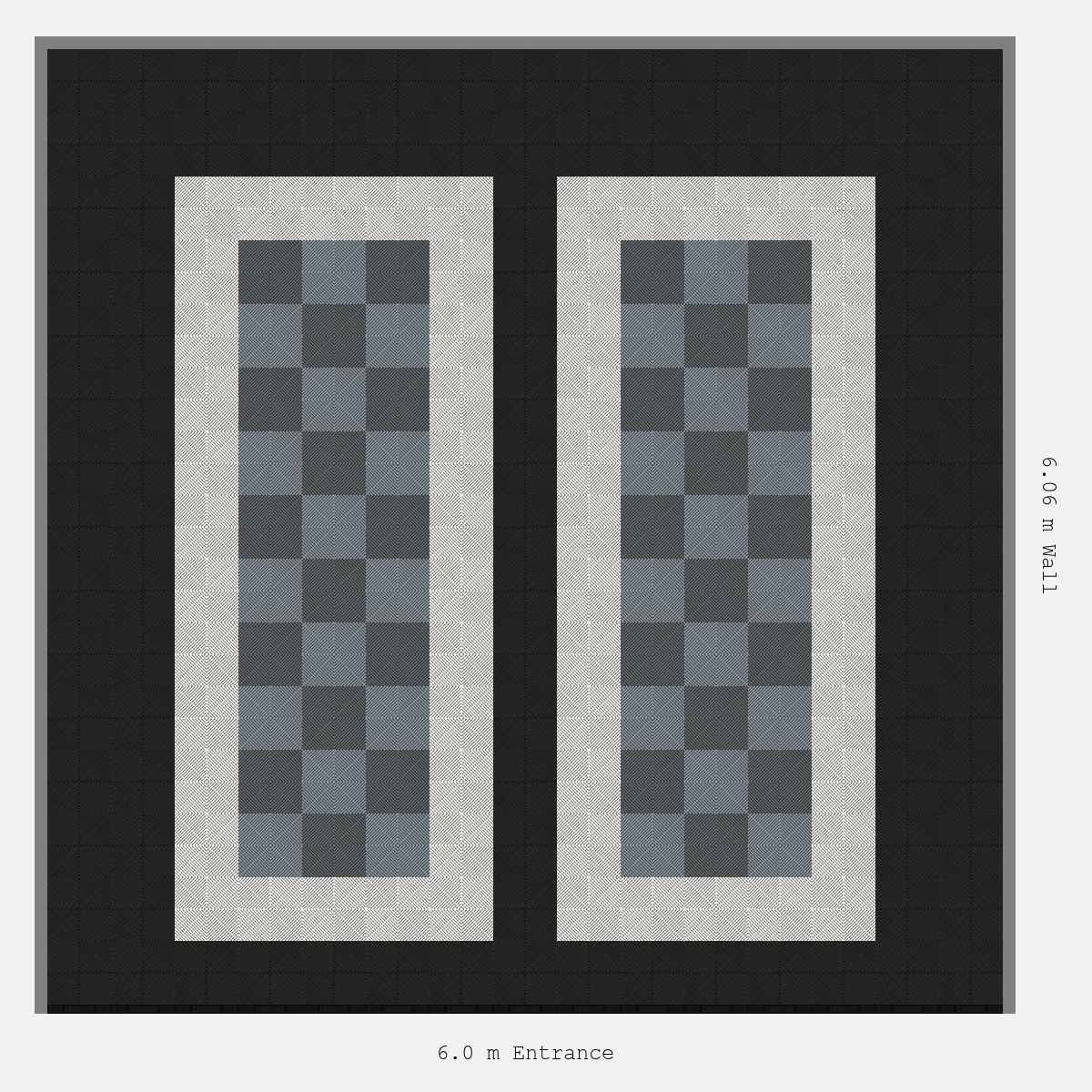

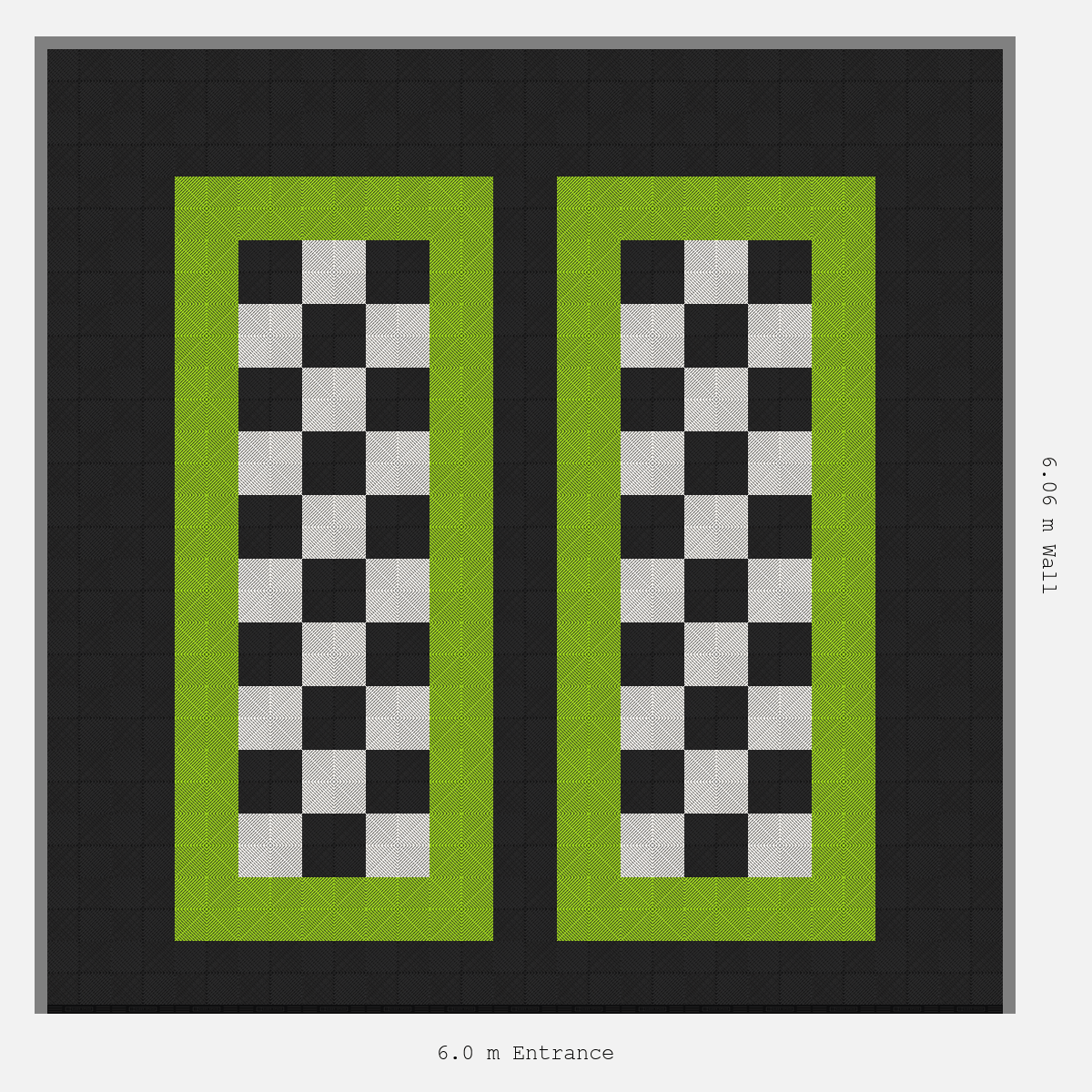

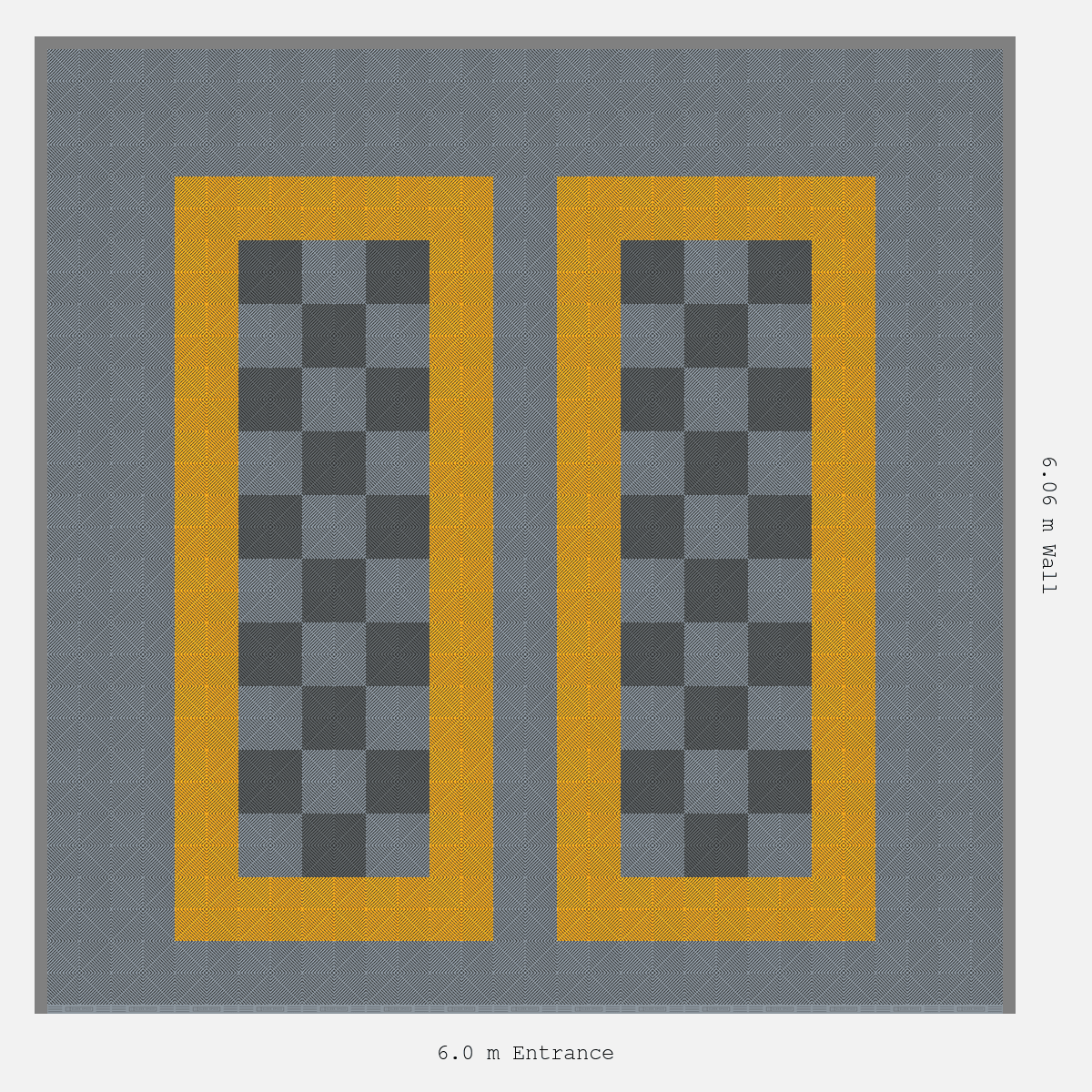

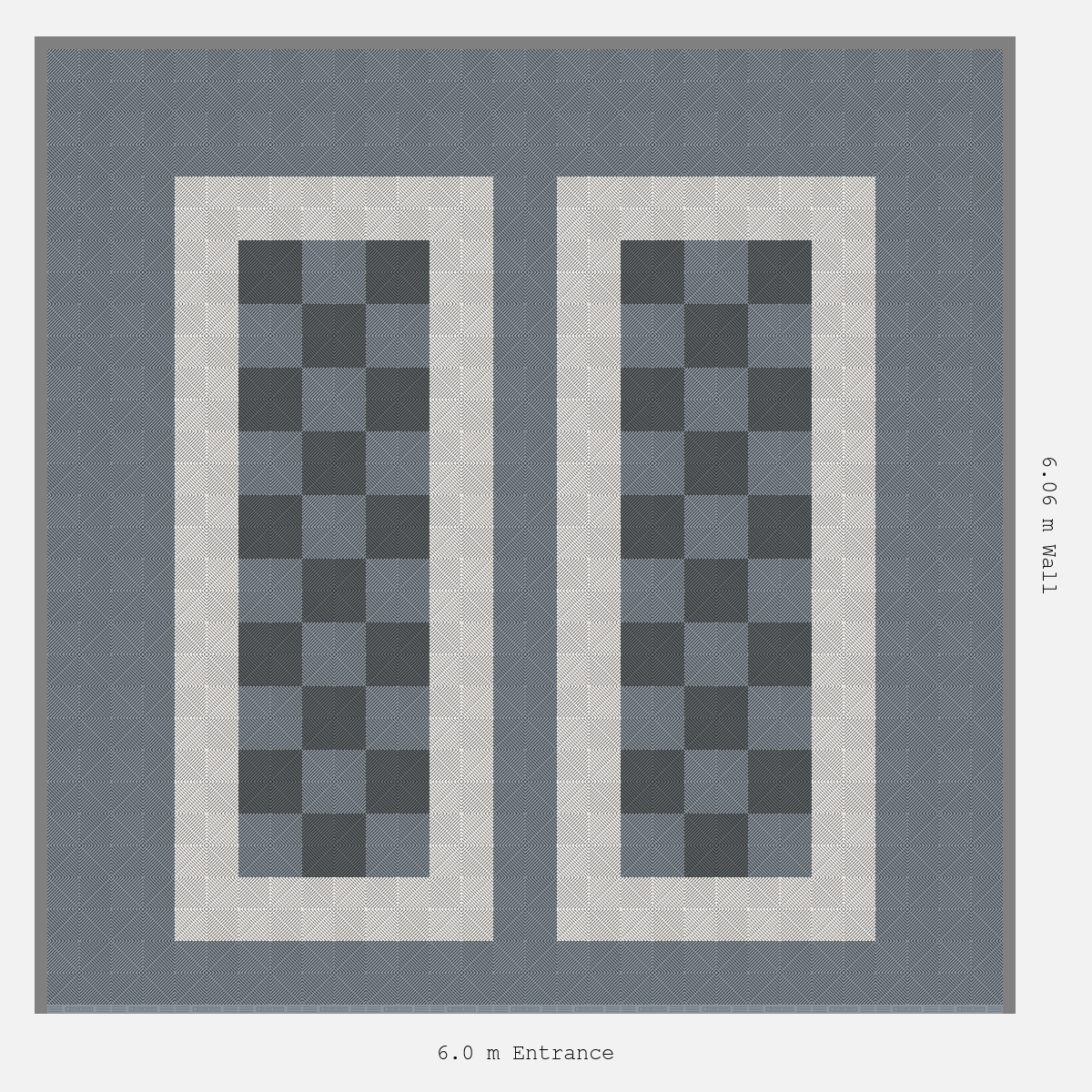

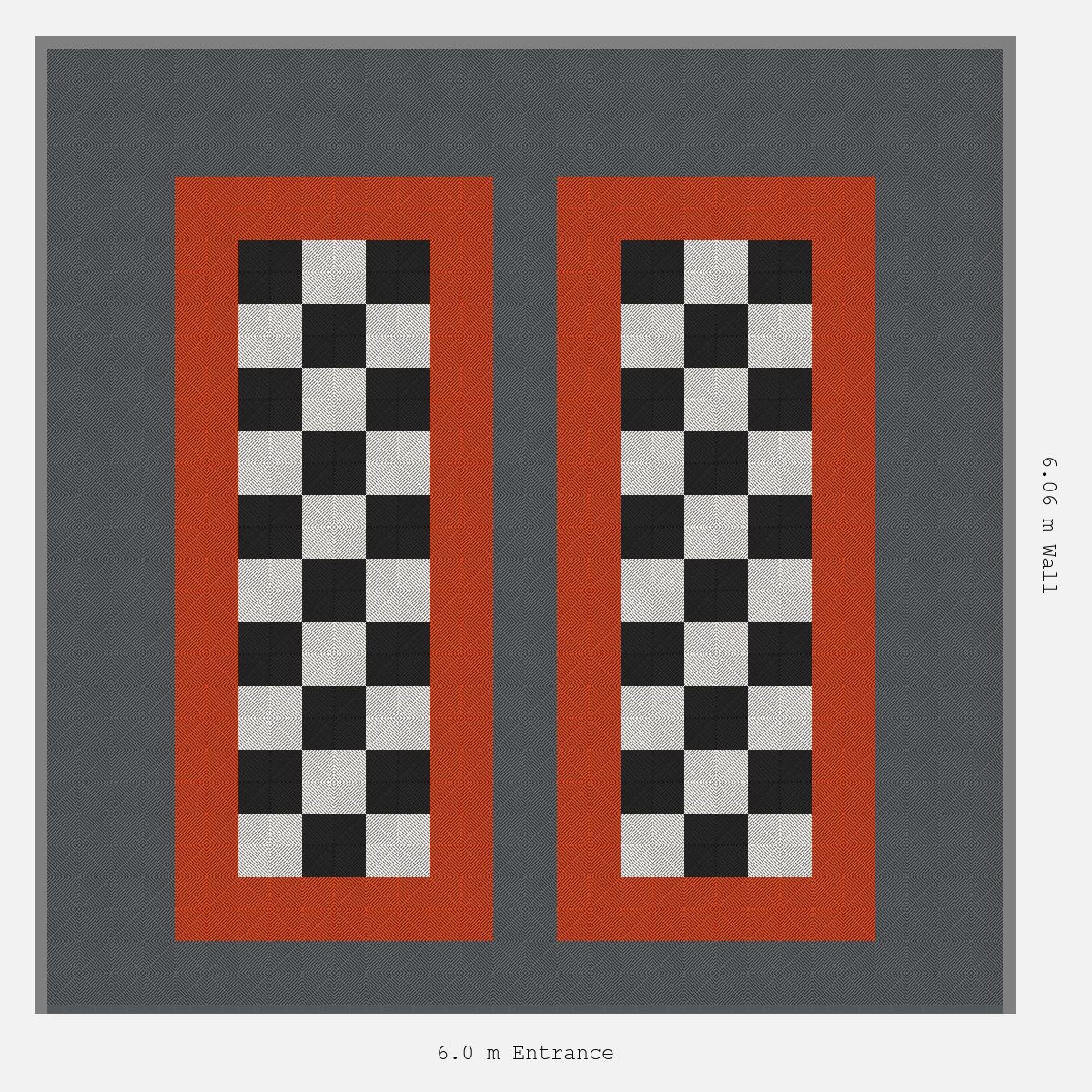

Parking Bay Chequer Infill layout on ULTRAGRID™ open-rib ventilated tiles. 240 tiles + 16 ULTRAEDGE ramps included. Details

Base
Outline
Infill
Recommended By →
Aussie Garage Dadz Garage BadQ Garage Outlaw Garage Heath's Garage It's In The Detail
View full details

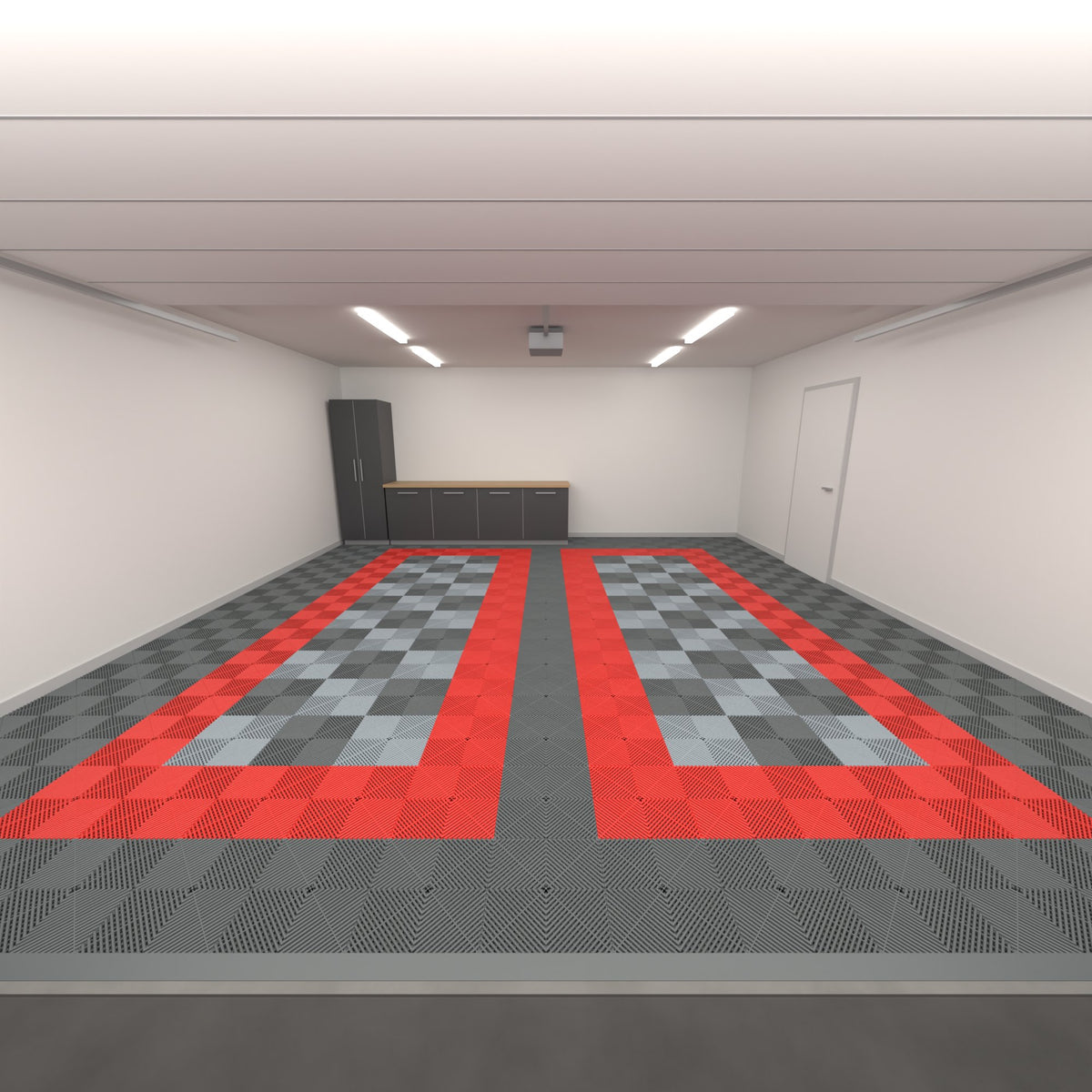

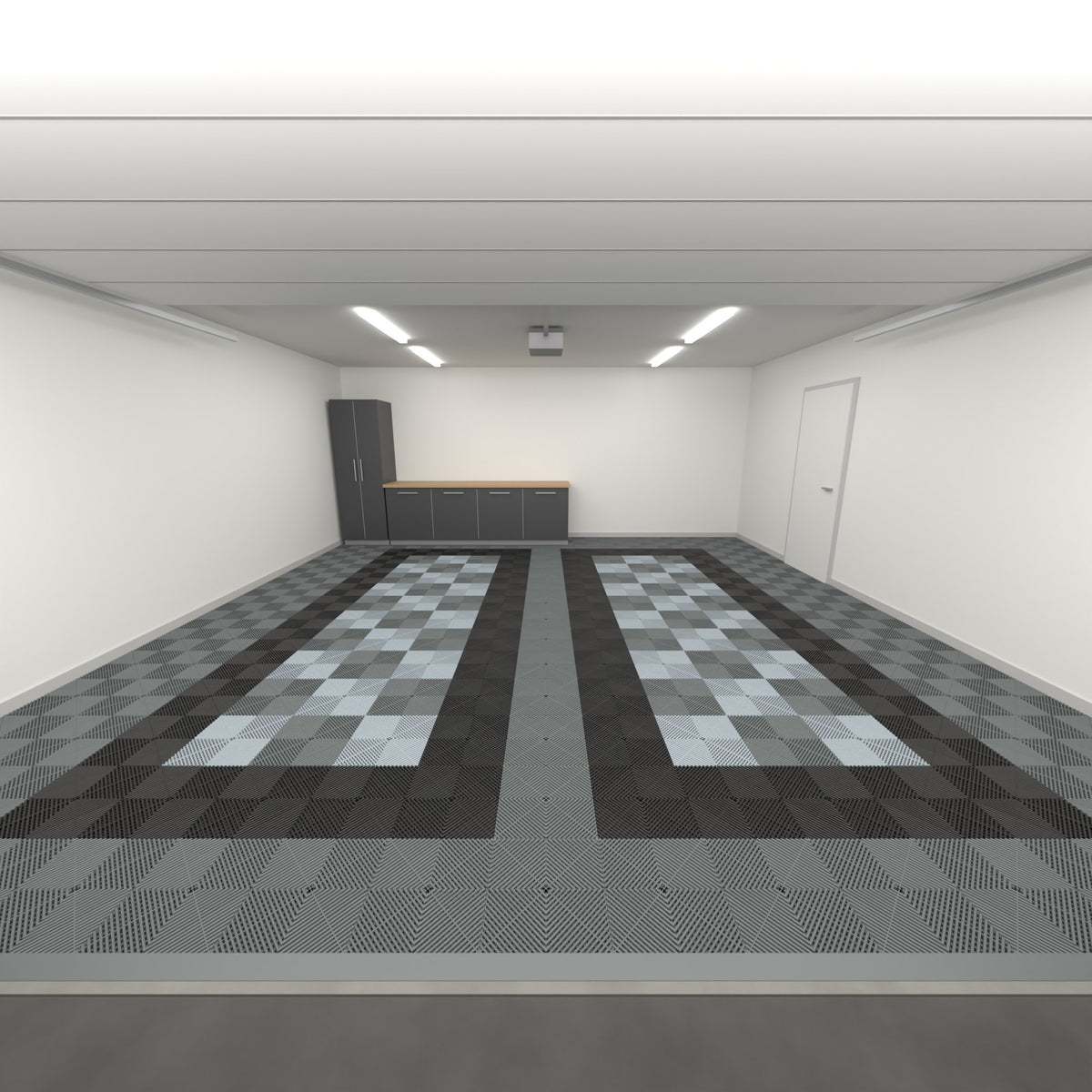

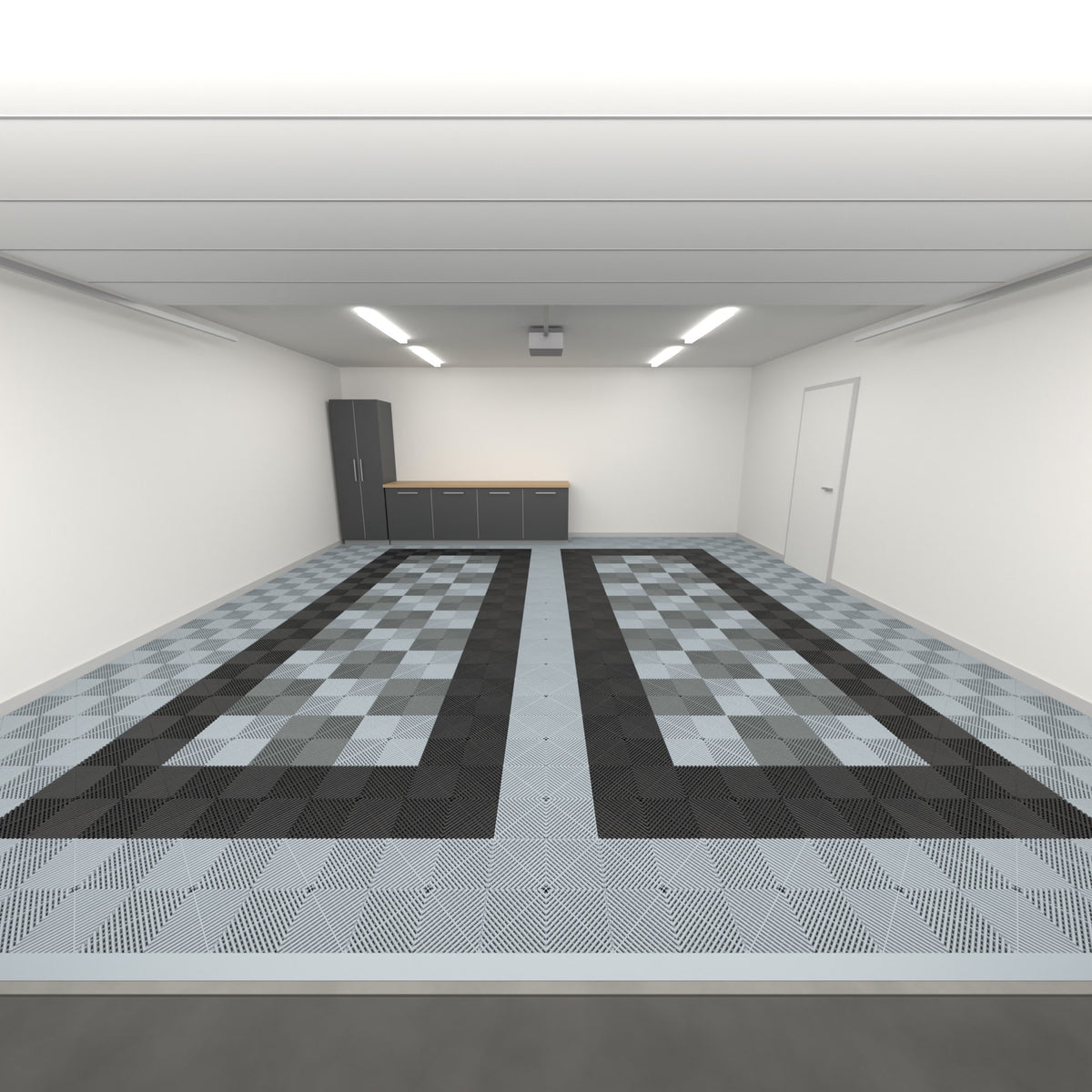

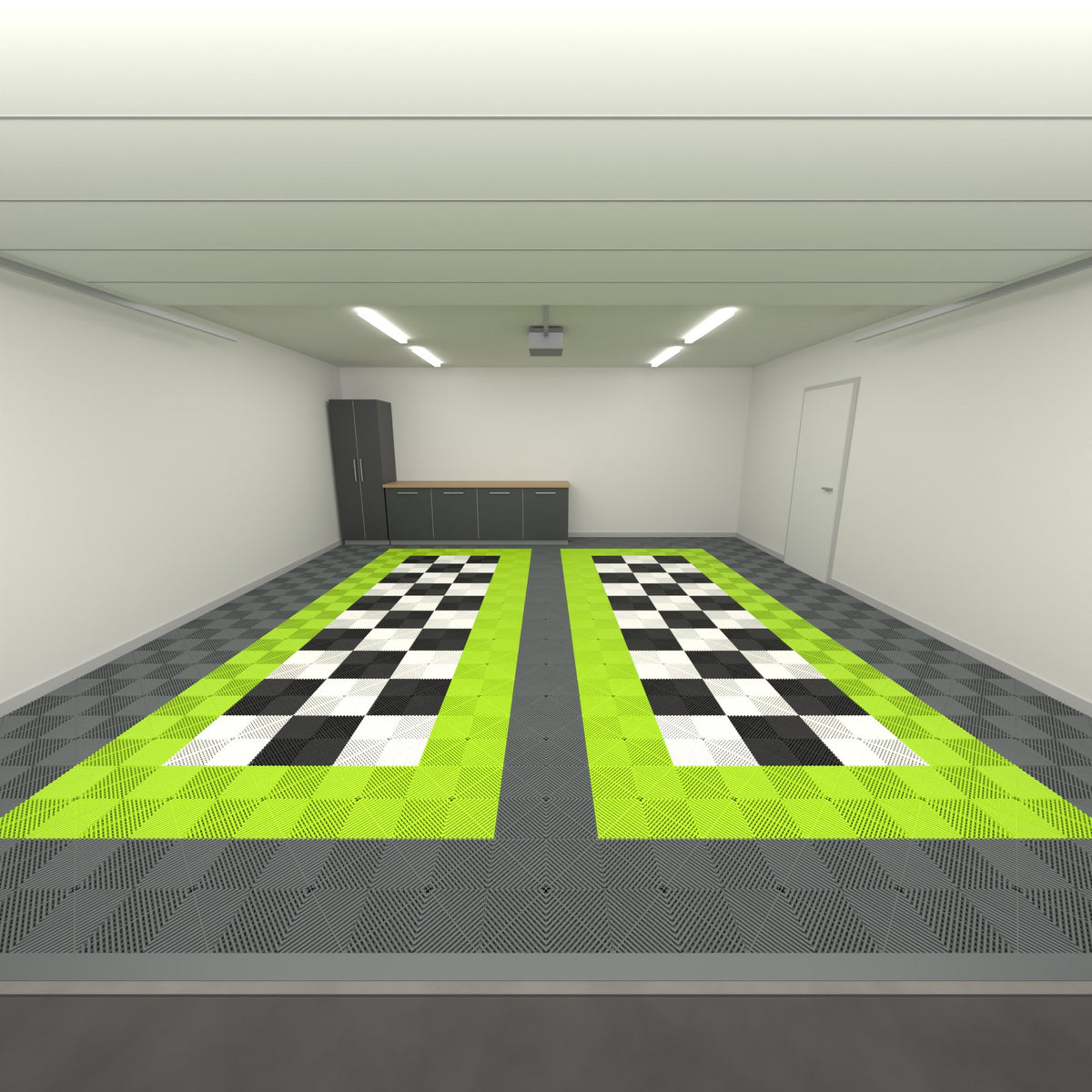

Transform your double garage with the ULTRAGRID™ Parking Bay Chequer Infill Floor Kit — a durable modular floor covering 36 m² (6 × 6 m). Each kit contains 240 tiles (225 floor tiles plus 15 spares) and 16 ULTRAEDGE ramps for a complete, drive-on-ready result.

  • Complete kit — covers 36 m² with 240 ULTRAGRID™ tiles (including 15 spares) and 16 ULTRAEDGE ramps.
  • Parking Bay Chequer Infill — defined vehicle bays in solid ULTRAGRID™ colour, with a bold chequered field around them.
  • Raised rib ventilation — the ULTRAGRID™ surface channels water through its open-rib grid for continuous sub-floor airflow.
  • Low maintenance — the ULTRAGRID™ surface drains moisture through top and side channels. Sweep, vacuum, or pressure wash as needed.
  • 20t/m² load rating — every square metre of your ULTRAGRID™ Parking Bay Chequer Infill floor supports vehicles, jacks, and heavy equipment.
  • Full DIY install — the ULTRAGRID™ snap-lock system connects tiles by hand pressure alone. Finish a double garage in 4–6 hours.
  • Colour-stable and chemical-proof — UV-stabilised ULTRAGRID™ pigment holds true under prolonged sun. Oil, fuel, and brake fluid cause no damage.
  • Relocatable investment — every ULTRAGRID™ tile lifts out and travels with you. Damage one? Replace that single tile, not the whole floor.

Tested & Recommended by Aussies

Aussie Garage – YouTube cover

Phil from Aussie Garage Lays ULTRAGRID

Phil walks you through his ULTRAGRID™ DIY install in black, blue, and gray—and shows how easy it really is.

Read article
Dadz Garage featuring Sleek Space interlocking floor tiles

Dadz Garage

Watch Dadz Garage transform a cluttered space into a sleek haven with Sleek Space ULTRAGRID™ flooring.

Read article
It's In The Detail garage with Sleek Space interlocking tiles

It's In The Detail

See how It’s In The Detail transformed a dull, lifeless garage into a sleek and vibrant space.

Read article
Aussie Garage transformation featuring Sleek Space interlocking floor tiles

Aussie Garage

Aussie Garage recently transformed their space with Sleek Space ULTRATUFF tiles. See how they did it.

Read article
View all articles

Technical Specifications

Design Layout Parking Bay Chequer Infill
Tile Range ULTRAGRID
Total Tiles 240 (225 floor + 15 spares)
Front Ramps 16 ULTRAEDGE ramps
Floor Coverage 36 m² (standard 6 × 6 m double garage)
Surface Type Open-rib ventilated
Tile Size 400 × 400 × 18 mm
Load Rating 20 tonnes / m²
Material 100% Virgin Polypropylene
Installation Snap-lock click system, no adhesive
Estimated Install Time 4–6 hours
Compatibility All ULTRA Series tiles interlock
Temperature Range -40°C to +120°C
UV Stability Yes — colour-stable outdoors
Chemical Resistance Oil, fuel, brake fluid, solvents
Typically three — one for each parking bay and two for the chequered infill — but you can use two colours if the bays match one of the chequer tones. Select your combination using the variant options.
Slightly more planning is involved compared to a plain infill, but the physical installation is the same. Once the layout is marked, the snap-lock assembly proceeds identically.
Yes. Because no adhesive is used, tiles can be lifted and rearranged at any time. Swap colours, adjust bay positions, or convert to a different layout entirely.
ULTRAEDGE ramps are available in a wide range of colours. Select a ramp colour that complements your floor design using the variant options on this page.

Installation Guide

What you'll need

  • Tape measure
  • Rubber mallet
  • Jigsaw (for edge cuts)
  • Marker or pencil
  • Broom

Time estimate

  • Single garage (20-25 sqm): 4-6 hours
  • Double garage (40-50 sqm): 6-10 hours
  • No curing time — drive on immediately

Installation steps

  1. 1

    Start from the entrance

    Begin laying tiles at the garage door corner. Leave a 5–10mm expansion gap at all walls.

  2. 2

    Lay the first row

    Complete your first row across the garage, clicking tiles together. The interlocking pegs and loops do the work.

  3. 3

    Fit entrance ramps

    Attach ramp trims to the first row and slide the row snug against the garage door.

  4. 4

    Centre your design (optional)

    If your design has a centred pattern, adjust the first row to leave equal gaps on both sides.

  5. 5

    Lay remaining tiles

    Continue laying rows towards the back and side walls, clicking each tile into the previous one.

  6. 6

    Trim edges and finish

    Cut edge tiles with a jigsaw, click them in, and your floor is ready to use immediately — no curing time.
