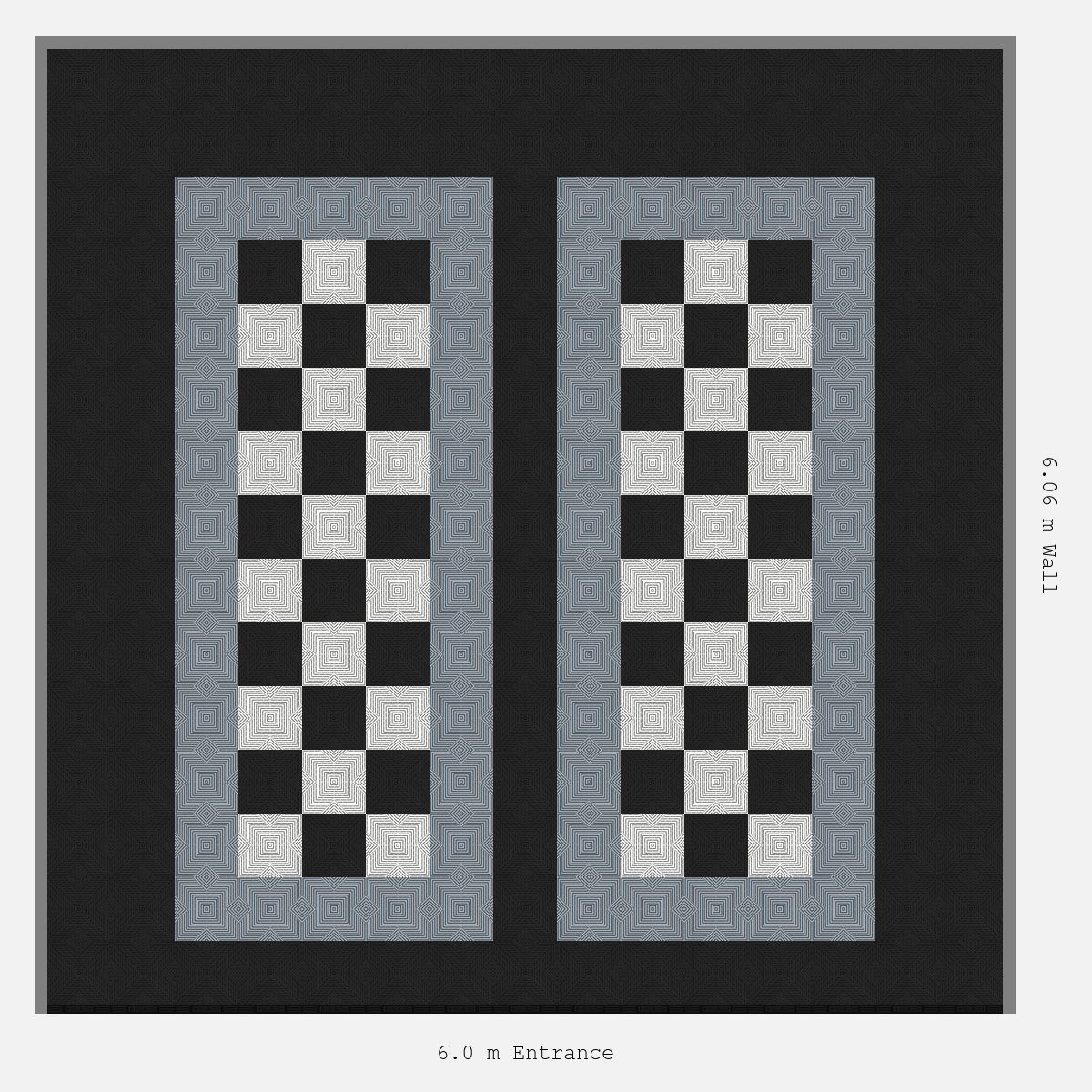

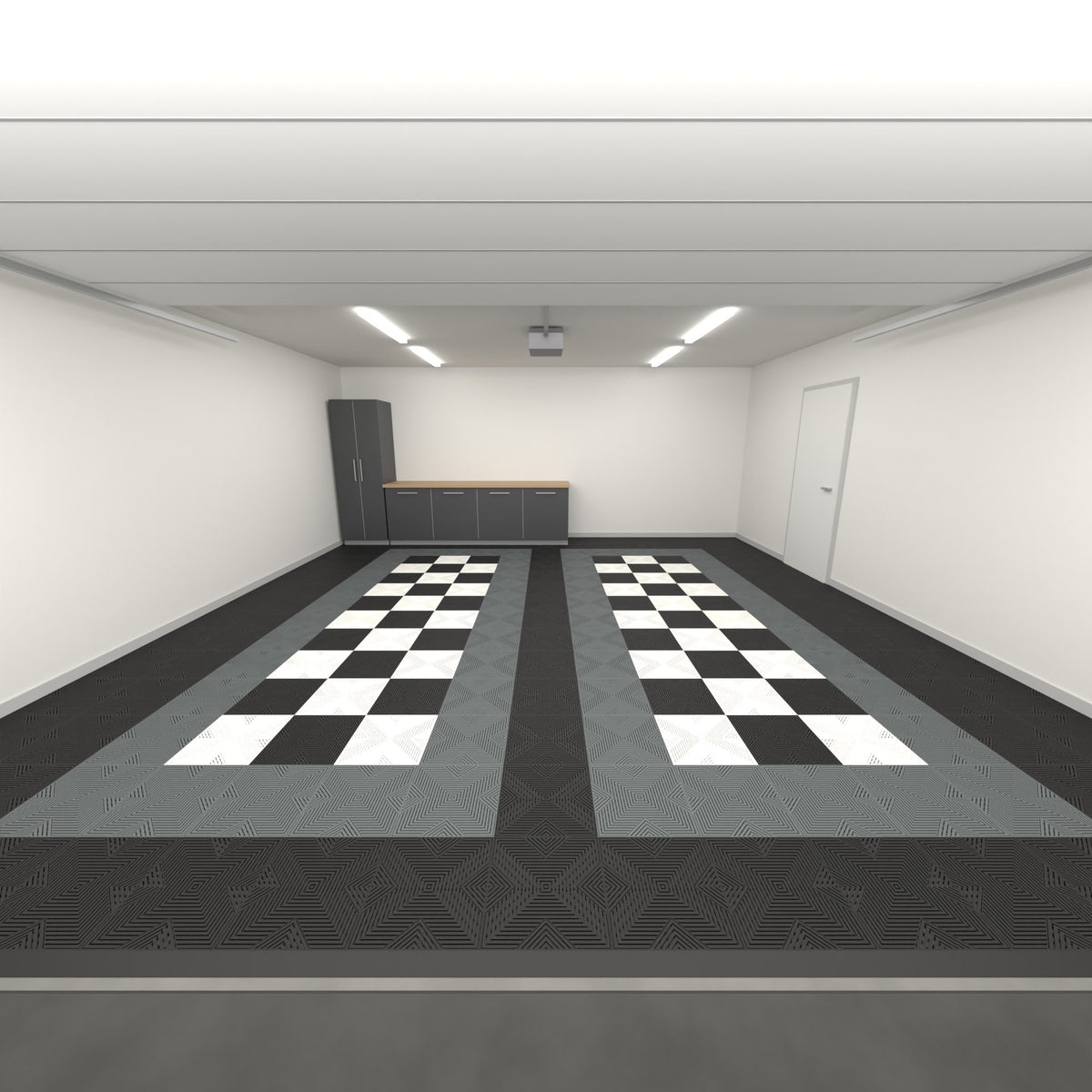

• ULTRACORE parking bay layout in Space Grey and Jet Black and Alpine White
    Package
1 1

ULTRACORE Double Garage Floor Kit, Parking Bay Chequer Infill

ULTRACORE Double Garage Floor Kit, Parking Bay Chequer Infill

In stock - ready to ship
$1,749
$2,100 $1,749
Save $351
Taxes included. Shipping calculated at checkout.

ULTRACORE™ Parking Bay Chequer Infill garage floor kit. 240 modular tiles + 16 ULTRAEDGE ramps included. Details

Base
Outline
Infill
Recommended By →
Aussie Garage Dadz Garage BadQ Garage Outlaw Garage Heath's Garage It's In The Detail
View full details

The ULTRACORE™ Parking Bay Chequer Infill Kit is a durable modular floor for a full 6 × 6 m double garage. Every kit ships with 240 versatile tiles (225 for the floor plus 15 spares) and 16 ULTRAEDGE ramps, ready to click together without adhesive.

  • Complete kit — covers 36 m² with 240 ULTRACORE™ tiles (including 15 spares) and 16 ULTRAEDGE ramps.

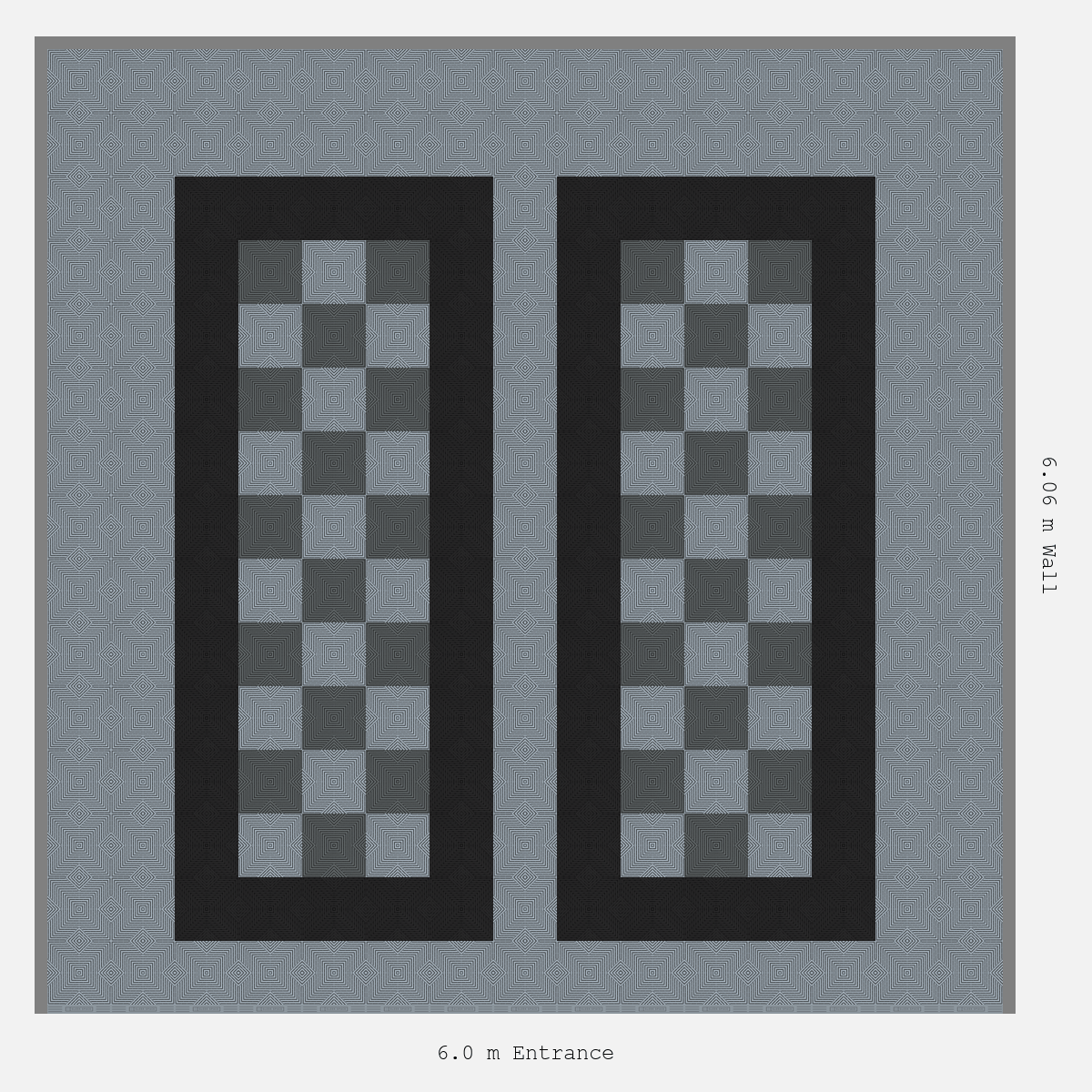

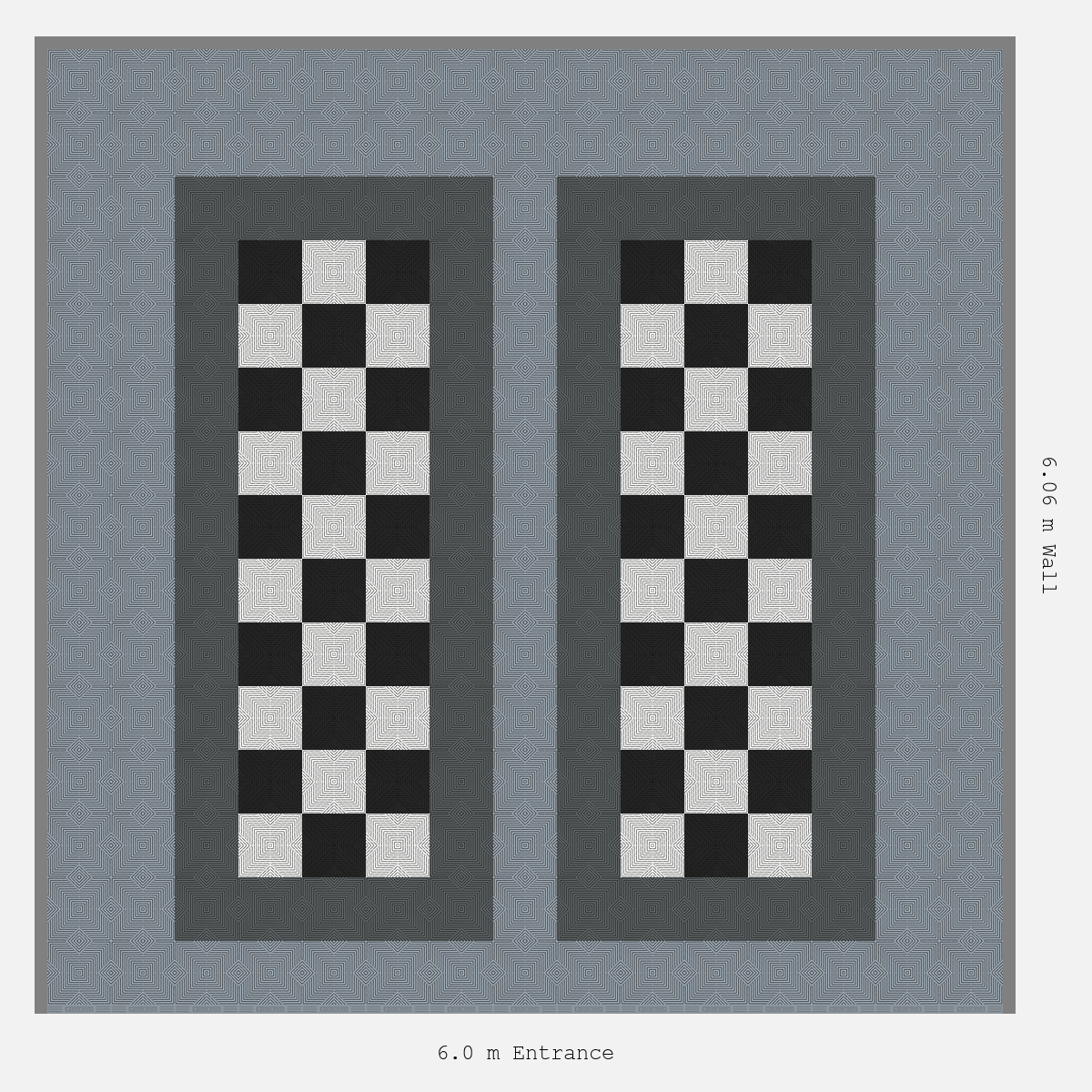

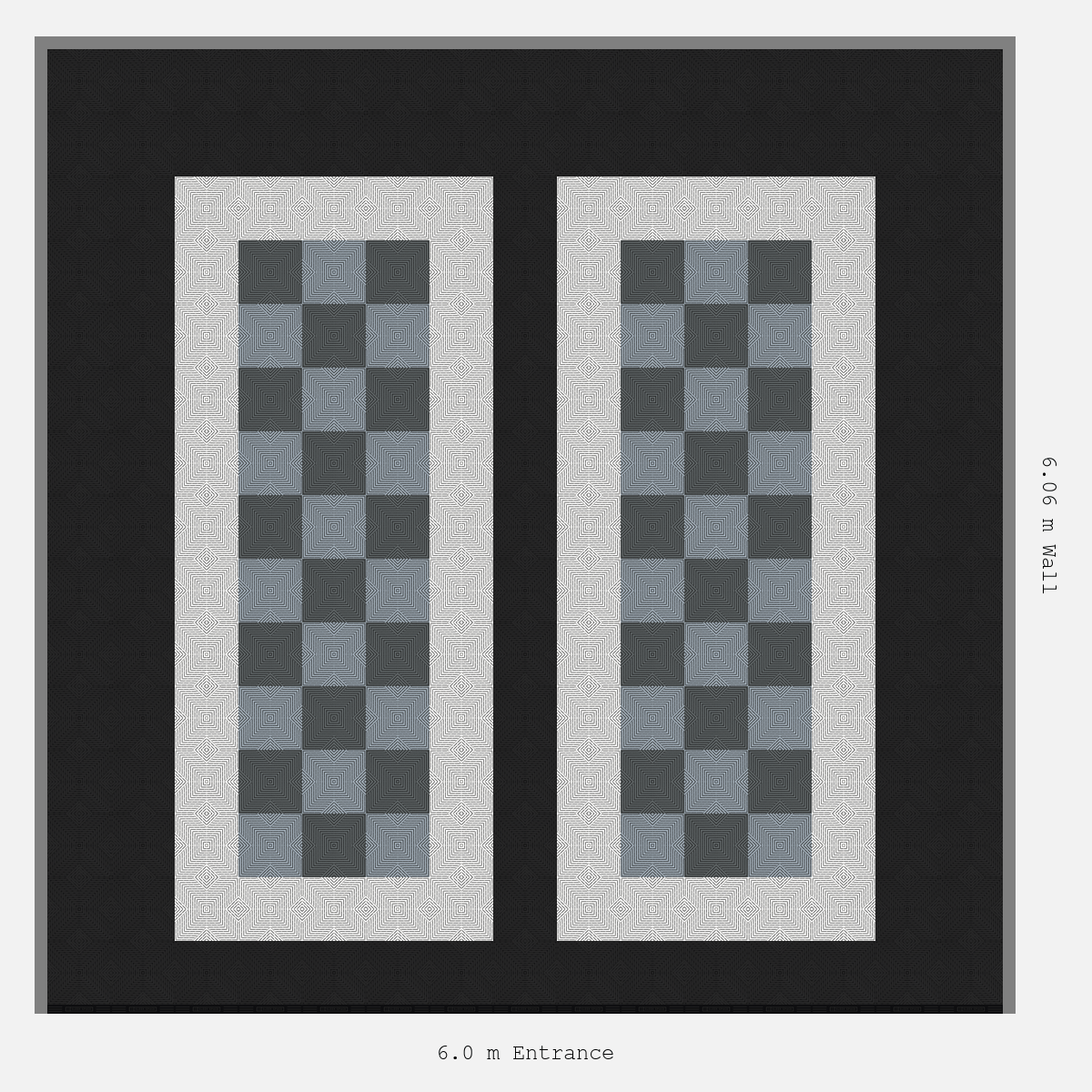

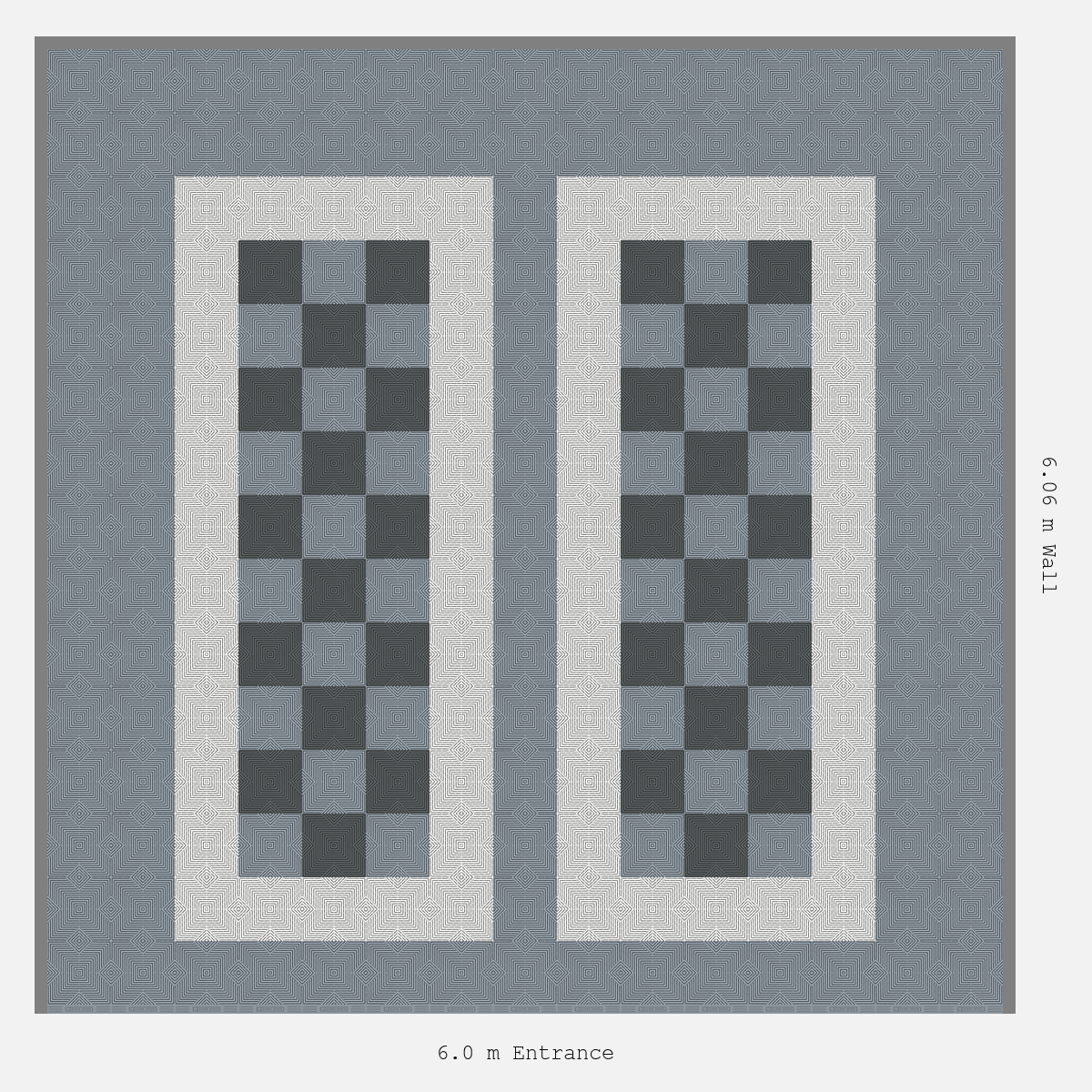

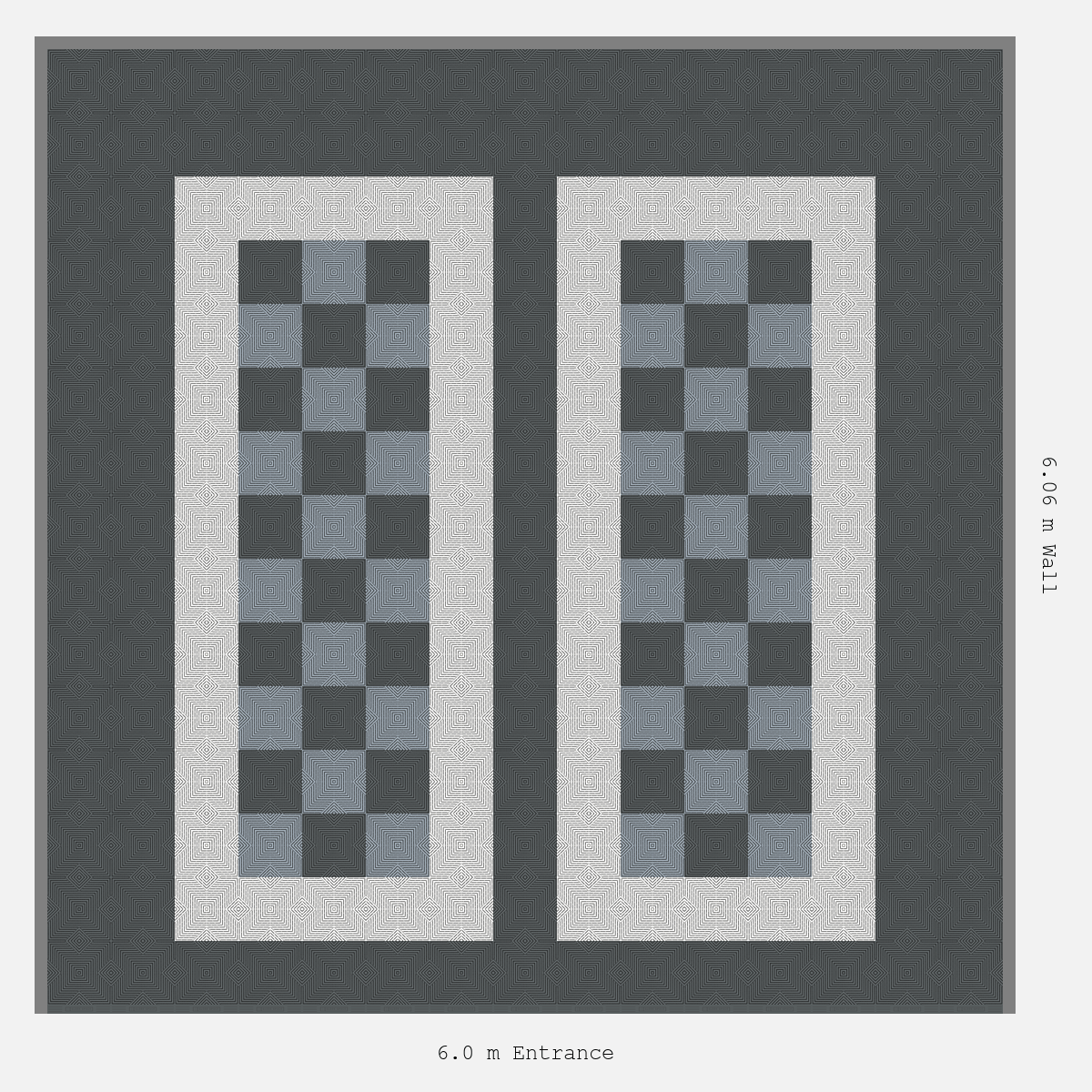

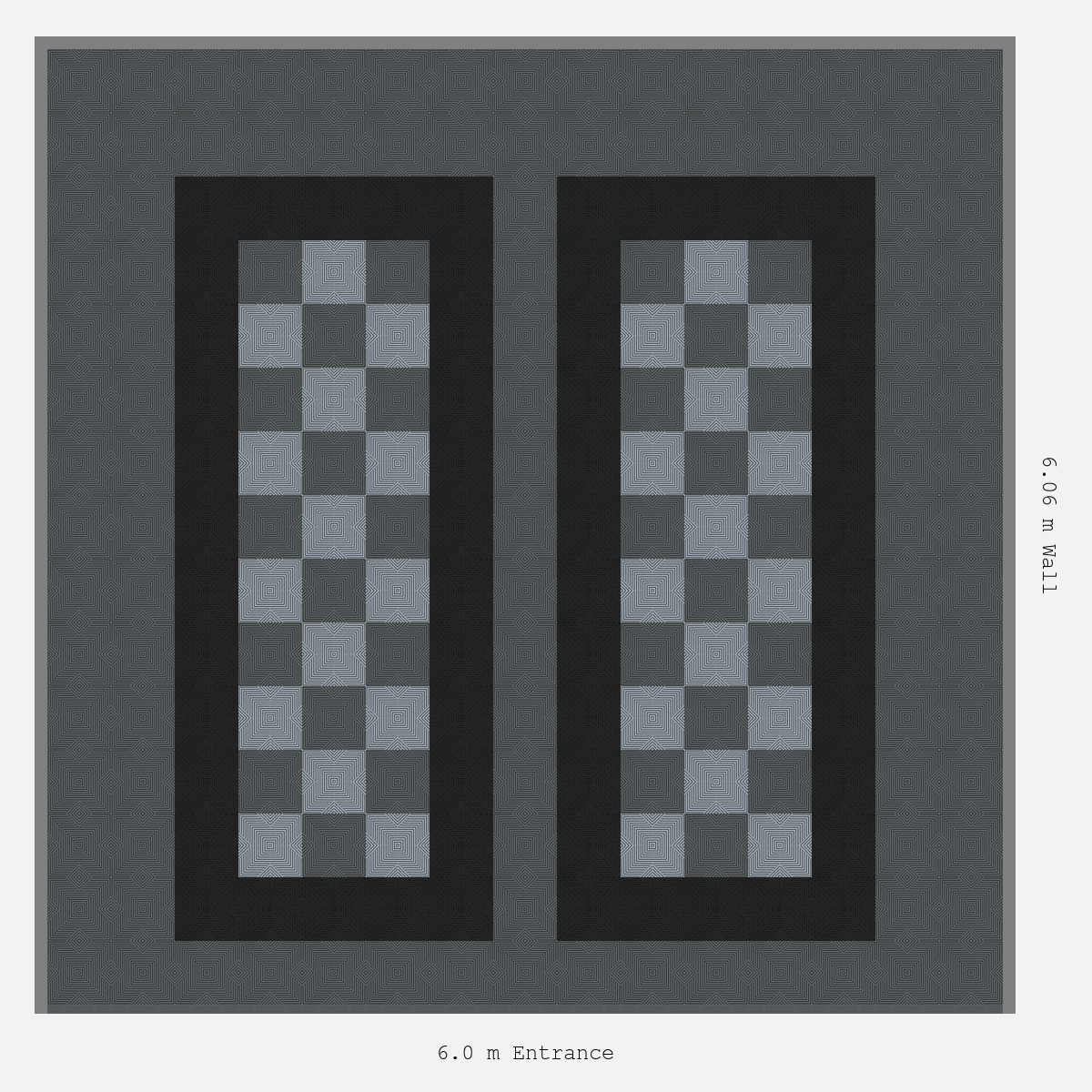

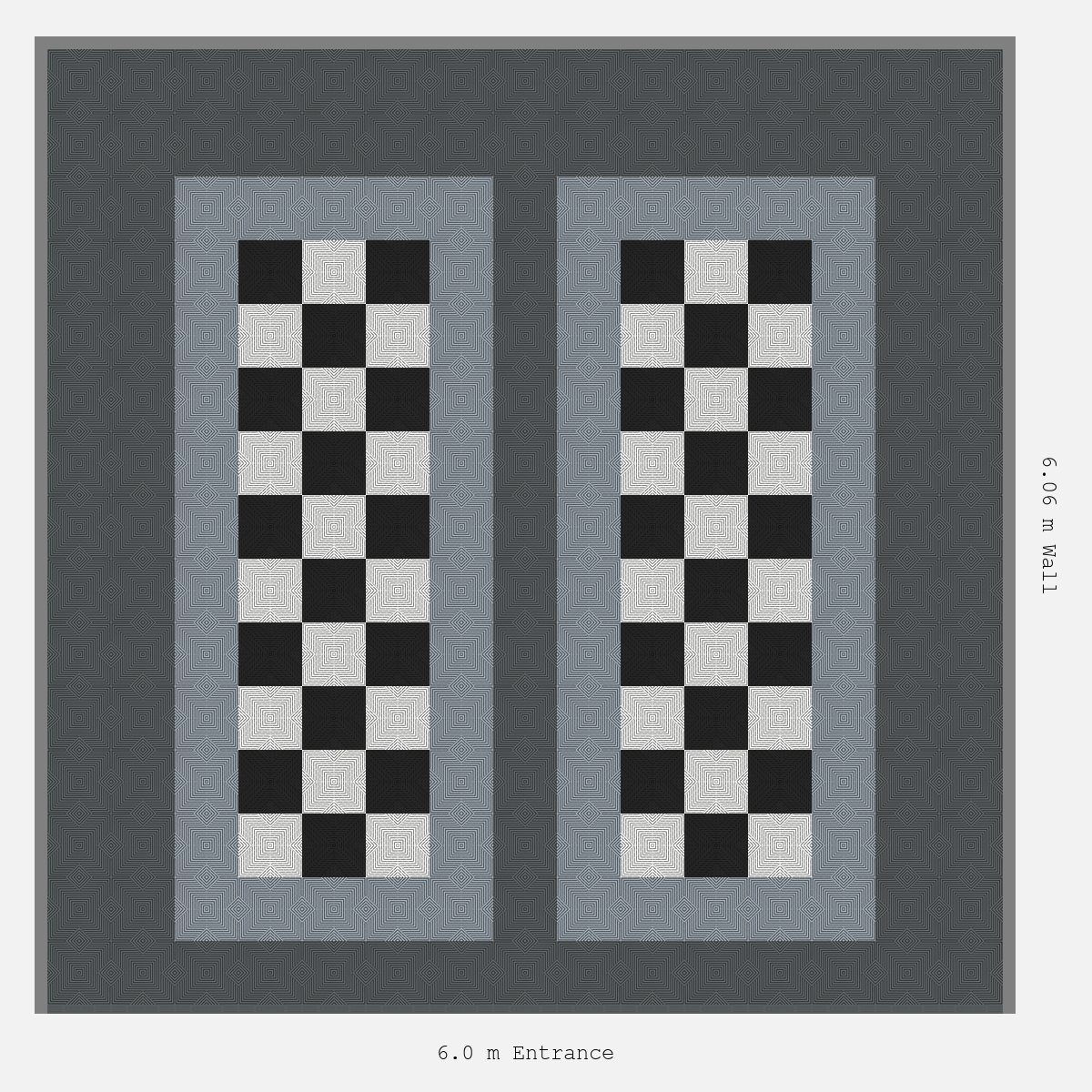

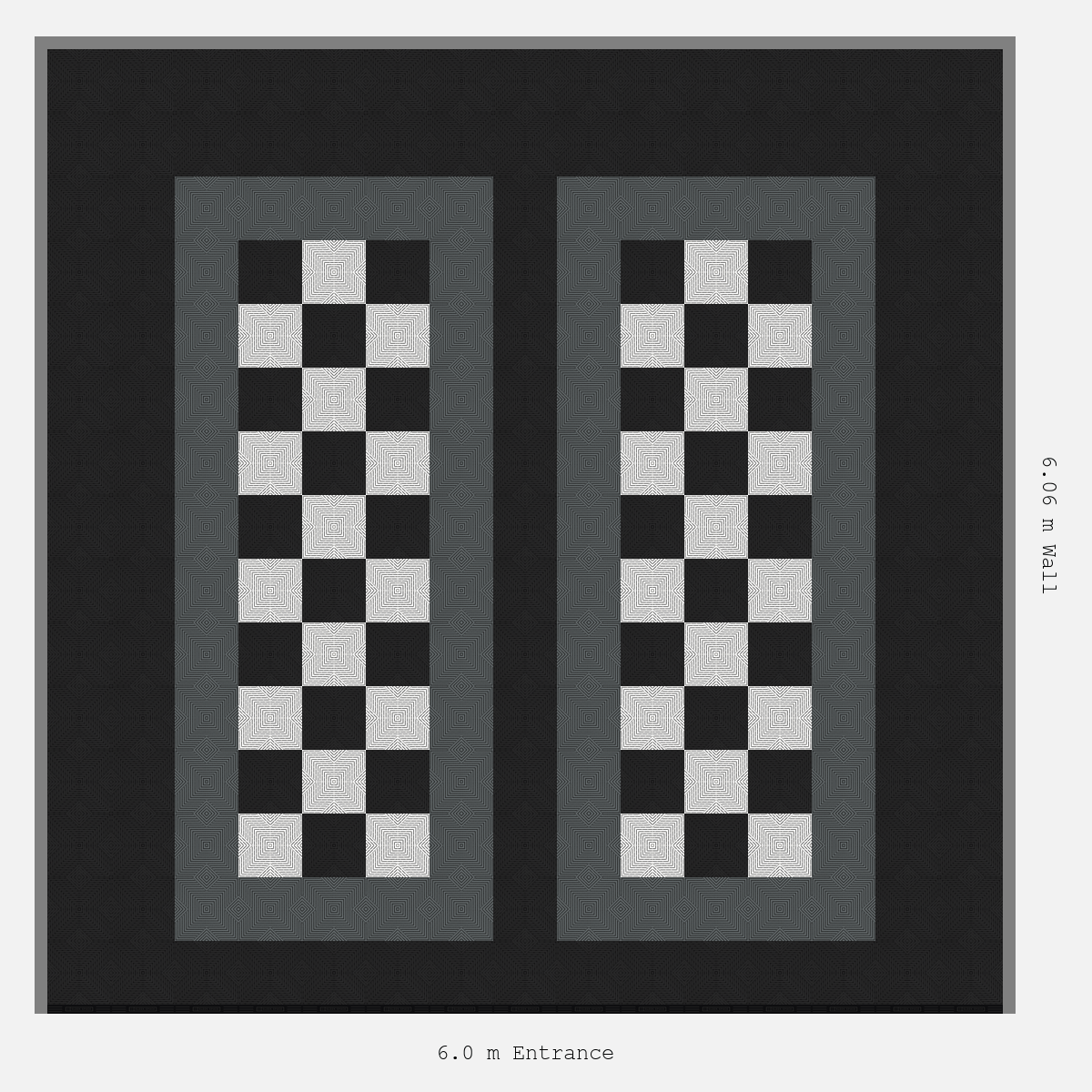

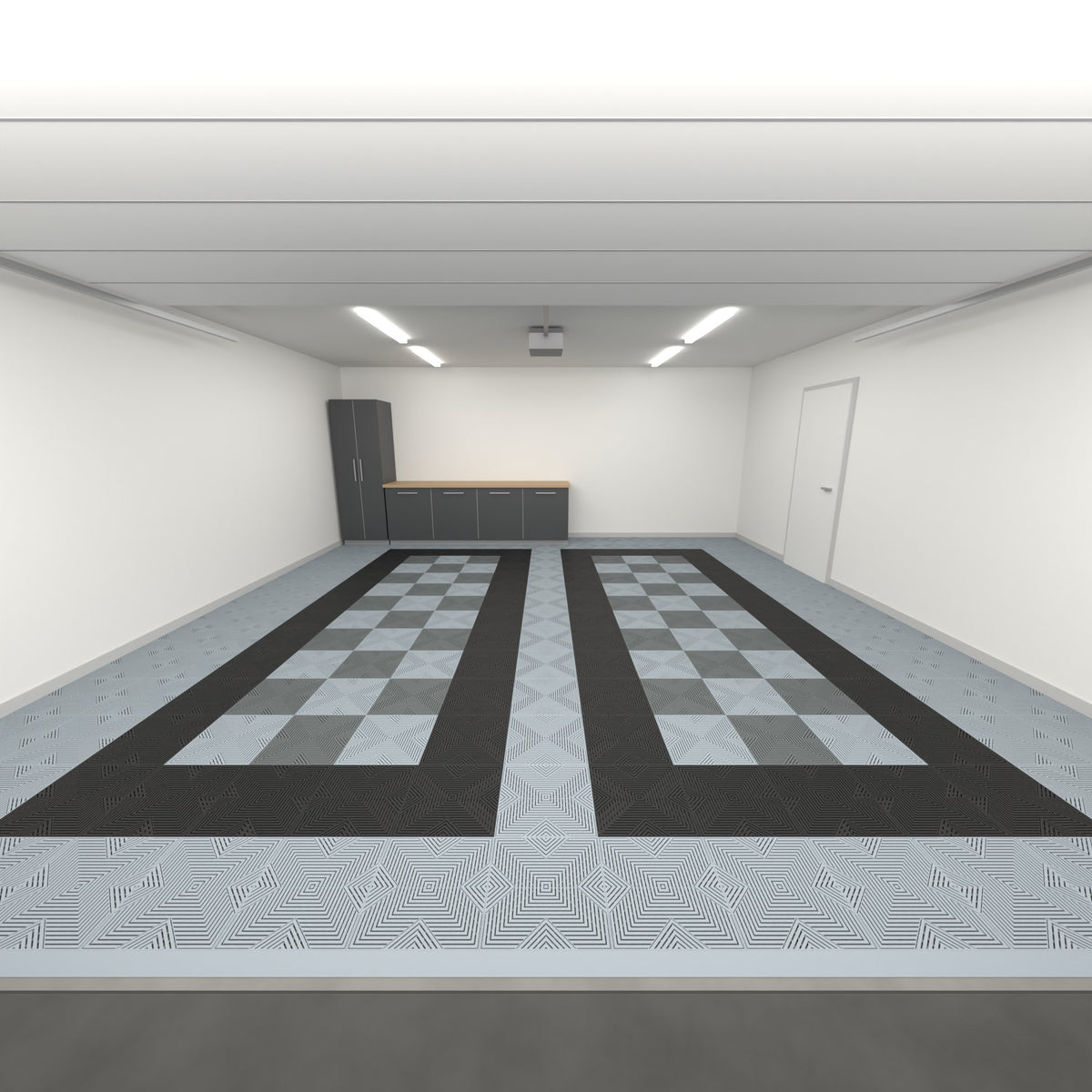

  • Parking Bay Chequer Infill — defined vehicle bays in solid ULTRACORE™ colour, with a bold chequered field around them.
  • Seamless architectural surface — each ULTRACORE™ tile connects with near-invisible seams for a smooth, unbroken floor plane.
  • Low maintenance — the ULTRACORE™ surface drains moisture through top and side channels. Sweep, vacuum, or pressure wash as needed.
  • 20t/m² load rating — drive, park, and work on your ULTRACORE™ Parking Bay Chequer Infill floor — rated for any vehicle or equipment load.
  • Full DIY install — snap ULTRACORE™ tiles together without adhesive. Most Parking Bay Chequer Infill double garages are finished in 4–6 hours.
  • Made to endure — ULTRACORE™ tiles won't fade in sun, stain from oil, or warp across −40° to +120°C. 100% virgin polypropylene construction.
  • Portable and serviceable — your ULTRACORE™ Parking Bay Chequer Infill floor moves when you do. A damaged tile swaps out without affecting the surrounding floor.

Tested & Recommended by Aussies

Aussie Garage – YouTube cover

Phil from Aussie Garage Lays ULTRAGRID

Phil walks you through his ULTRAGRID™ DIY install in black, blue, and gray—and shows how easy it really is.

Read article
Dadz Garage featuring Sleek Space interlocking floor tiles

Dadz Garage

Watch Dadz Garage transform a cluttered space into a sleek haven with Sleek Space ULTRAGRID™ flooring.

Read article
It's In The Detail garage with Sleek Space interlocking tiles

It's In The Detail

See how It’s In The Detail transformed a dull, lifeless garage into a sleek and vibrant space.

Read article
Aussie Garage transformation featuring Sleek Space interlocking floor tiles

Aussie Garage

Aussie Garage recently transformed their space with Sleek Space ULTRATUFF tiles. See how they did it.

Read article
View all articles

Technical Specifications

Design Layout Parking Bay Chequer Infill
Tile Range ULTRACORE
Total Tiles 240 (225 floor + 15 spares)
Front Ramps 16 ULTRAEDGE ramps
Floor Coverage 36 m² (standard 6 × 6 m double garage)
Surface Type Flat hidden-join (concentric square)
Tile Size 400 × 400 × 17 mm
Load Rating 20 tonnes / m²
Material 100% Virgin Polypropylene
Installation Snap-lock click system, no adhesive
Estimated Install Time 4–6 hours
Compatibility All ULTRA Series tiles interlock
Temperature Range -40°C to +120°C
UV Stability Yes — colour-stable outdoors
Chemical Resistance Oil, fuel, brake fluid, solvents
Yes — significantly. Without visible tile edges, the chequer pattern looks continuous and inlaid, giving it a quality that standard visible-join tiles cannot replicate.
Three typically — one for the bays and two for the chequer surround. Two colours work if the bays match one chequer tone.
In terms of visual sophistication, yes. The ULTRACORE™ hidden-join surface combined with a multi-zone chequer layout delivers the most refined finish available in a floor kit.
Yes. The snap-lock assembly is the same as every other ULTRA Series kit. The colour planning takes a little more thought, but the physical installation is straightforward DIY.

Installation Guide

What you'll need

  • Tape measure
  • Rubber mallet
  • Jigsaw (for edge cuts)
  • Marker or pencil
  • Broom

Time estimate

  • Single garage (20-25 sqm): 4-6 hours
  • Double garage (40-50 sqm): 6-10 hours
  • No curing time — drive on immediately

Installation steps

  1. 1

    Start from the entrance

    Begin laying tiles at the garage door corner. Leave a 5–10mm expansion gap at all walls.

  2. 2

    Lay the first row

    Complete your first row across the garage, clicking tiles together. The interlocking pegs and loops do the work.

  3. 3

    Fit entrance ramps

    Attach ramp trims to the first row and slide the row snug against the garage door.

  4. 4

    Centre your design (optional)

    If your design has a centred pattern, adjust the first row to leave equal gaps on both sides.

  5. 5

    Lay remaining tiles

    Continue laying rows towards the back and side walls, clicking each tile into the previous one.

  6. 6

    Trim edges and finish

    Cut edge tiles with a jigsaw, click them in, and your floor is ready to use immediately — no curing time.
