ULTRAGRID Tiles Double Garage Floor Kit 6x6M, Parking Bay Plain Infill

ULTRAGRID Tiles Double Garage Floor Kit 6x6M, Parking Bay Plain Infill

In stock - ready to ship
$1,749
$2,100 $1,749
Save $351
Taxes included. Shipping calculated at checkout.

ULTRAGRID™ Parking Bay Plain Infill Kit — durable modular floor covering a full 6×6 m double garage. Details

Base
Outline
Infill
Recommended By →
Aussie Garage Dadz Garage BadQ Garage Outlaw Garage Heath's Garage It's In The Detail
View full details

This ULTRAGRID™ Parking Bay Plain Infill Floor Kit delivers a durable, versatile modular surface across a standard 6 × 6 m double garage. The kit includes 240 tiles (225 for the floor plus 15 spares for cuts and replacements) and 16 ULTRAEDGE ramps for a finished threshold.

  • Complete kit — everything for a 6×6 m double garage: 240 ULTRAGRID™ tiles (225 floor + 15 spares) and 16 ramps.
  • Parking Bay Plain Infill — two-colour ULTRAGRID™ layout that marks out distinct parking areas within a plain field.
  • Open-rib surface pattern — channels between the ULTRAGRID™ ribs drain liquid and debris downward, keeping the walking surface clear.
  • Low maintenance — the ULTRAGRID™ top and side channels shed water and debris on contact. Vacuum or pressure wash for a thorough clean.
  • 20t/m² load rating — ULTRAGRID™ tiles carry cars, utes, SUVs, and rolling toolboxes without flexing or cracking.
  • Full DIY install — lay ULTRAGRID™ tiles wall to wall in 4–6 hours. The snap-lock system needs no glue, no experience, and no waiting.
  • Engineered for extremes — ULTRAGRID™ tiles resist UV exposure, oil, fuel, and chemicals across −40°C to +120°C. Made from 100% virgin polypropylene.
  • Move house, move your floor — unclip tiles, stack them flat, and re-lay your Parking Bay Plain Infill layout at a new address. Damaged tiles swap out individually.

Tested & Recommended by Aussies

Aussie Garage – YouTube cover

Phil from Aussie Garage Lays ULTRAGRID

Phil walks you through his ULTRAGRID™ DIY install in black, blue, and gray—and shows how easy it really is.

Read article
Dadz Garage featuring Sleek Space interlocking floor tiles

Dadz Garage

Watch Dadz Garage transform a cluttered space into a sleek haven with Sleek Space ULTRAGRID™ flooring.

Read article
It's In The Detail garage with Sleek Space interlocking tiles

It's In The Detail

See how It’s In The Detail transformed a dull, lifeless garage into a sleek and vibrant space.

Read article
Aussie Garage transformation featuring Sleek Space interlocking floor tiles

Aussie Garage

Aussie Garage recently transformed their space with Sleek Space ULTRATUFF tiles. See how they did it.

Read article
View all articles

Technical Specifications

Design Layout Parking Bay Plain Infill
Tile Range ULTRAGRID
Total Tiles 240 (225 floor + 15 spares)
Front Ramps 16 ULTRAEDGE ramps
Floor Coverage 36 m² (standard 6 × 6 m double garage)
Surface Type Open-rib ventilated
Tile Size 400 × 400 × 18 mm
Load Rating 20 tonnes / m²
Material 100% Virgin Polypropylene
Installation Snap-lock click system, no adhesive
Estimated Install Time 4–6 hours
Compatibility All ULTRA Series tiles interlock
Temperature Range -40°C to +120°C
UV Stability Yes — colour-stable outdoors
Chemical Resistance Oil, fuel, brake fluid, solvents

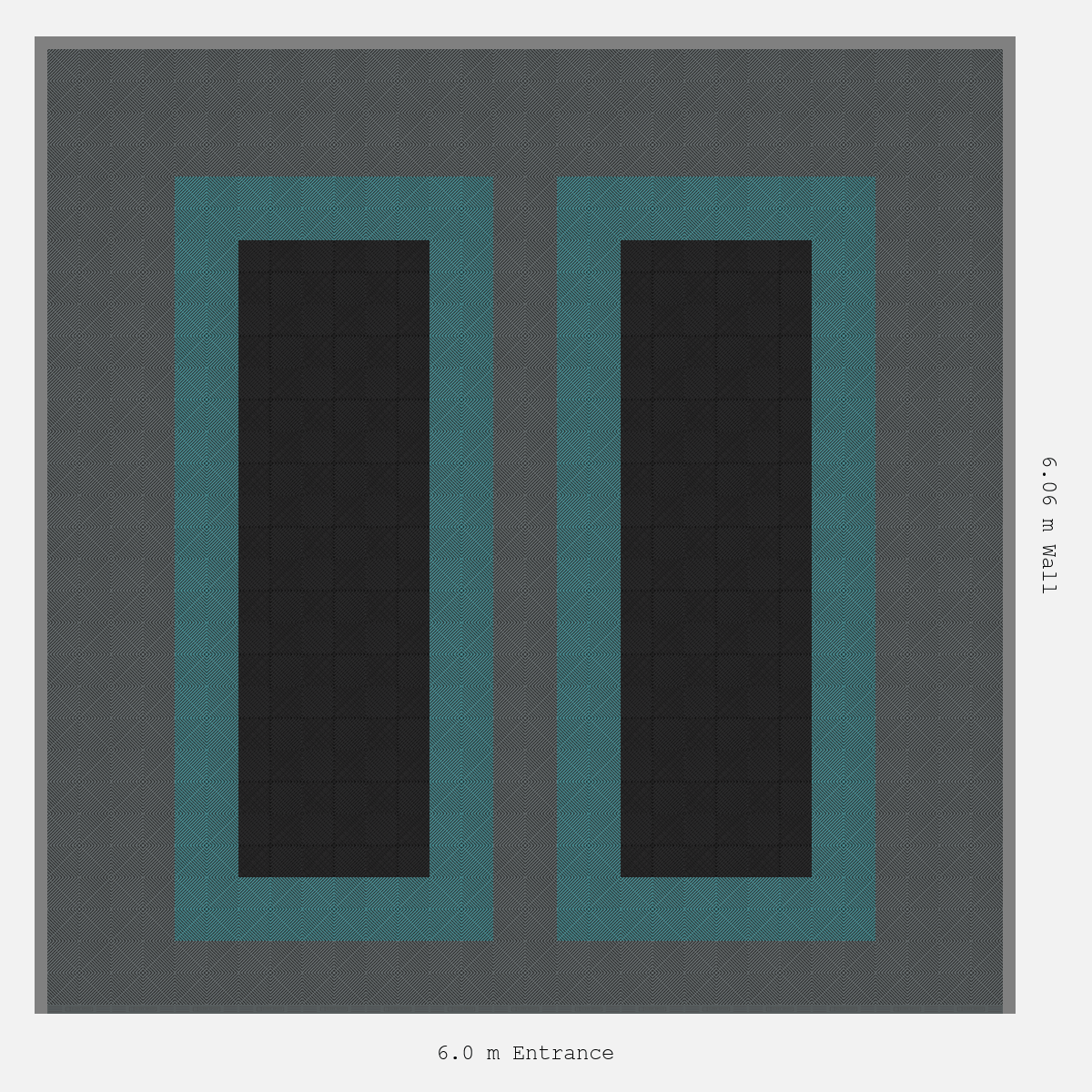

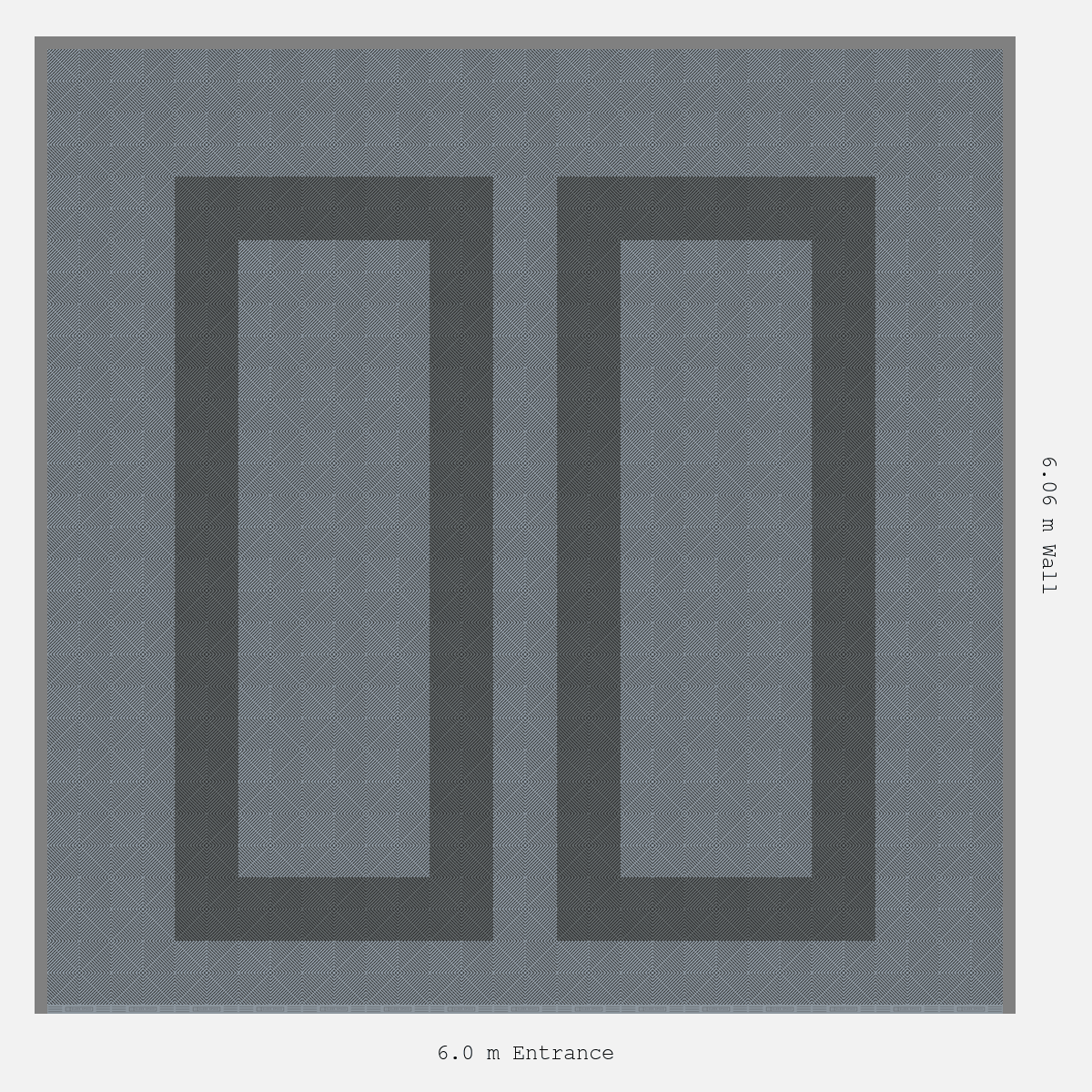

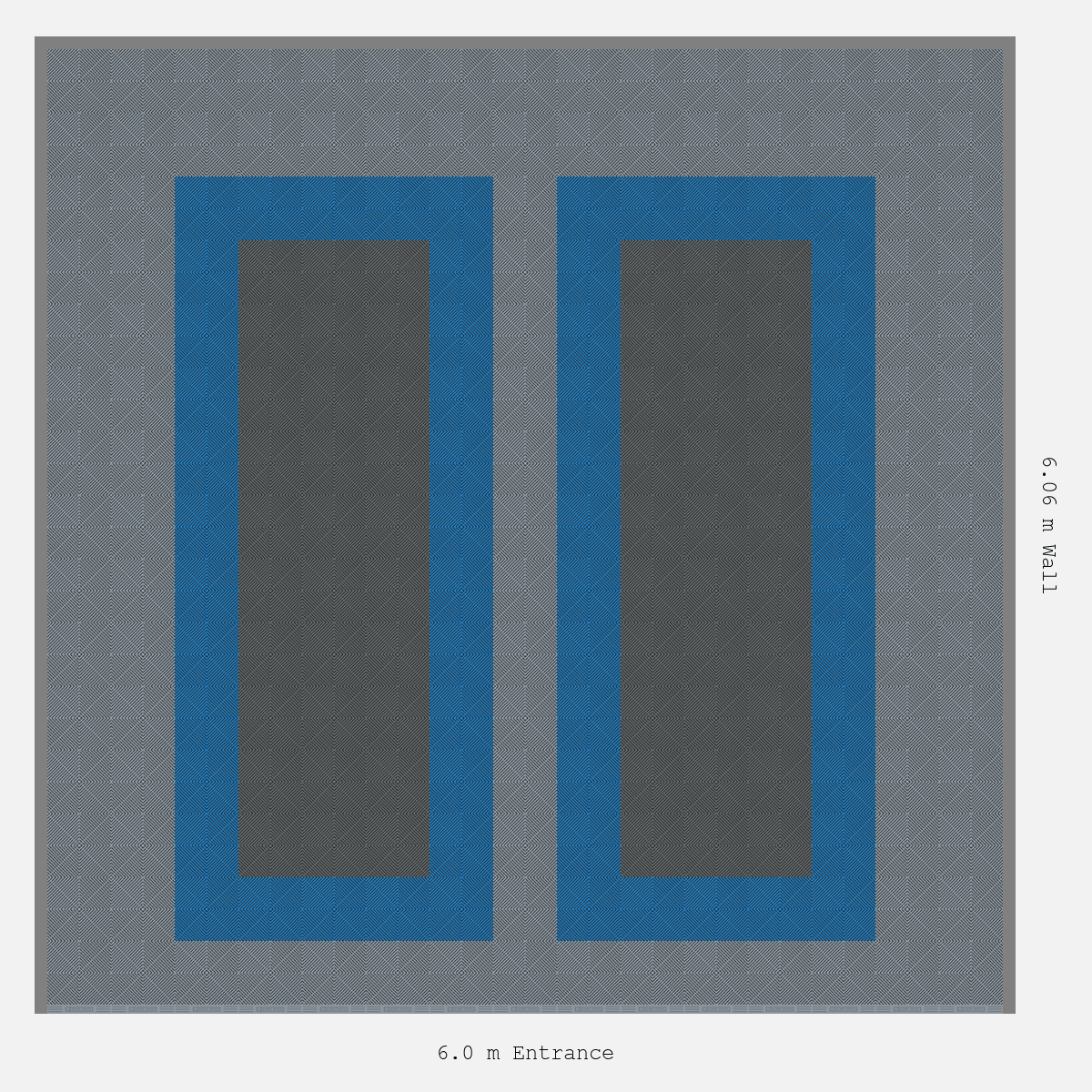

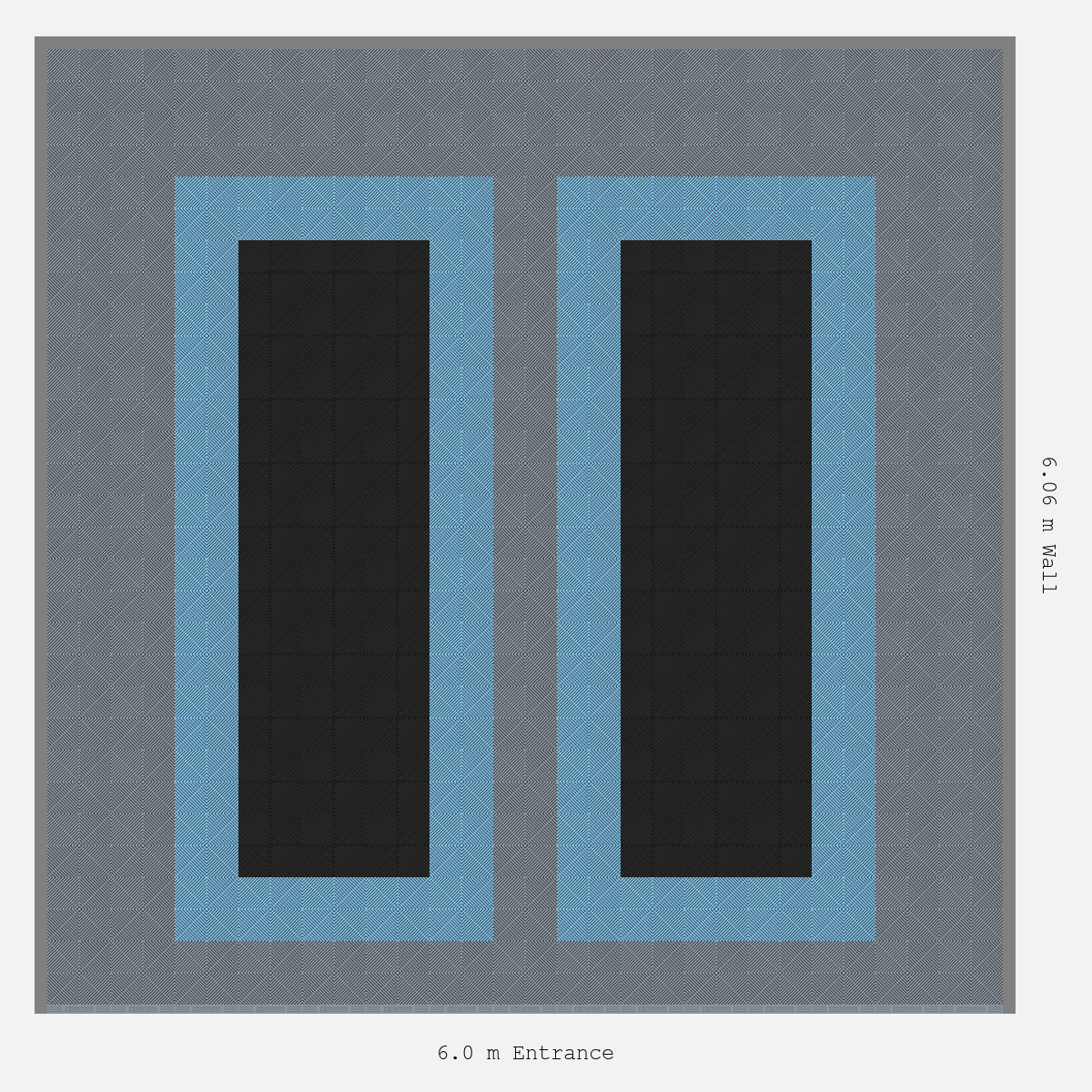

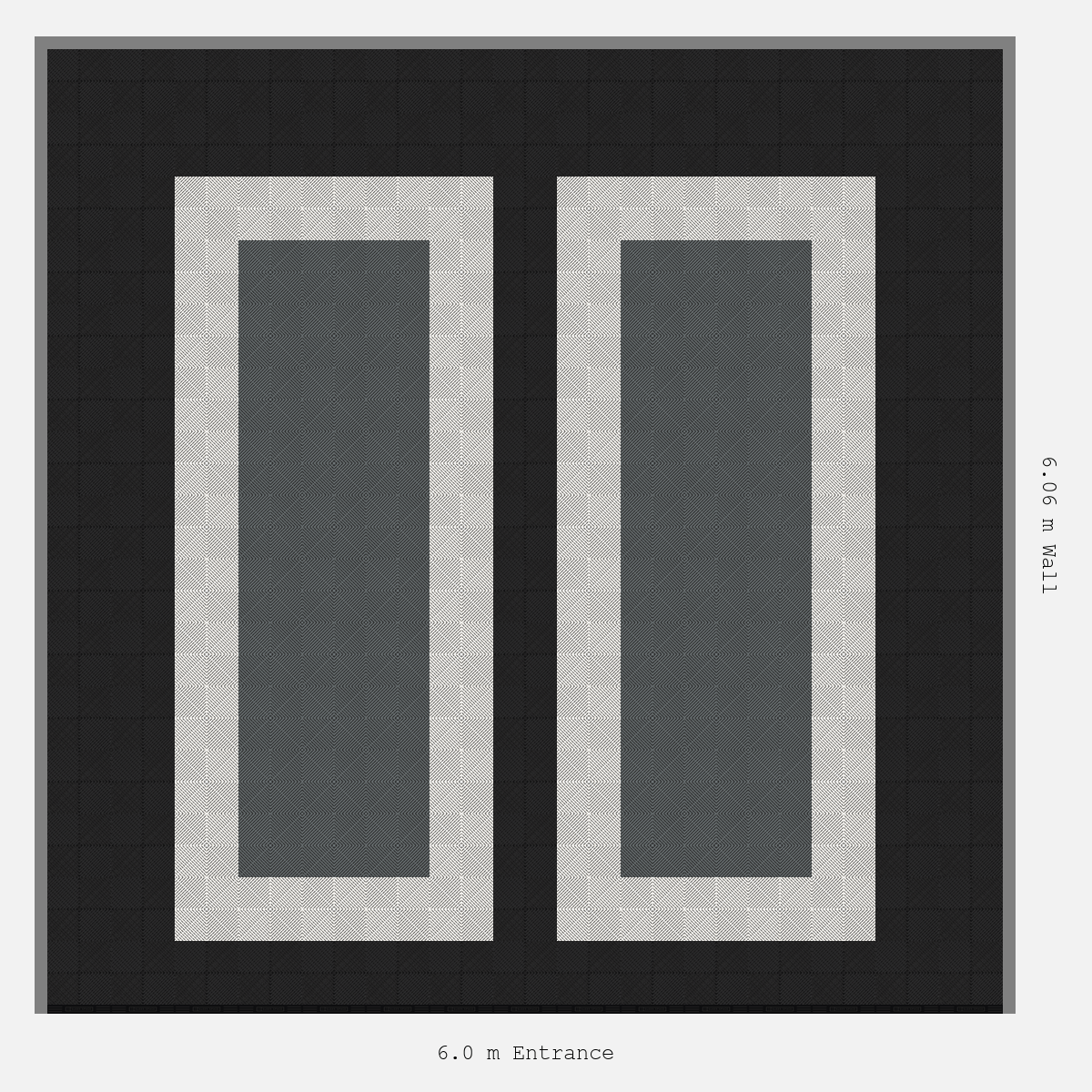

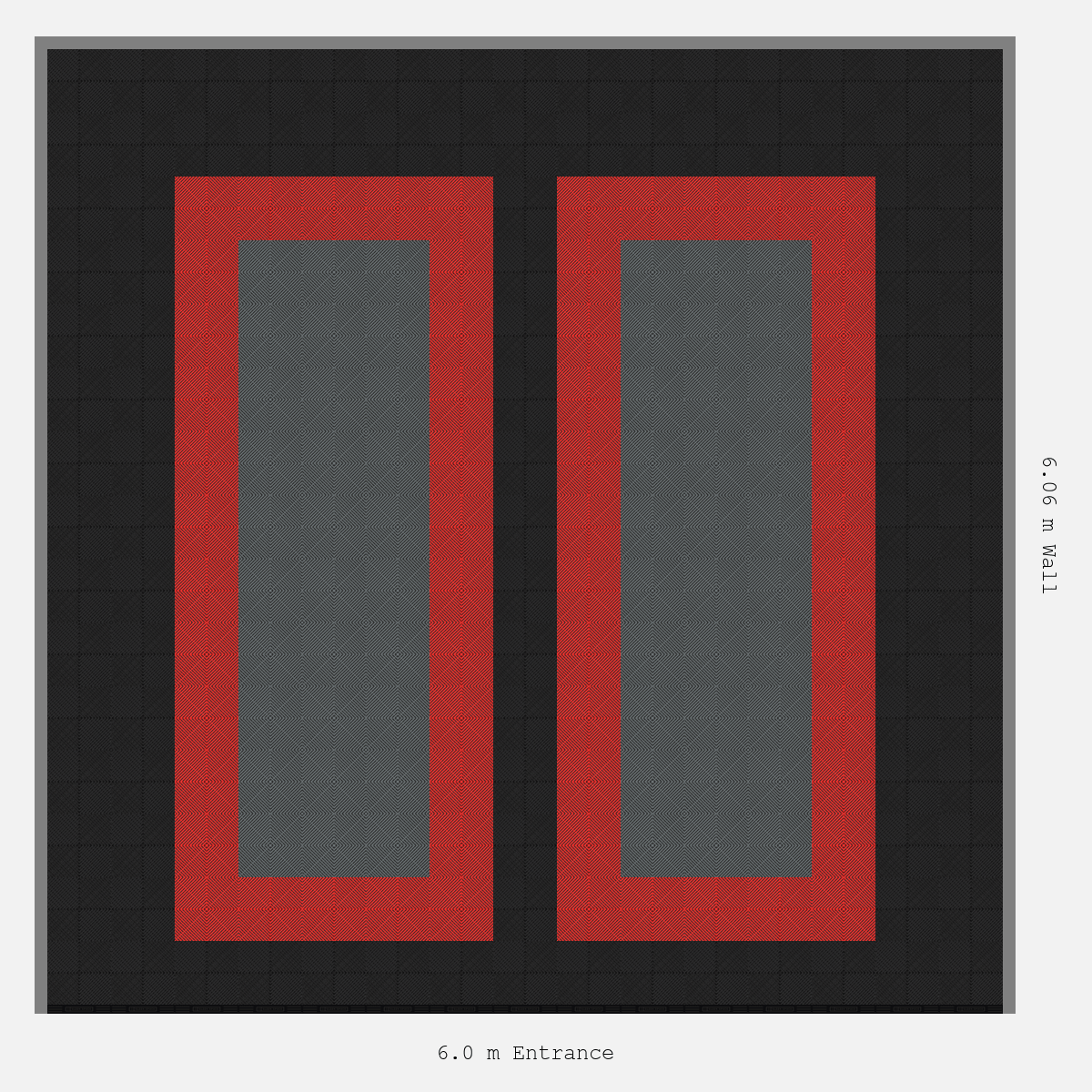

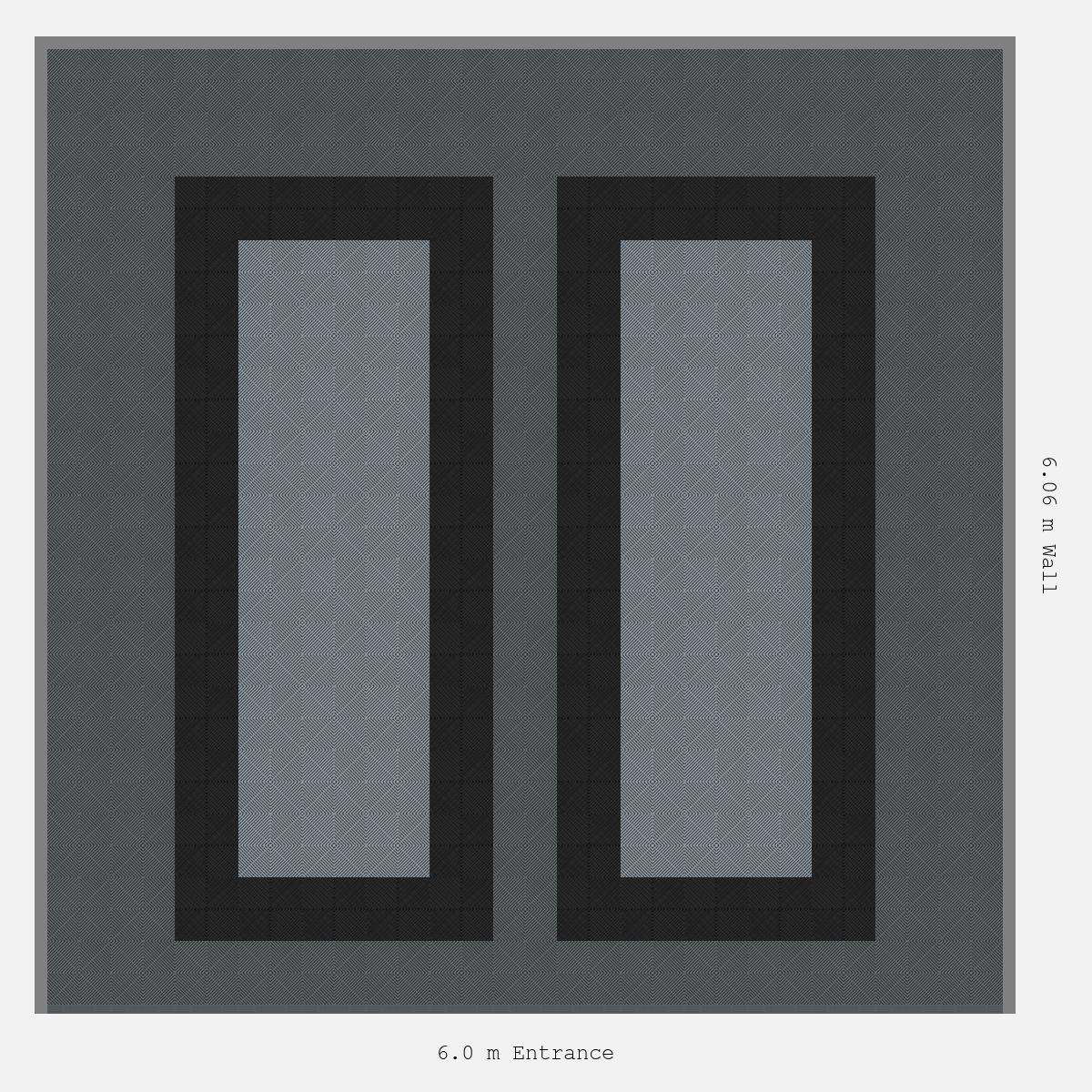

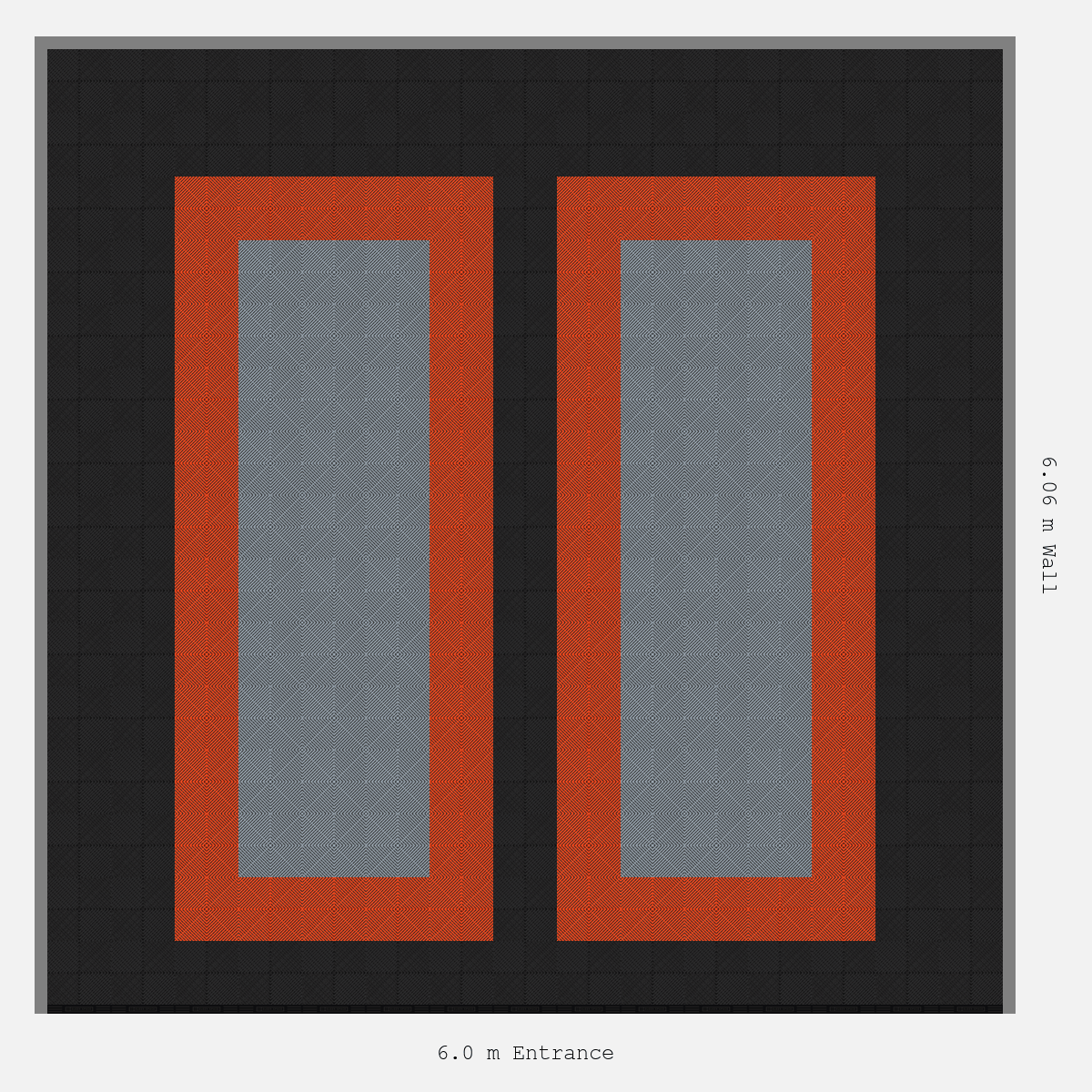

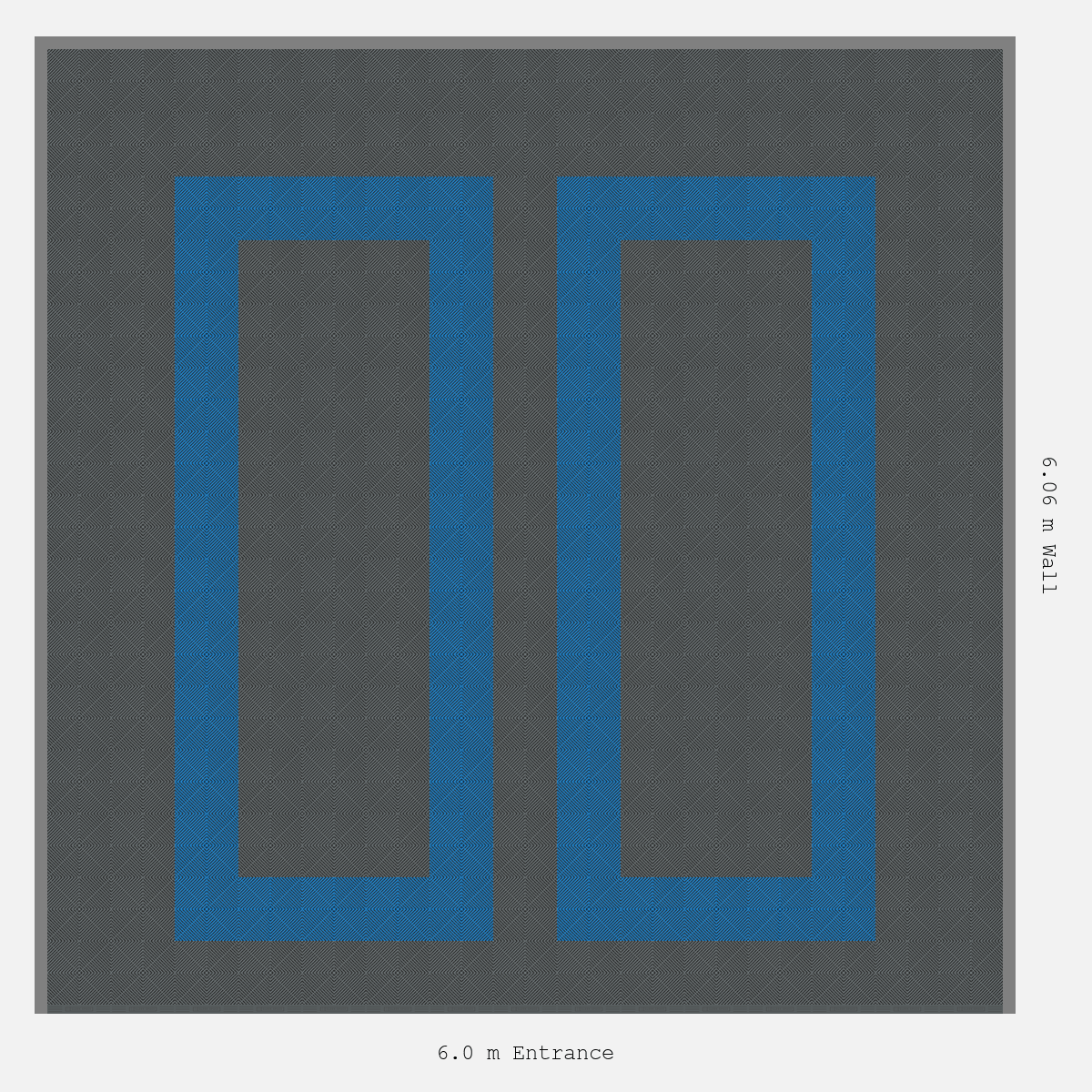

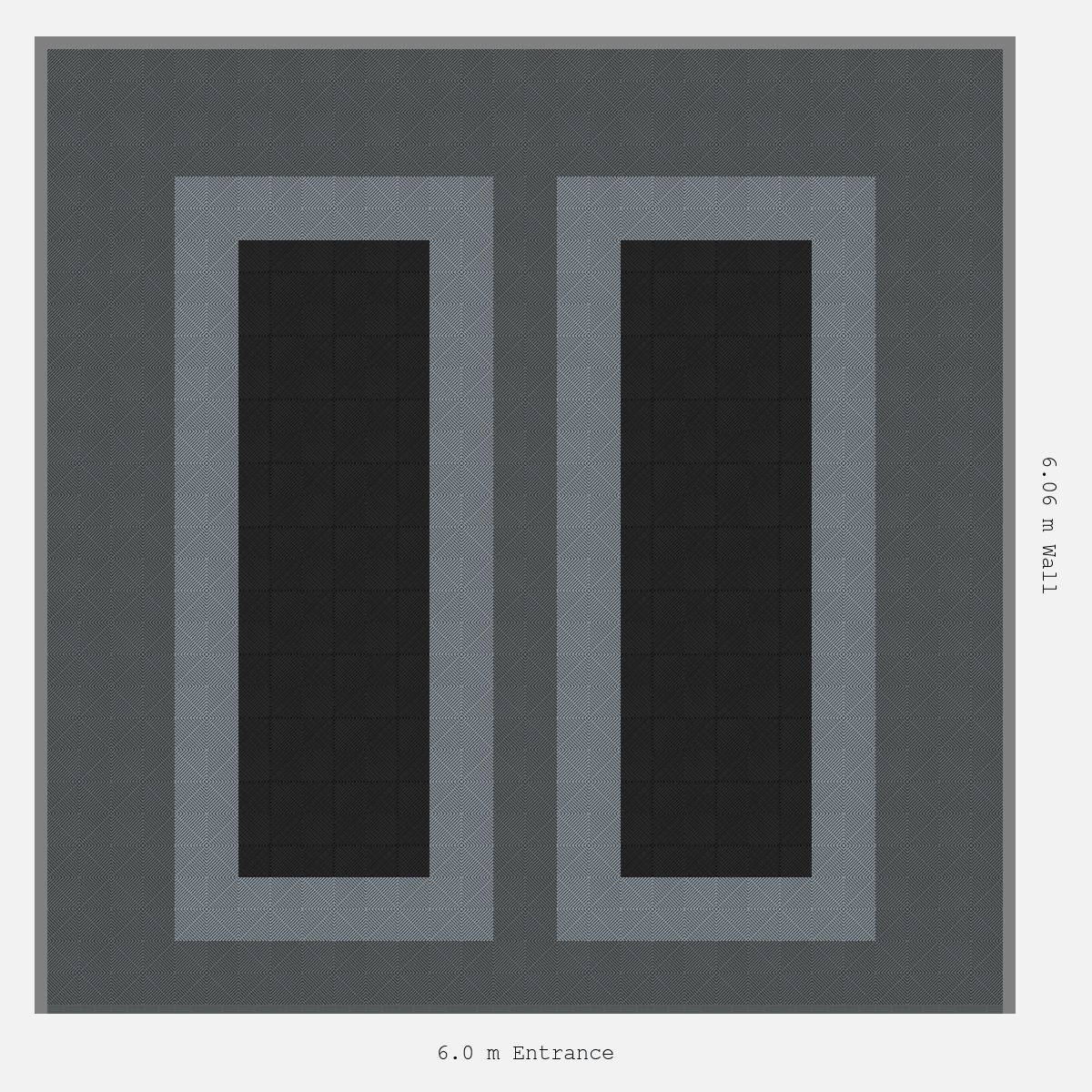

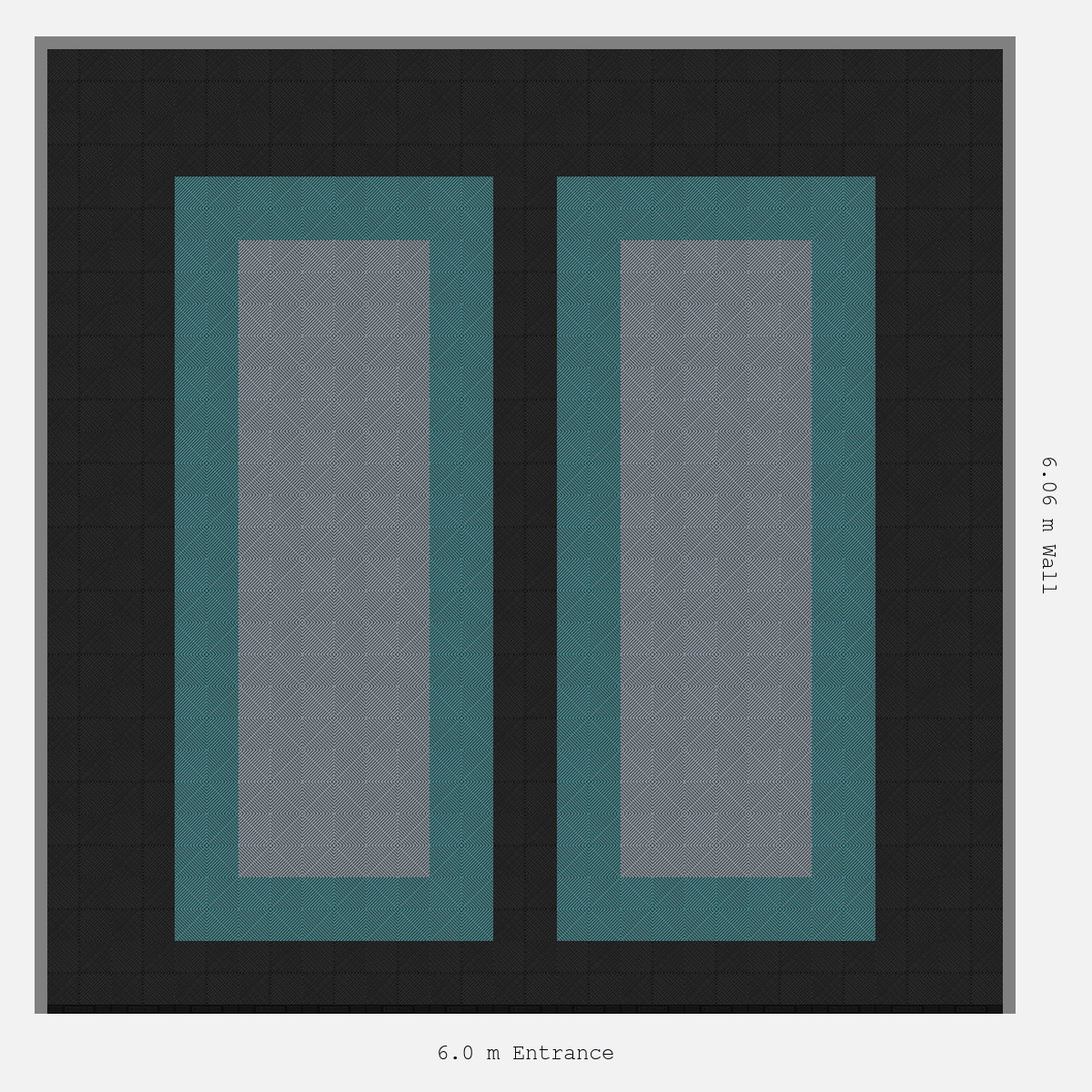

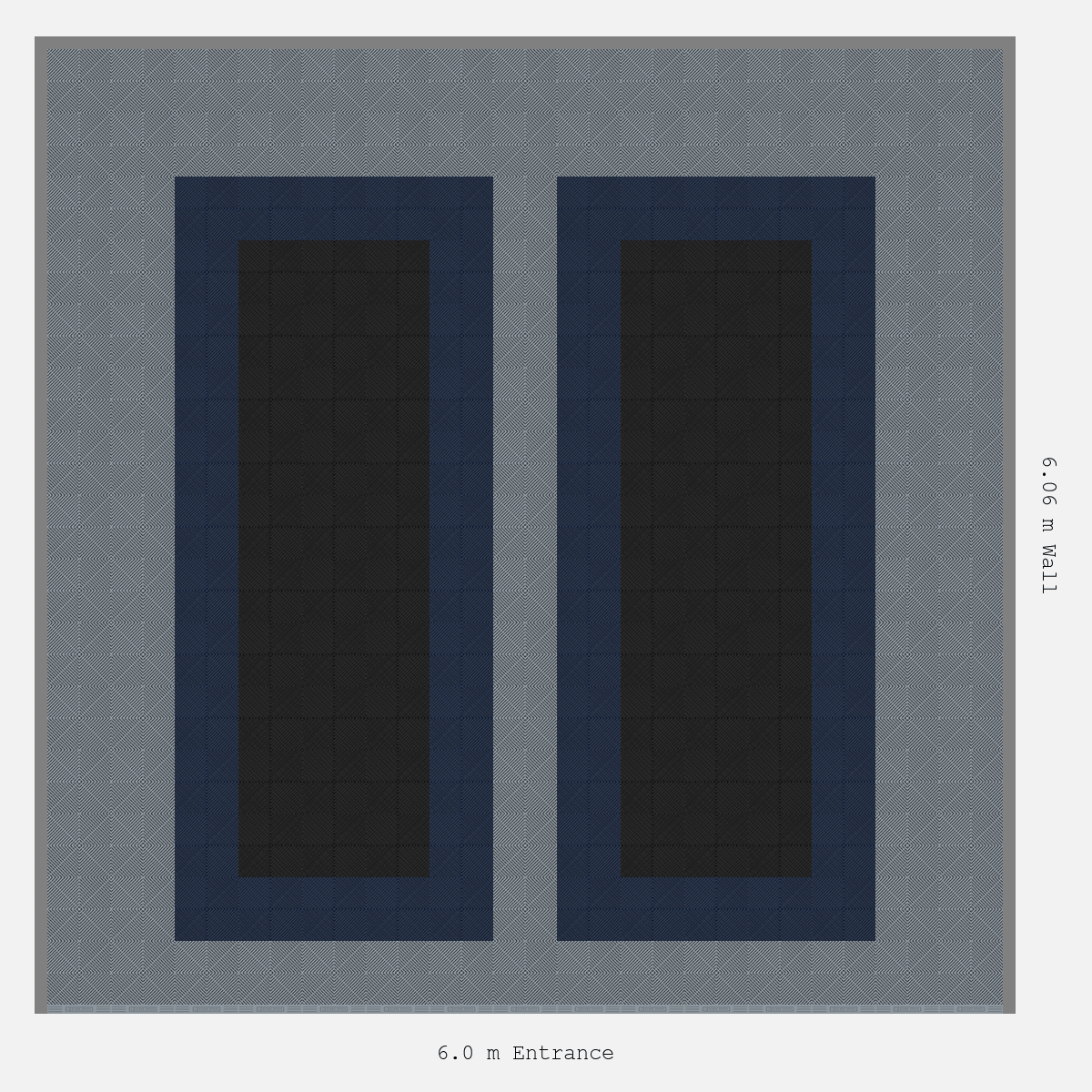

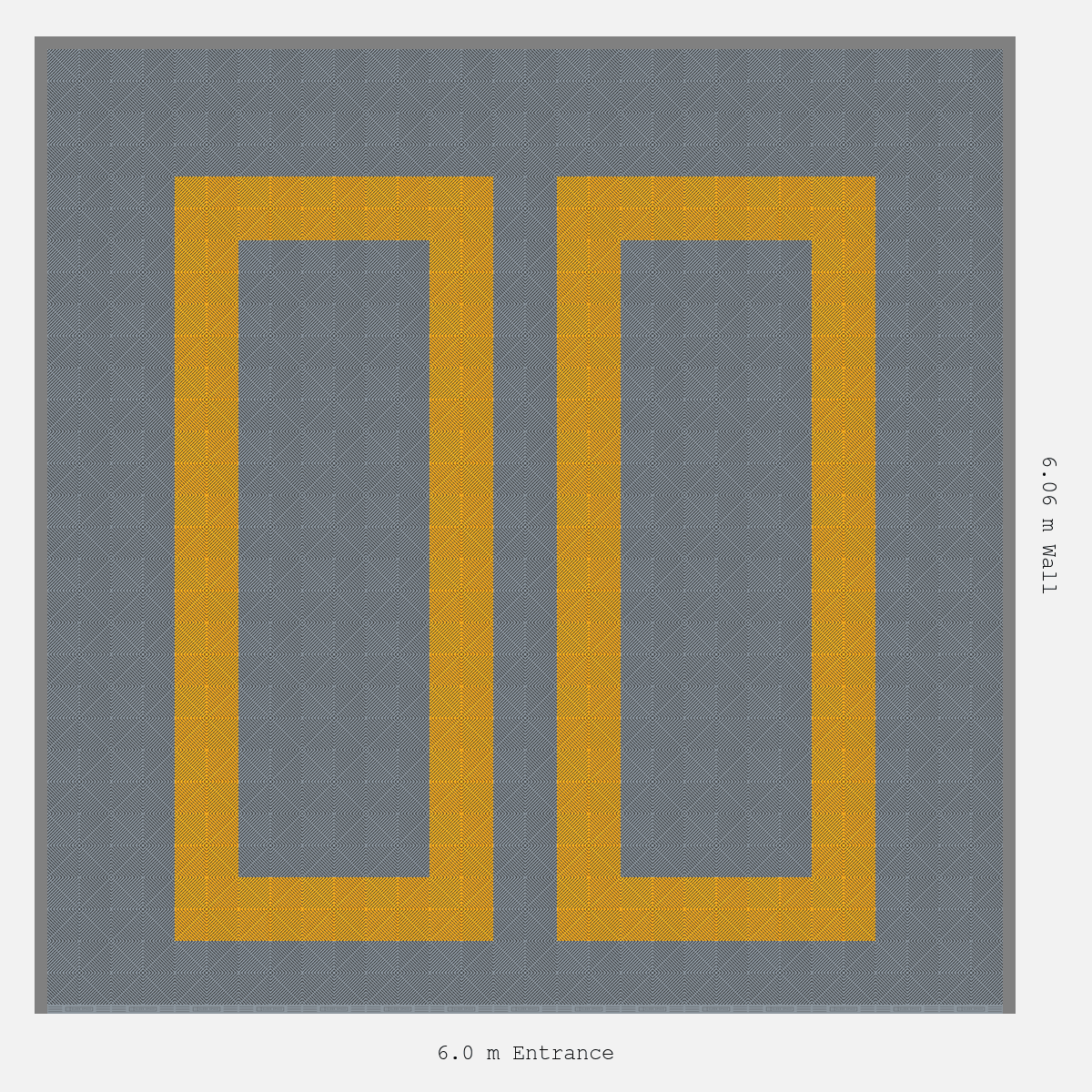

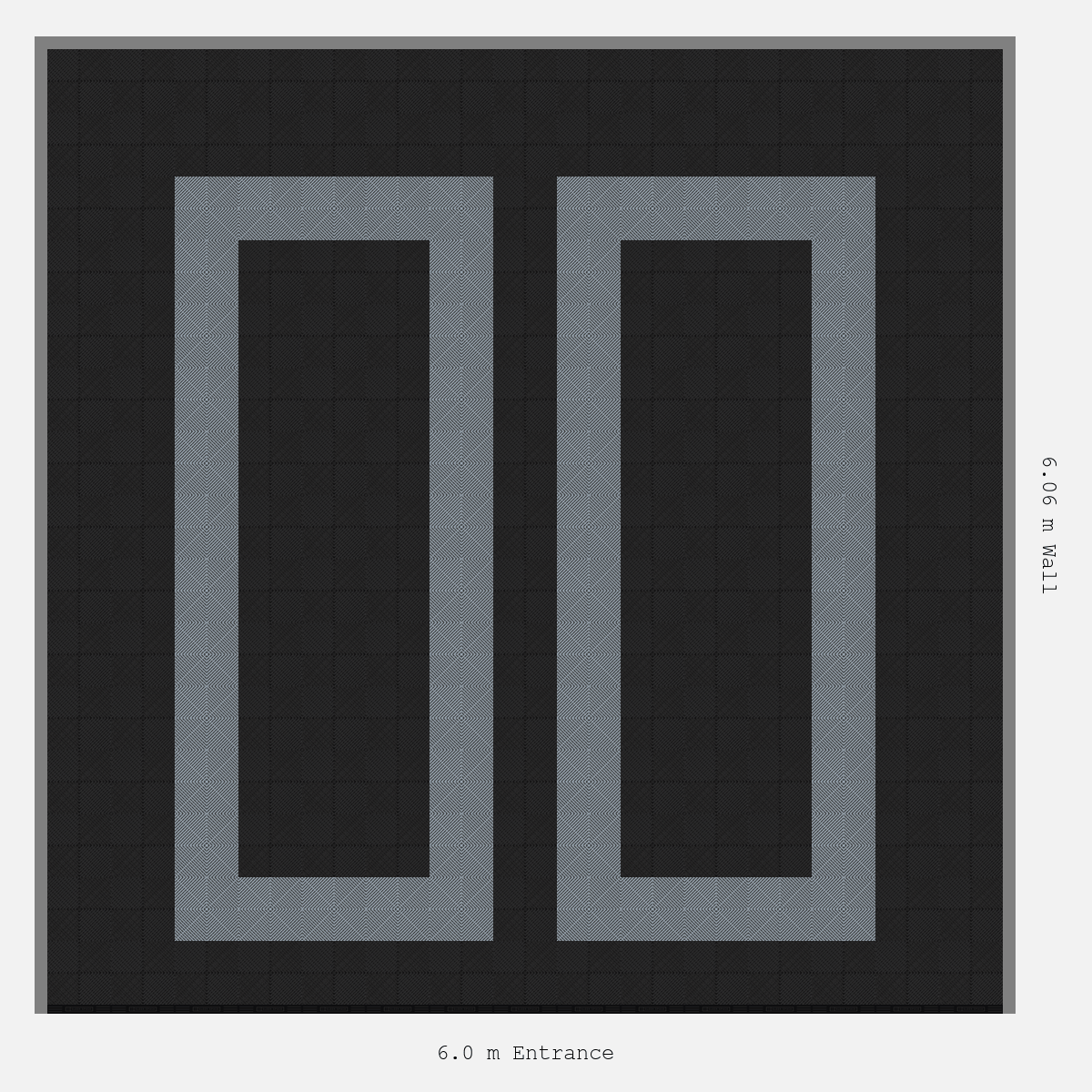

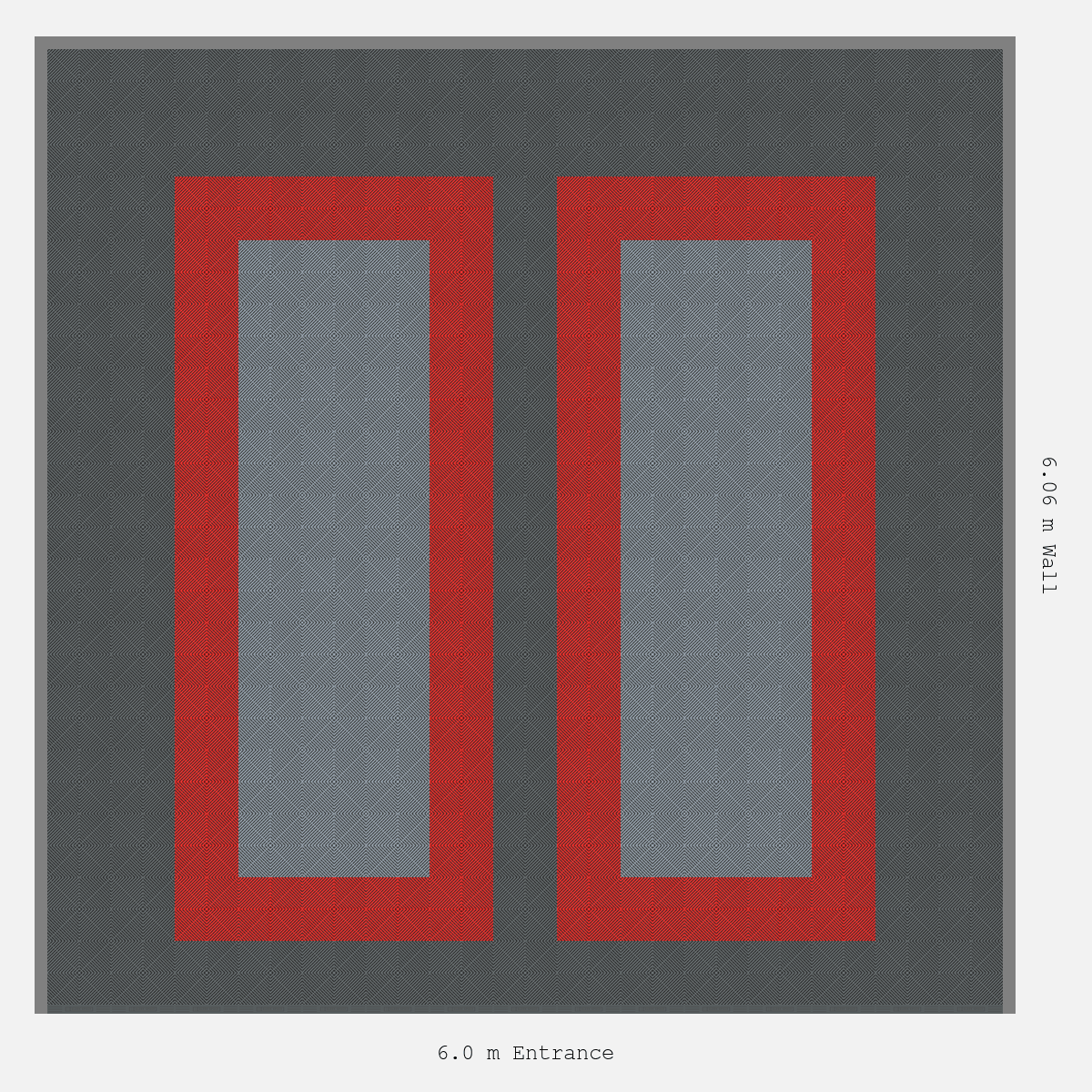

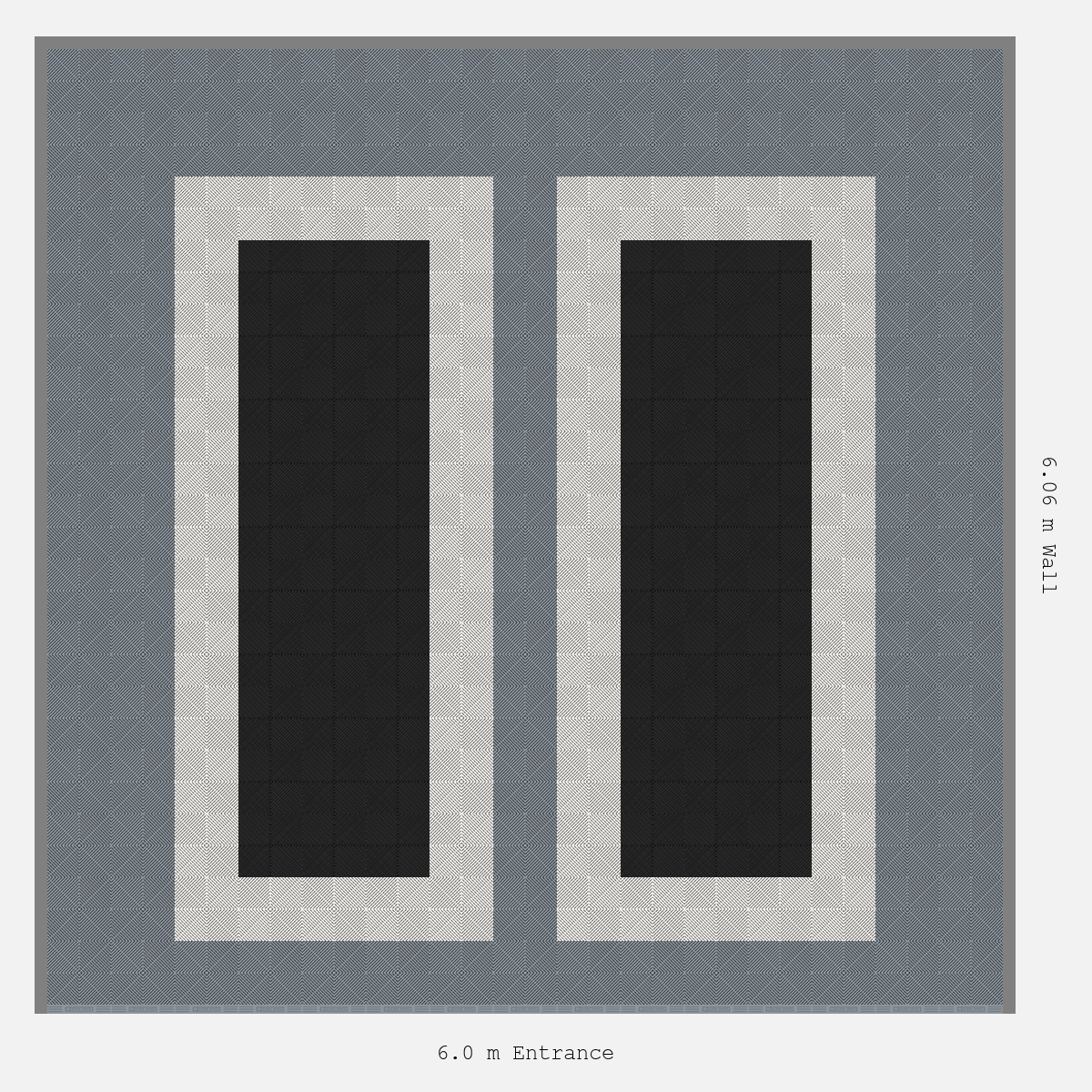

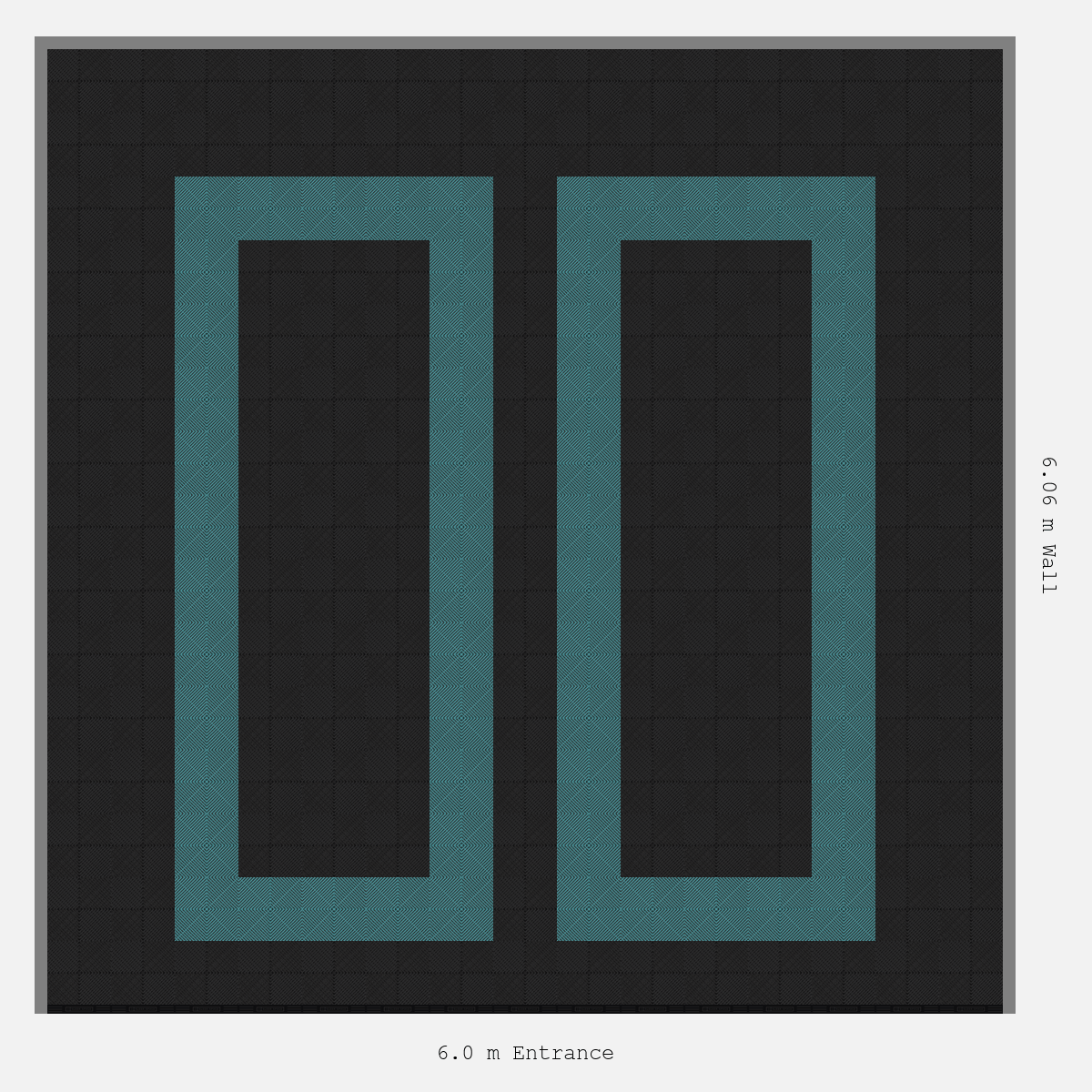

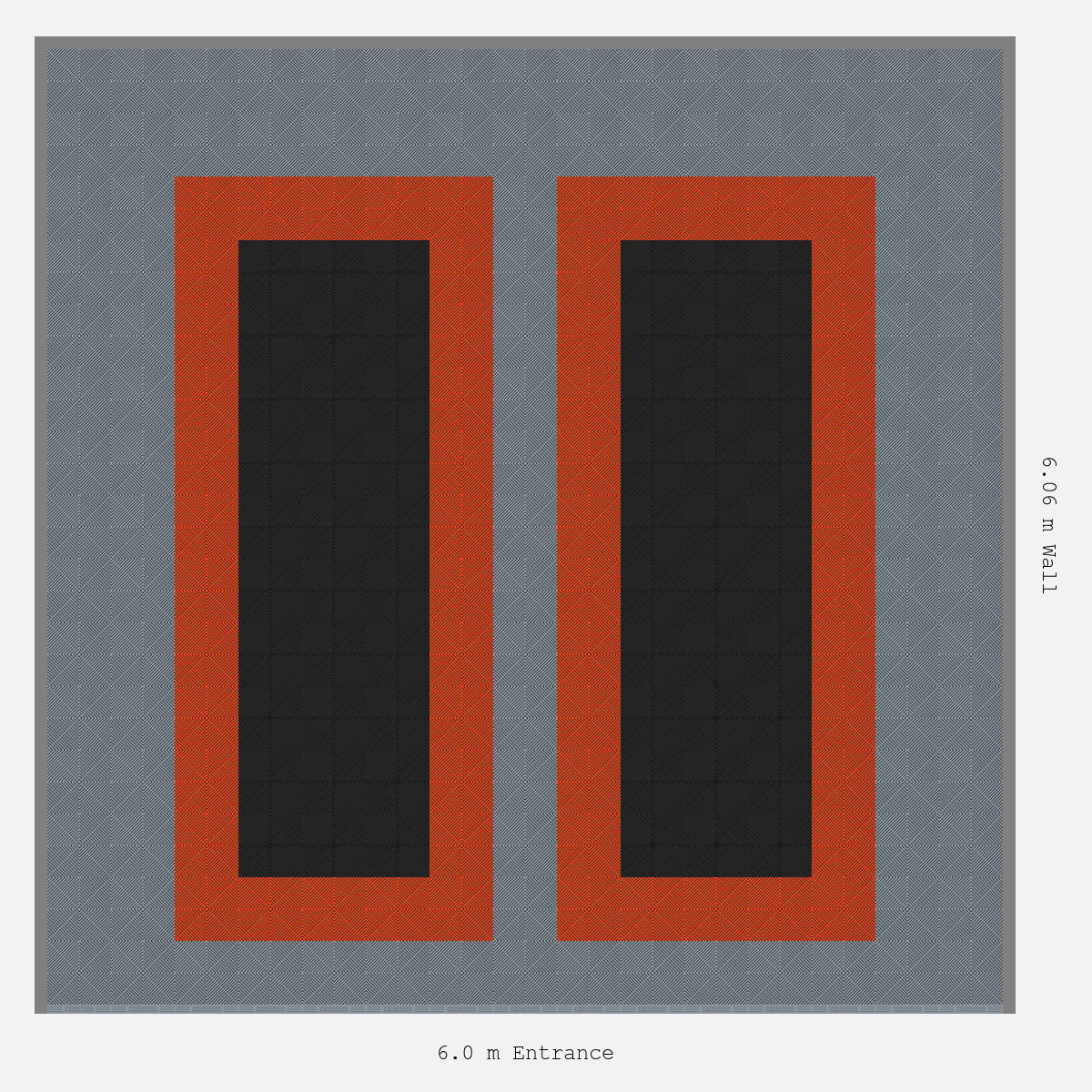

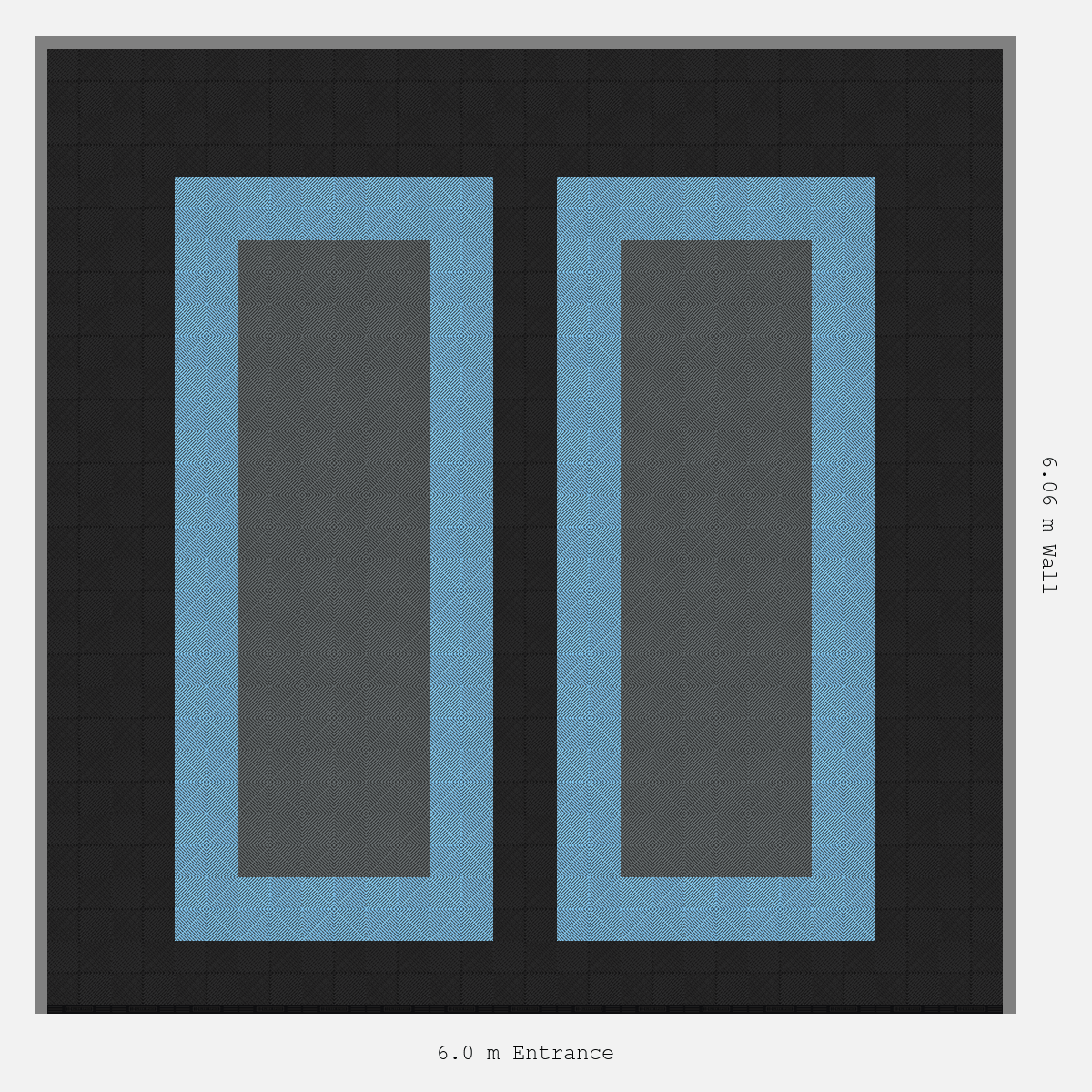

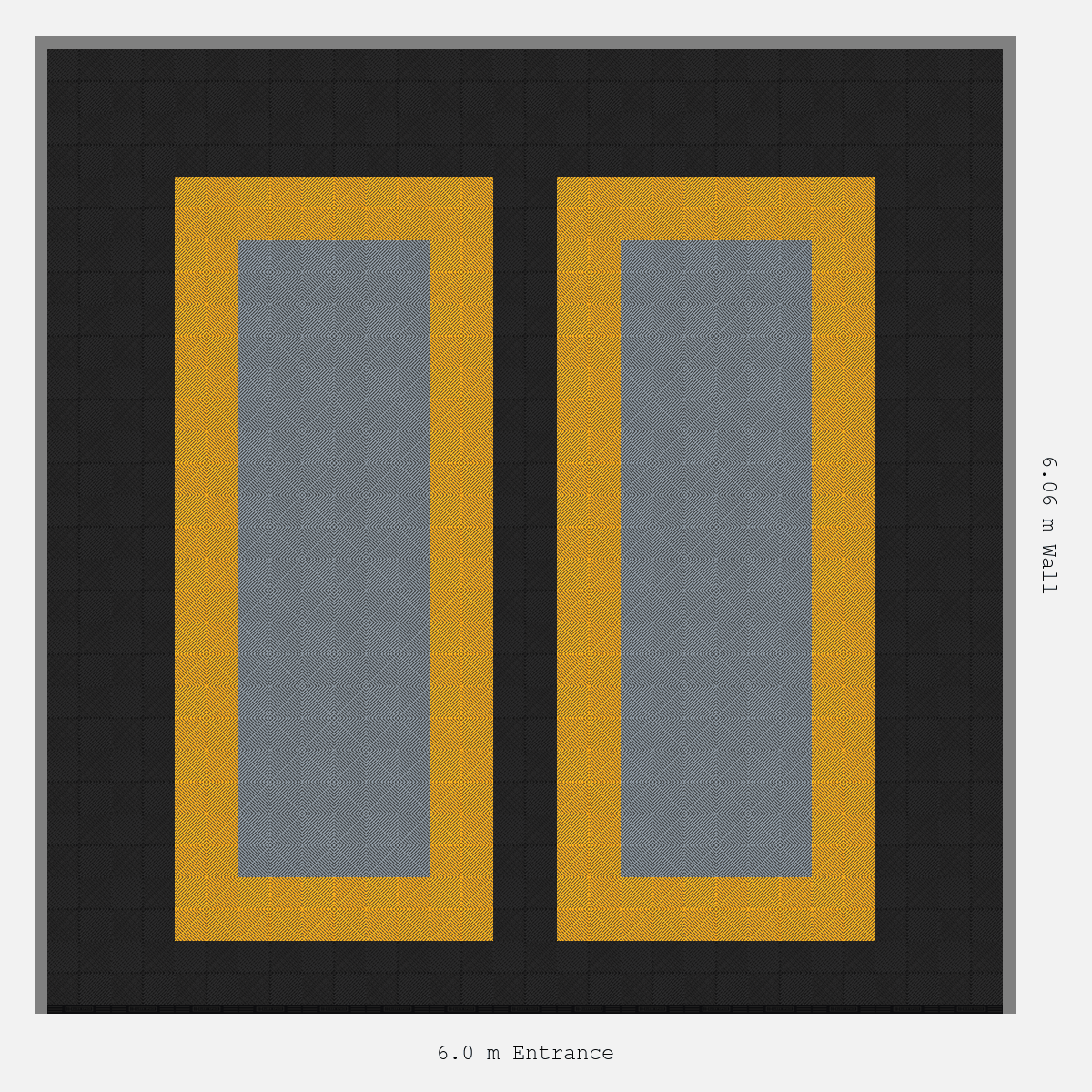

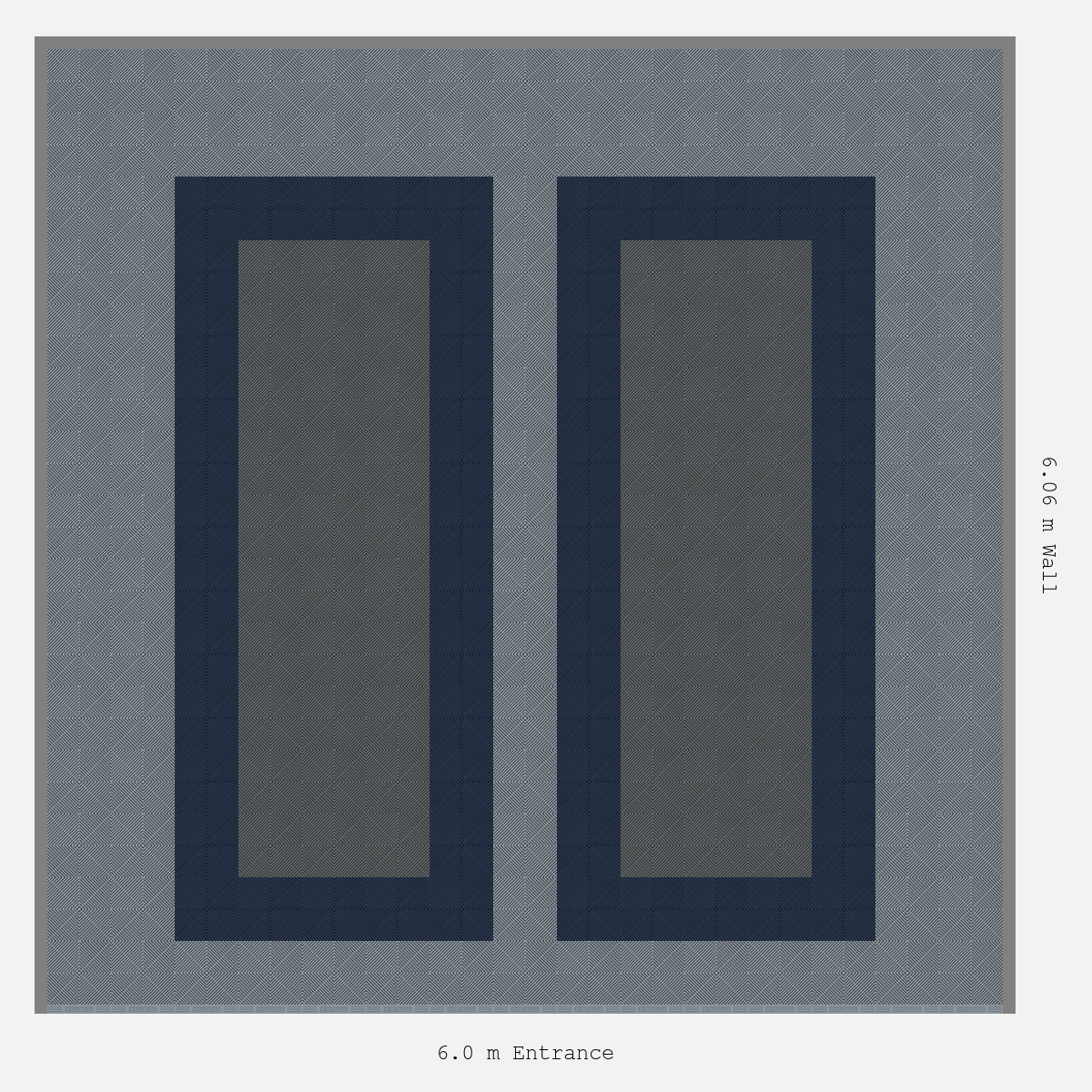

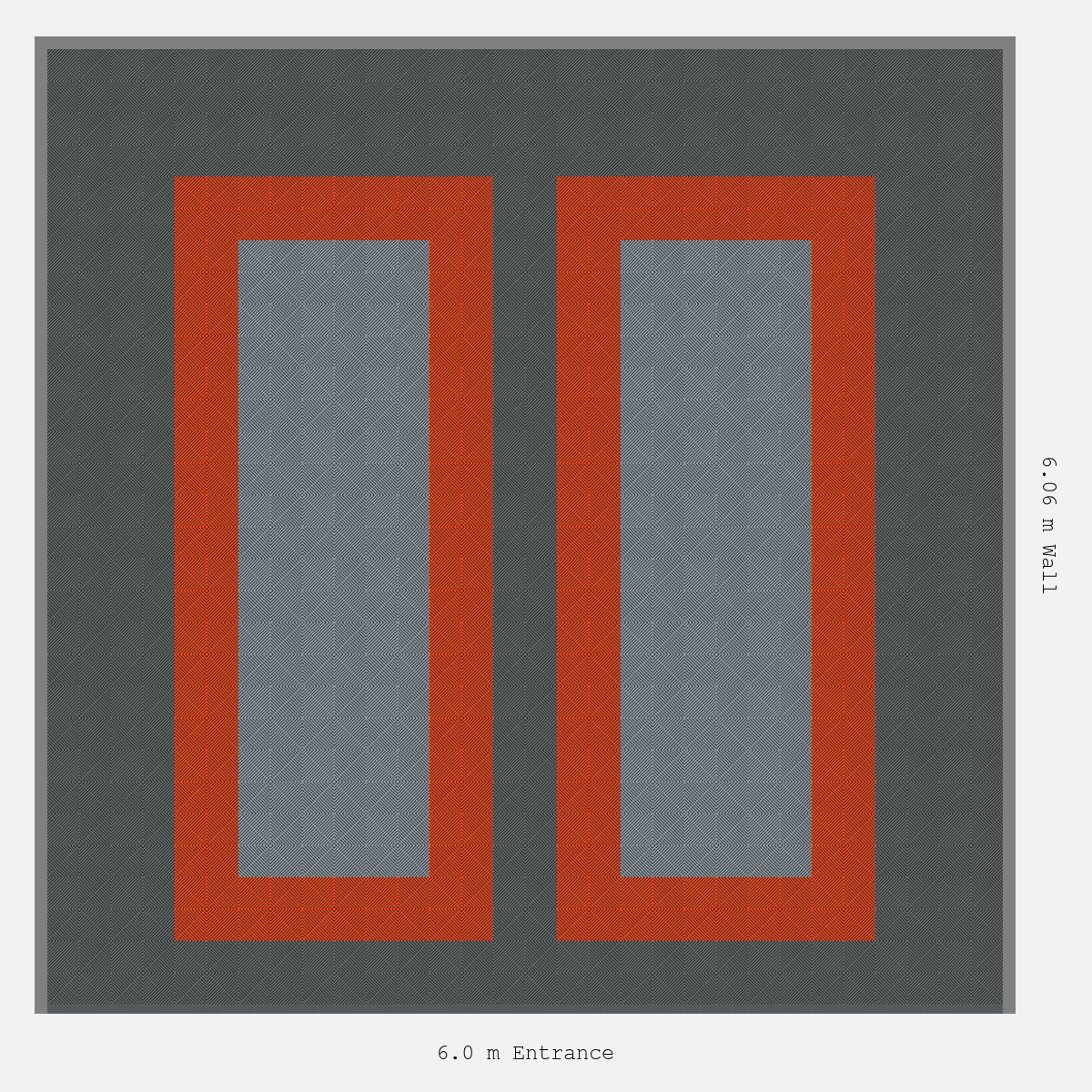

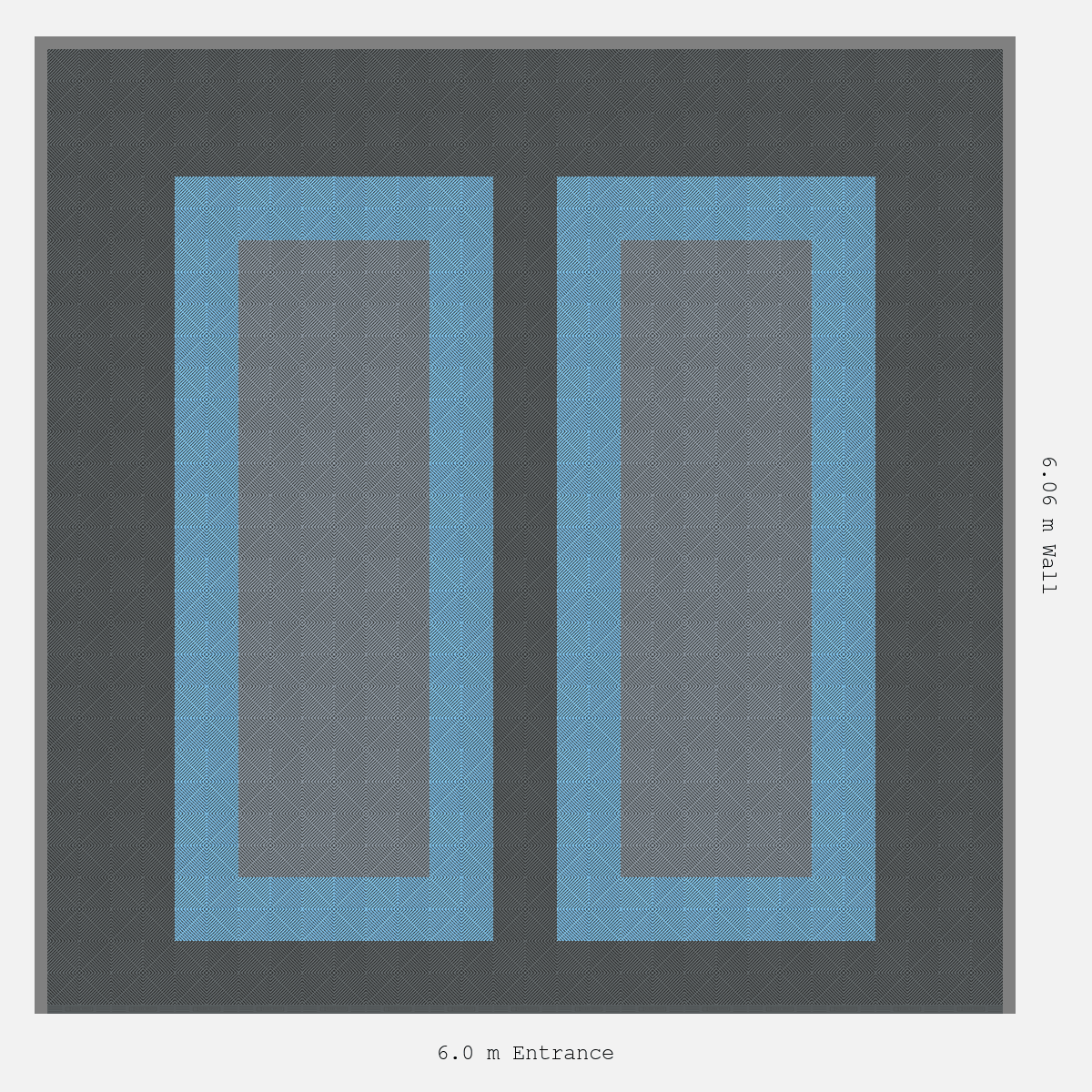

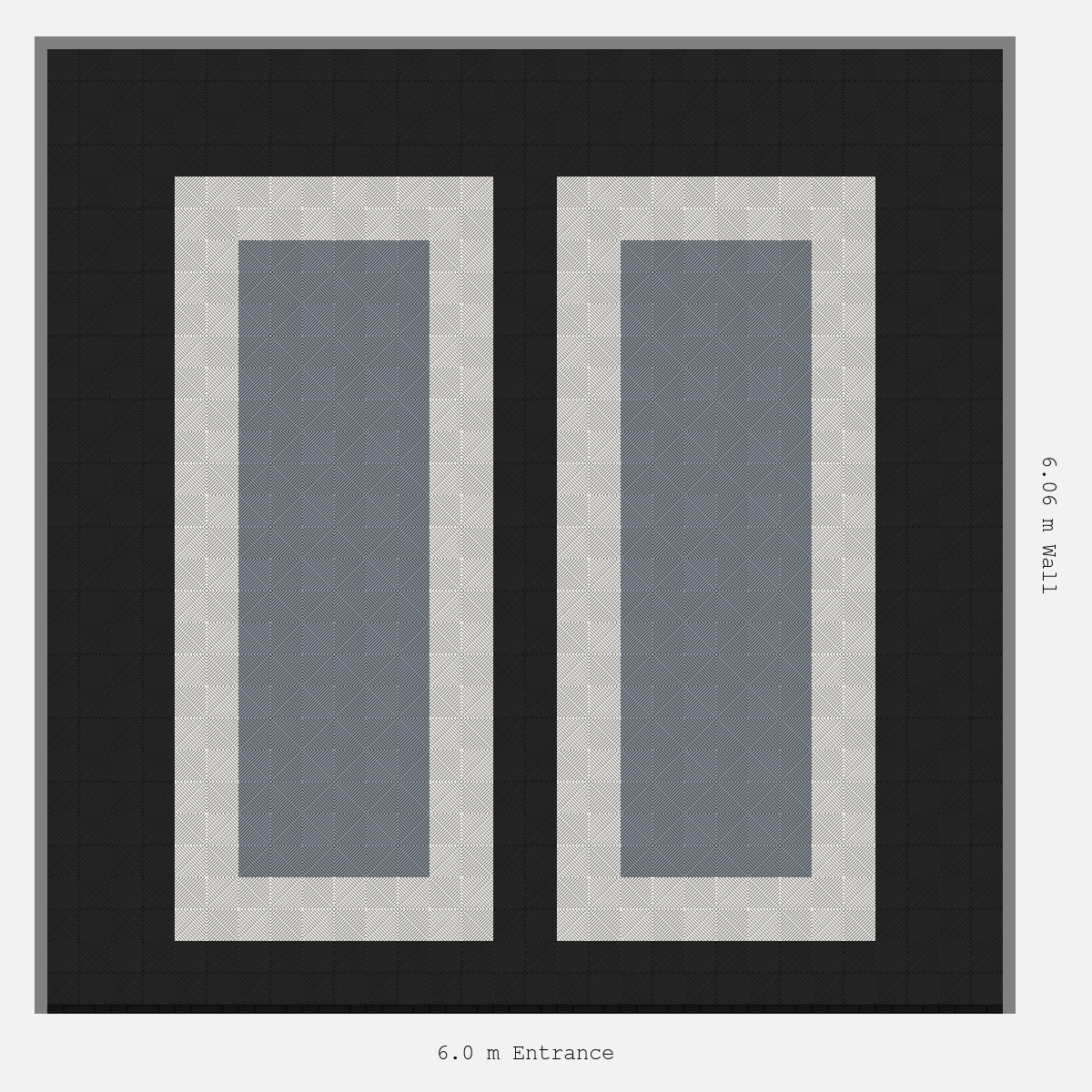

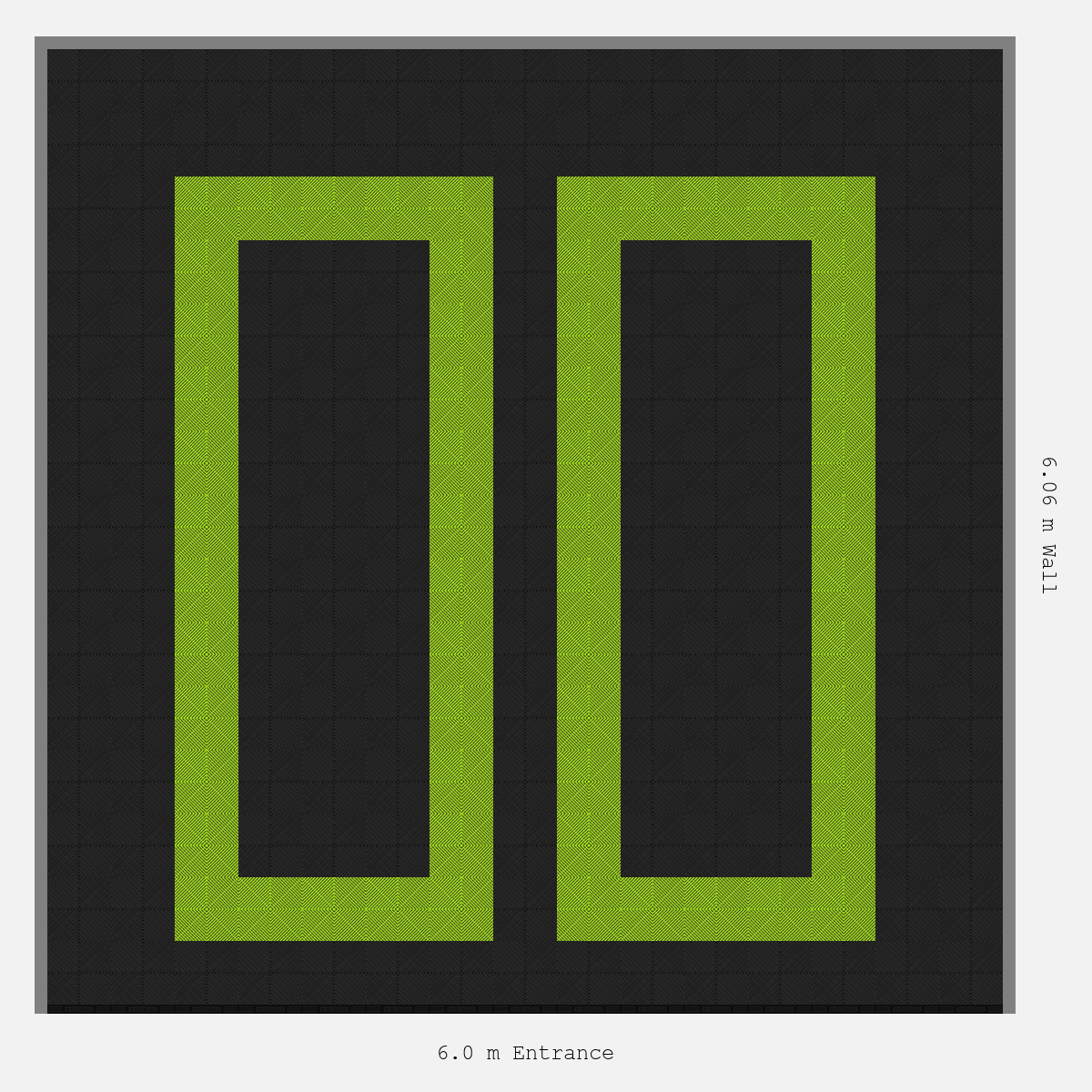

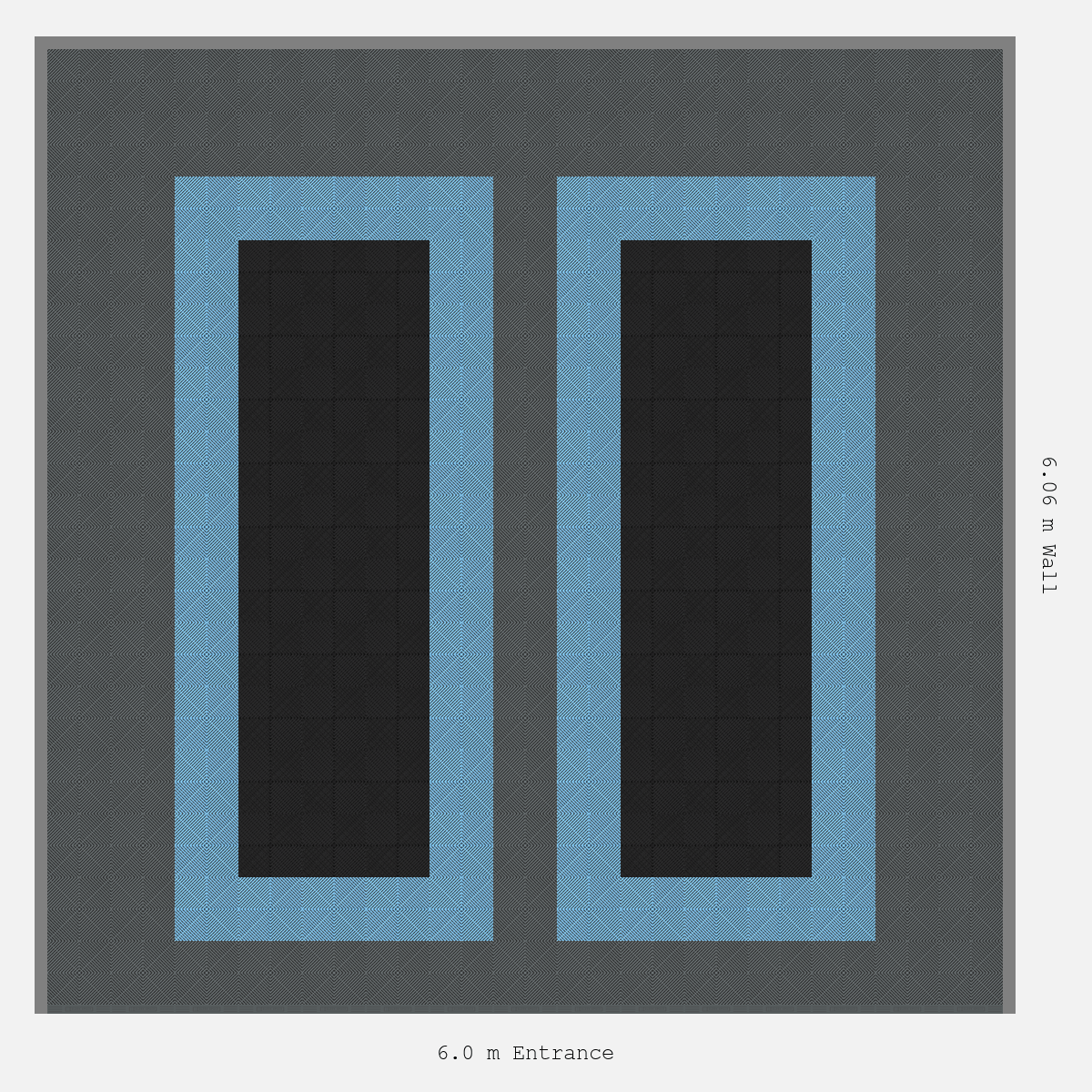

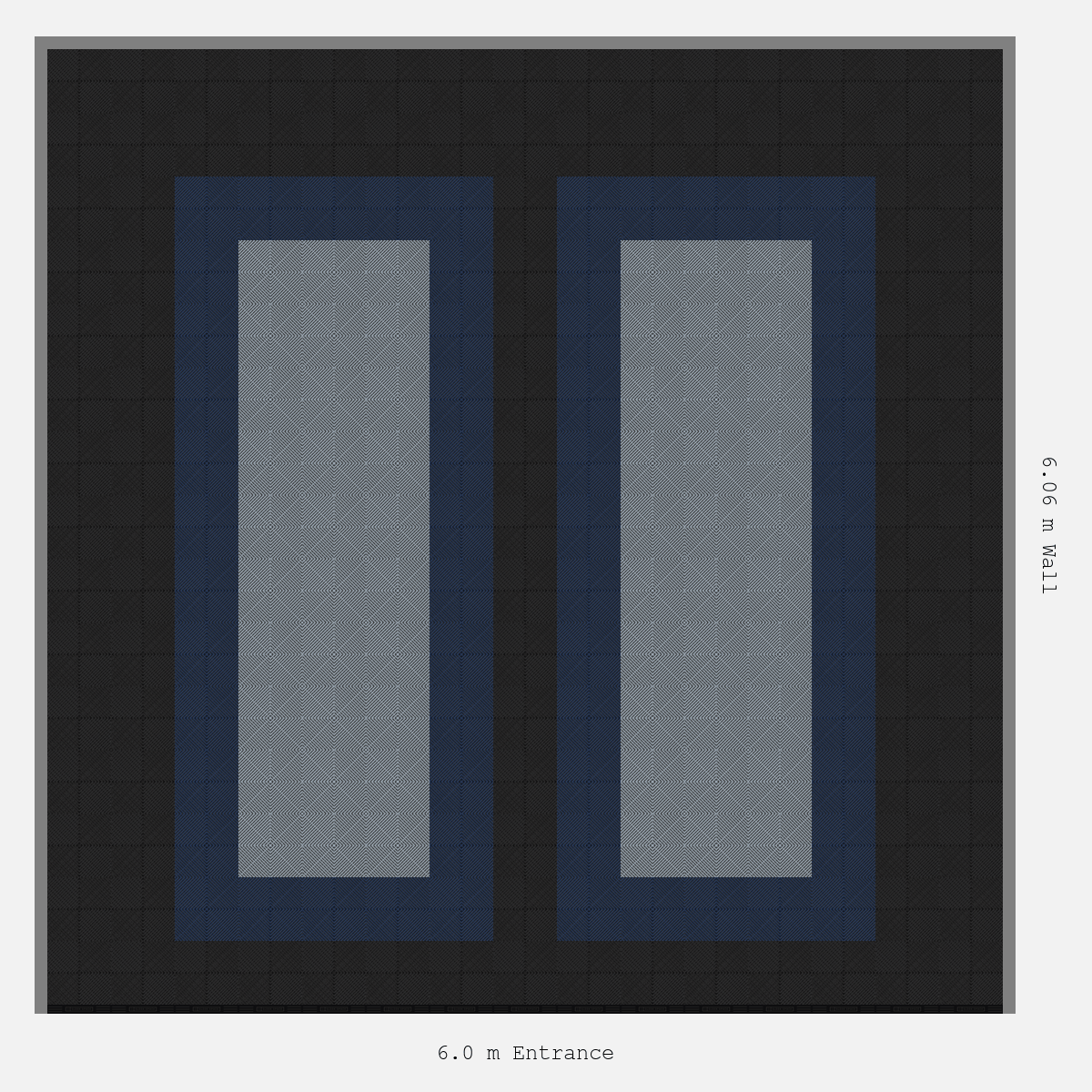

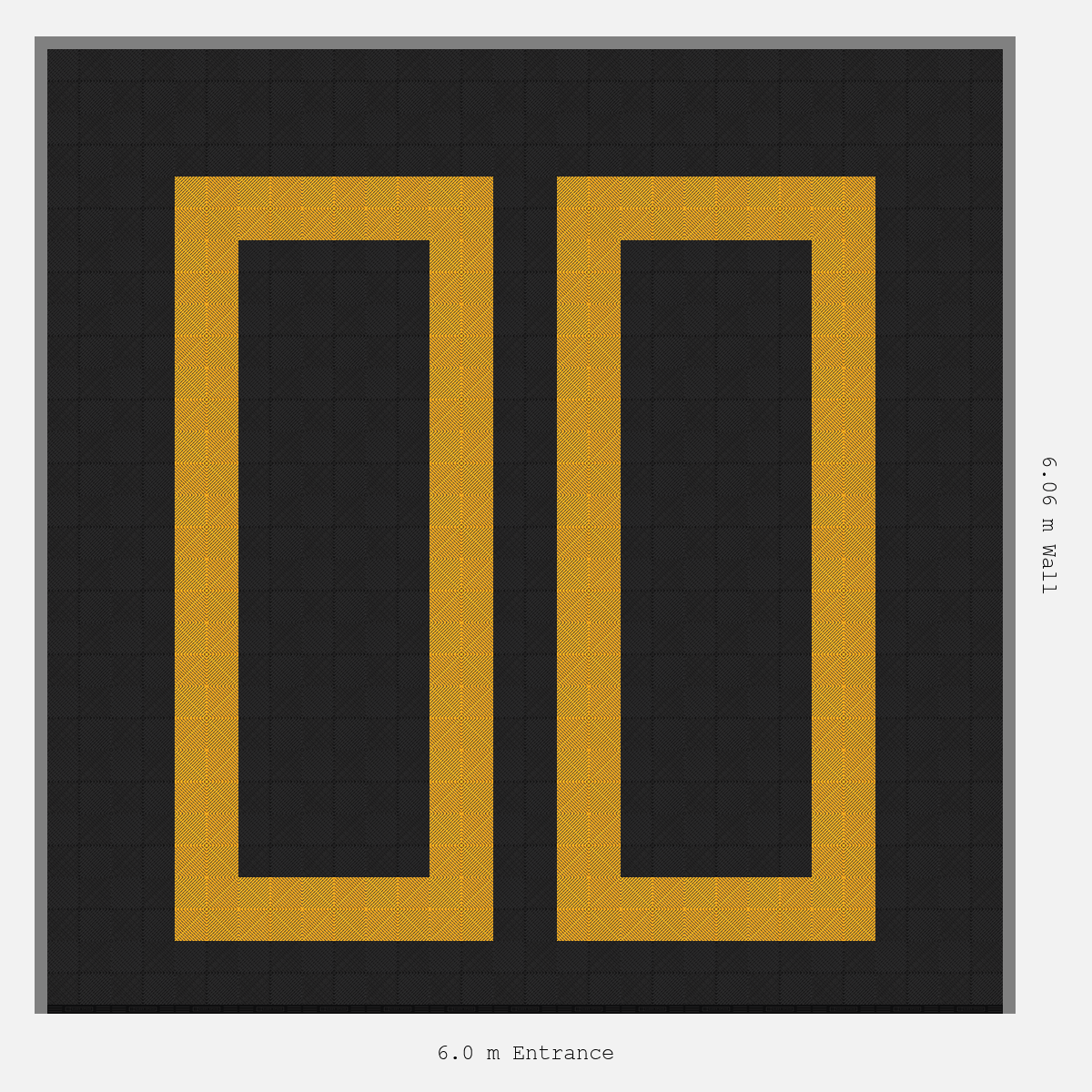

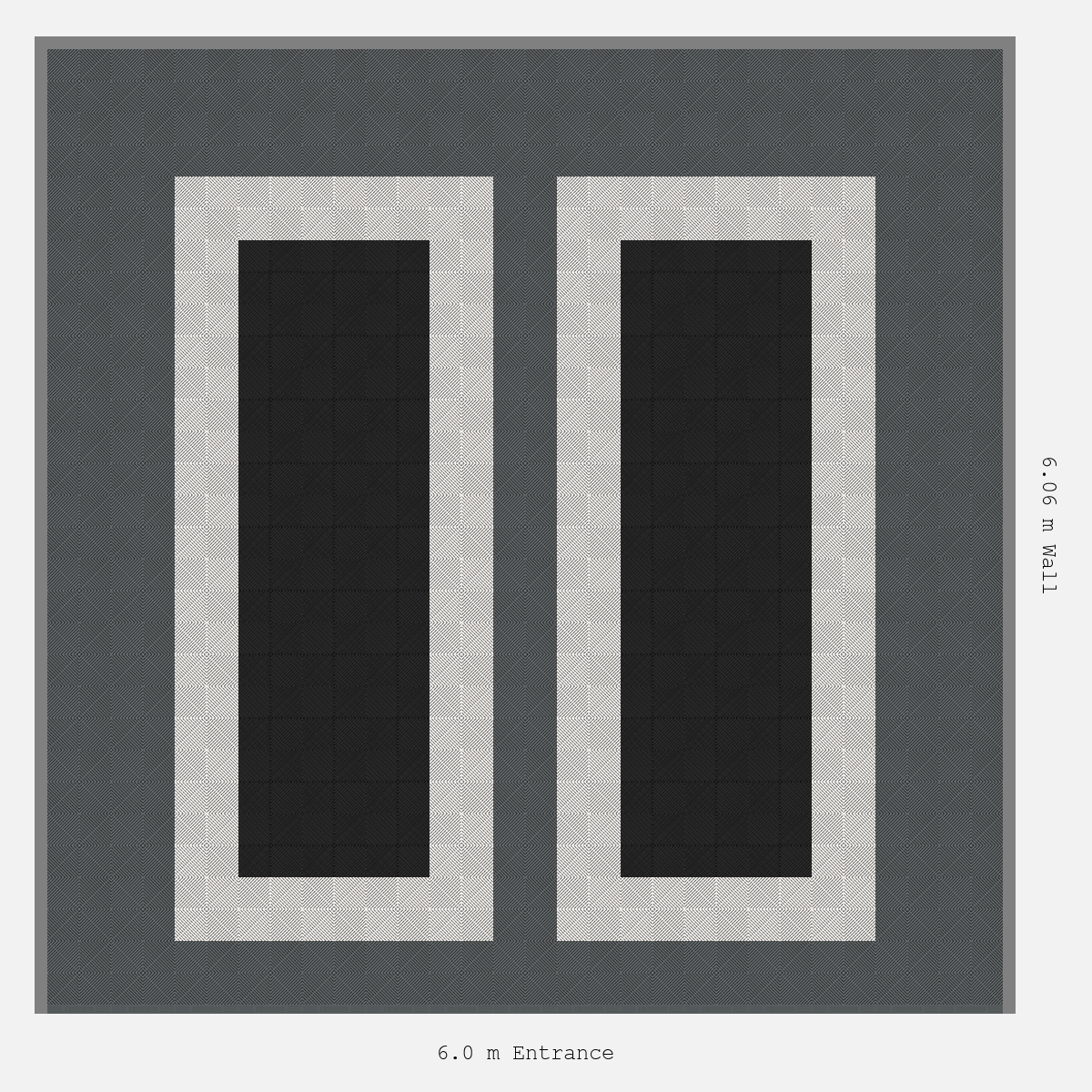

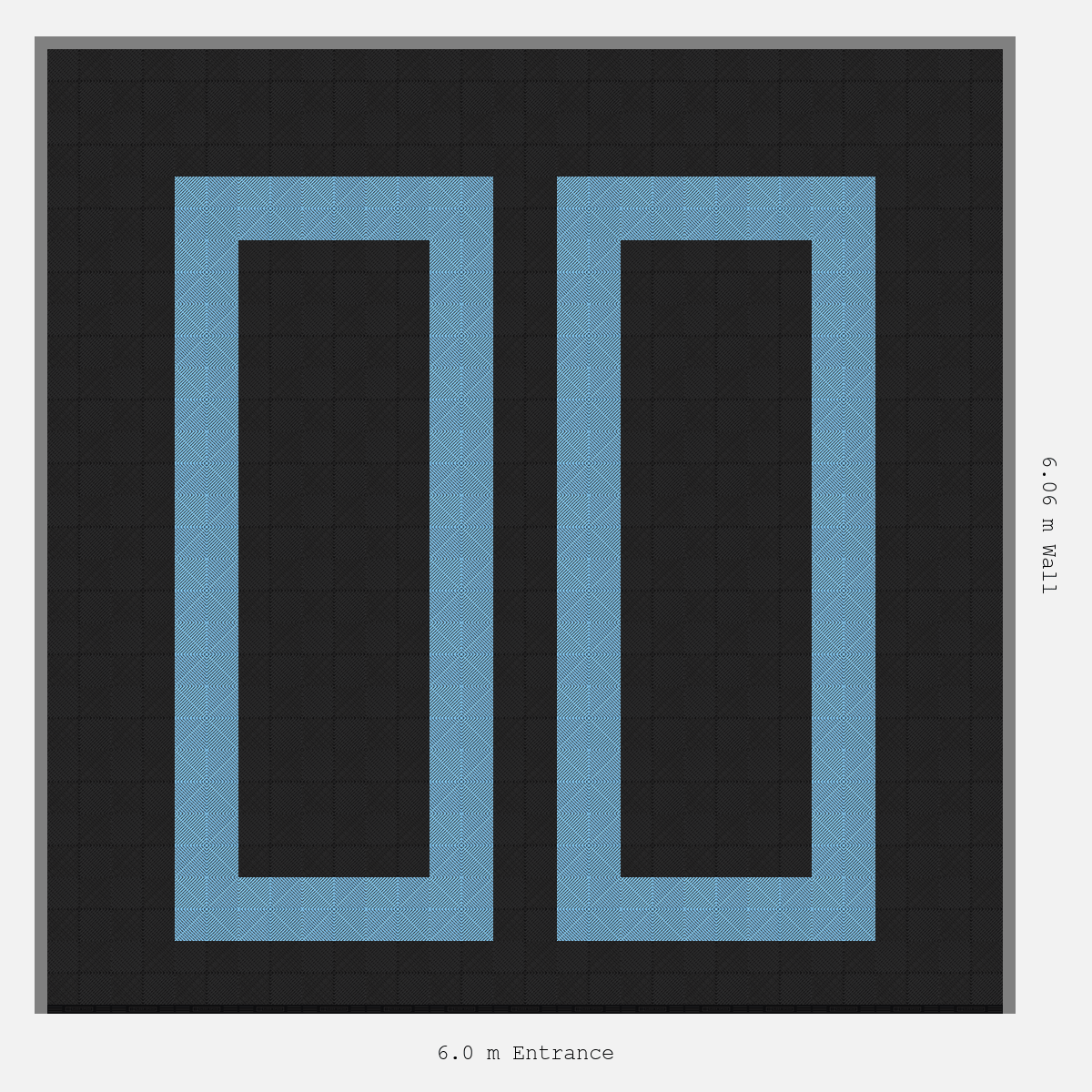

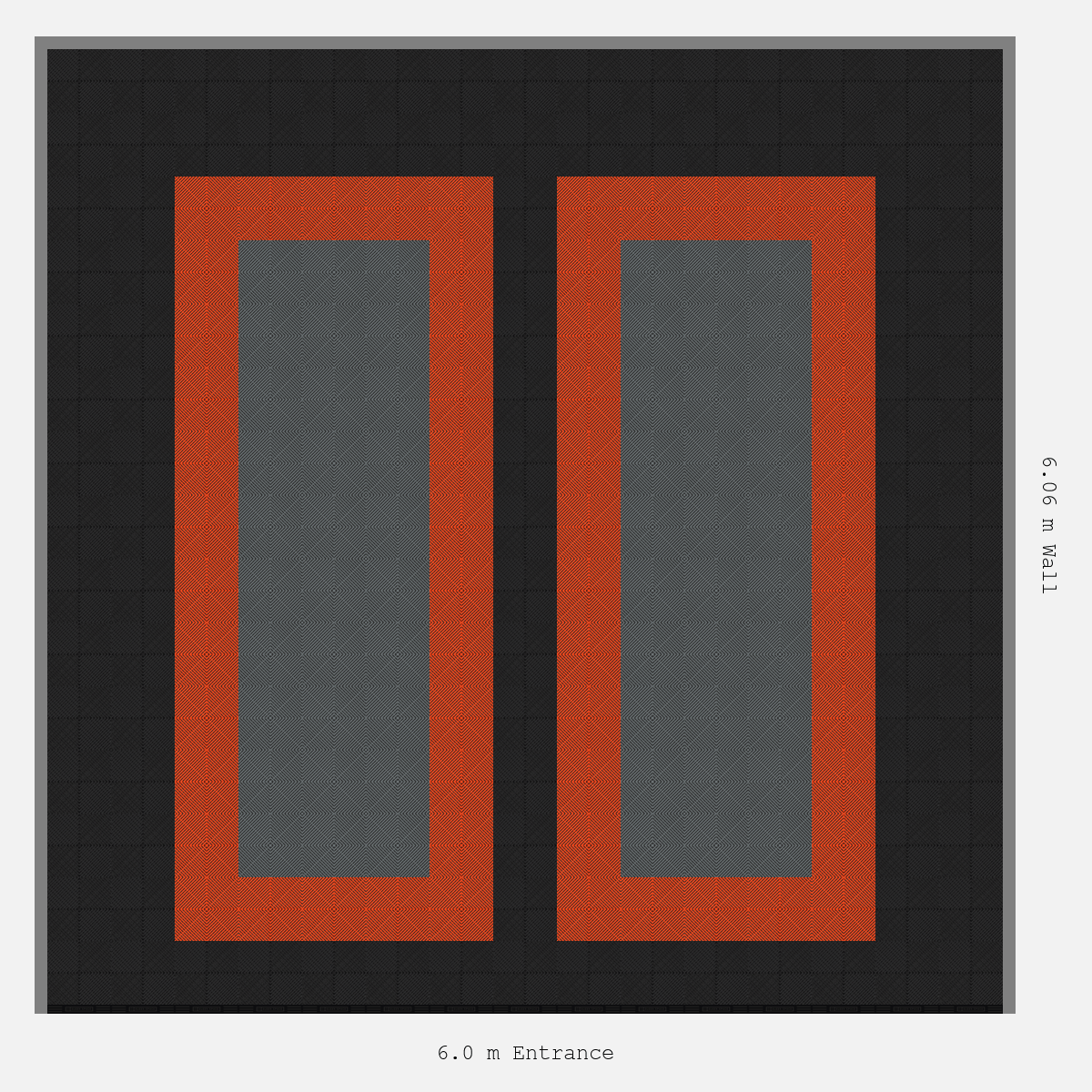

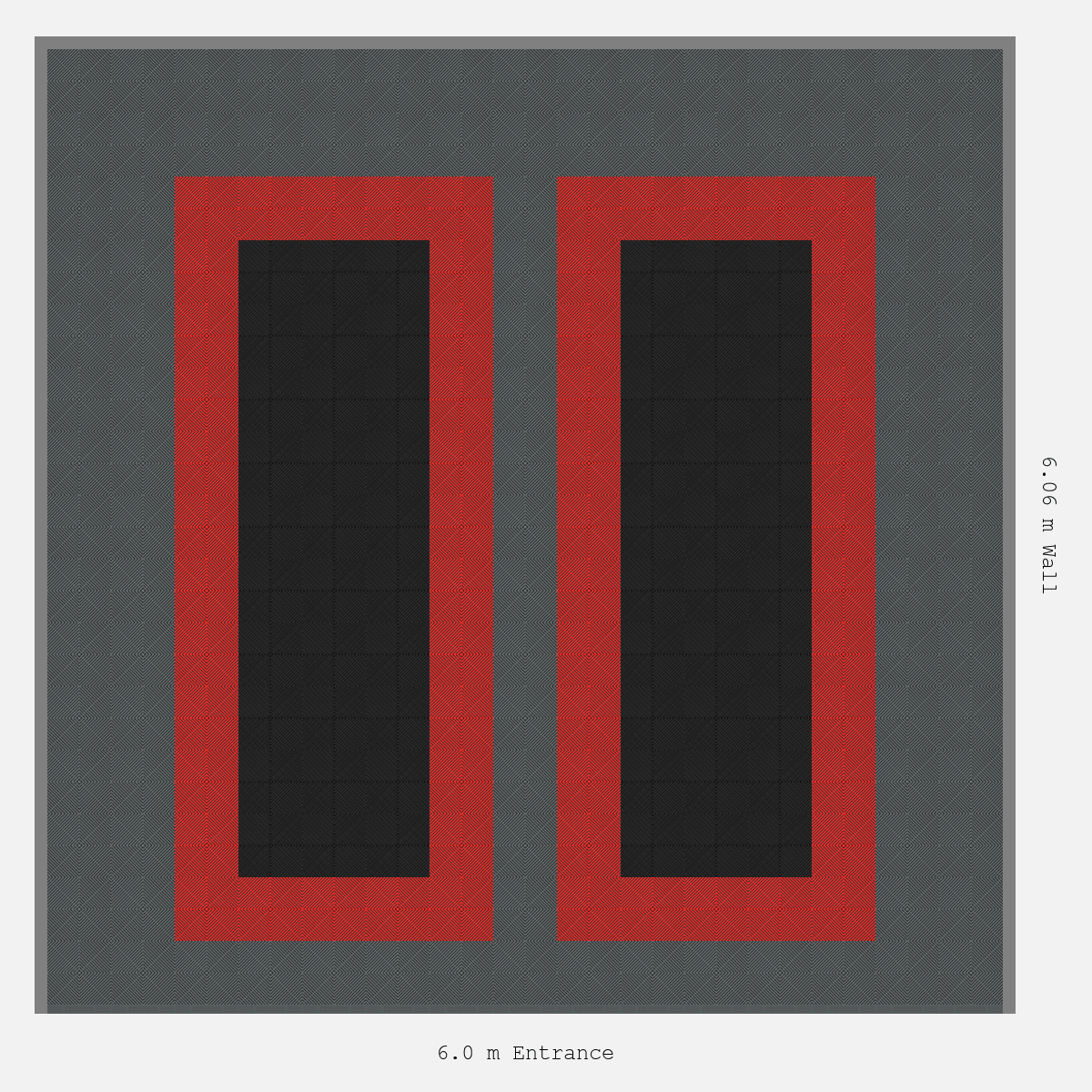

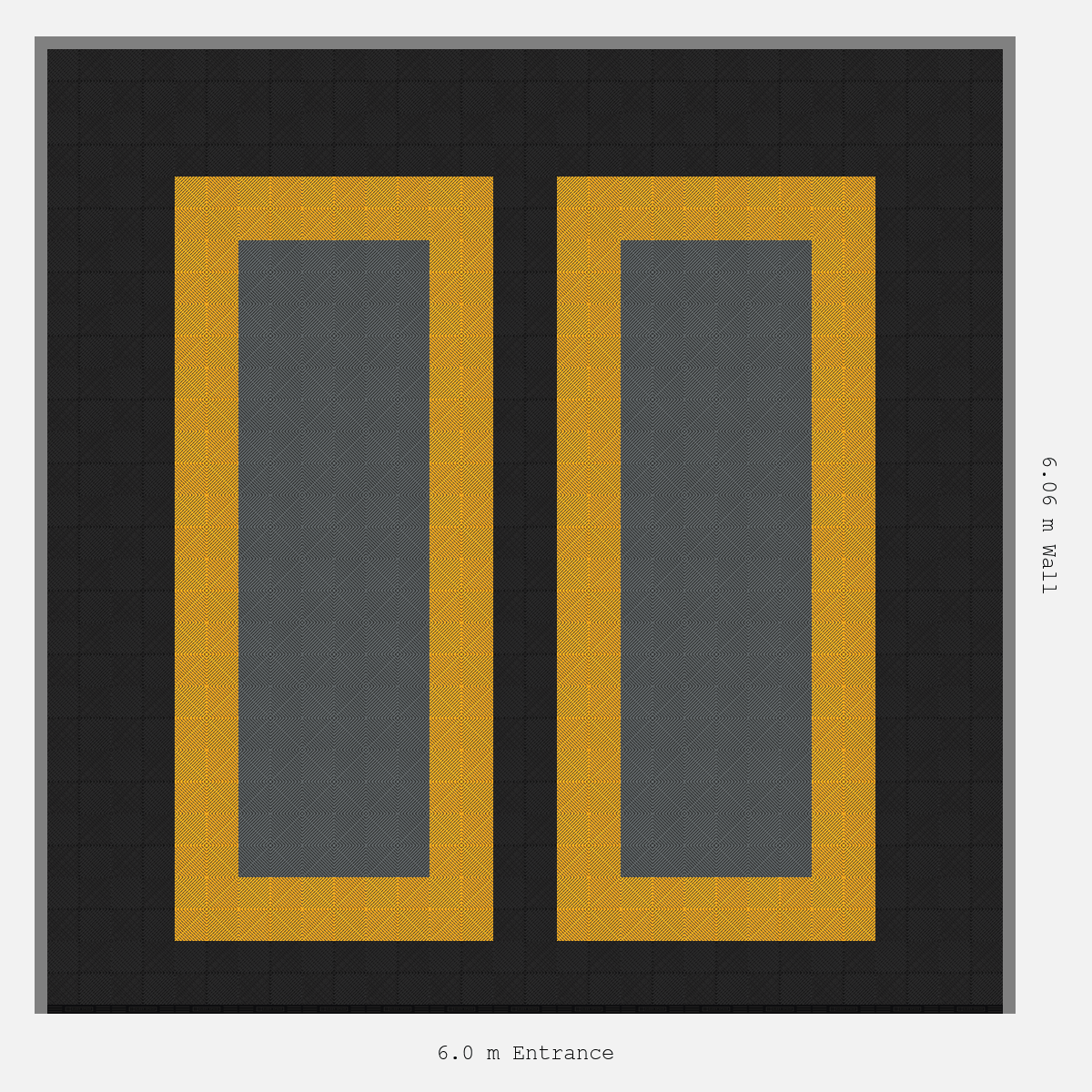

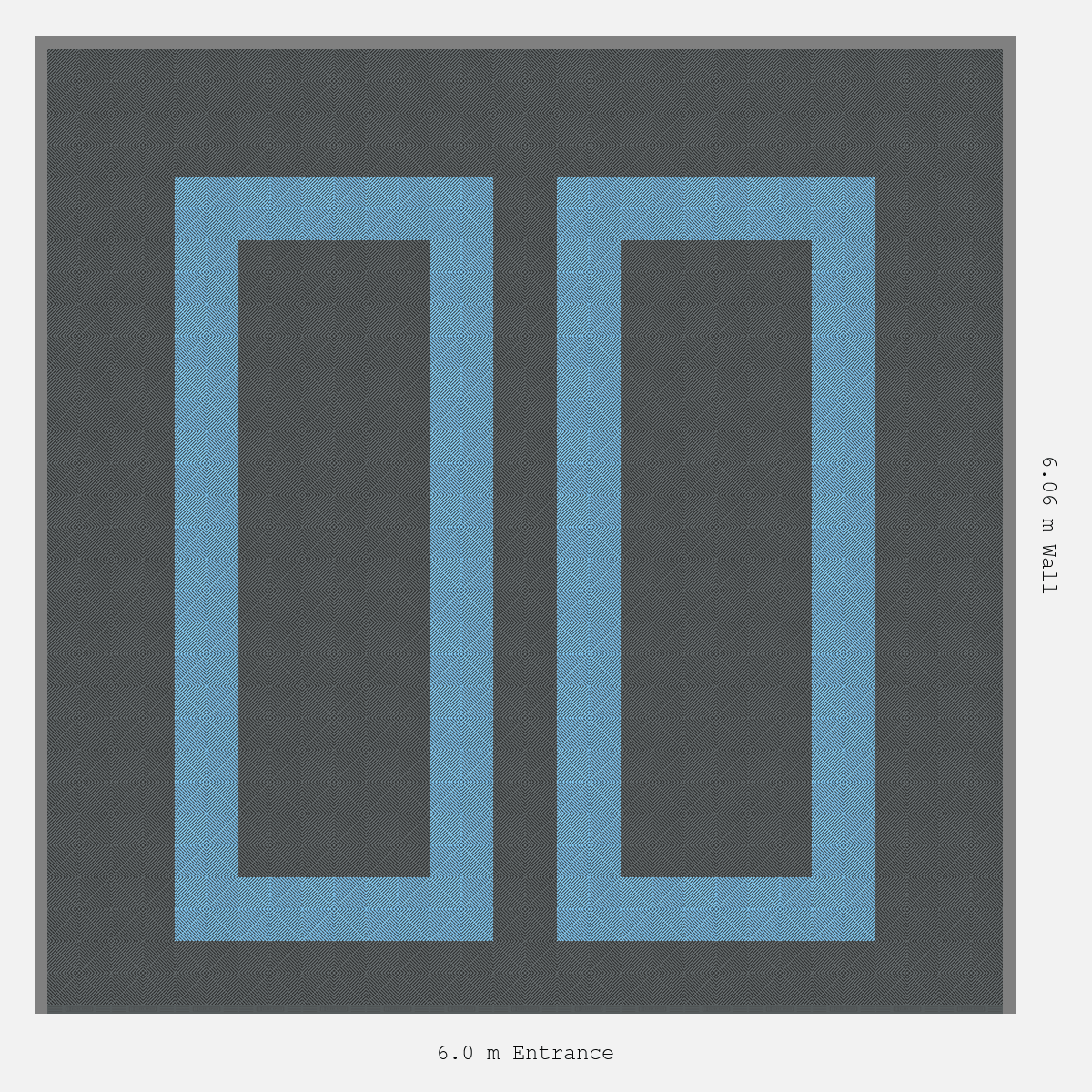

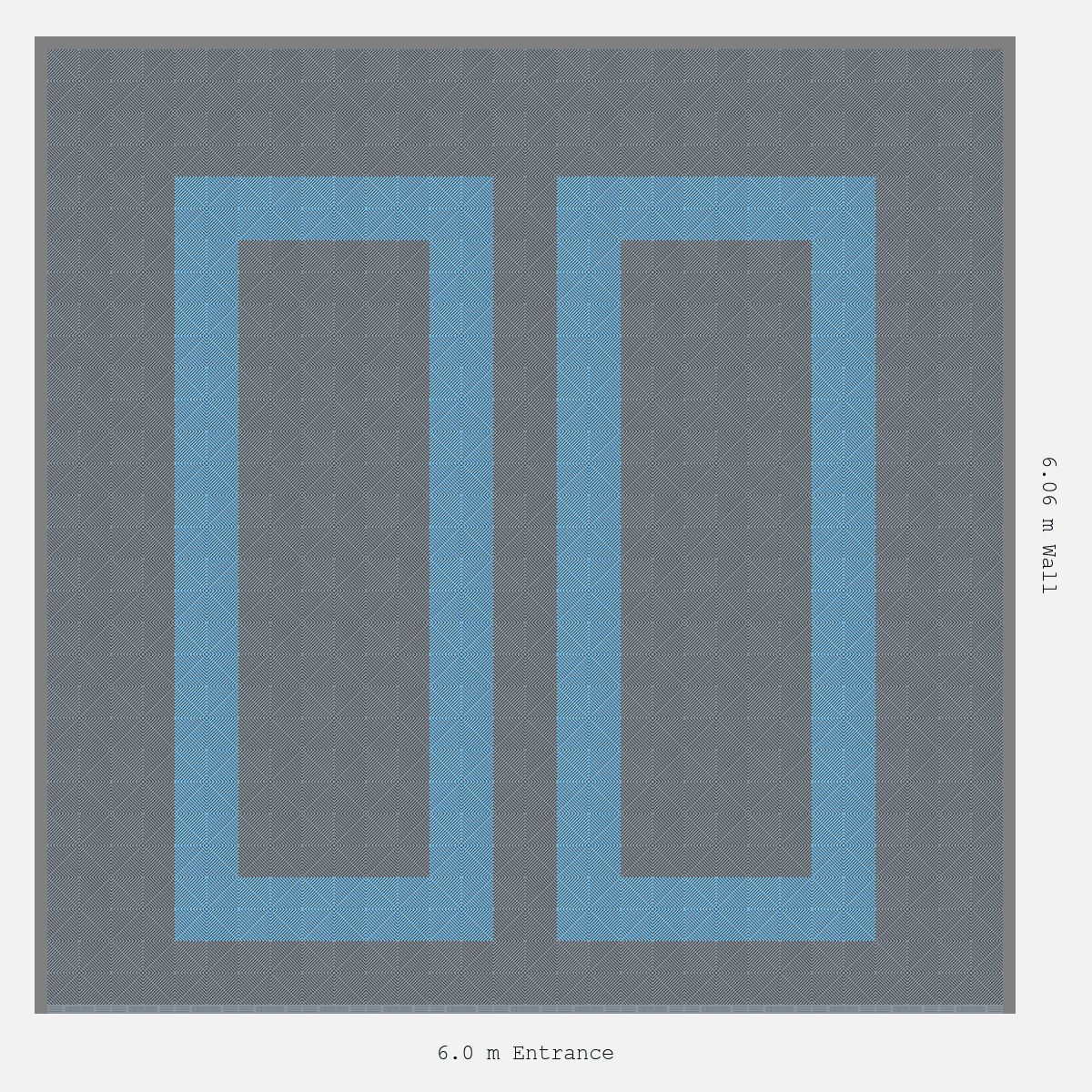

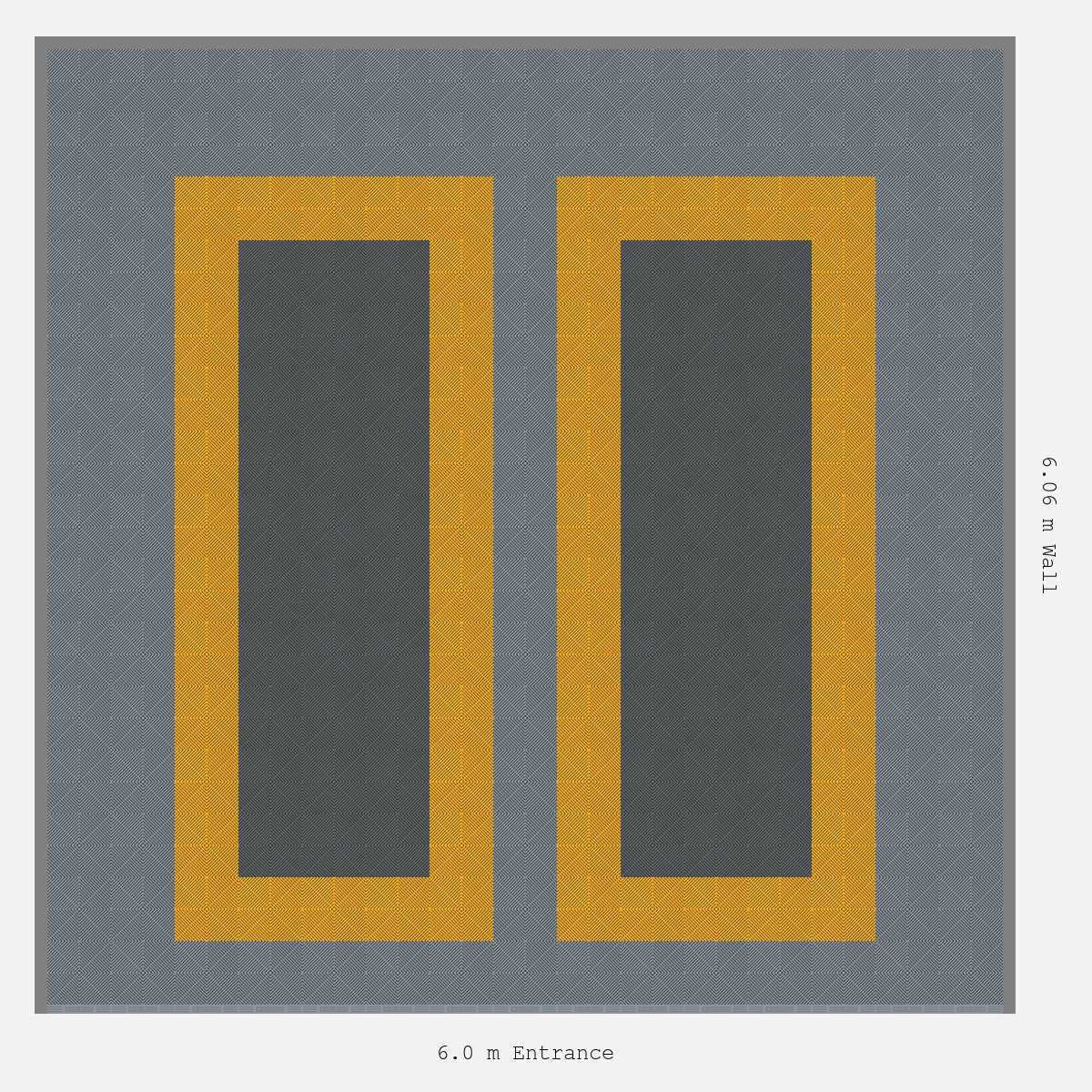

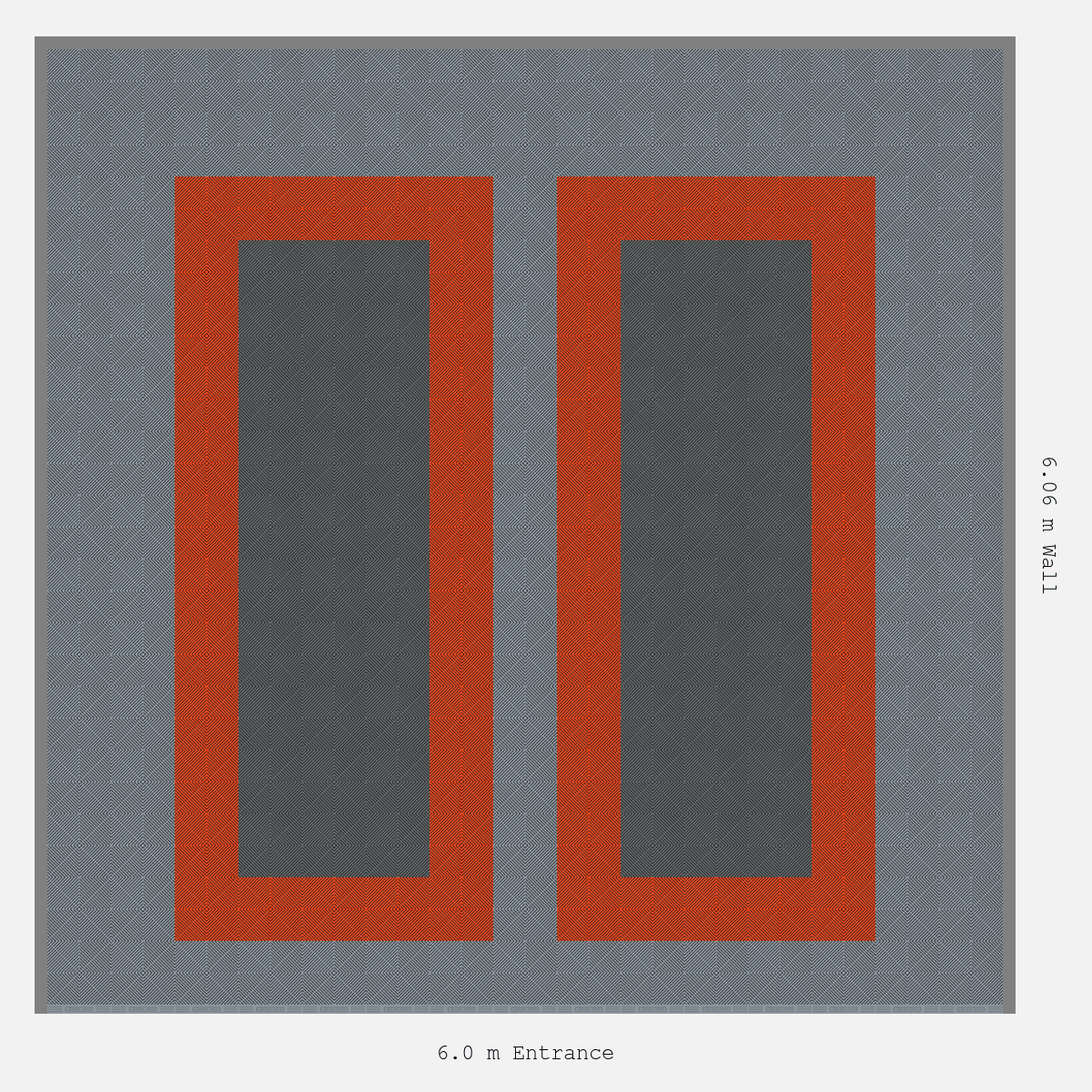

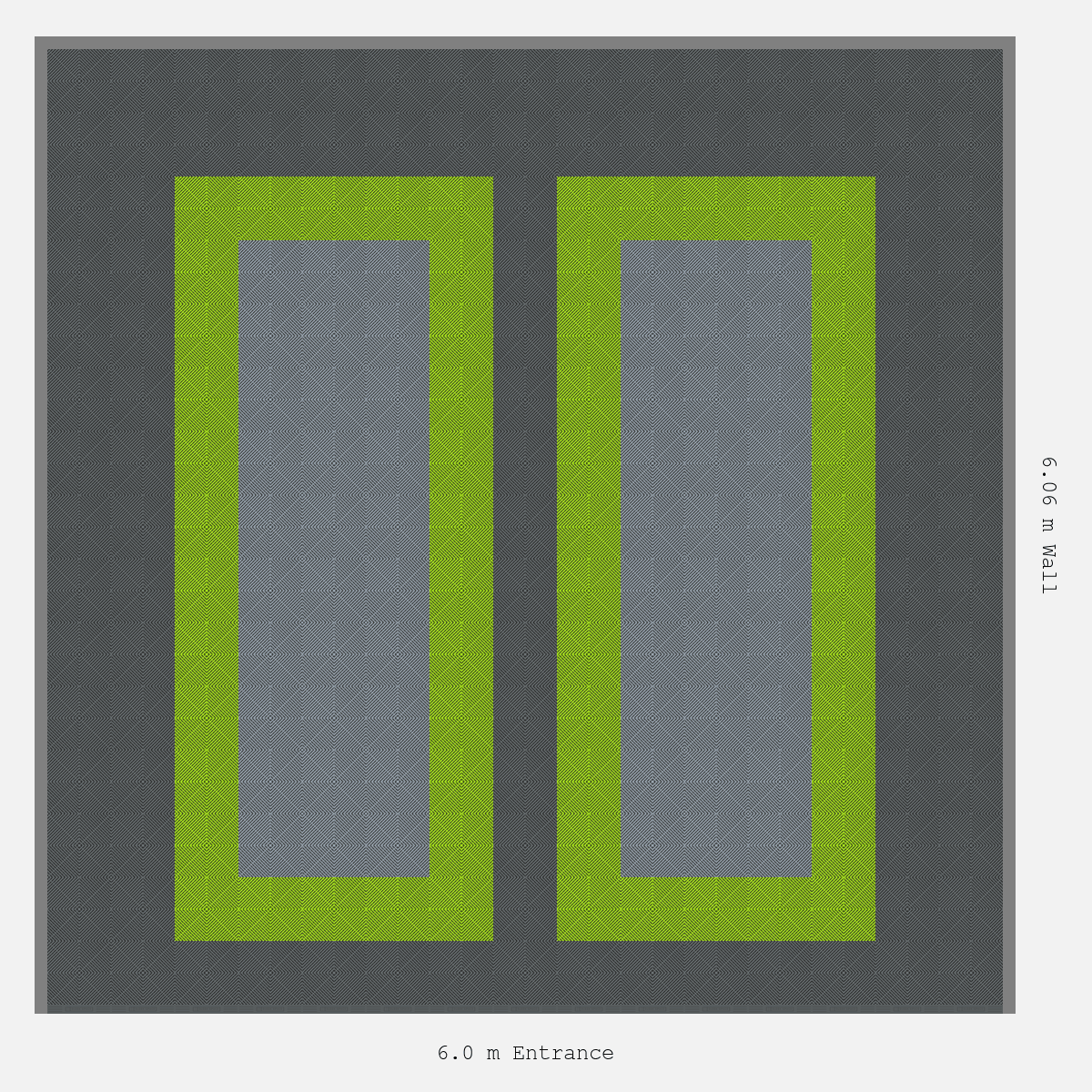

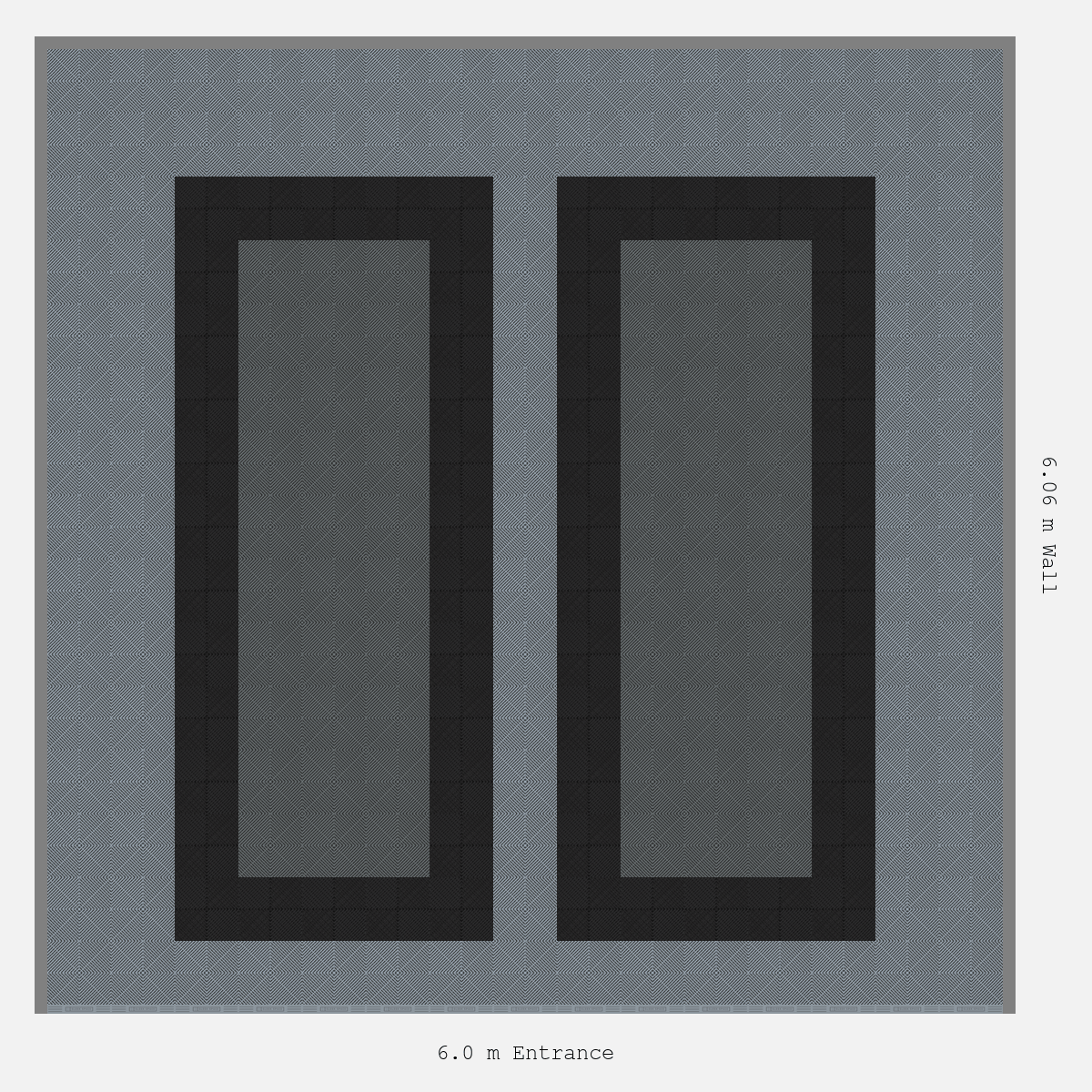

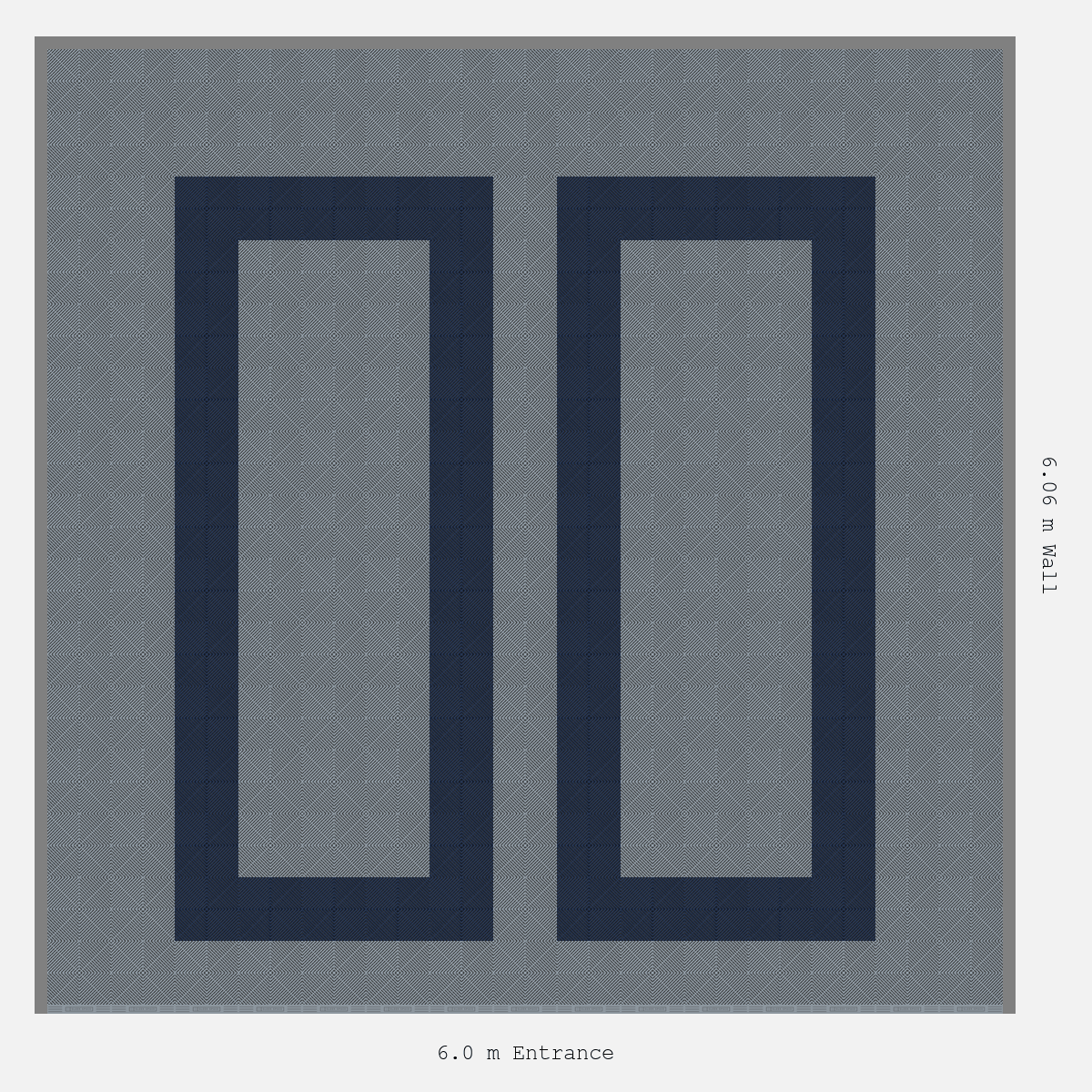

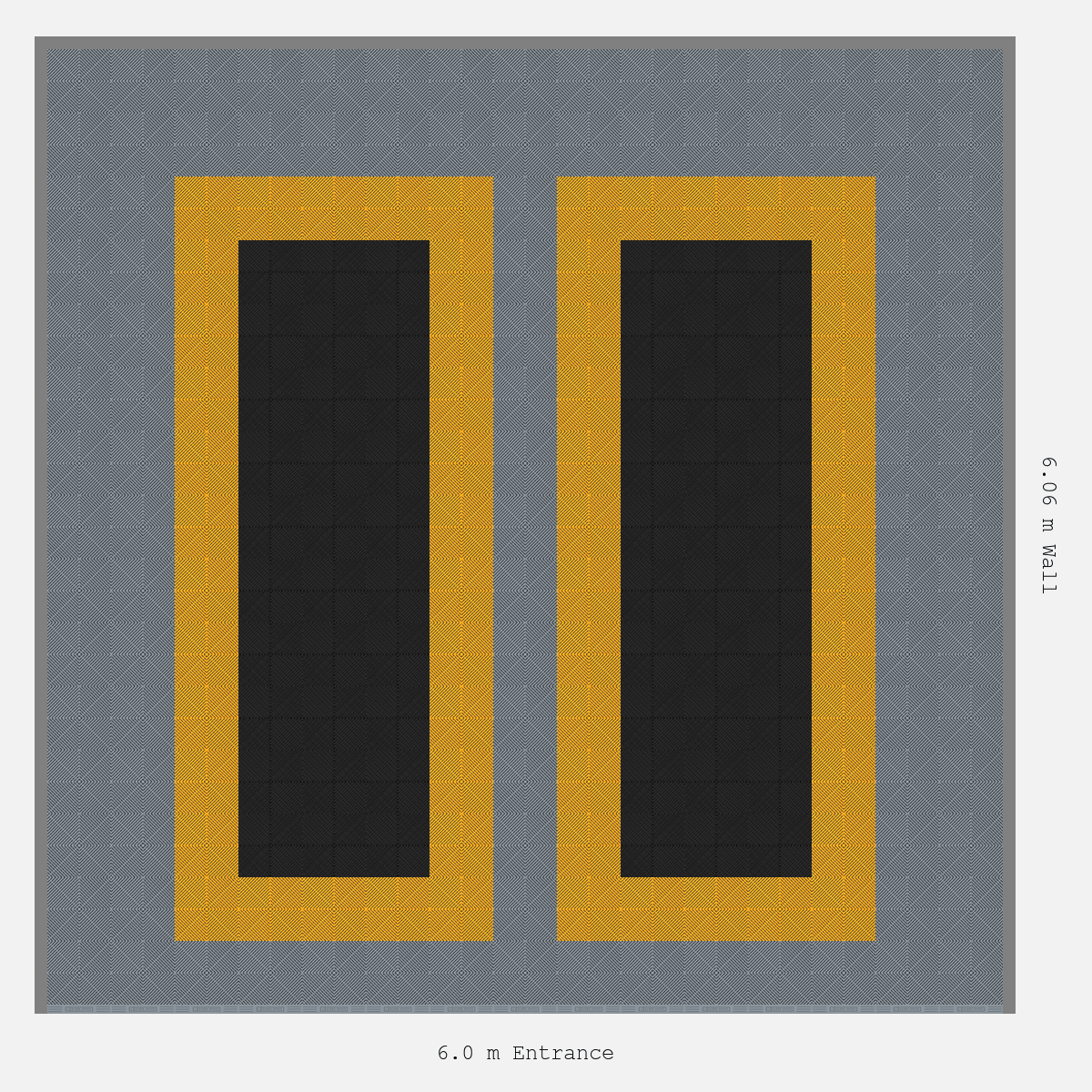

Two defined parking zones are marked out in one colour, with the area between and around them filled in a second colour. The effect is a professionally zoned garage floor with clear visual boundaries for each vehicle.
Yes. Because the tiles are modular, you can position the colour boundaries wherever you like. The snap-lock system does not lock you into a fixed layout — arrange the bays to suit your garage dimensions and vehicle sizes.
Two. One for the parking bays and one for the surrounding infill. Select both using the variant options on this page.
Not significantly. The main difference is planning the colour layout before you start clicking tiles together. Once you know where each colour goes, the snap-lock process is identical.

Installation Guide

What you'll need

  • Tape measure
  • Rubber mallet
  • Jigsaw (for edge cuts)
  • Marker or pencil
  • Broom

Time estimate

  • Single garage (20-25 sqm): 4-6 hours
  • Double garage (40-50 sqm): 6-10 hours
  • No curing time — drive on immediately

Installation steps

  1. 1

    Start from the entrance

    Begin laying tiles at the garage door corner. Leave a 5–10mm expansion gap at all walls.

  2. 2

    Lay the first row

    Complete your first row across the garage, clicking tiles together. The interlocking pegs and loops do the work.

  3. 3

    Fit entrance ramps

    Attach ramp trims to the first row and slide the row snug against the garage door.

  4. 4

    Centre your design (optional)

    If your design has a centred pattern, adjust the first row to leave equal gaps on both sides.

  5. 5

    Lay remaining tiles

    Continue laying rows towards the back and side walls, clicking each tile into the previous one.

  6. 6

    Trim edges and finish

    Cut edge tiles with a jigsaw, click them in, and your floor is ready to use immediately — no curing time.
