ULTRAGRID Tiles Double Garage Floor Kit 6x6M, Border Chequer Infill

ULTRAGRID Tiles Double Garage Floor Kit 6x6M, Border Chequer Infill

In stock - ready to ship
$1,749
$2,100 $1,749
Save $351
Taxes included. Shipping calculated at checkout.

Complete ULTRAGRID™ Border Chequer Infill kit. 240 open-rib ventilated tiles + 16 ramps for a 6×6 m garage. Details

Outer
Inner
Infill
Recommended By →
Aussie Garage Dadz Garage BadQ Garage Outlaw Garage Heath's Garage It's In The Detail
View full details

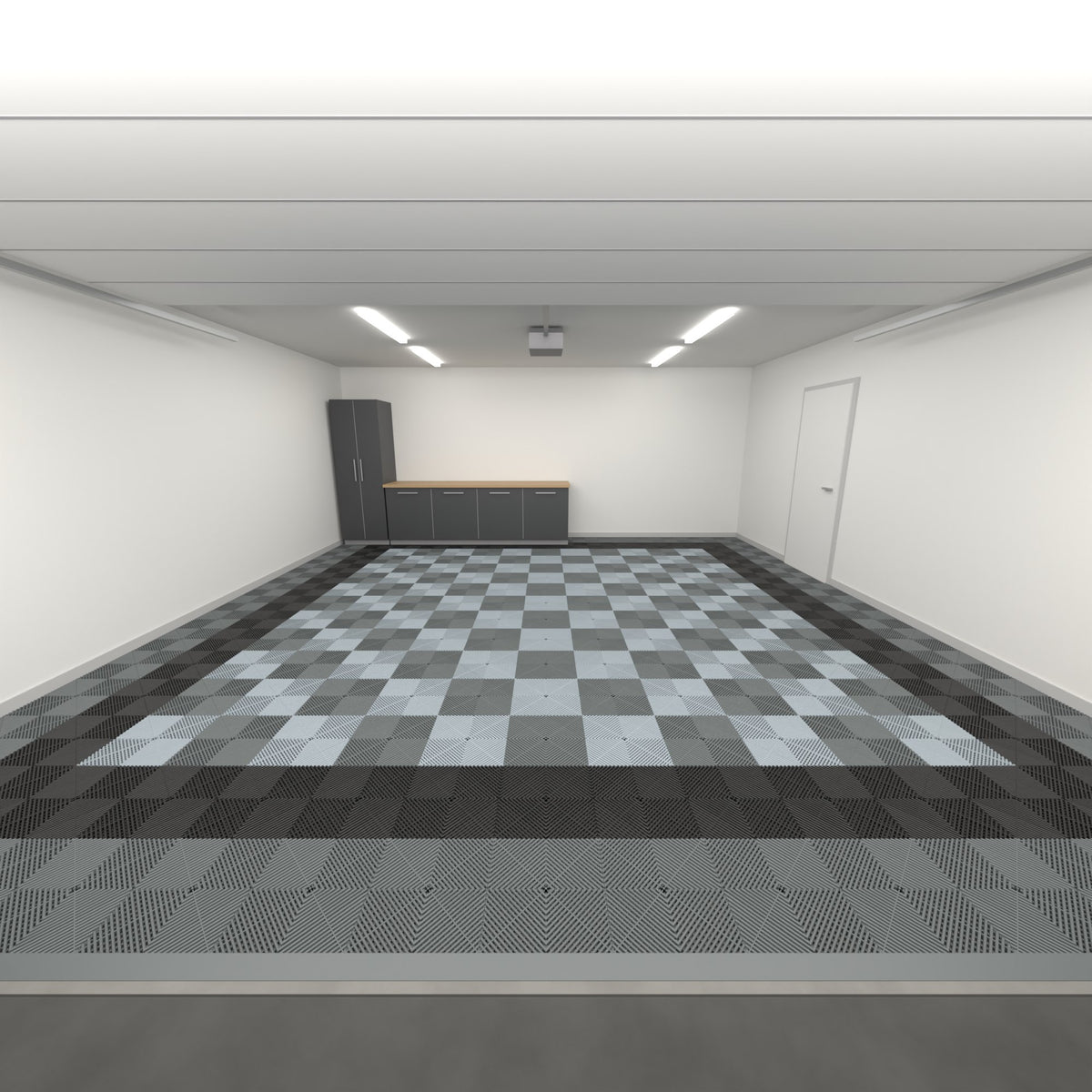

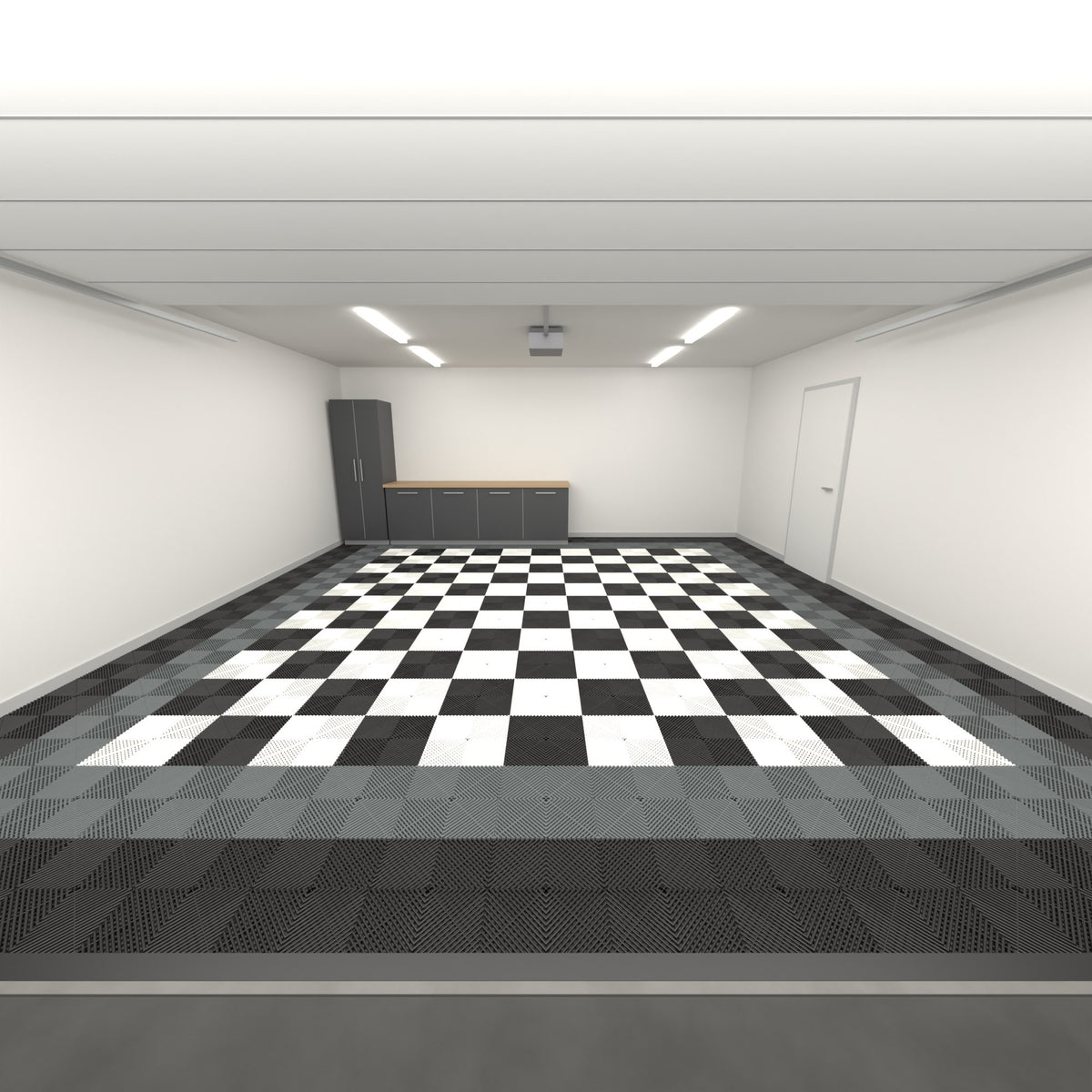

A complete modular floor for a 6 × 6 m double garage. The ULTRAGRID™ Border Chequer Infill Kit ships with 240 durable tiles (225 floor plus 15 spares) and 16 ULTRAEDGE ramps — a versatile surface you can install yourself in one afternoon.

  • Complete kit — a 6×6 m double garage floor in one box: 240 ULTRAGRID™ tiles (with 15 spares) and 16 ramps.

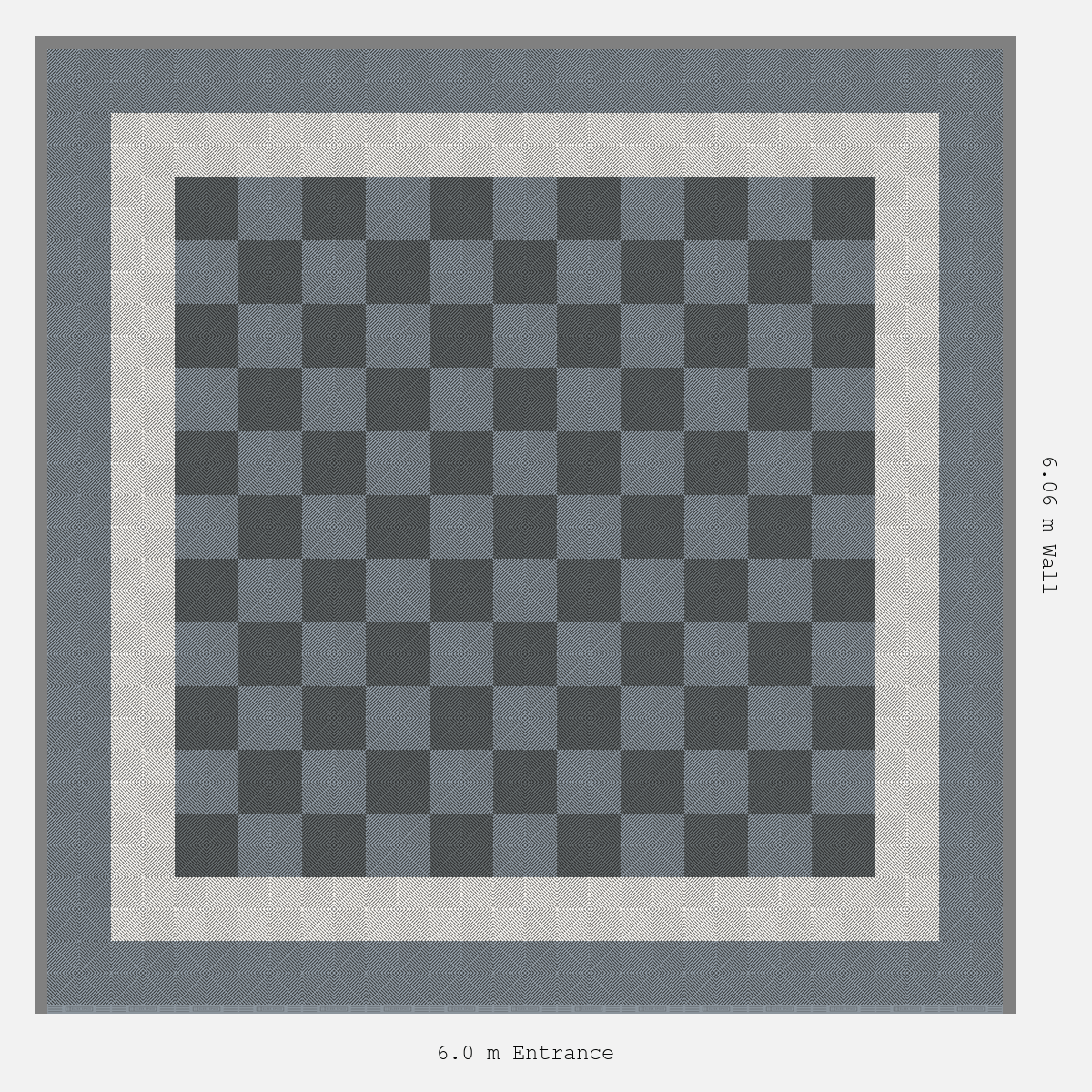

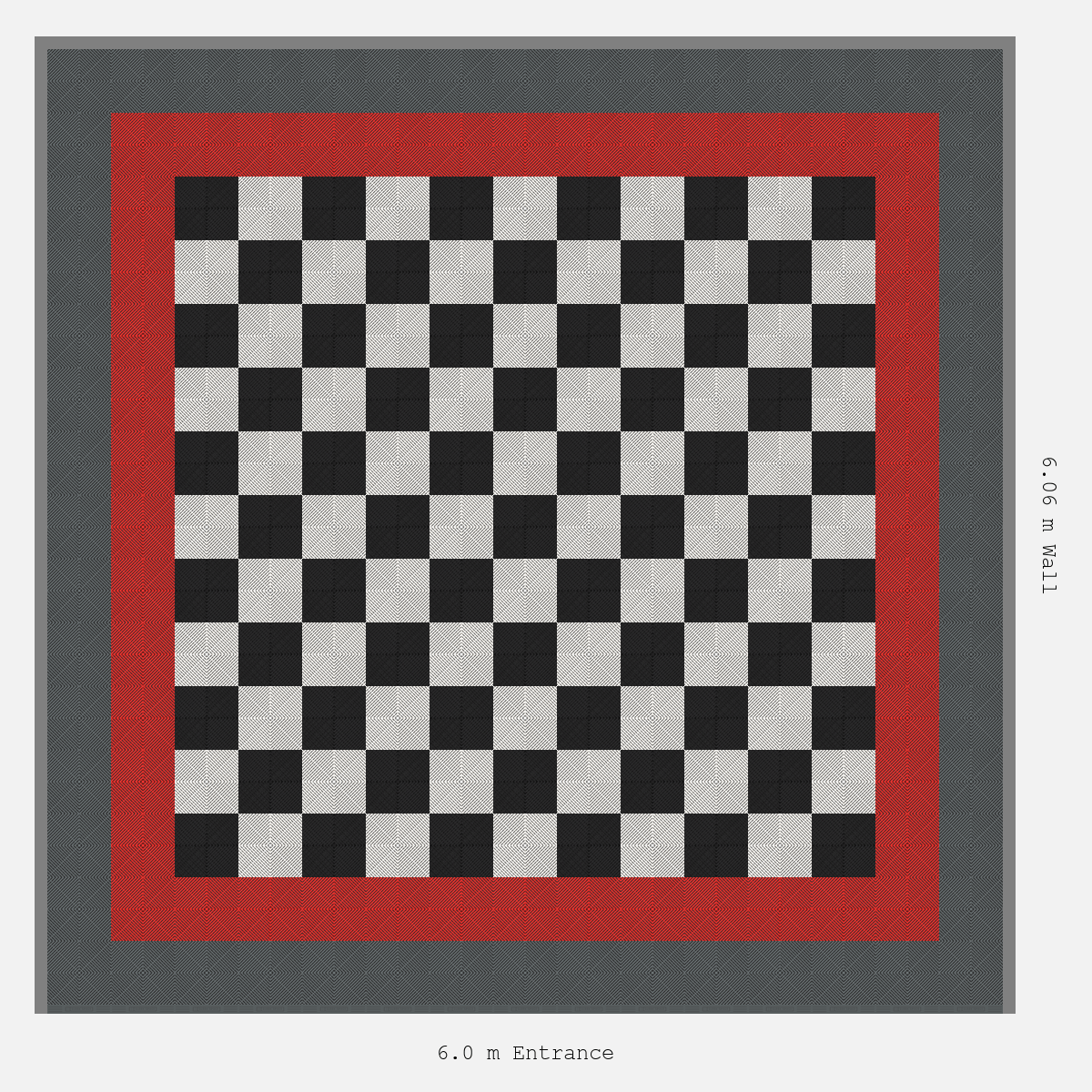

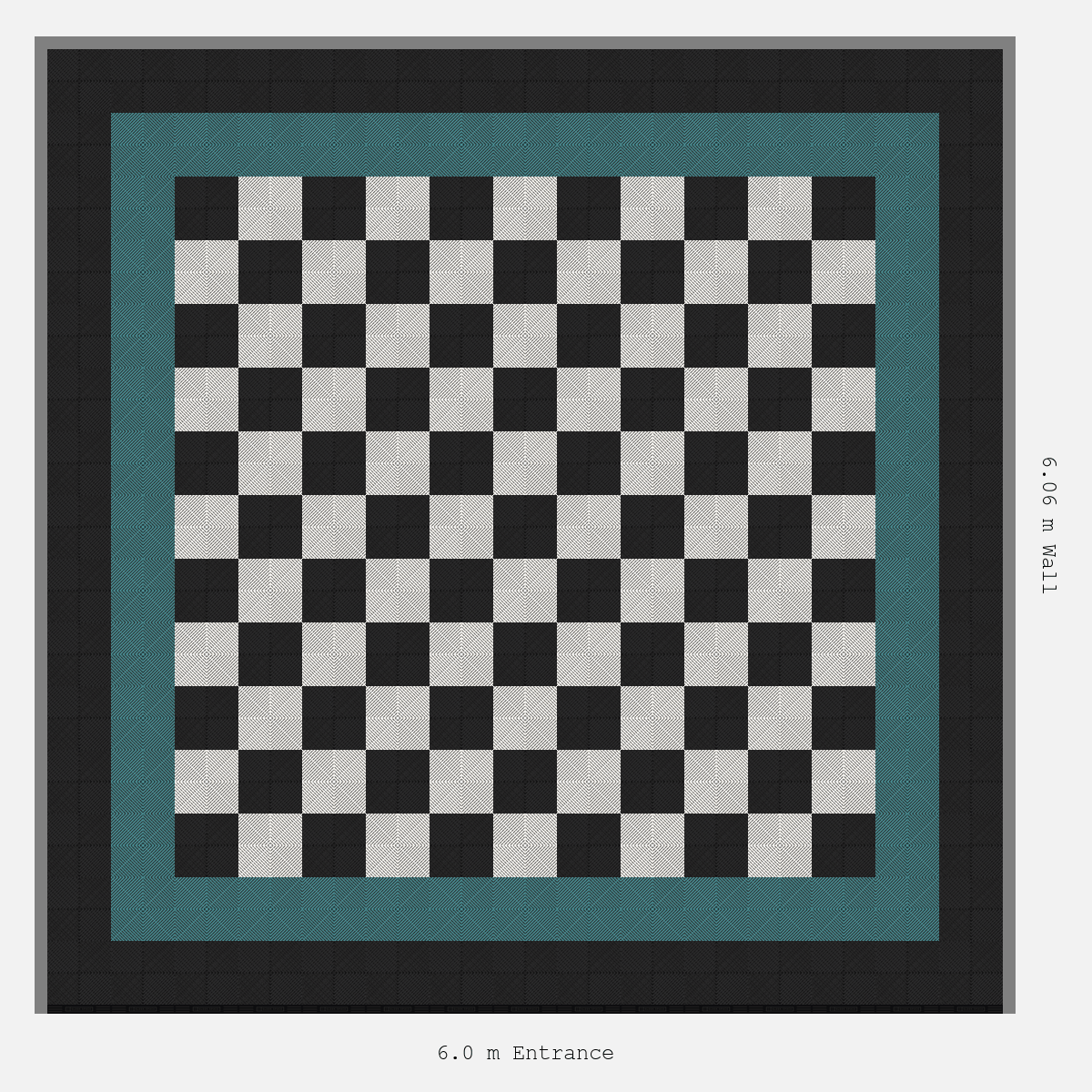

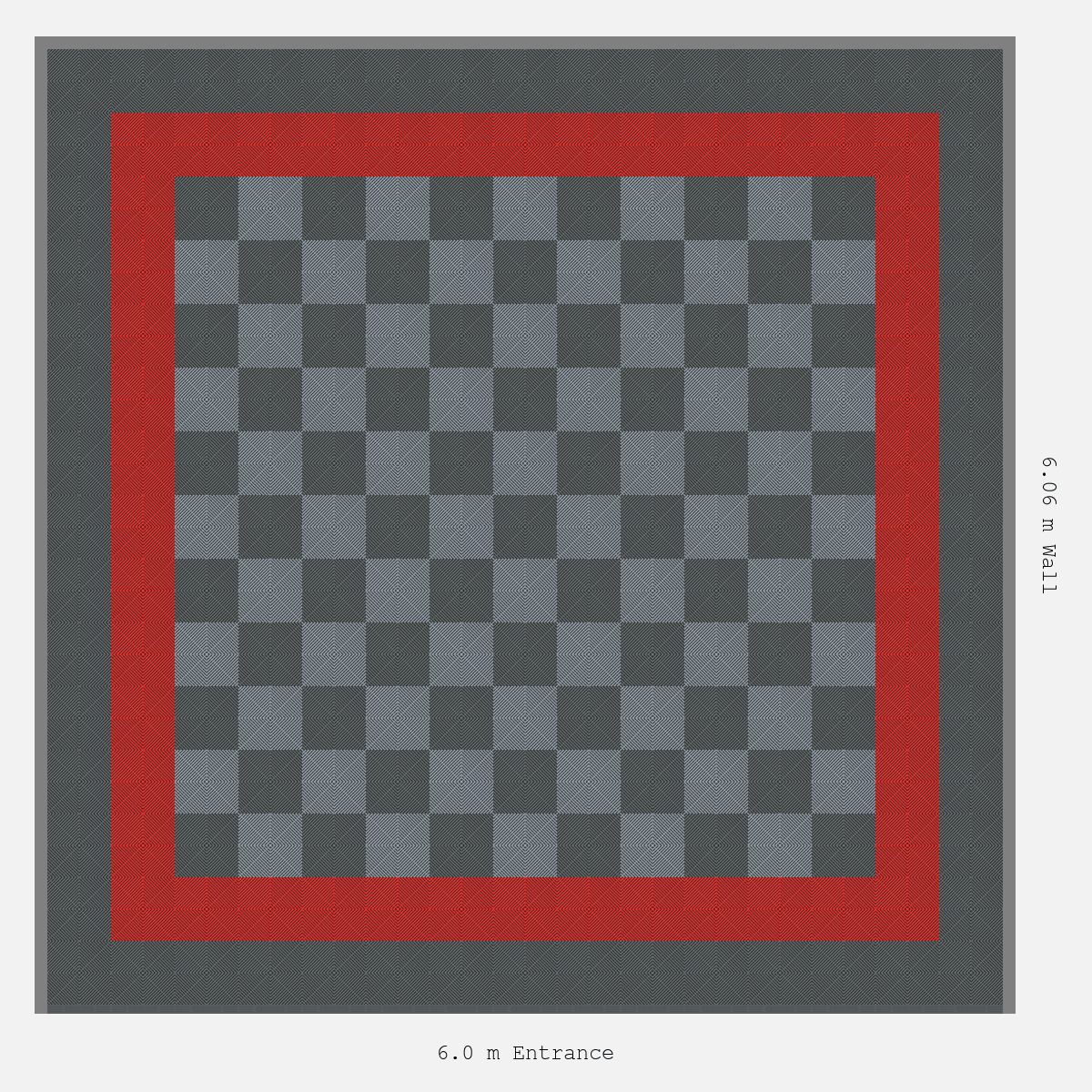

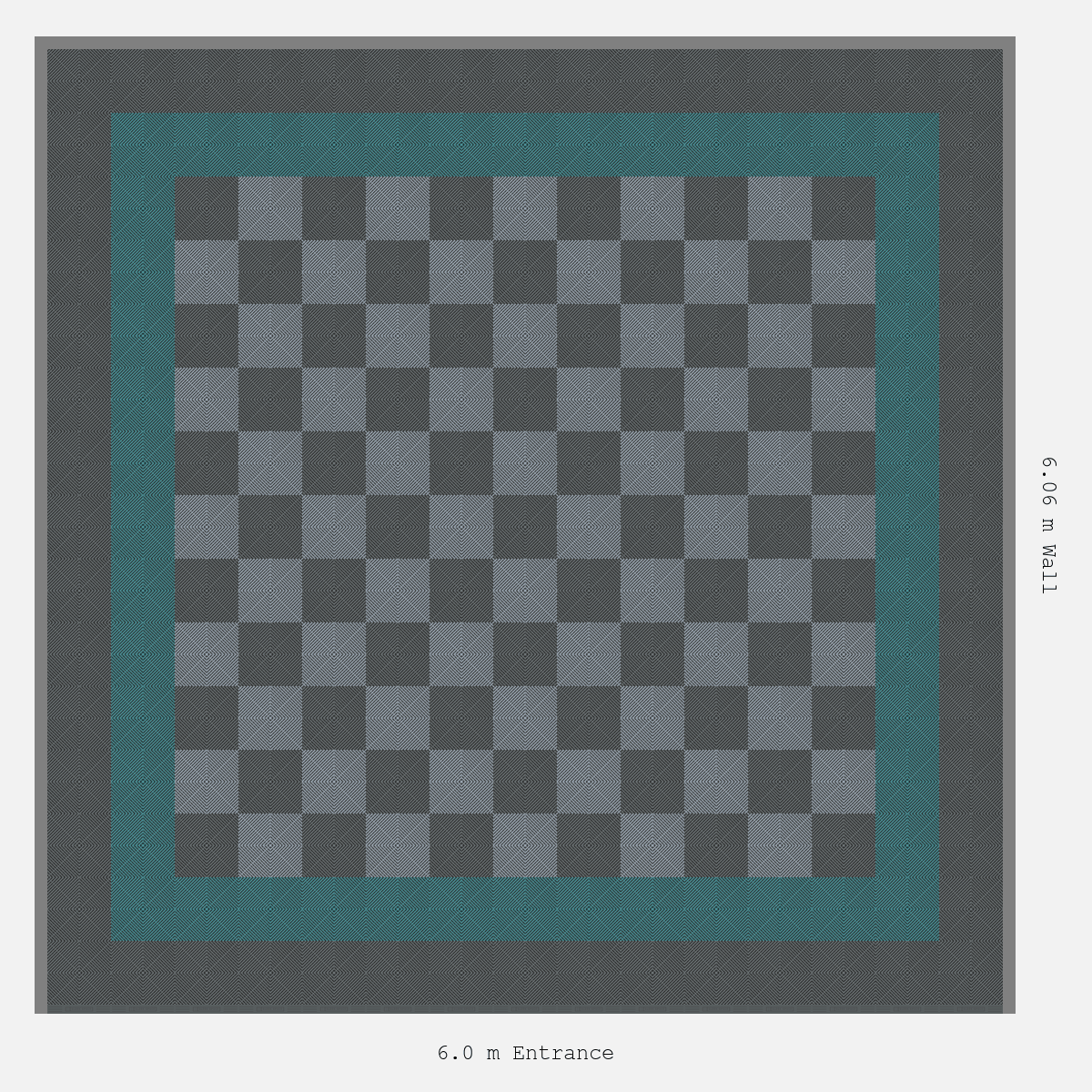

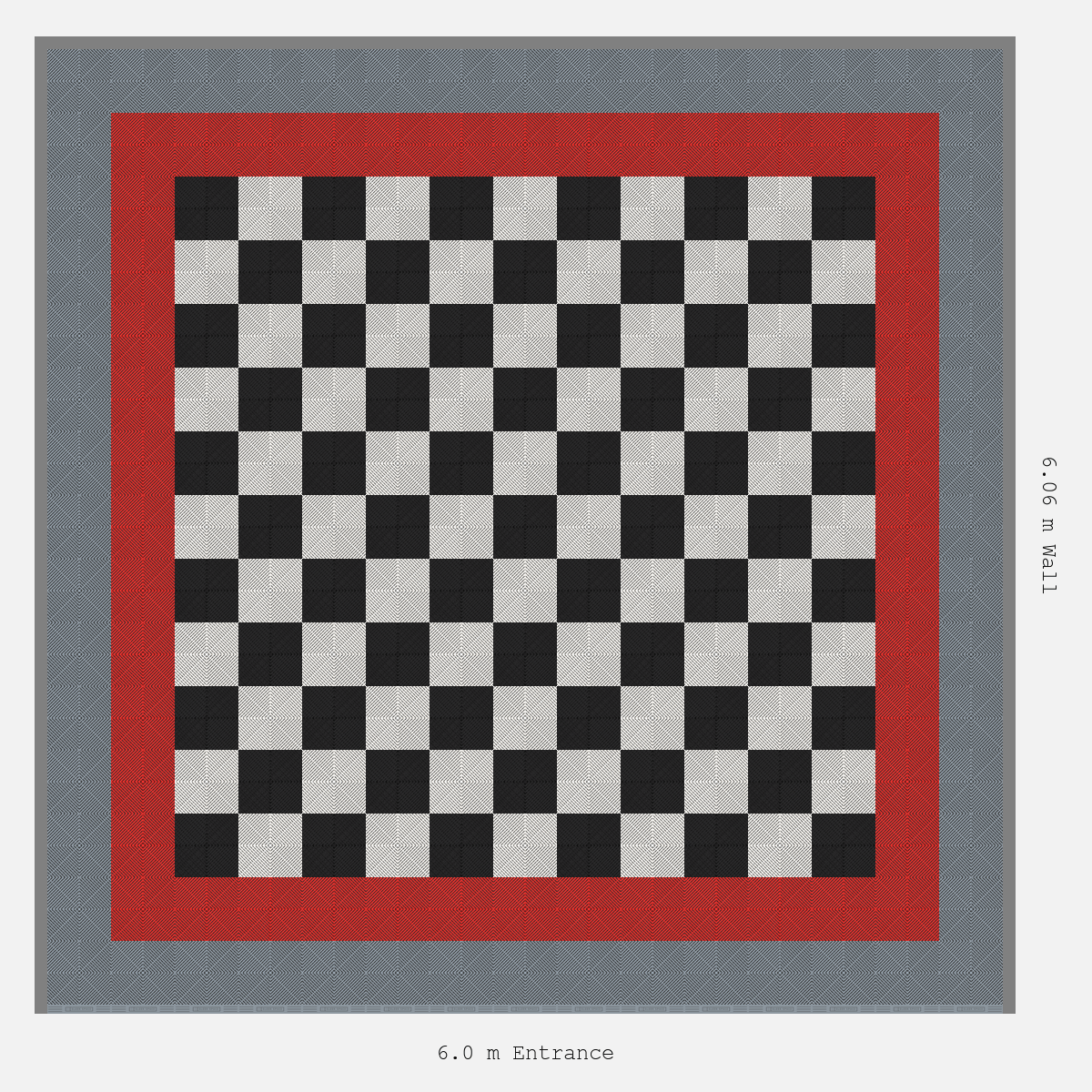

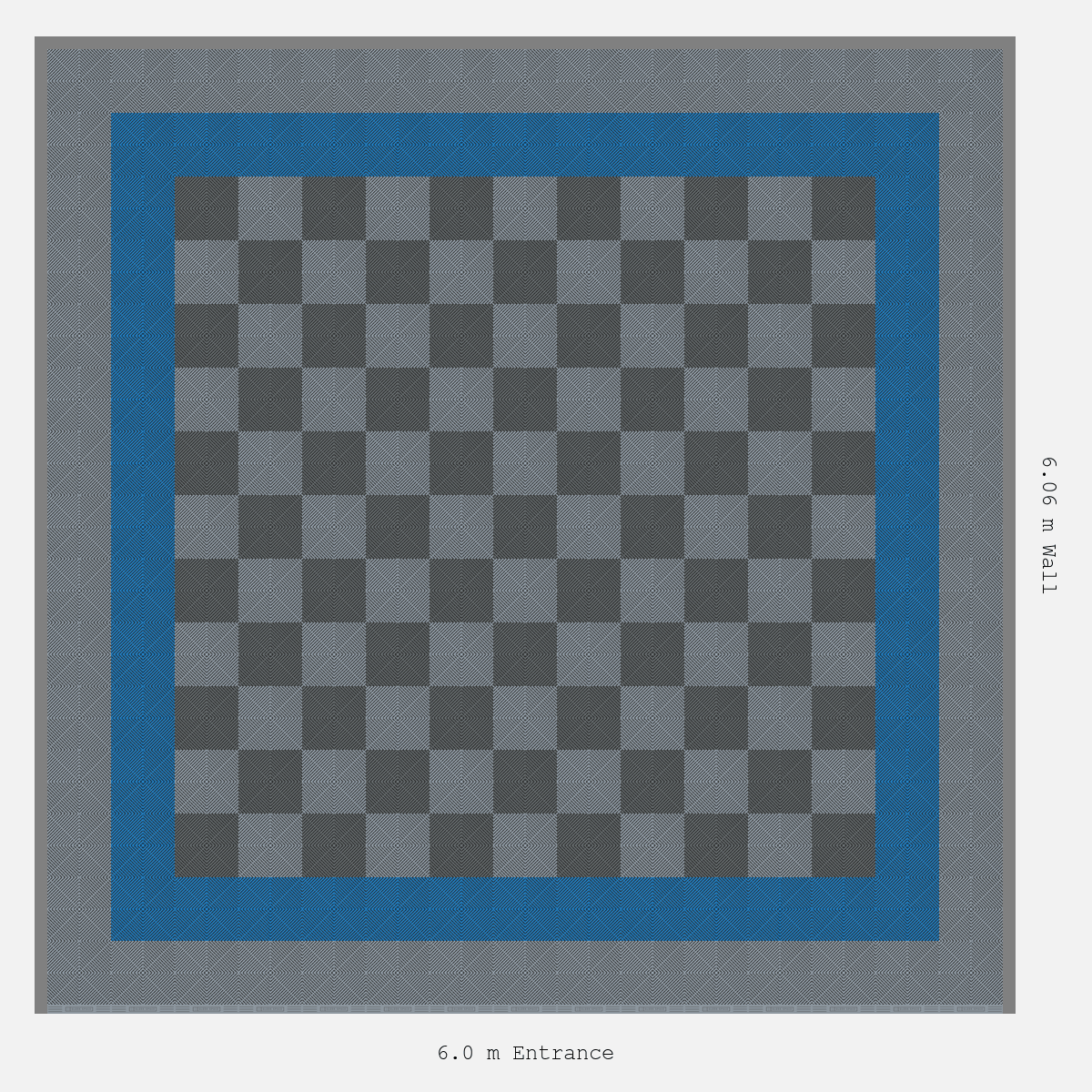

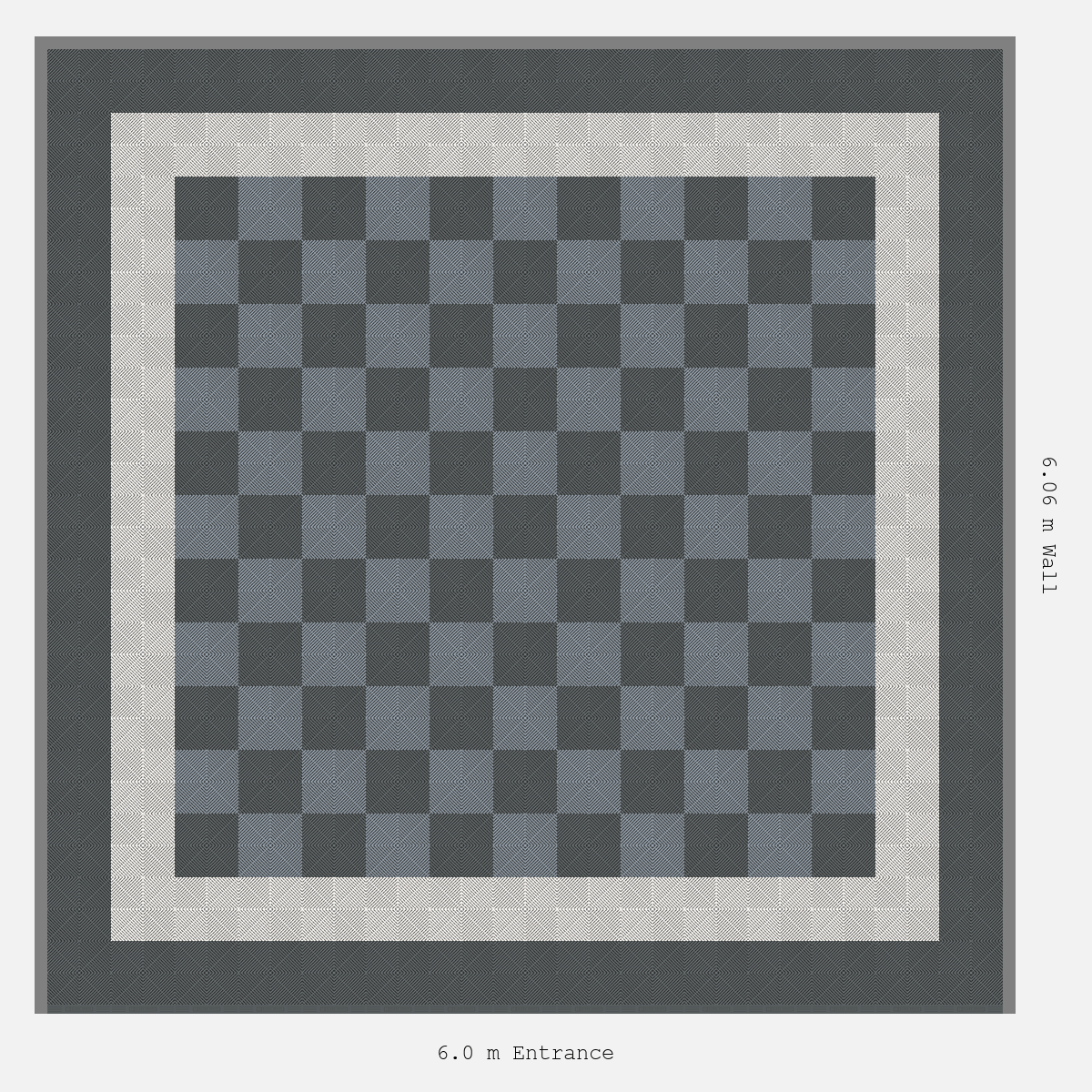

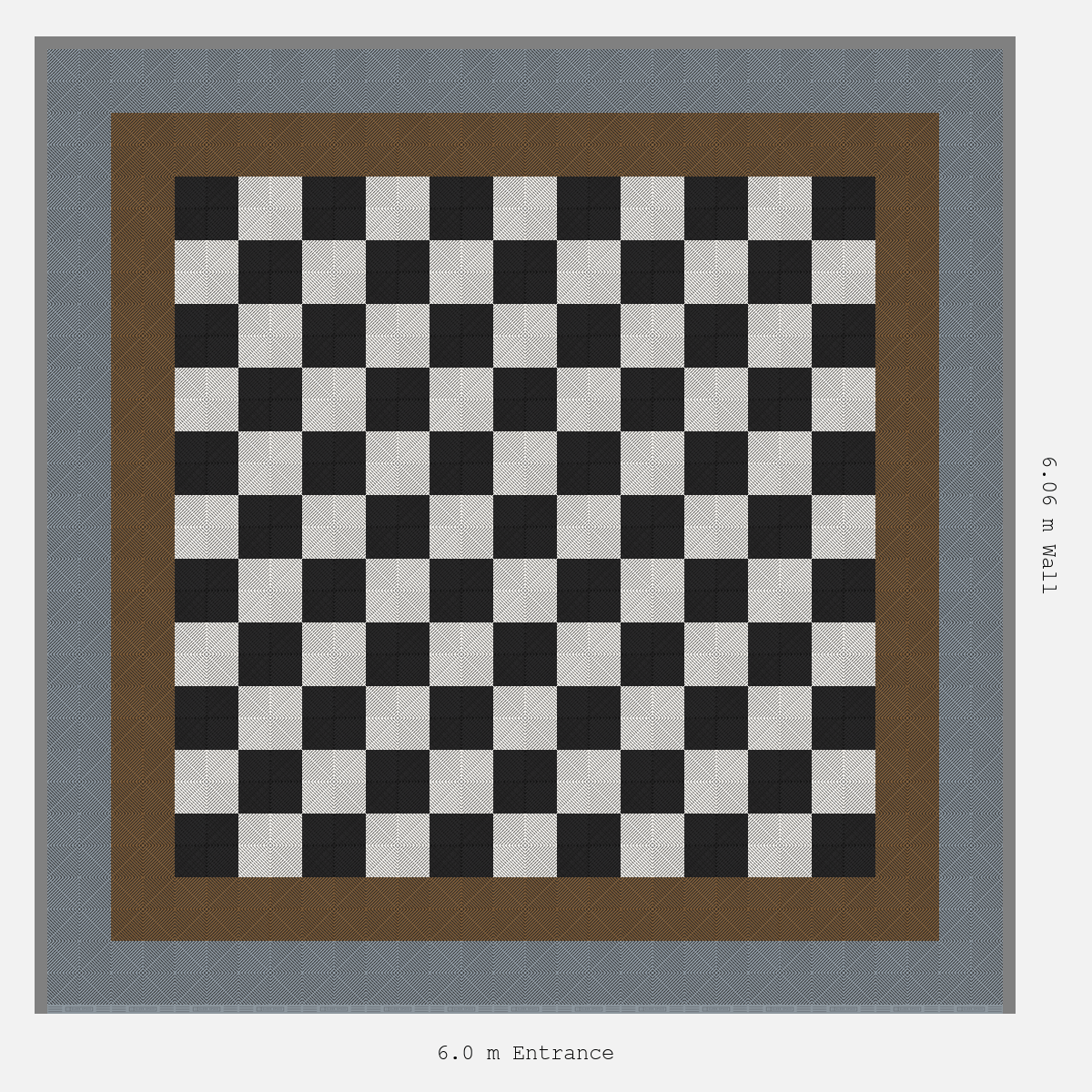

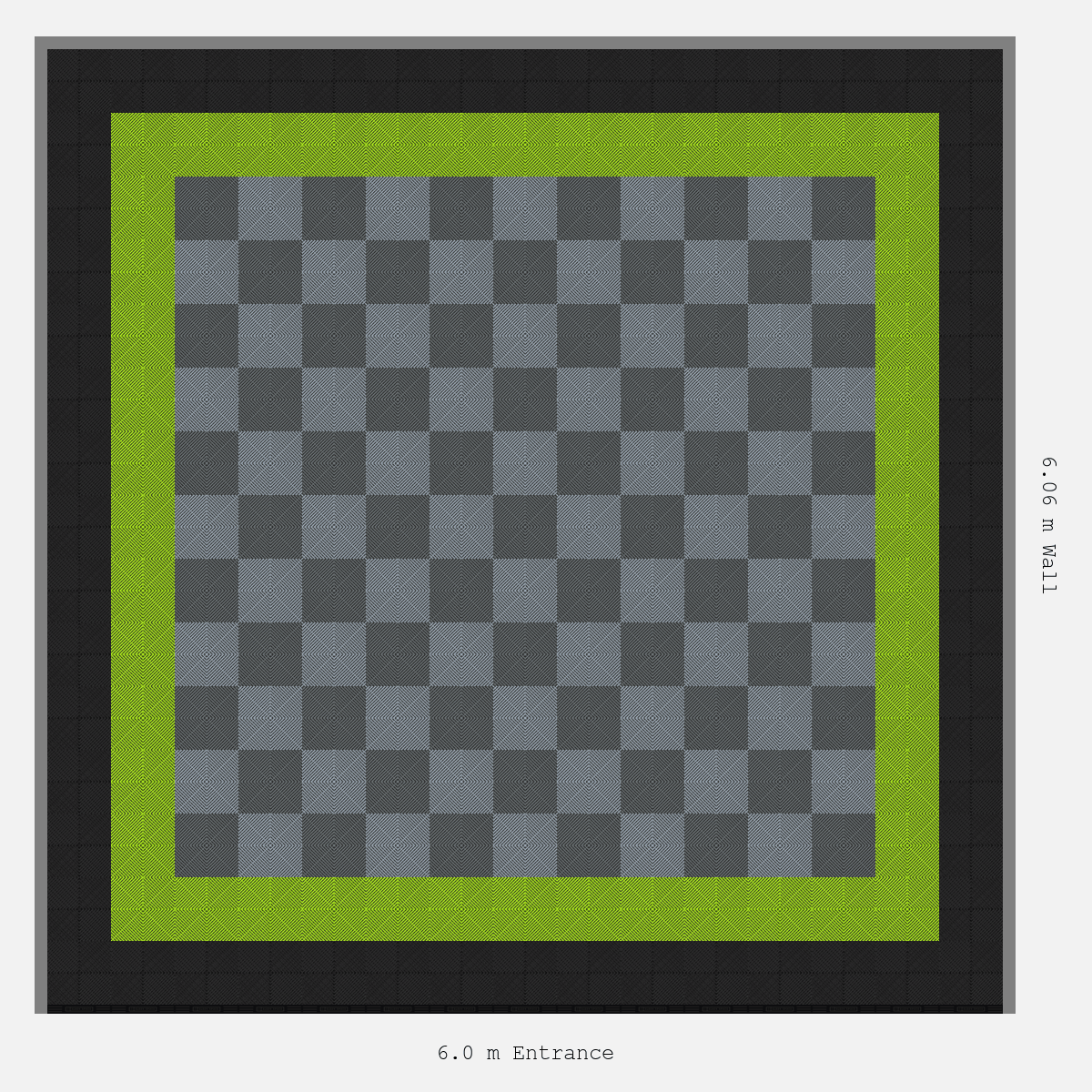

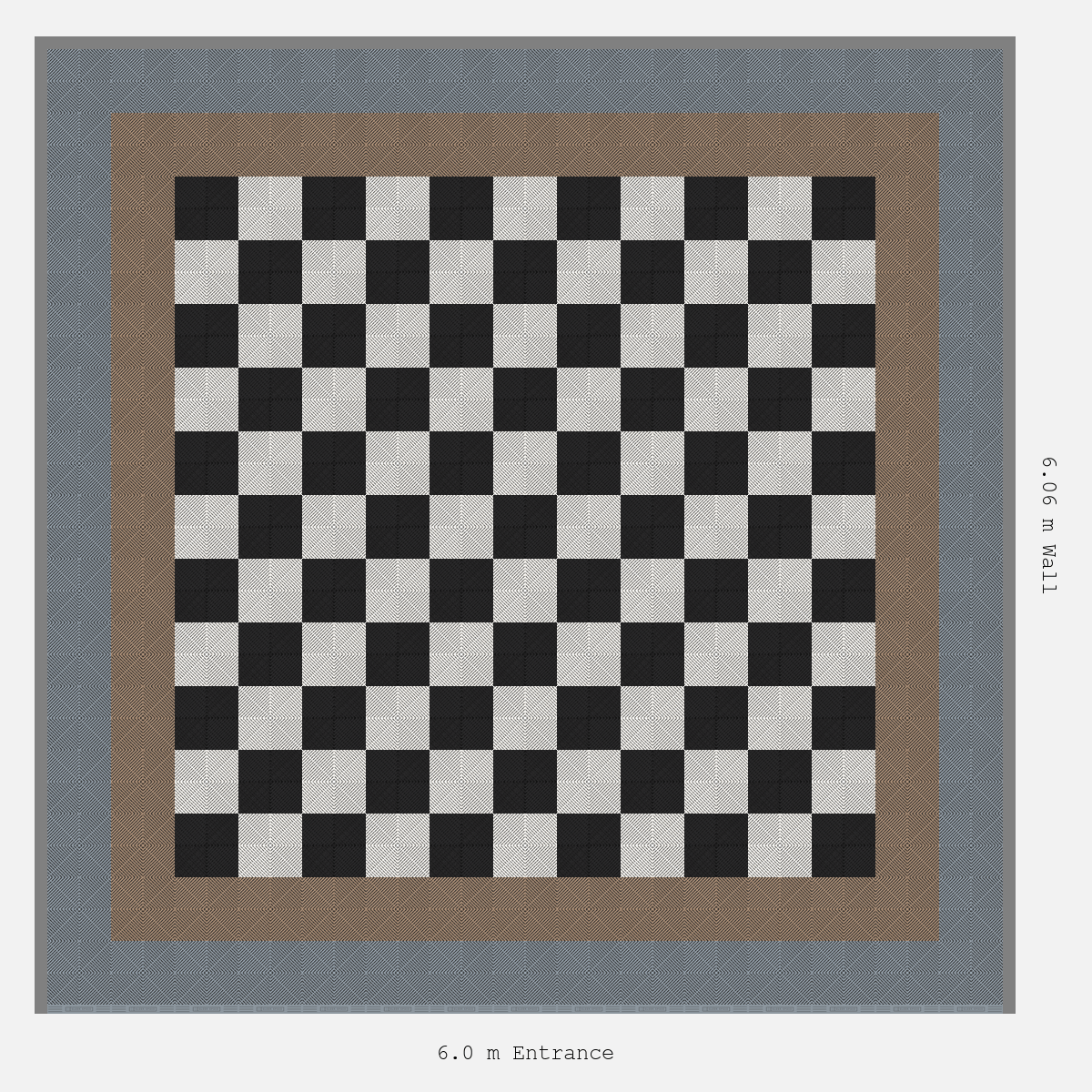

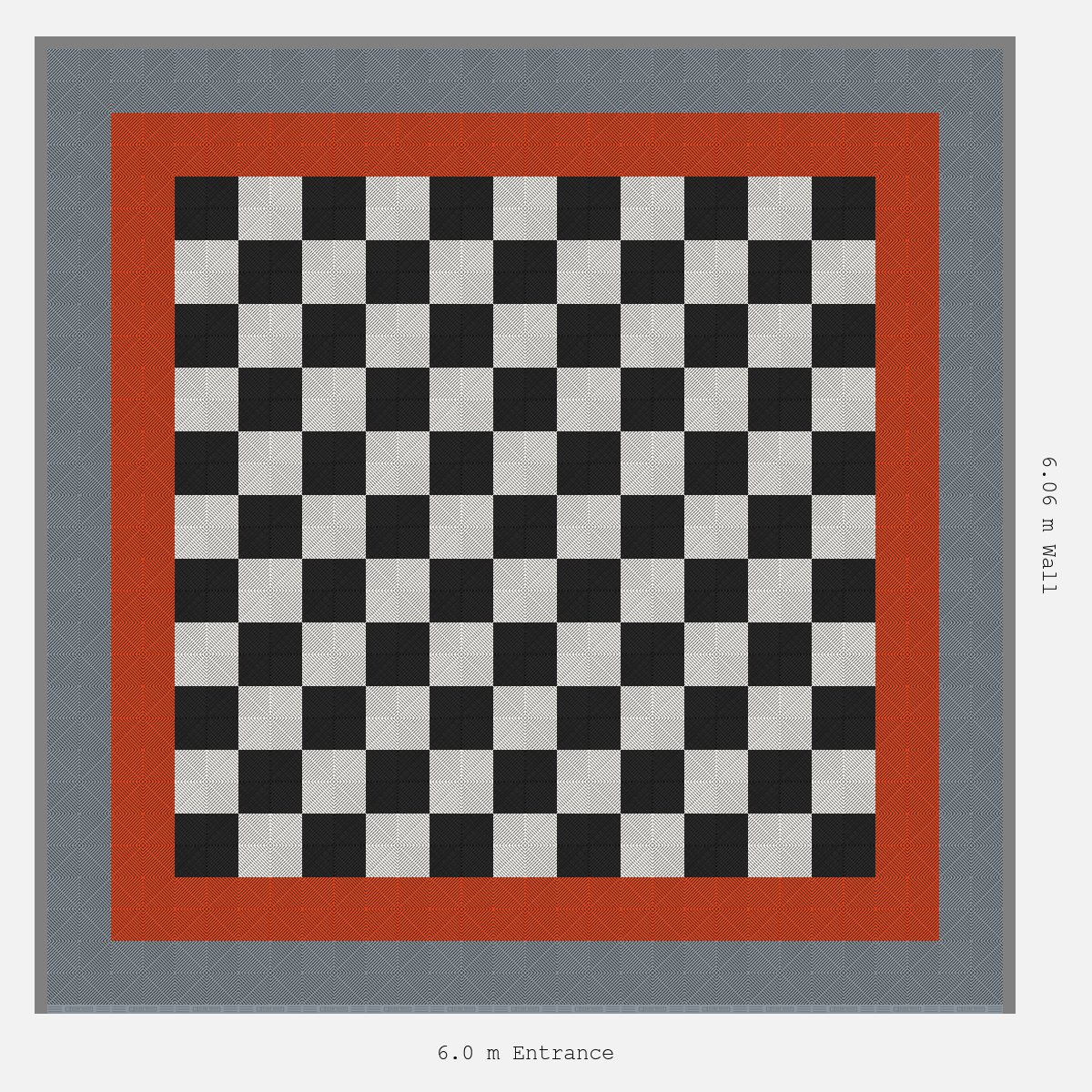

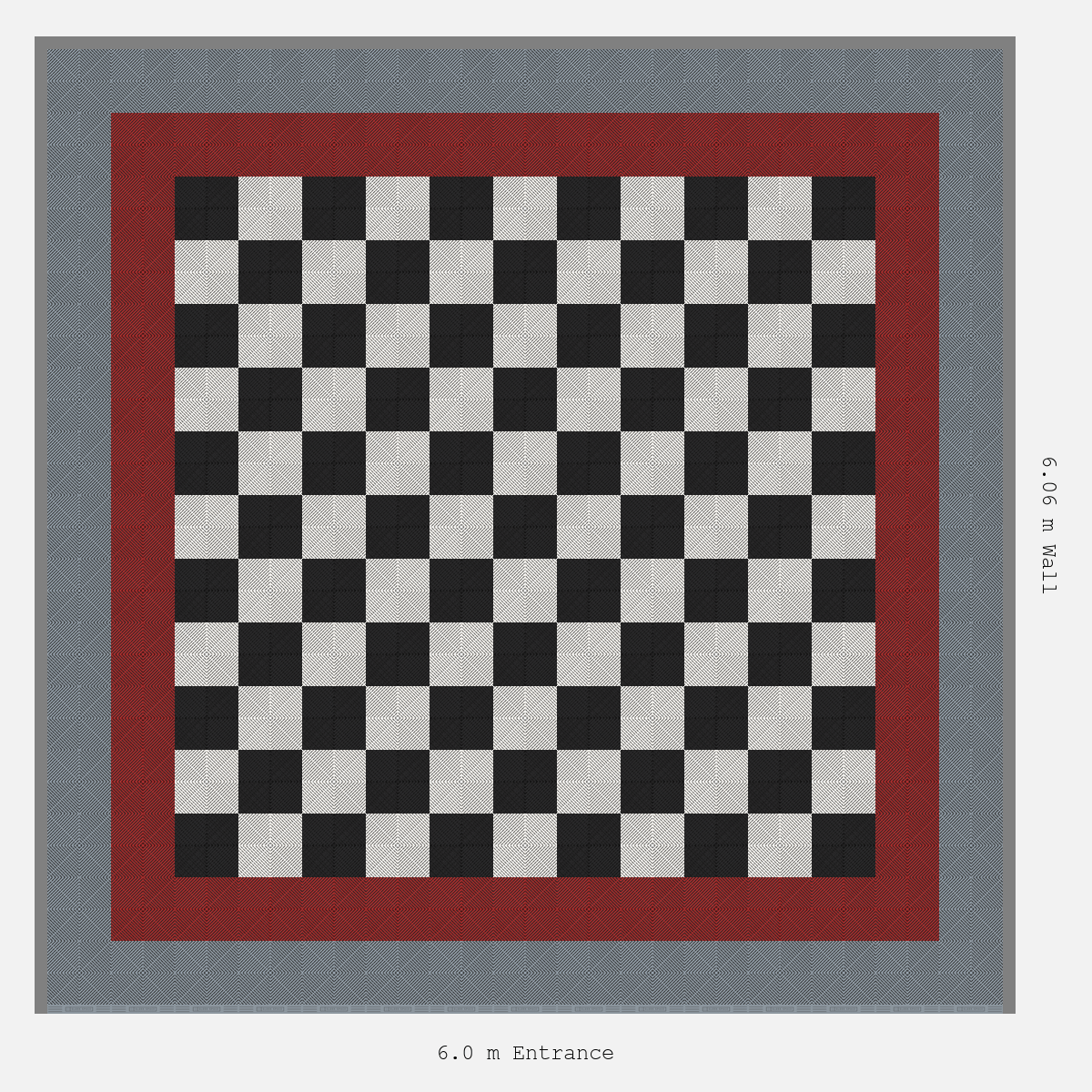

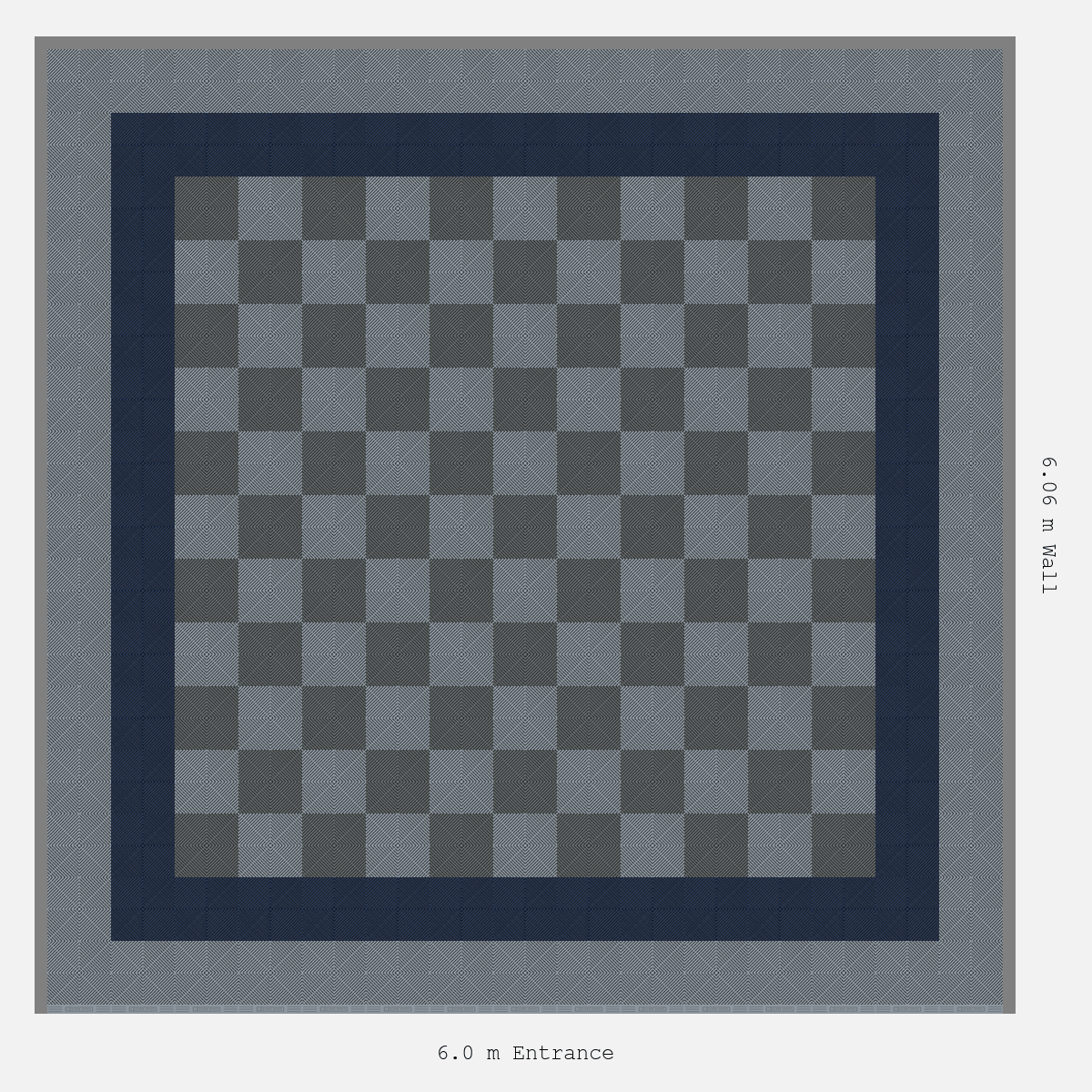

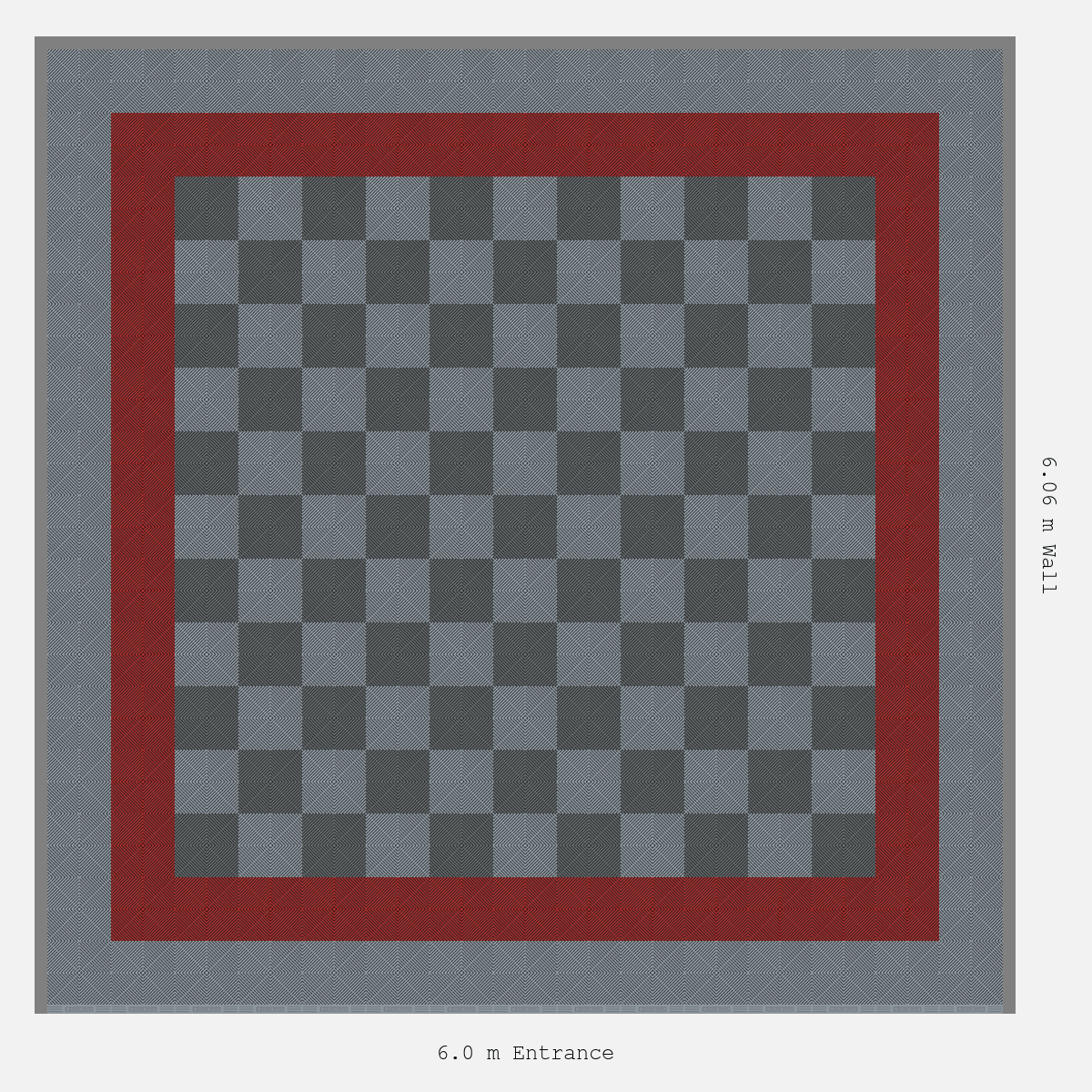

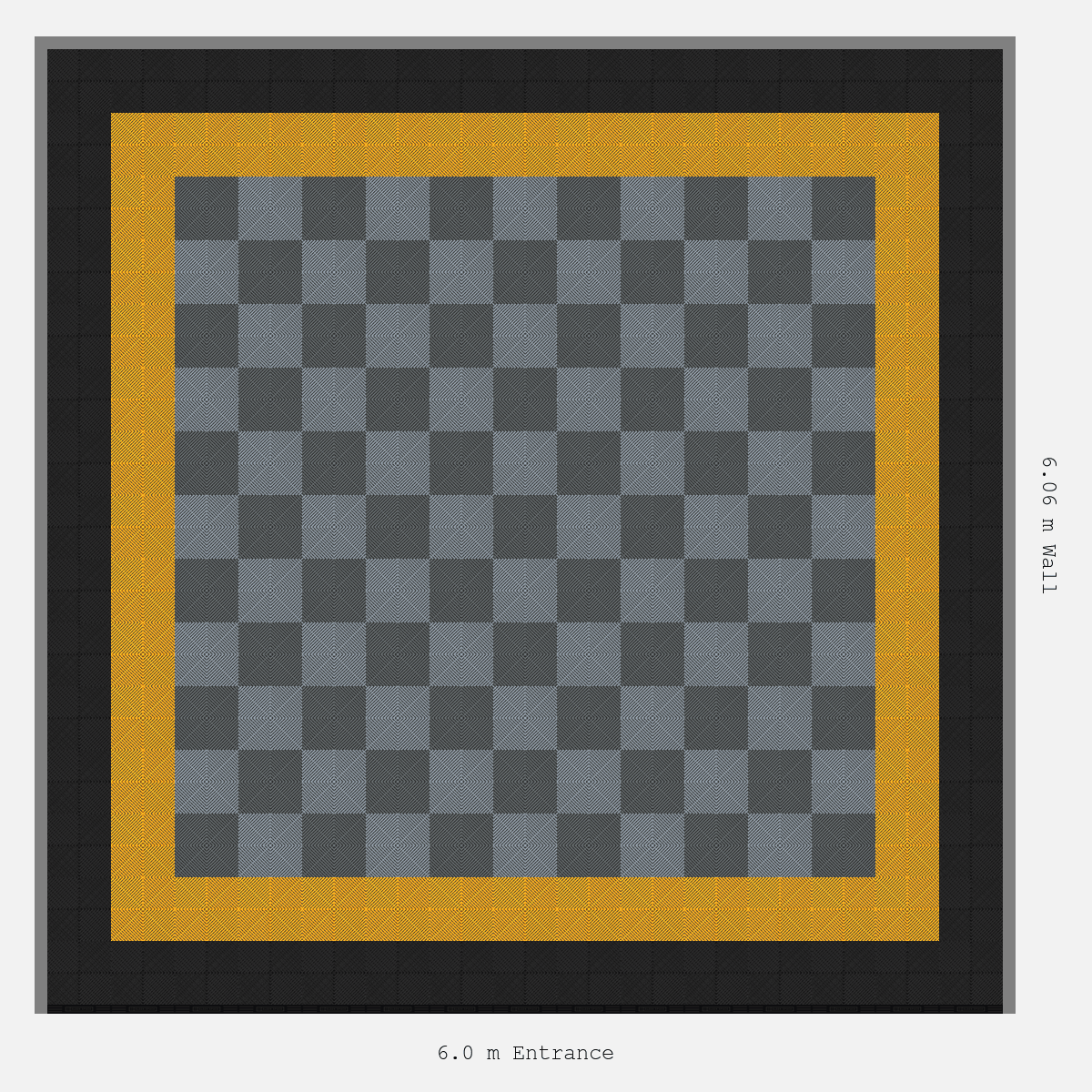

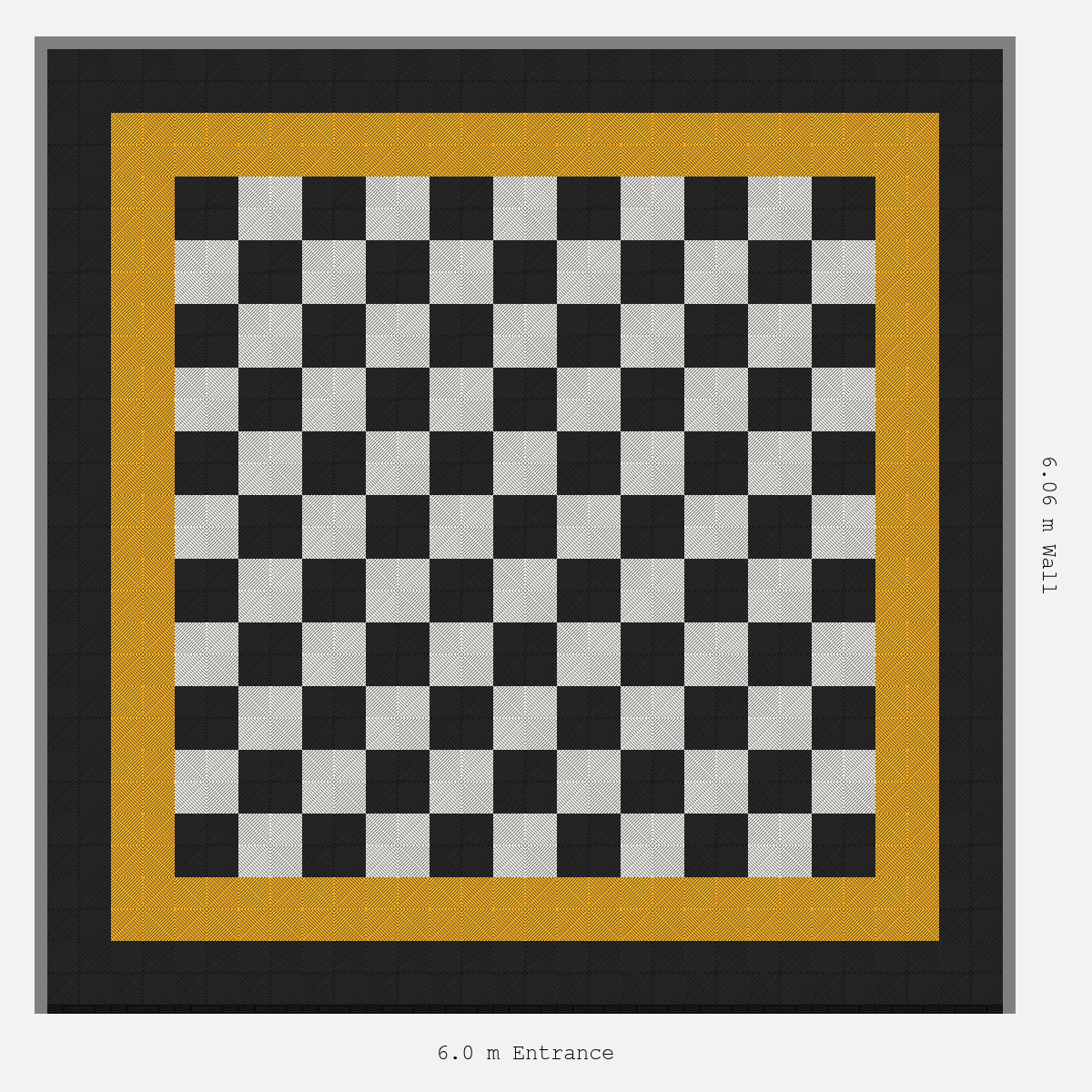

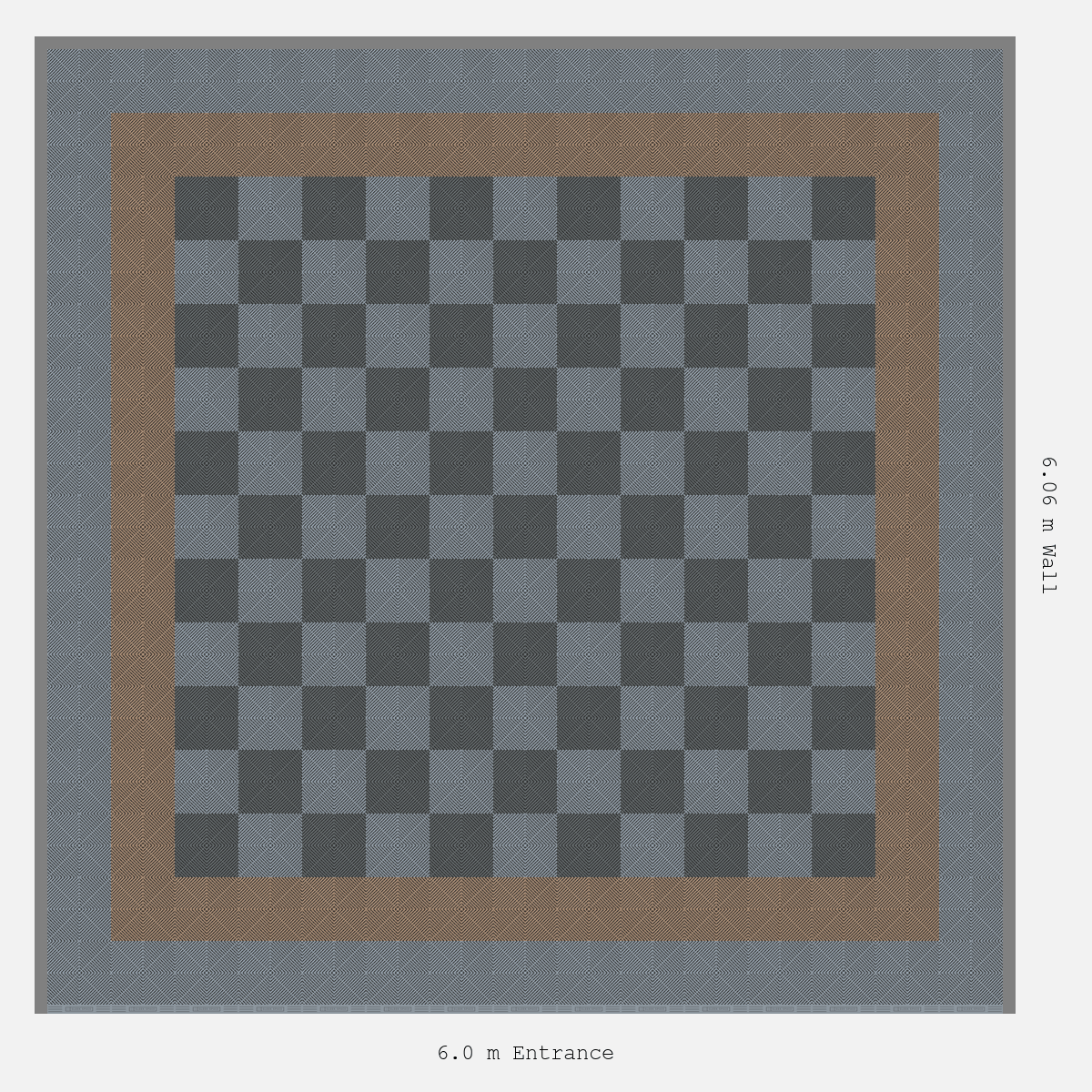

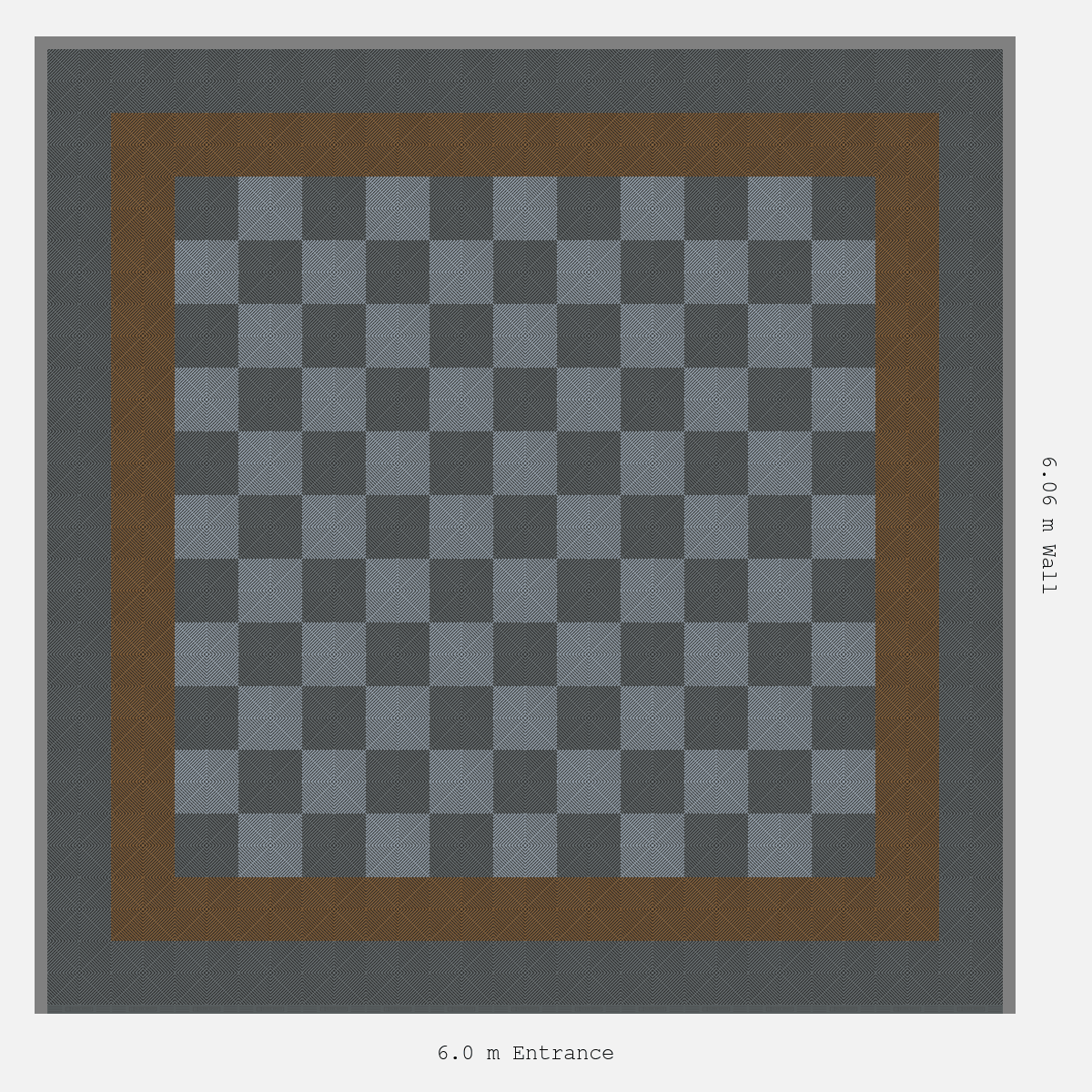

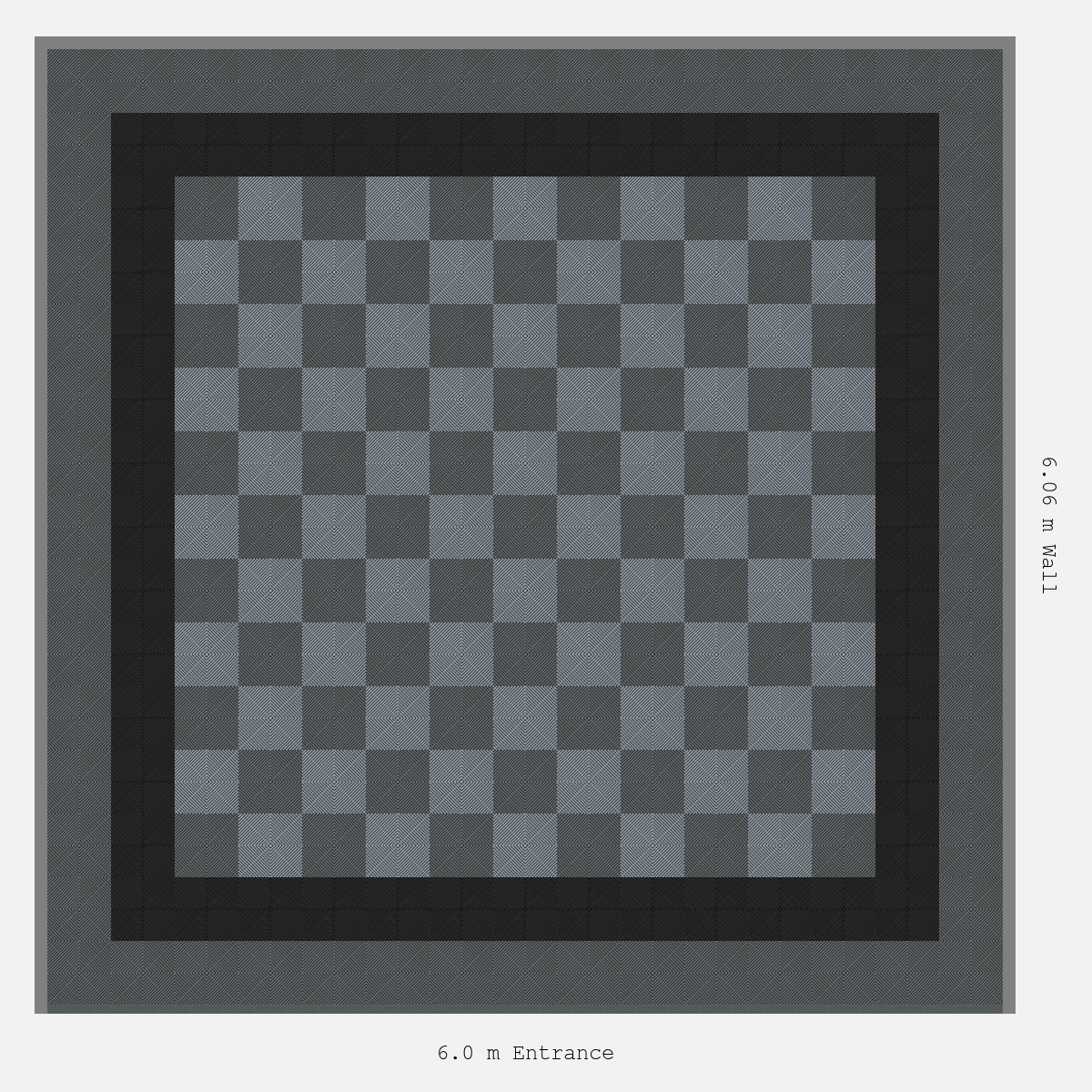

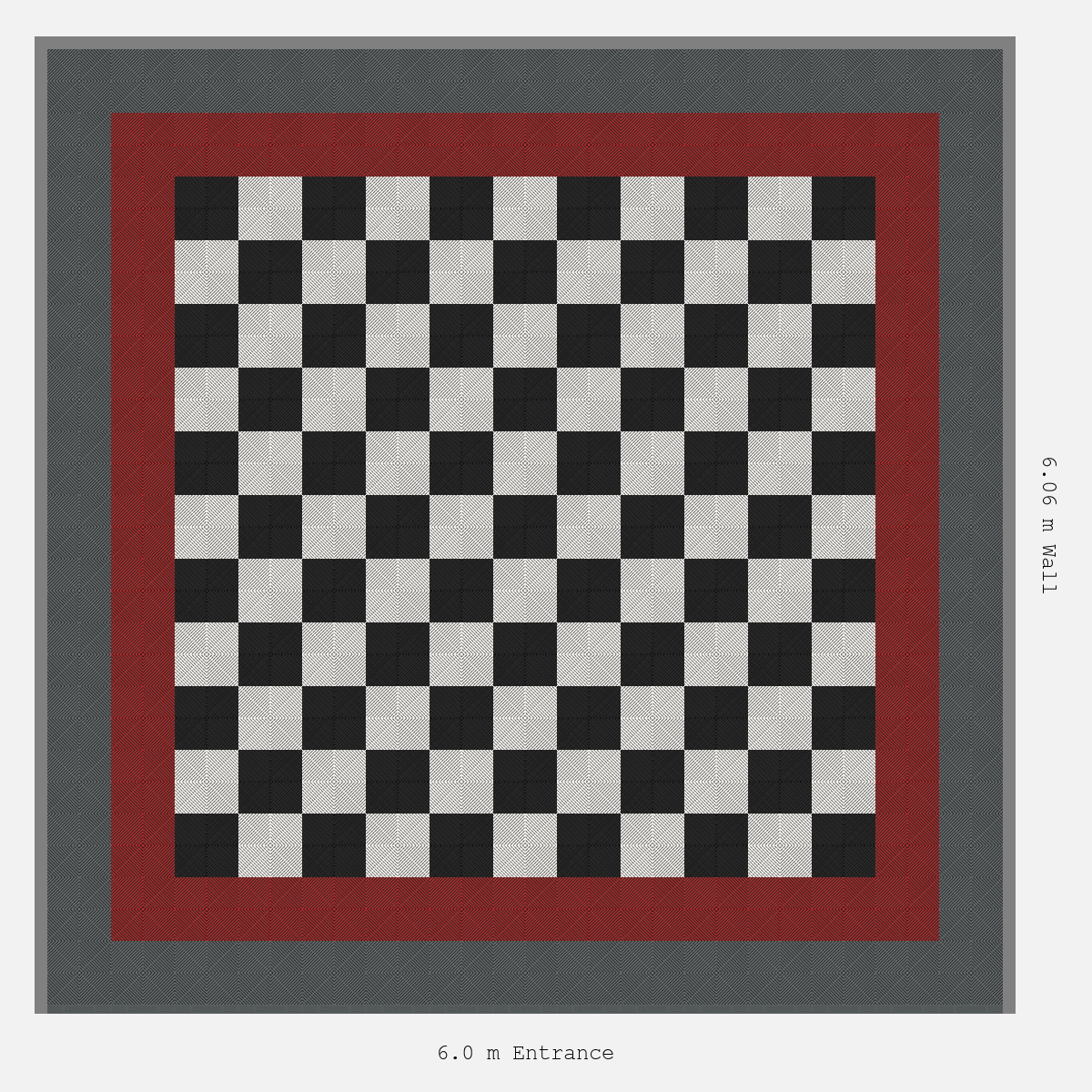

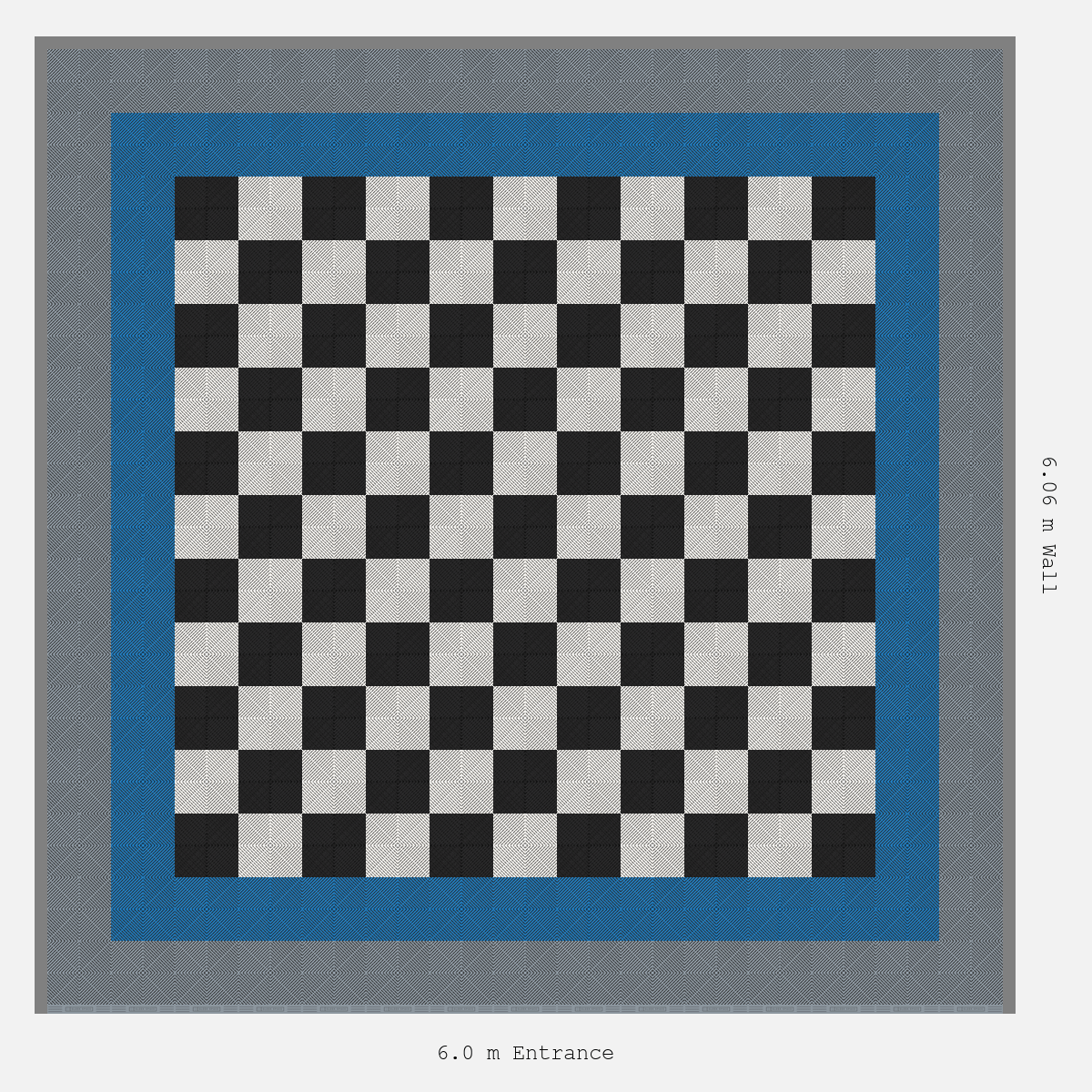

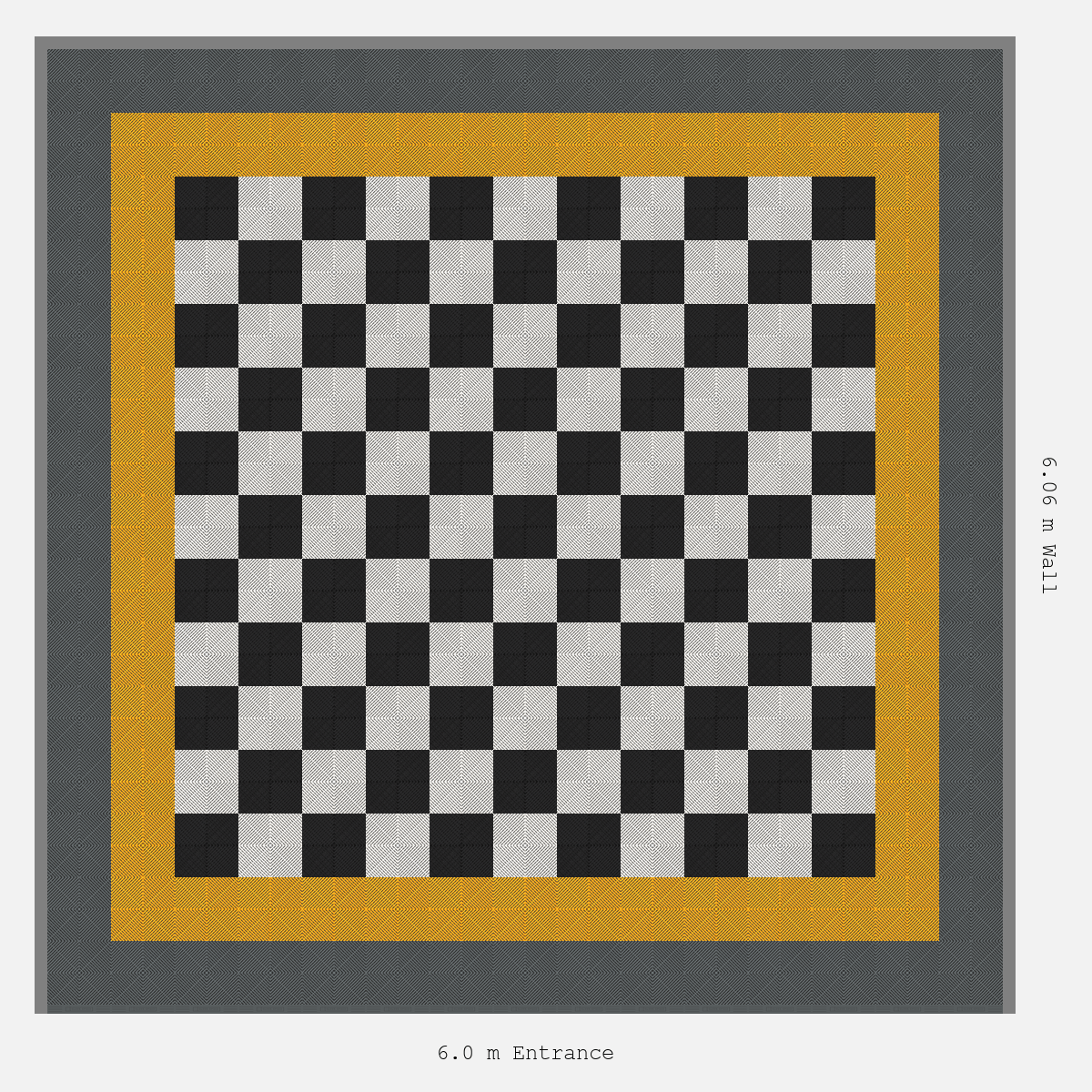

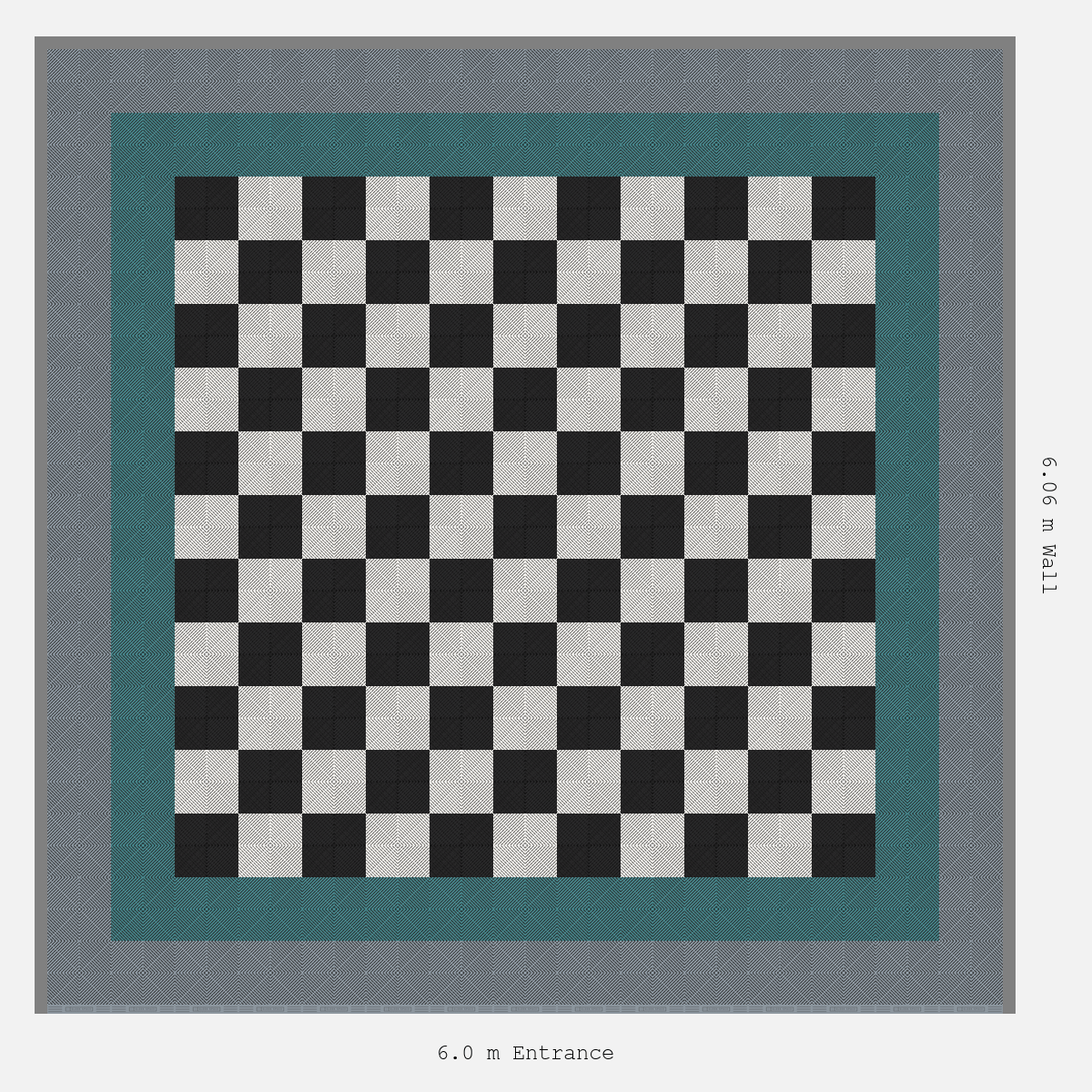

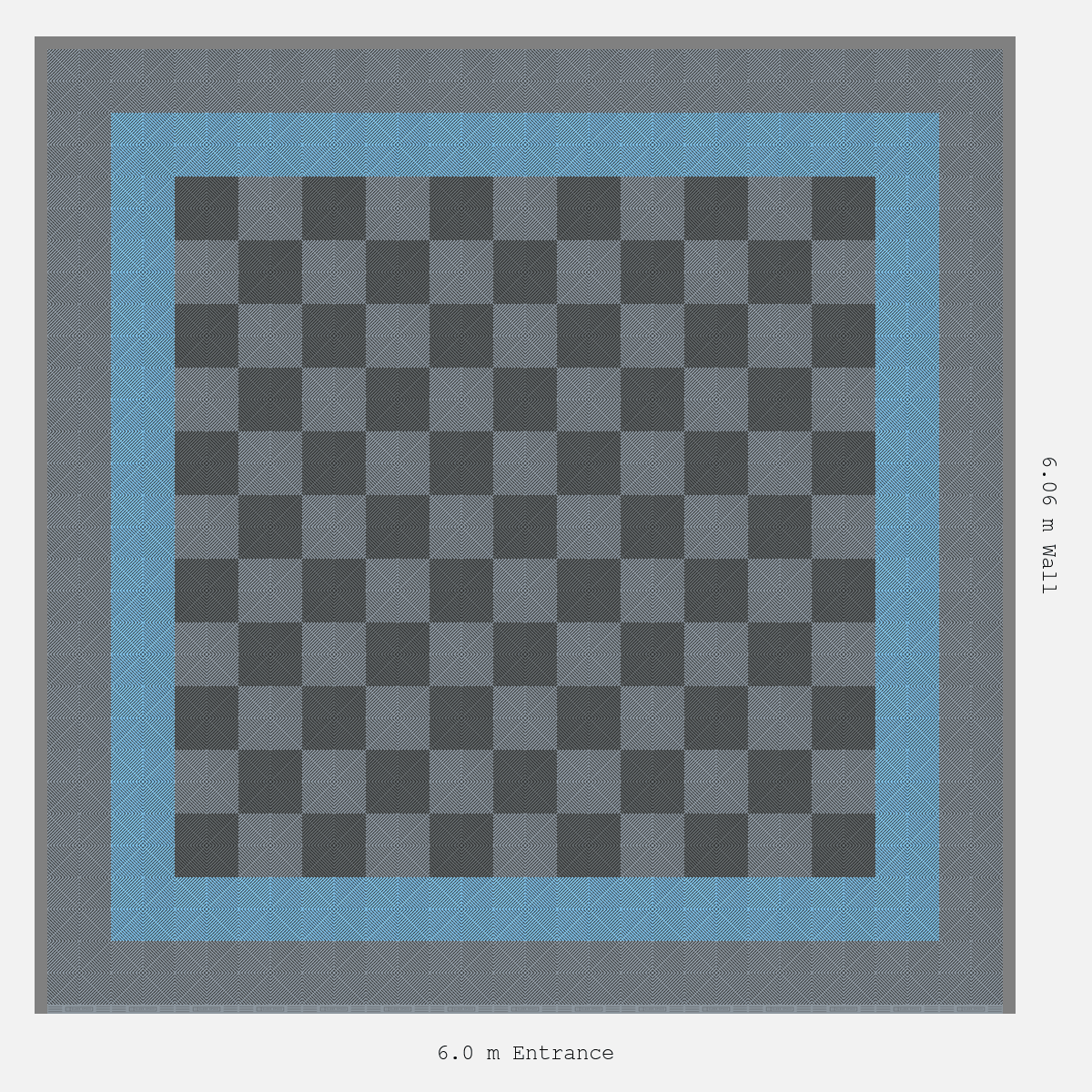

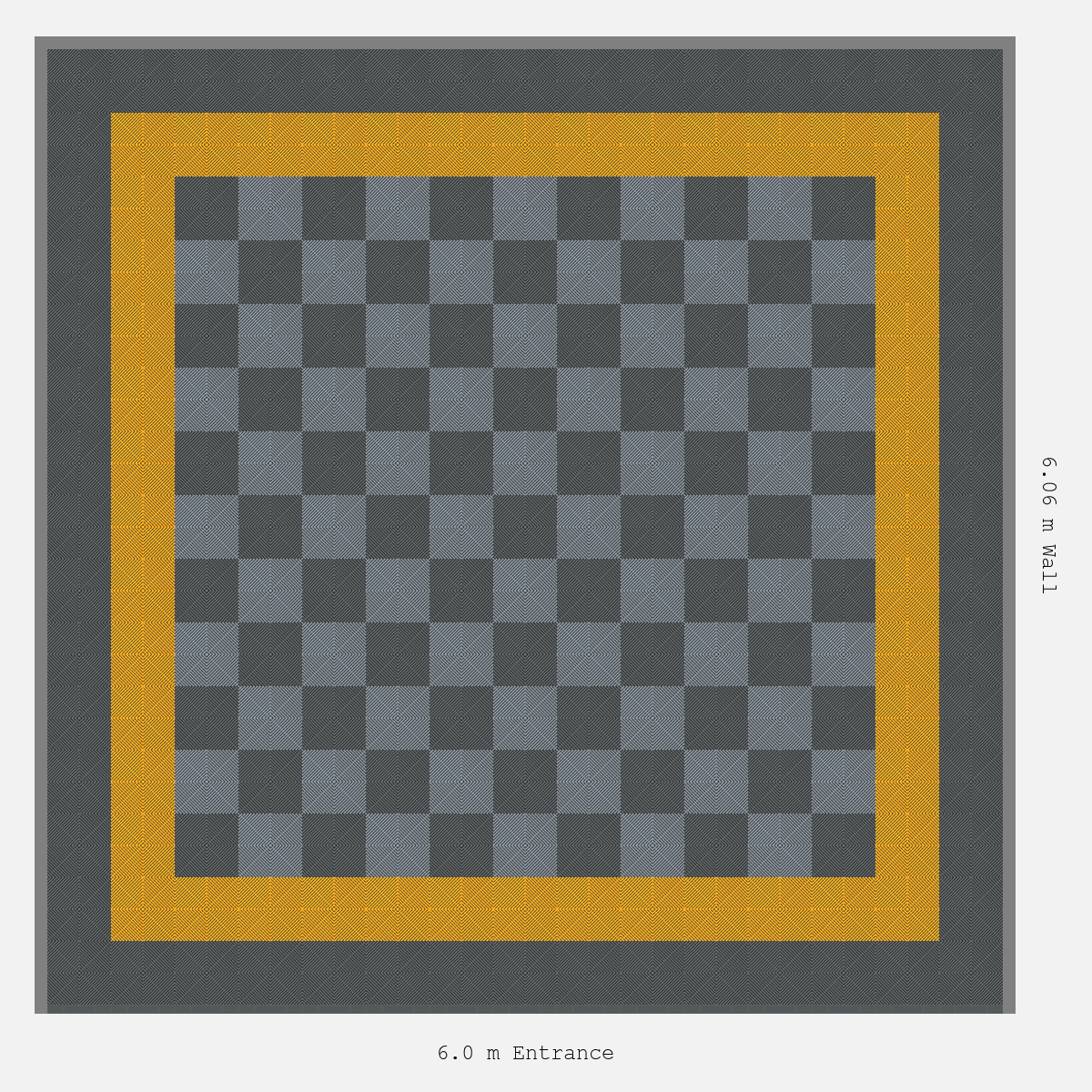

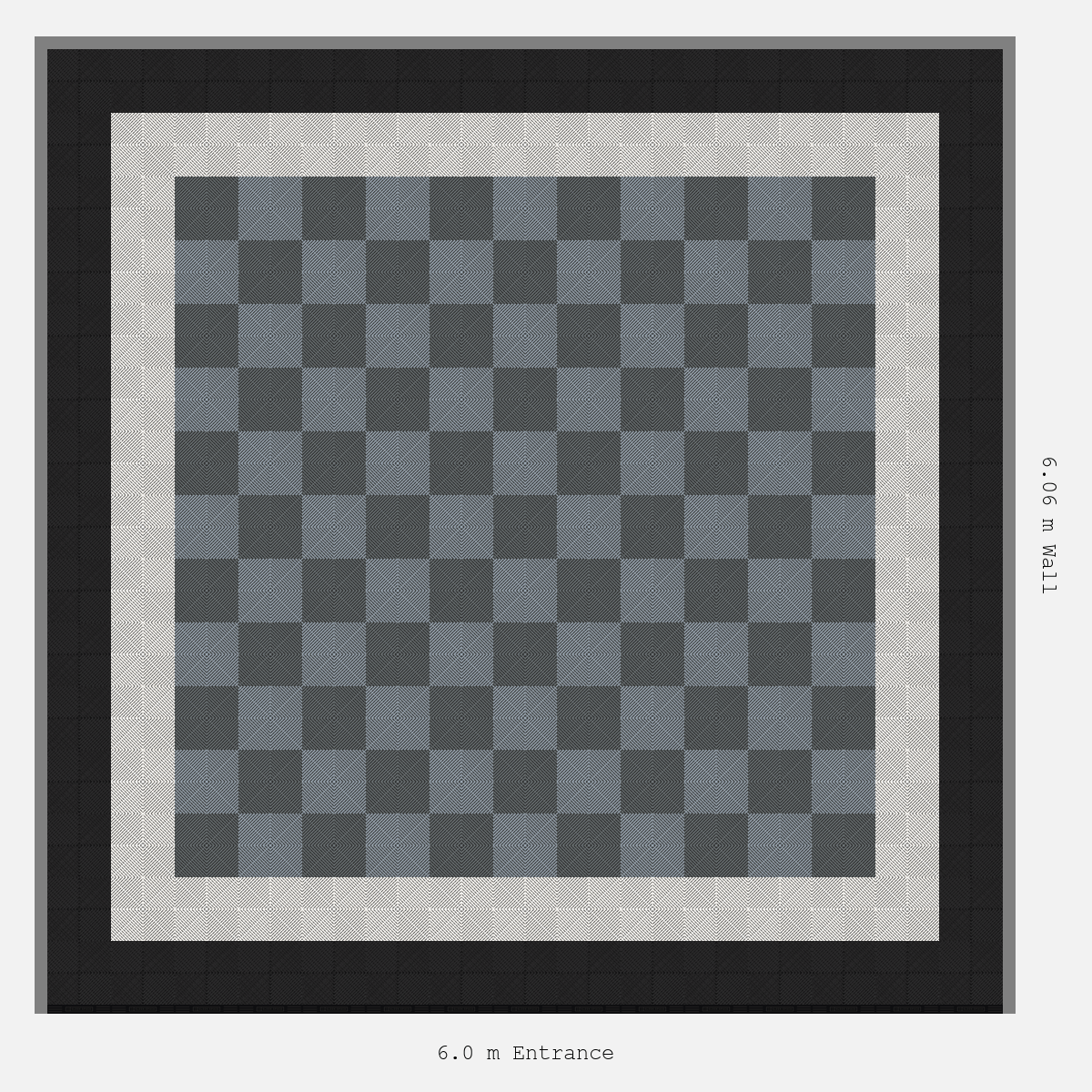

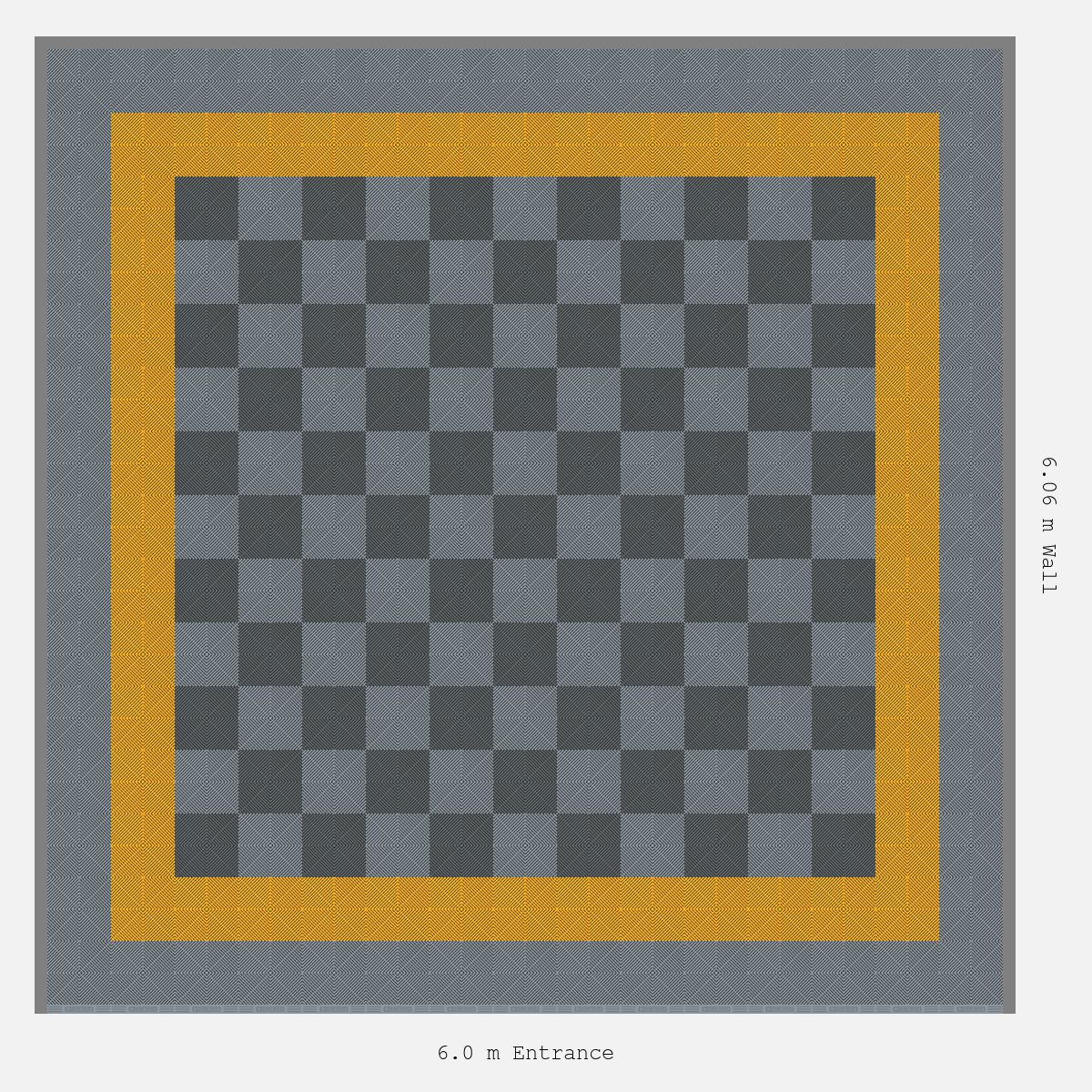

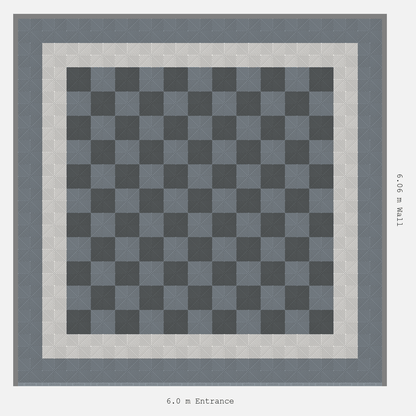

  • Border Chequer Infill — perimeter framing in one ULTRAGRID™ colour encloses an alternating chequer centre.
  • Ventilated open-rib design — the ULTRAGRID™ rib pattern lets water, dust, and debris pass through rather than pooling.
  • Low maintenance — water and debris drain through the ULTRAGRID™ tile’s top and side channels. A vacuum, broom, or pressure washer handles the rest.
  • 20t/m² load rating — at twenty tonnes per square metre, your ULTRAGRID™ Border Chequer Infill floor handles vehicles and equipment without concern.
  • Full DIY install — the ULTRAGRID™ snap-lock system needs no experience. Click tiles, trim edges with a jigsaw, and drive on the same day.
  • All-weather performance — UV-stabilised 100% virgin polypropylene, chemical resistance, and a working range of −40°C to +120°C.
  • Lift, move, re-lay — tiles are not bonded to the slab. Take your Border Chequer Infill floor when you relocate and replace single tiles if needed.

Tested & Recommended by Aussies

Aussie Garage – YouTube cover

Phil from Aussie Garage Lays ULTRAGRID

Phil walks you through his ULTRAGRID™ DIY install in black, blue, and gray—and shows how easy it really is.

Read article
Dadz Garage featuring Sleek Space interlocking floor tiles

Dadz Garage

Watch Dadz Garage transform a cluttered space into a sleek haven with Sleek Space ULTRAGRID™ flooring.

Read article
It's In The Detail garage with Sleek Space interlocking tiles

It's In The Detail

See how It’s In The Detail transformed a dull, lifeless garage into a sleek and vibrant space.

Read article
Aussie Garage transformation featuring Sleek Space interlocking floor tiles

Aussie Garage

Aussie Garage recently transformed their space with Sleek Space ULTRATUFF tiles. See how they did it.

Read article
View all articles

Technical Specifications

Design Layout Border Chequer Infill
Tile Range ULTRAGRID
Total Tiles 240 (225 floor + 15 spares)
Front Ramps 16 ULTRAEDGE ramps
Floor Coverage 36 m² (standard 6 × 6 m double garage)
Surface Type Open-rib ventilated
Tile Size 400 × 400 × 18 mm
Load Rating 20 tonnes / m²
Material 100% Virgin Polypropylene
Installation Snap-lock click system, no adhesive
Estimated Install Time 4–6 hours
Compatibility All ULTRA Series tiles interlock
Temperature Range -40°C to +120°C
UV Stability Yes — colour-stable outdoors
Chemical Resistance Oil, fuel, brake fluid, solvents
Typically three — one for the border and two for the chequered infill. You can reduce to two colours if the border matches one chequer tone. Select your preferred combination using the variant options.
It requires the most planning, but the physical installation is the same snap-lock process as every other kit. Map out the border, then alternate chequer tiles in the centre.
Yes. The standard border is one tile wide, but you can add a second or third row for a wider frame. The modular system adapts to any configuration.
Absolutely. Trim tiles with a jigsaw to fit your exact dimensions. The border and chequer adjust to any rectangular or near-rectangular floor plan.

Installation Guide

What you'll need

  • Tape measure
  • Rubber mallet
  • Jigsaw (for edge cuts)
  • Marker or pencil
  • Broom

Time estimate

  • Single garage (20-25 sqm): 4-6 hours
  • Double garage (40-50 sqm): 6-10 hours
  • No curing time — drive on immediately

Installation steps

  1. 1

    Start from the entrance

    Begin laying tiles at the garage door corner. Leave a 5–10mm expansion gap at all walls.

  2. 2

    Lay the first row

    Complete your first row across the garage, clicking tiles together. The interlocking pegs and loops do the work.

  3. 3

    Fit entrance ramps

    Attach ramp trims to the first row and slide the row snug against the garage door.

  4. 4

    Centre your design (optional)

    If your design has a centred pattern, adjust the first row to leave equal gaps on both sides.

  5. 5

    Lay remaining tiles

    Continue laying rows towards the back and side walls, clicking each tile into the previous one.

  6. 6

    Trim edges and finish

    Cut edge tiles with a jigsaw, click them in, and your floor is ready to use immediately — no curing time.
