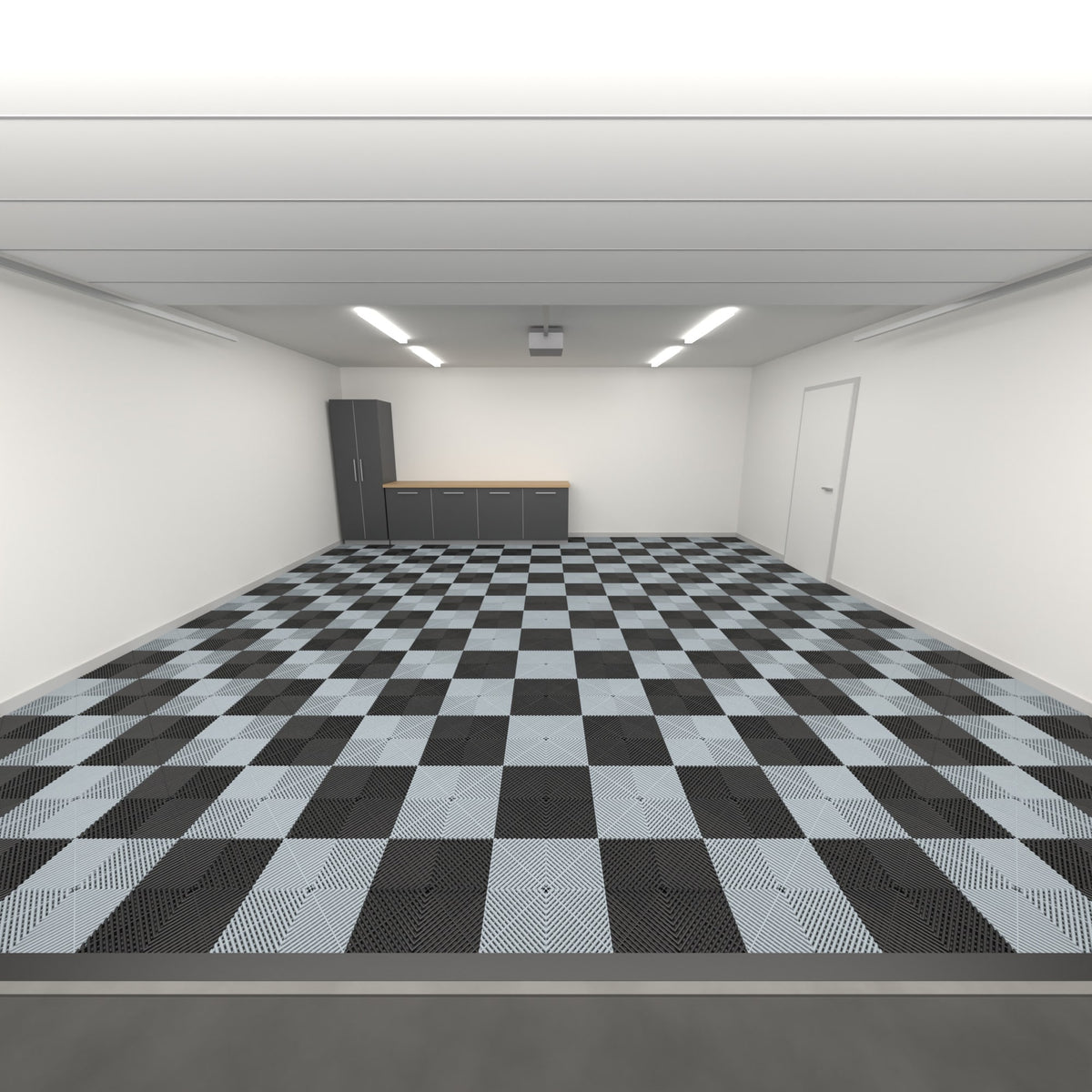

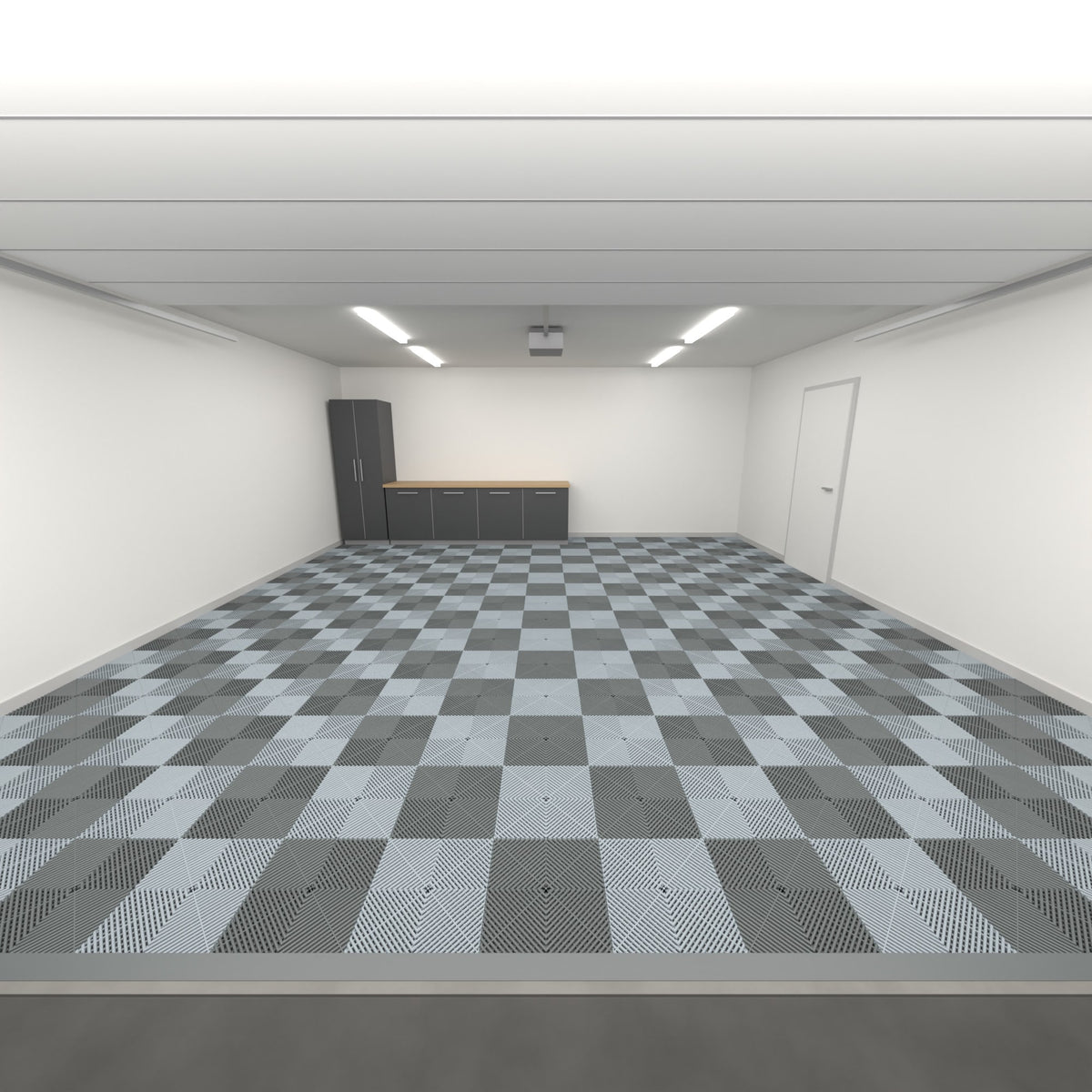

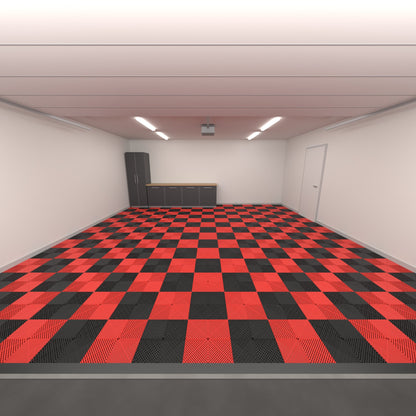

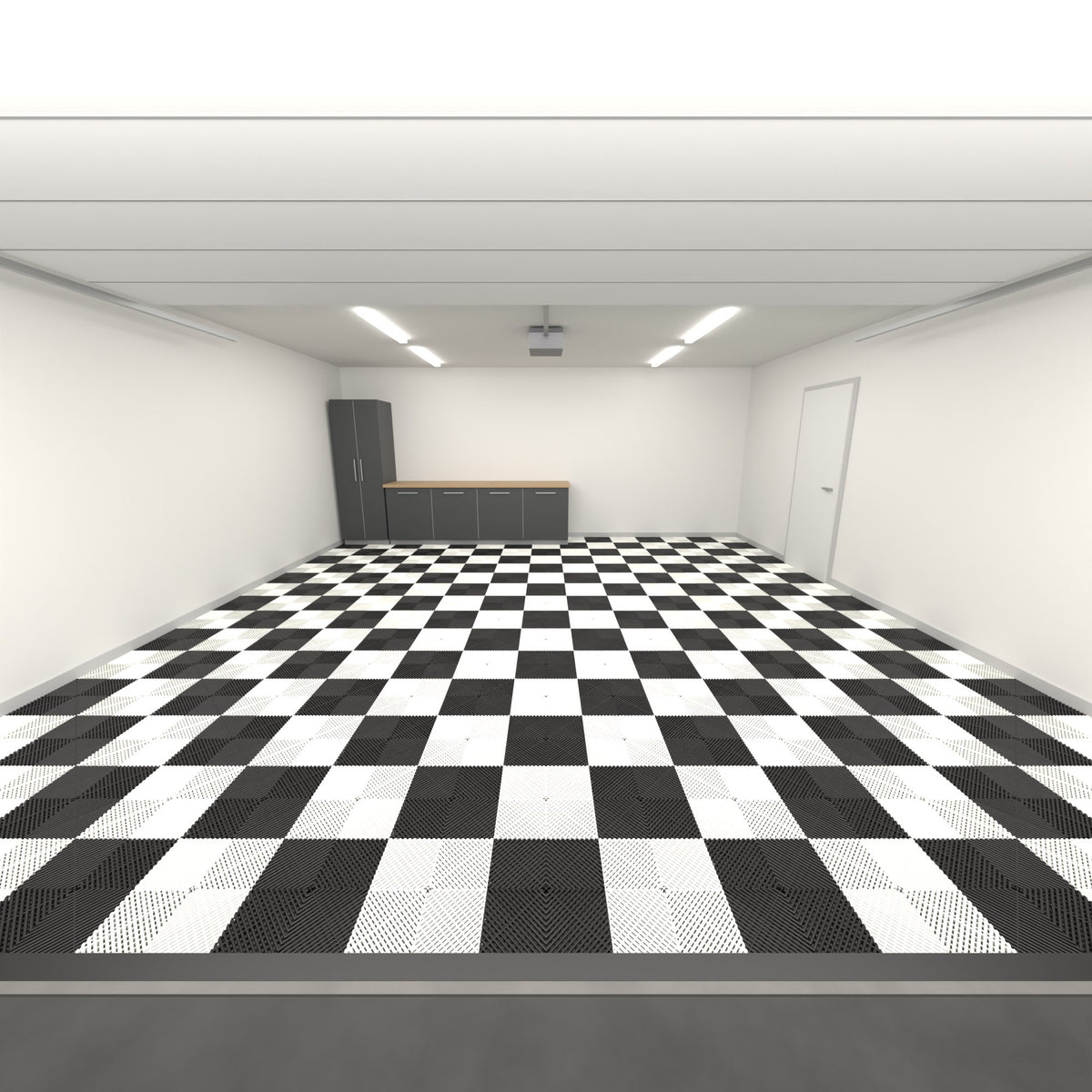

ULTRAGRID Tiles Double Garage Floor Kit 6x6M, Chequer

ULTRAGRID Tiles Double Garage Floor Kit 6x6M, Chequer

In stock - ready to ship
$1,749
$2,100 $1,749
Save $351
Taxes included. Shipping calculated at checkout.

Complete ULTRAGRID™ Chequer garage floor kit. 240 tiles + 16 ramps, snap-lock install. Details

Base Color
Pair Color
Recommended By →
Aussie Garage Dadz Garage BadQ Garage Outlaw Garage Heath's Garage It's In The Detail
View full details

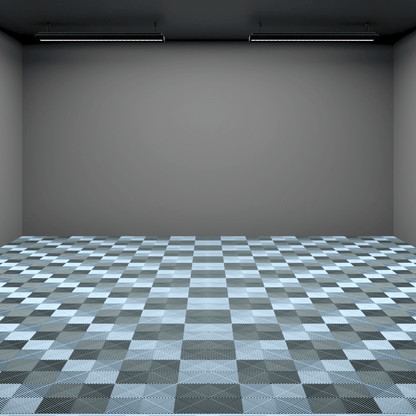

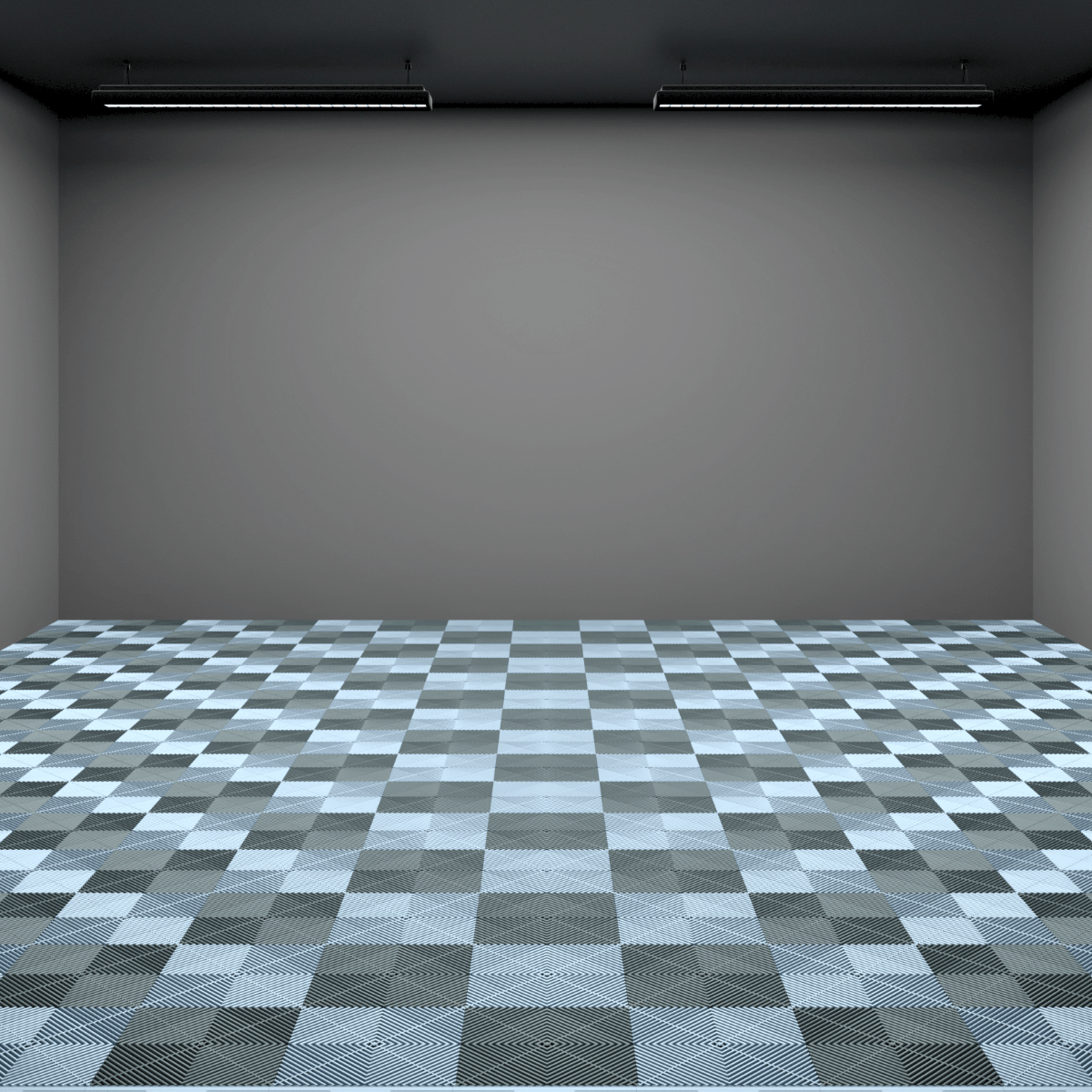

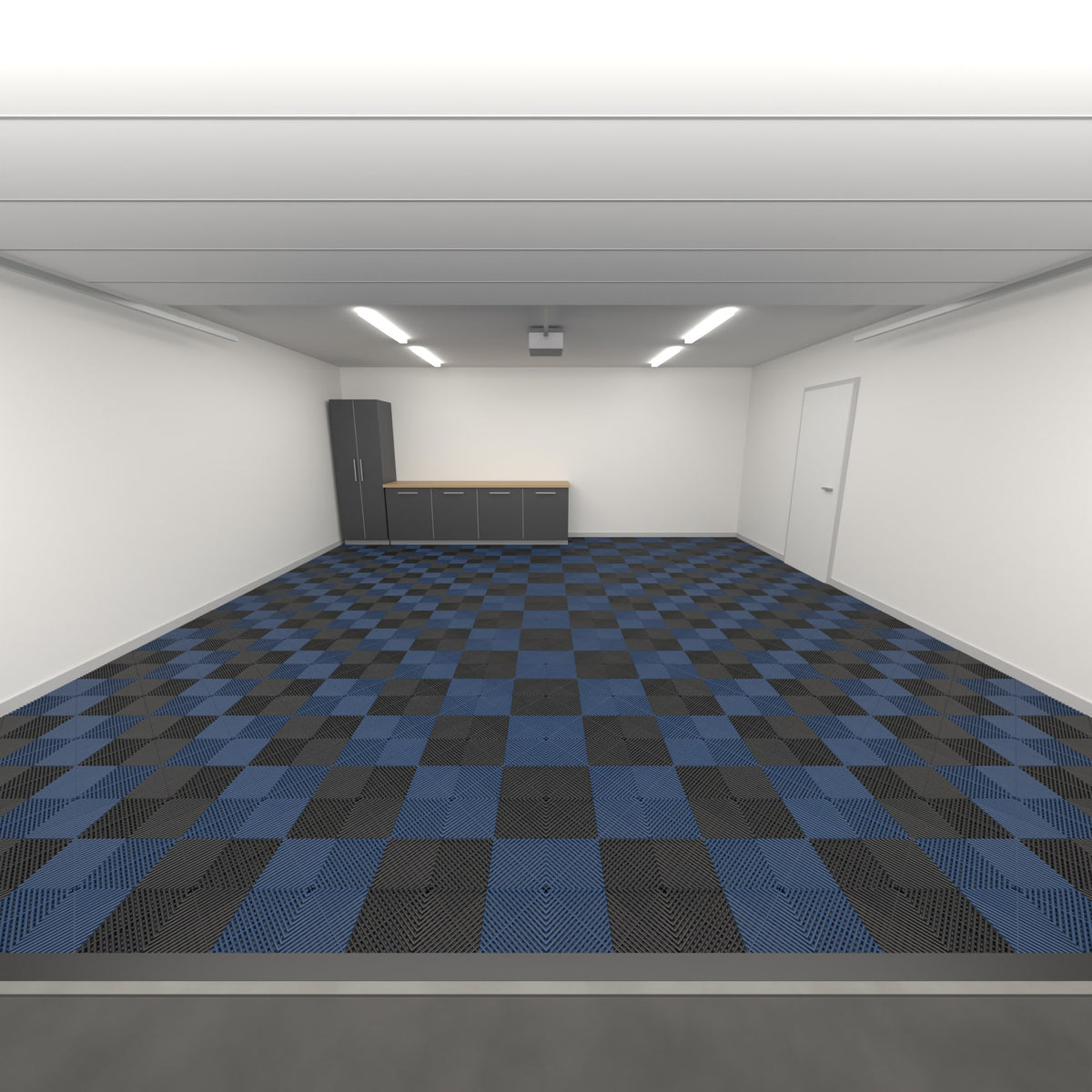

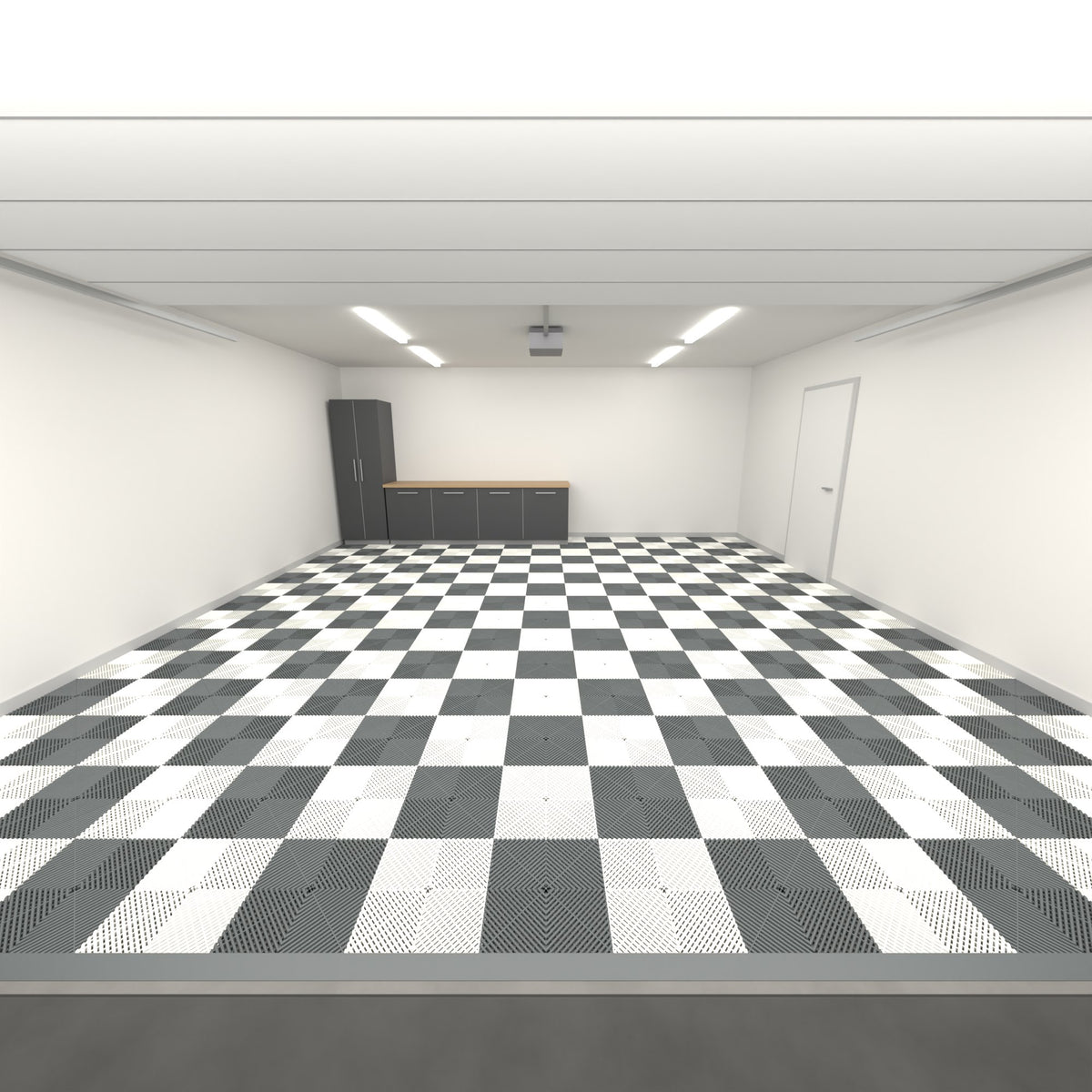

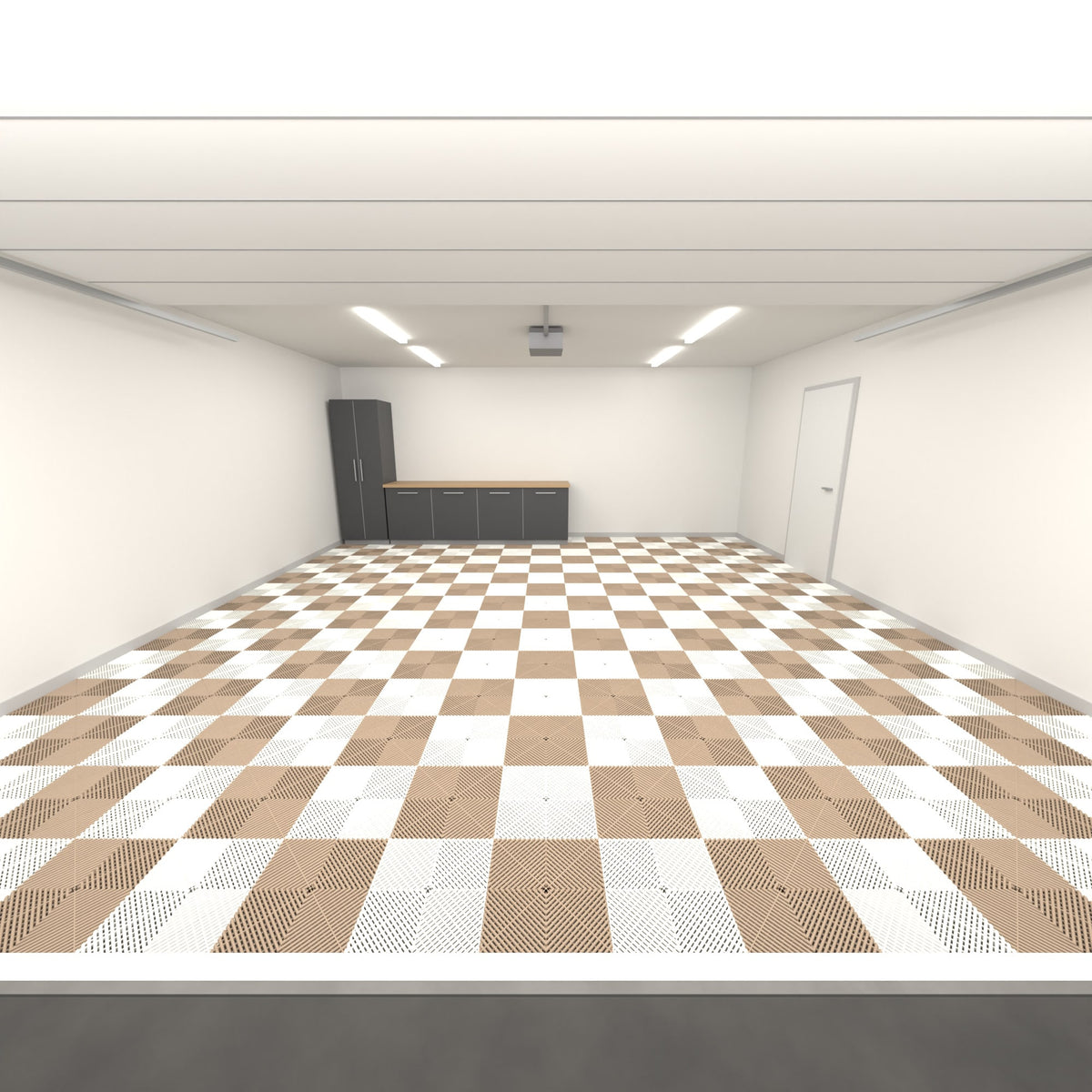

Cover a full 6 × 6 m double garage with this ULTRAGRID™ Chequer Floor Kit. A durable modular floor that ships with 240 tiles (225 floor plus 15 spares) and 16 ULTRAEDGE ramps, ready for a complete DIY installation with no adhesive required.

  • Complete kit — 240 ULTRAGRID™ tiles with 15 spares for cuts, plus 16 ULTRAEDGE ramps to finish the threshold.
  • Chequer — classic two-tone chequered layout using alternating ULTRAGRID™ tiles diagonally.
  • Ventilated open-rib design — the ULTRAGRID™ rib pattern lets water, dust, and debris pass through rather than pooling.
  • Low maintenance — water and debris drain through the ULTRAGRID™ tile’s top and side channels. A vacuum, broom, or pressure washer handles the rest.
  • 20t/m² load rating — the ULTRAGRID™ tiles handle any passenger vehicle, four-wheel drive, or heavy workshop load.
  • Full DIY install — snap-lock ULTRAGRID™ tiles together without adhesive or specialist tools. A jigsaw handles edge cuts. Done in an afternoon.
  • UV-stable and chemical-resistant — ULTRAGRID™ tiles handle sun, oil, fuel, and solvents without fading or degrading. 100% virgin polypropylene.
  • Take it when you move — ULTRAGRID™ tiles disconnect and restack for relocation. If one tile is damaged, replace just that tile.

Tested & Recommended by Aussies

Aussie Garage – YouTube cover

Phil from Aussie Garage Lays ULTRAGRID

Phil walks you through his ULTRAGRID™ DIY install in black, blue, and gray—and shows how easy it really is.

Read article
Dadz Garage featuring Sleek Space interlocking floor tiles

Dadz Garage

Watch Dadz Garage transform a cluttered space into a sleek haven with Sleek Space ULTRAGRID™ flooring.

Read article
It's In The Detail garage with Sleek Space interlocking tiles

It's In The Detail

See how It’s In The Detail transformed a dull, lifeless garage into a sleek and vibrant space.

Read article
Aussie Garage transformation featuring Sleek Space interlocking floor tiles

Aussie Garage

Aussie Garage recently transformed their space with Sleek Space ULTRATUFF tiles. See how they did it.

Read article
View all articles

Technical Specifications

Design Layout Chequer
Tile Range ULTRAGRID
Total Tiles 240 (225 floor + 15 spares)
Front Ramps 16 ULTRAEDGE ramps
Floor Coverage 36 m² (standard 6 × 6 m double garage)
Surface Type Open-rib ventilated
Tile Size 400 × 400 × 18 mm
Load Rating 20 tonnes / m²
Material 100% Virgin Polypropylene
Installation Snap-lock click system, no adhesive
Estimated Install Time 4–6 hours
Compatibility All ULTRA Series tiles interlock
Temperature Range -40°C to +120°C
UV Stability Yes — colour-stable outdoors
Chemical Resistance Oil, fuel, brake fluid, solvents

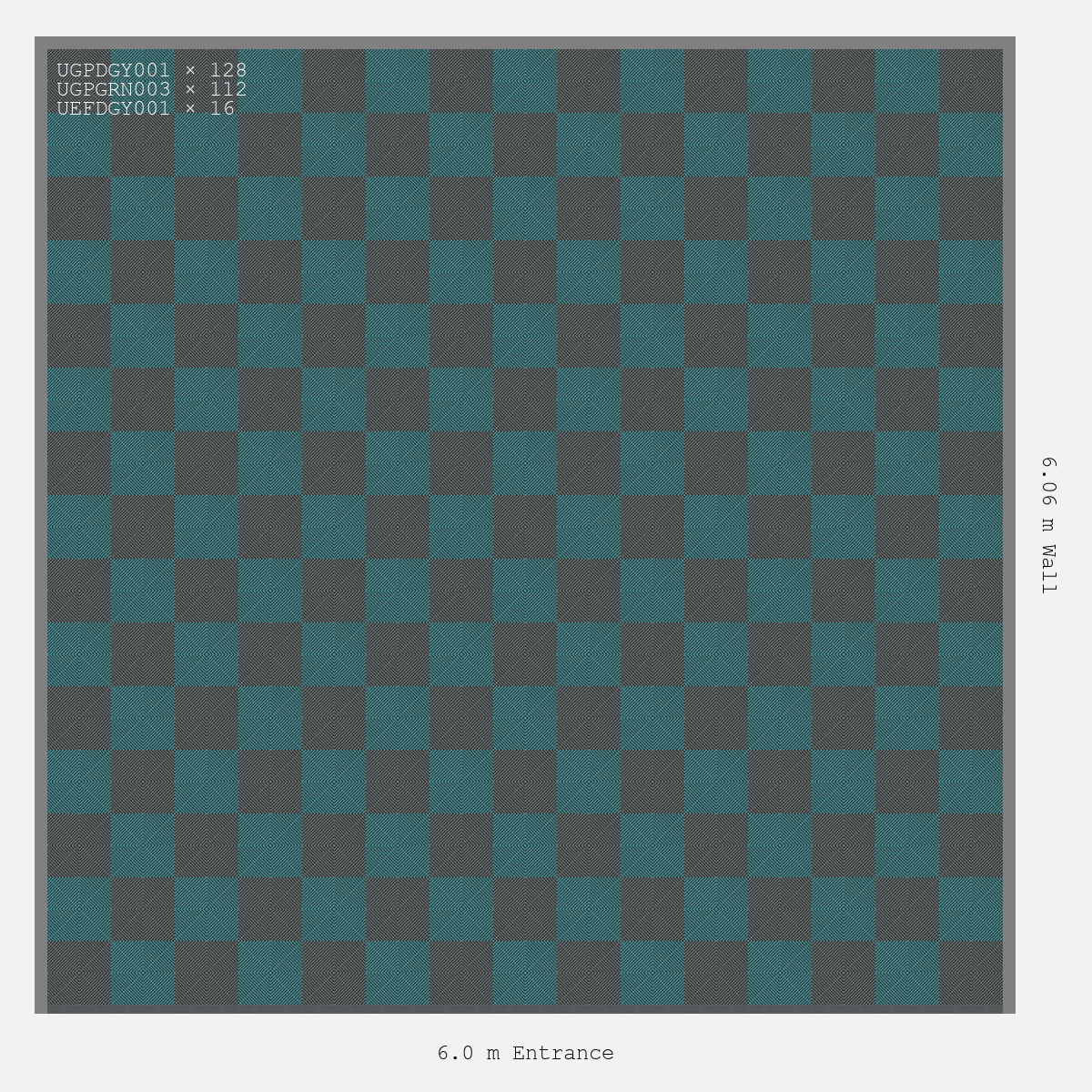

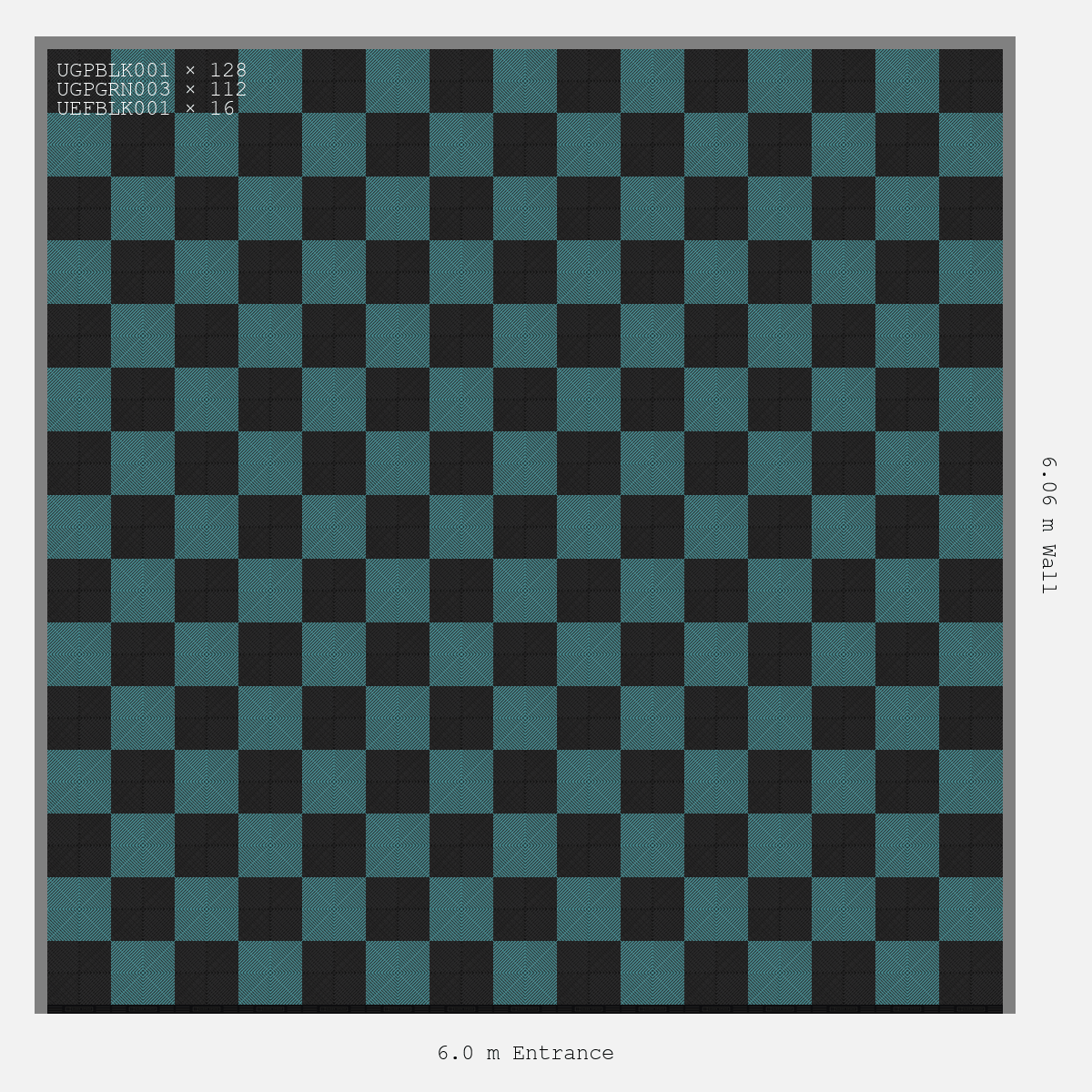

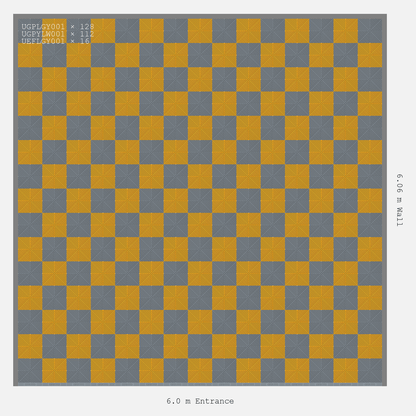

Alternate two tile colours in every row, offsetting each row so matching colours sit diagonally. The result is a classic chequered pattern across the entire floor.
No. Standard ULTRAGRID™ tiles in two colours are all you need. The snap-lock system is identical regardless of colour, so tiles alternate without any special connectors.
Yes. Use the variant options on this page to select your primary and secondary colours. Any combination in the ULTRAGRID™ palette works.
About the same as a single-colour floor — four to six hours for a standard double garage. The alternating pattern adds a small amount of time but no additional complexity.

Installation Guide

What you'll need

  • Tape measure
  • Rubber mallet
  • Jigsaw (for edge cuts)
  • Marker or pencil
  • Broom

Time estimate

  • Single garage (20-25 sqm): 4-6 hours
  • Double garage (40-50 sqm): 6-10 hours
  • No curing time — drive on immediately

Installation steps

  1. 1

    Start from the entrance

    Begin laying tiles at the garage door corner. Leave a 5–10mm expansion gap at all walls.

  2. 2

    Lay the first row

    Complete your first row across the garage, clicking tiles together. The interlocking pegs and loops do the work.

  3. 3

    Fit entrance ramps

    Attach ramp trims to the first row and slide the row snug against the garage door.

  4. 4

    Centre your design (optional)

    If your design has a centred pattern, adjust the first row to leave equal gaps on both sides.

  5. 5

    Lay remaining tiles

    Continue laying rows towards the back and side walls, clicking each tile into the previous one.

  6. 6

    Trim edges and finish

    Cut edge tiles with a jigsaw, click them in, and your floor is ready to use immediately — no curing time.
