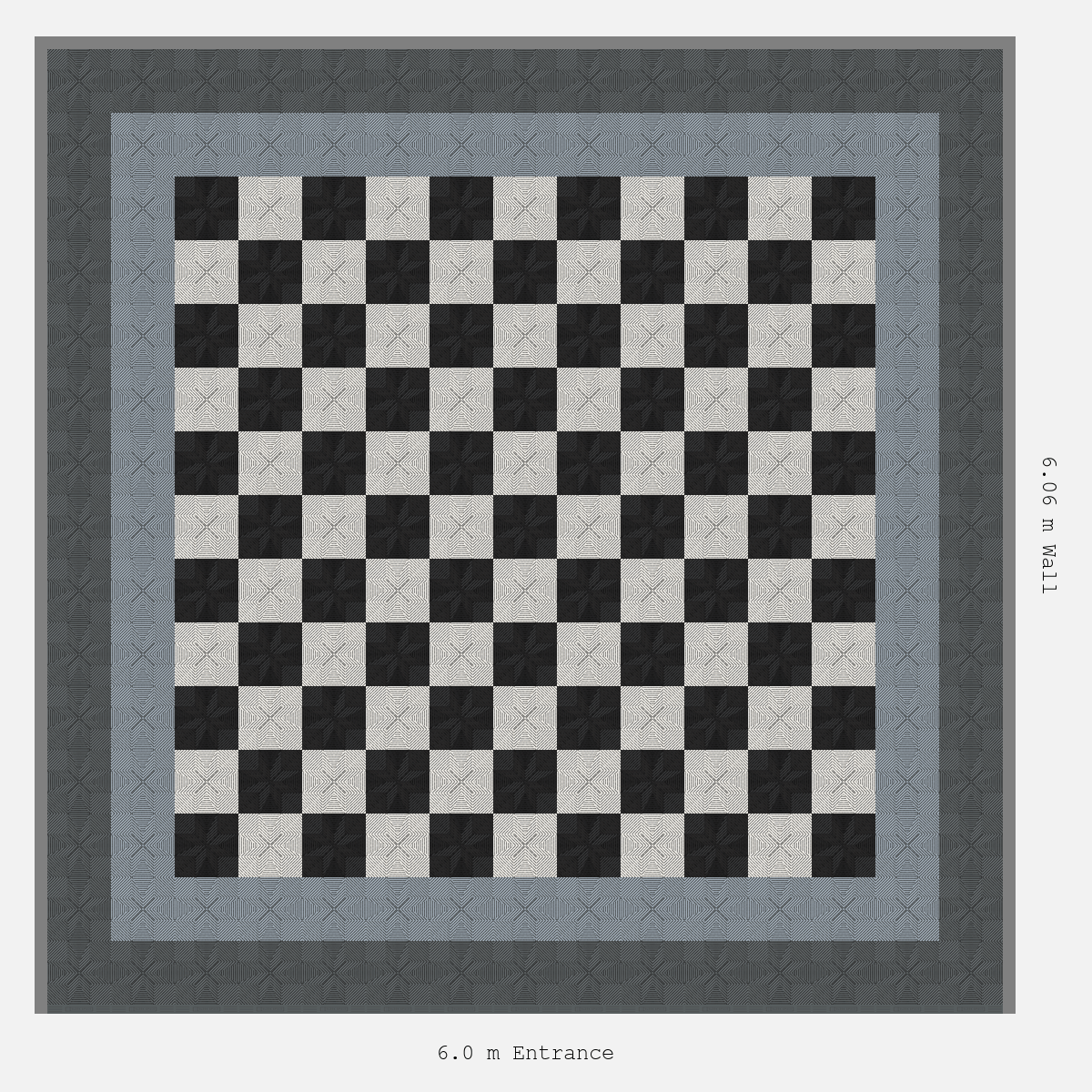

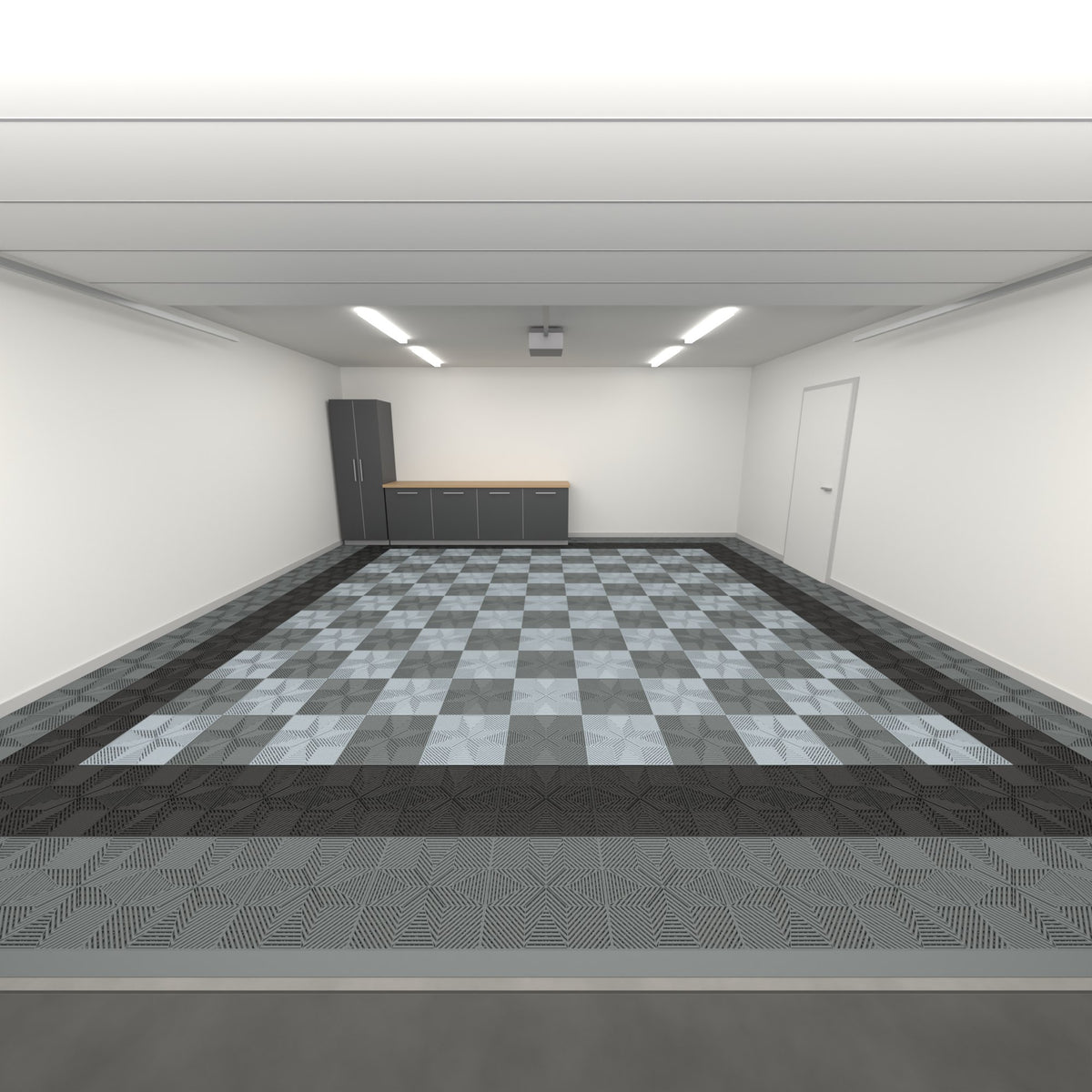

• ULTRAFLUX double border layout in Space Grey and Jet Black and Alpine White
    Package
1 1

ULTRAFLUX Double Garage Floor Kit, Border Chequer Infill

ULTRAFLUX Double Garage Floor Kit, Border Chequer Infill

In stock - ready to ship
$1,999
$2,325 $1,999
Save $326
Taxes included. Shipping calculated at checkout.

ULTRAFLUX™ Border Chequer Infill garage floor kit. 240 modular tiles + 16 ULTRAEDGE ramps included. Details

Outer
Inner
Infill
Recommended By →
Aussie Garage Dadz Garage BadQ Garage Outlaw Garage Heath's Garage It's In The Detail
View full details

The ULTRAFLUX™ Border Chequer Infill Kit is a durable modular floor for a full 6 × 6 m double garage. Every kit ships with 240 versatile tiles (225 for the floor plus 15 spares) and 16 ULTRAEDGE ramps, ready to click together without adhesive.

  • Complete kit — a 6×6 m double garage floor in one box: 240 ULTRAFLUX™ tiles (with 15 spares) and 16 ramps.
  • Border Chequer Infill — framed ULTRAFLUX™ edges with a bold chequer pattern filling the enclosed centre.
  • Angular star-pattern finish — the ULTRAFLUX™ surface catches light and sheds moisture through open geometric channels.
  • Low maintenance — the ULTRAFLUX™ surface drains moisture through top and side channels. Sweep, vacuum, or pressure wash as needed.
  • 20t/m² load rating — drive, park, and work on your ULTRAFLUX™ Border Chequer Infill floor — rated for any vehicle or equipment load.
  • Full DIY install — snap ULTRAFLUX™ tiles together without adhesive. Most Border Chequer Infill double garages are finished in 4–6 hours.
  • Made to endure — ULTRAFLUX™ tiles won't fade in sun, stain from oil, or warp across −40° to +120°C. 100% virgin polypropylene construction.
  • Portable and serviceable — your ULTRAFLUX™ Border Chequer Infill floor moves when you do. A damaged tile swaps out without affecting the surrounding floor.

Tested & Recommended by Aussies

Aussie Garage – YouTube cover

Phil from Aussie Garage Lays ULTRAGRID

Phil walks you through his ULTRAGRID™ DIY install in black, blue, and gray—and shows how easy it really is.

Read article
Dadz Garage featuring Sleek Space interlocking floor tiles

Dadz Garage

Watch Dadz Garage transform a cluttered space into a sleek haven with Sleek Space ULTRAGRID™ flooring.

Read article
It's In The Detail garage with Sleek Space interlocking tiles

It's In The Detail

See how It’s In The Detail transformed a dull, lifeless garage into a sleek and vibrant space.

Read article
Aussie Garage transformation featuring Sleek Space interlocking floor tiles

Aussie Garage

Aussie Garage recently transformed their space with Sleek Space ULTRATUFF tiles. See how they did it.

Read article
View all articles

Technical Specifications

Design Layout Border Chequer Infill
Tile Range ULTRAFLUX
Total Tiles 240 (225 floor + 15 spares)
Front Ramps 16 ULTRAEDGE ramps
Floor Coverage 36 m² (standard 6 × 6 m double garage)
Surface Type Geometric star pattern (ventilated)
Tile Size 400 × 400 × 18 mm
Load Rating 20 tonnes / m²
Material 100% Virgin Polypropylene
Installation Snap-lock click system, no adhesive
Estimated Install Time 4–6 hours
Compatibility All ULTRA Series tiles interlock
Temperature Range -40°C to +120°C
UV Stability Yes — colour-stable outdoors
Chemical Resistance Oil, fuel, brake fluid, solvents
Yes. Three-plus colours, a framed border, a chequered interior, and the ULTRAFLUX™ star-pattern surface combine to create the most visually layered floor kit available.
Three is standard — one border and two chequer tones. Two work if the border matches one chequer colour. Use the variant options to select your combination.
The physical assembly time is similar — four to six hours. Planning the colour layout takes a little more forethought, but the snap-lock process is identical once you begin.
Yes. No adhesive means every tile lifts out cleanly. Rearrange, simplify, or completely redesign the layout at any time.

Installation Guide

What you'll need

  • Tape measure
  • Rubber mallet
  • Jigsaw (for edge cuts)
  • Marker or pencil
  • Broom

Time estimate

  • Single garage (20-25 sqm): 4-6 hours
  • Double garage (40-50 sqm): 6-10 hours
  • No curing time — drive on immediately

Installation steps

  1. 1

    Start from the entrance

    Begin laying tiles at the garage door corner. Leave a 5–10mm expansion gap at all walls.

  2. 2

    Lay the first row

    Complete your first row across the garage, clicking tiles together. The interlocking pegs and loops do the work.

  3. 3

    Fit entrance ramps

    Attach ramp trims to the first row and slide the row snug against the garage door.

  4. 4

    Centre your design (optional)

    If your design has a centred pattern, adjust the first row to leave equal gaps on both sides.

  5. 5

    Lay remaining tiles

    Continue laying rows towards the back and side walls, clicking each tile into the previous one.

  6. 6

    Trim edges and finish

    Cut edge tiles with a jigsaw, click them in, and your floor is ready to use immediately — no curing time.
