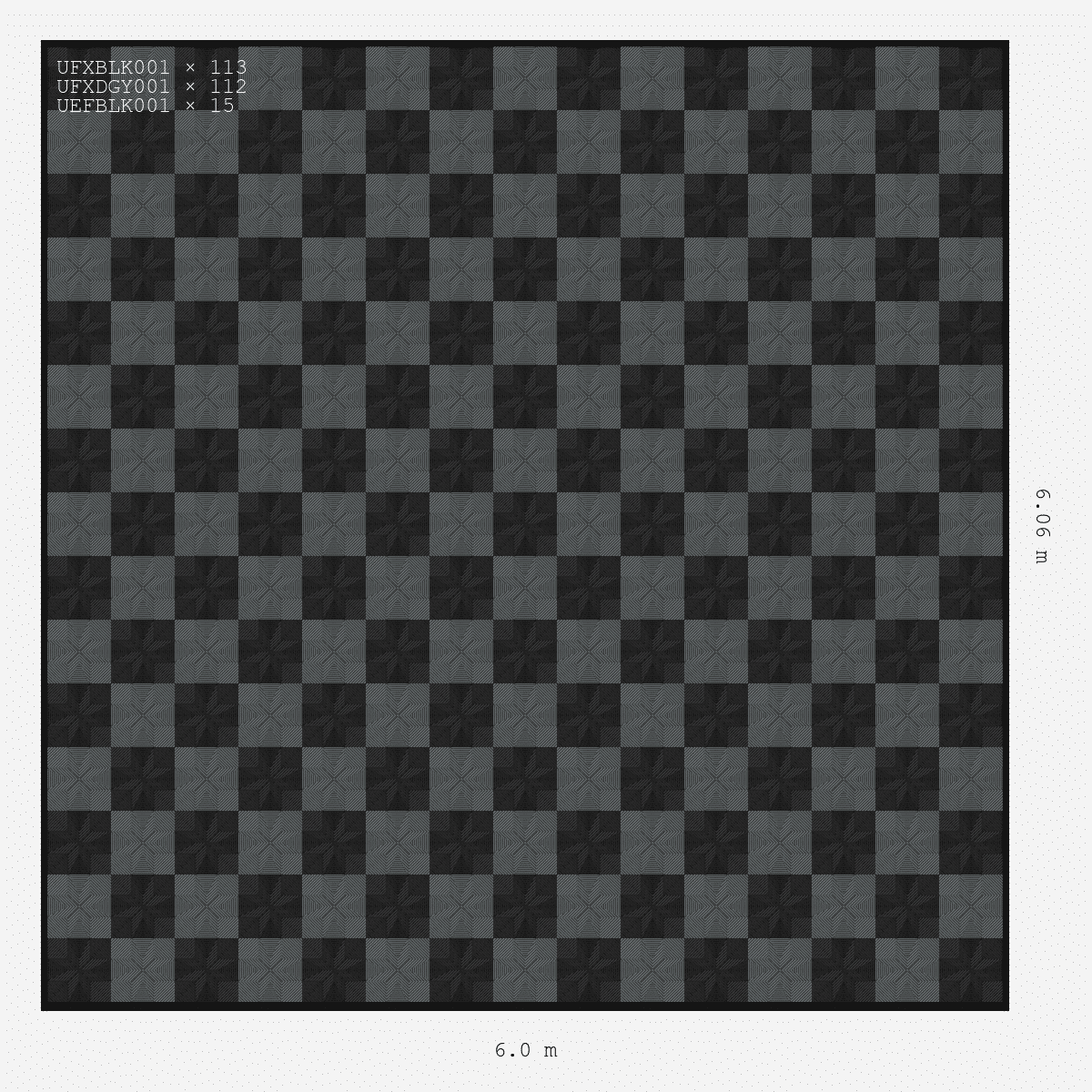

• ULTRAFLUX chequerboard layout in Space Grey and Jet Black
    Package
  • ULTRAFLUX Chequer Design Space Grey Neutral Silver Grey
1 2

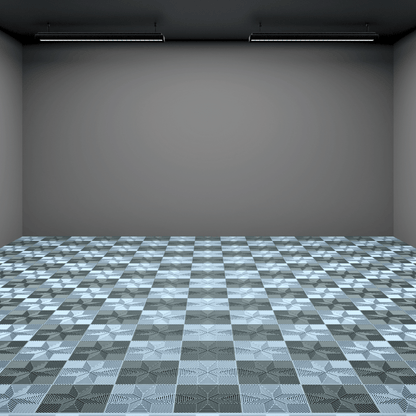

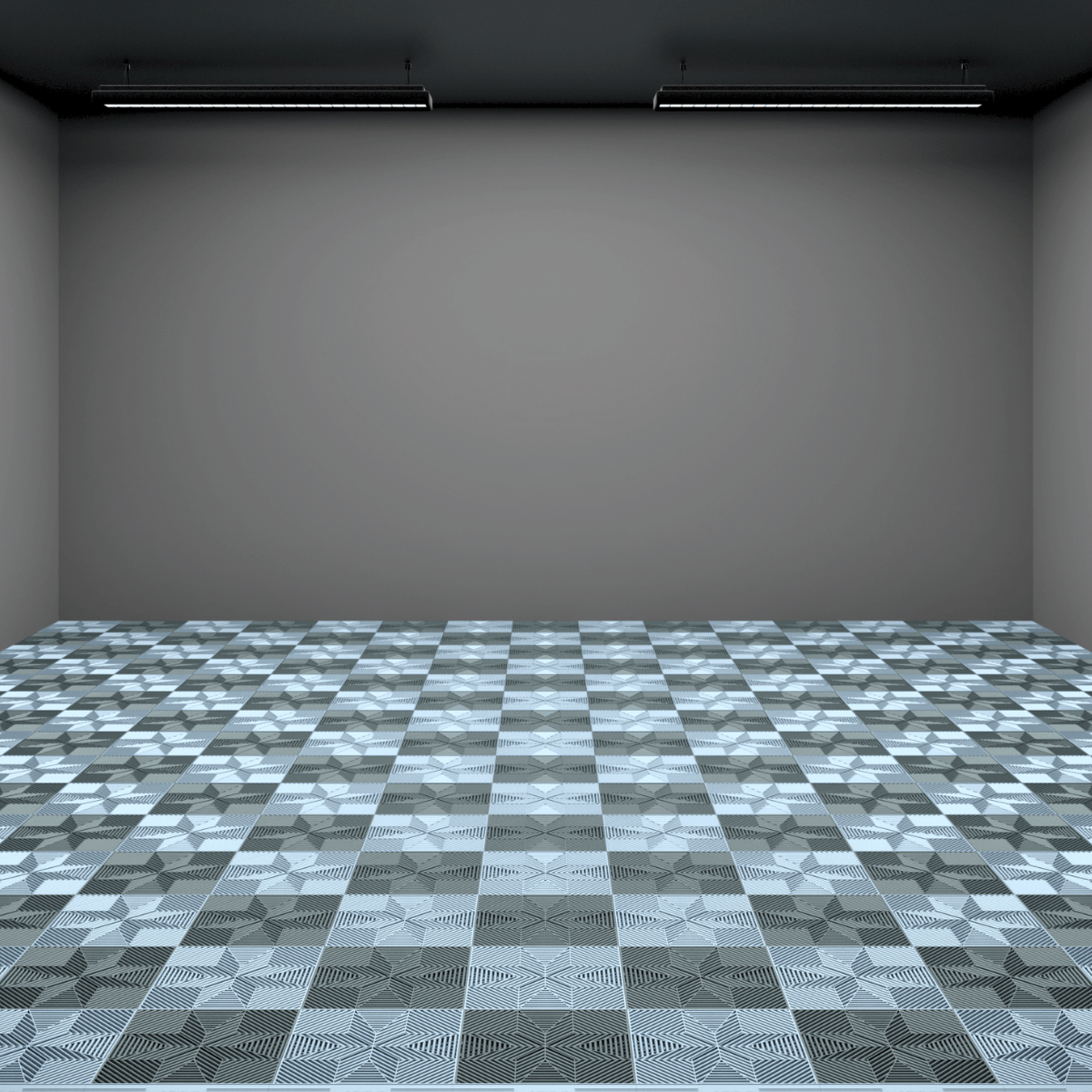

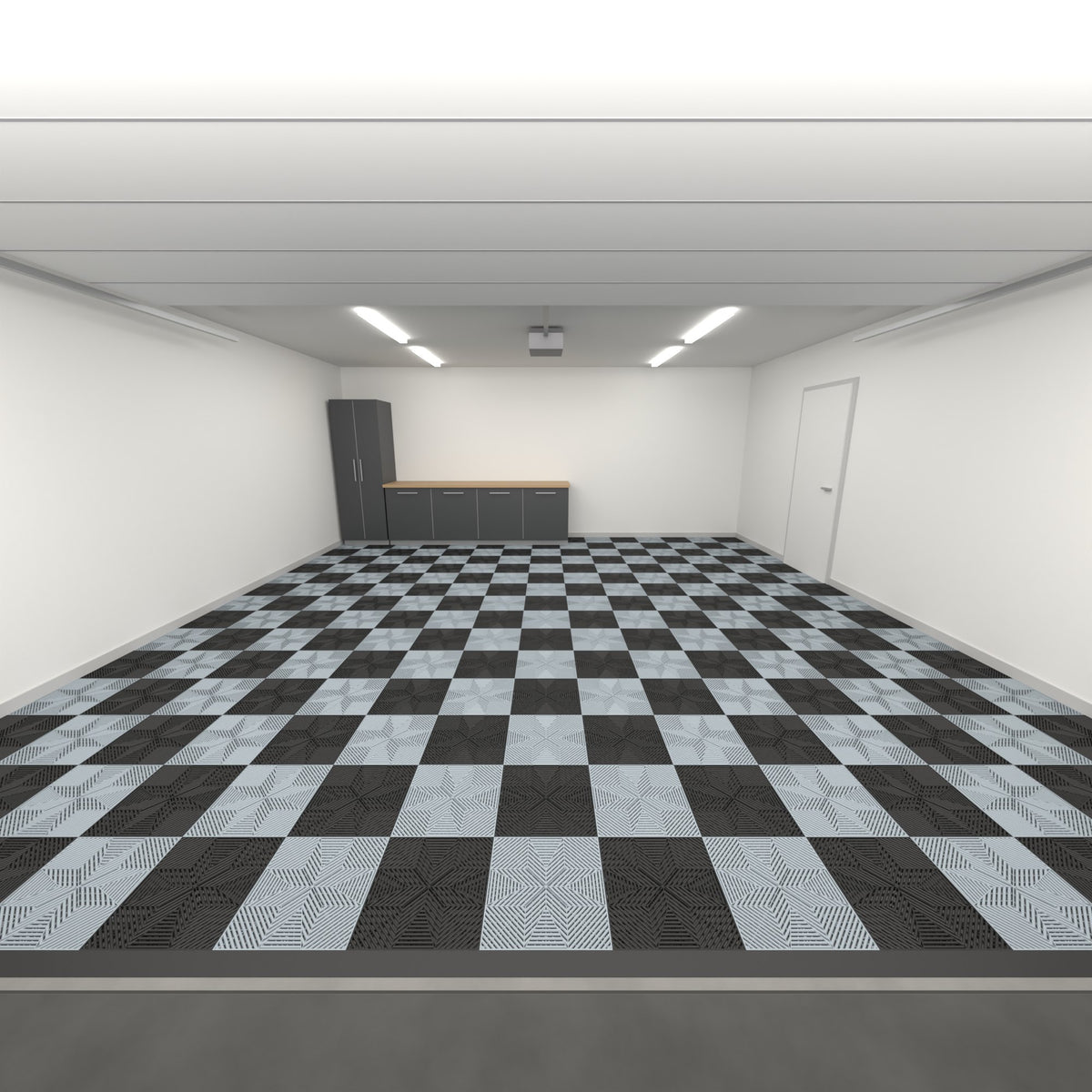

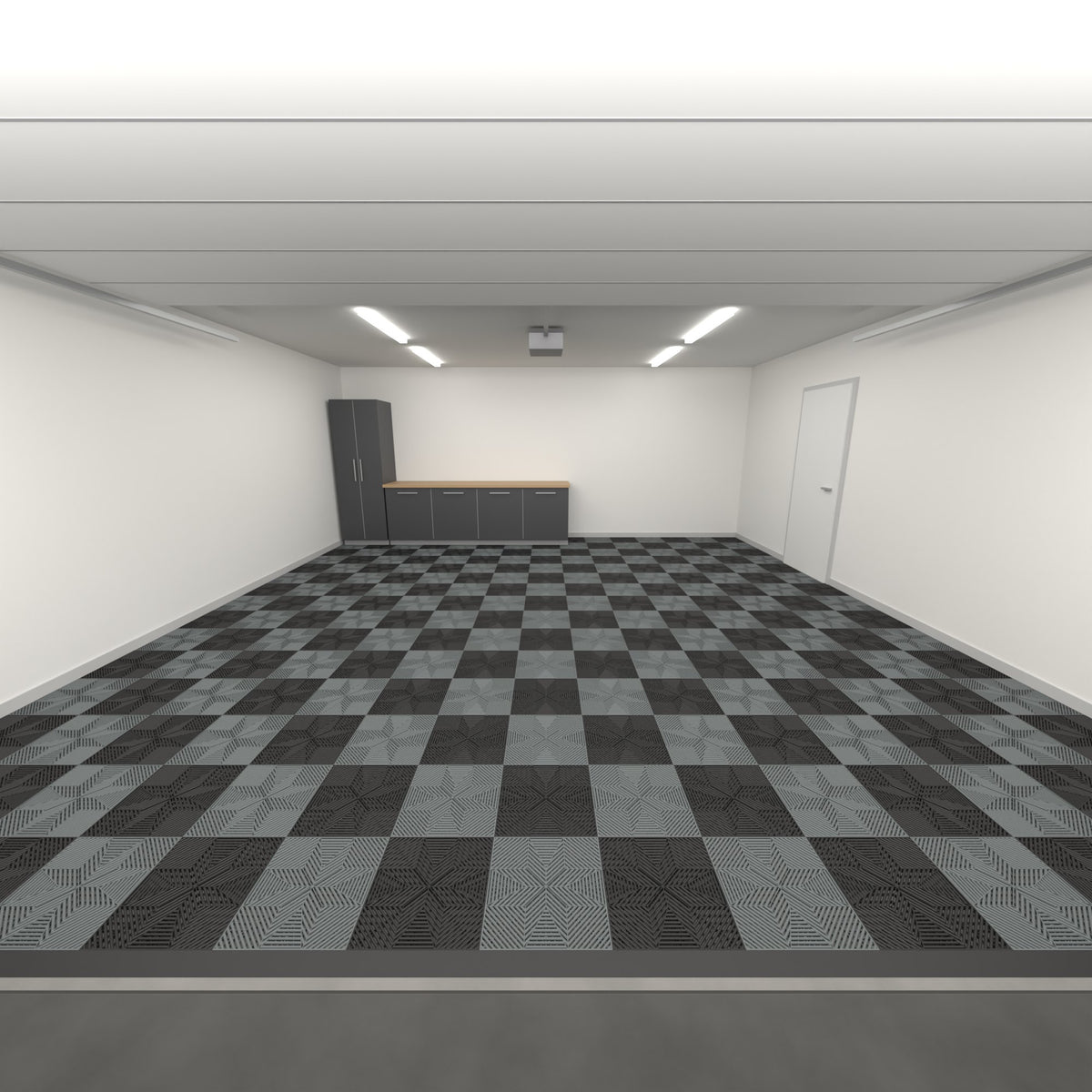

ULTRAFLUX Double Garage Floor Kit, Chequer

ULTRAFLUX Double Garage Floor Kit, Chequer

In stock - ready to ship
$1,999
$2,325 $1,999
Save $326
Taxes included. Shipping calculated at checkout.

Chequer layout on ULTRAFLUX™ star-pattern ventilated tiles. 240 tiles + 16 ULTRAEDGE ramps included. Details

Base Color
Pair Color
Recommended By →
Aussie Garage Dadz Garage BadQ Garage Outlaw Garage Heath's Garage It's In The Detail
View full details

Transform your double garage with the ULTRAFLUX™ Chequer Floor Kit — a durable modular floor covering 36 m² (6 × 6 m). Each kit contains 240 tiles (225 floor tiles plus 15 spares) and 16 ULTRAEDGE ramps for a complete, drive-on-ready result.

  • Complete kit — 240 ULTRAFLUX™ tiles with 15 spares for cuts, plus 16 ULTRAEDGE ramps to finish the threshold.
  • Chequer — a dynamic two-tone chequer across the entire ULTRAFLUX™ floor with diagonal colour contrast.
  • Angular star-pattern finish — the ULTRAFLUX™ surface catches light and sheds moisture through open geometric channels.
  • Low maintenance — the ULTRAFLUX™ surface drains moisture through top and side channels. Sweep, vacuum, or pressure wash as needed.
  • 20t/m² load rating — every square metre of your ULTRAFLUX™ Chequer floor supports vehicles, jacks, and heavy equipment.
  • Full DIY install — the ULTRAFLUX™ snap-lock system connects tiles by hand pressure alone. Finish a double garage in 4–6 hours.
  • Colour-stable and chemical-proof — UV-stabilised ULTRAFLUX™ pigment holds true under prolonged sun. Oil, fuel, and brake fluid cause no damage.
  • Relocatable investment — every ULTRAFLUX™ tile lifts out and travels with you. Damage one? Replace that single tile, not the whole floor.

Tested & Recommended by Aussies

Aussie Garage – YouTube cover

Phil from Aussie Garage Lays ULTRAGRID

Phil walks you through his ULTRAGRID™ DIY install in black, blue, and gray—and shows how easy it really is.

Read article
Dadz Garage featuring Sleek Space interlocking floor tiles

Dadz Garage

Watch Dadz Garage transform a cluttered space into a sleek haven with Sleek Space ULTRAGRID™ flooring.

Read article
It's In The Detail garage with Sleek Space interlocking tiles

It's In The Detail

See how It’s In The Detail transformed a dull, lifeless garage into a sleek and vibrant space.

Read article
Aussie Garage transformation featuring Sleek Space interlocking floor tiles

Aussie Garage

Aussie Garage recently transformed their space with Sleek Space ULTRATUFF tiles. See how they did it.

Read article
View all articles

Technical Specifications

Design Layout Chequer
Tile Range ULTRAFLUX
Total Tiles 240 (225 floor + 15 spares)
Front Ramps 16 ULTRAEDGE ramps
Floor Coverage 36 m² (standard 6 × 6 m double garage)
Surface Type Geometric star pattern (ventilated)
Tile Size 400 × 400 × 18 mm
Load Rating 20 tonnes / m²
Material 100% Virgin Polypropylene
Installation Snap-lock click system, no adhesive
Estimated Install Time 4–6 hours
Compatibility All ULTRA Series tiles interlock
Temperature Range -40°C to +120°C
UV Stability Yes — colour-stable outdoors
Chemical Resistance Oil, fuel, brake fluid, solvents
Exceptionally well. The two-tone chequer adds colour contrast to the angular star geometry, creating a floor with more visual depth and complexity than either pattern alone.
No. The snap-lock system and automatic pattern alignment are identical for both colours. Alternating colours adds a few minutes of attention, not difficulty.
High-contrast pairs like Jet Black and Alpine White maximise the geometric drama. Tonal pairs like Space Grey and Silver Grey create a subtler, more sophisticated effect.
Yes. Every tile — regardless of colour — provides the same star-pattern drainage and airflow. The chequer is purely a colour arrangement.

Installation Guide

What you'll need

  • Tape measure
  • Rubber mallet
  • Jigsaw (for edge cuts)
  • Marker or pencil
  • Broom

Time estimate

  • Single garage (20-25 sqm): 4-6 hours
  • Double garage (40-50 sqm): 6-10 hours
  • No curing time — drive on immediately

Installation steps

  1. 1

    Start from the entrance

    Begin laying tiles at the garage door corner. Leave a 5–10mm expansion gap at all walls.

  2. 2

    Lay the first row

    Complete your first row across the garage, clicking tiles together. The interlocking pegs and loops do the work.

  3. 3

    Fit entrance ramps

    Attach ramp trims to the first row and slide the row snug against the garage door.

  4. 4

    Centre your design (optional)

    If your design has a centred pattern, adjust the first row to leave equal gaps on both sides.

  5. 5

    Lay remaining tiles

    Continue laying rows towards the back and side walls, clicking each tile into the previous one.

  6. 6

    Trim edges and finish

    Cut edge tiles with a jigsaw, click them in, and your floor is ready to use immediately — no curing time.
