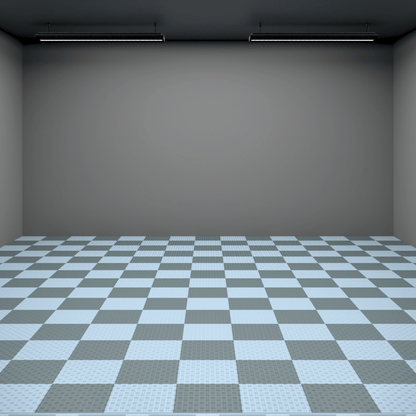

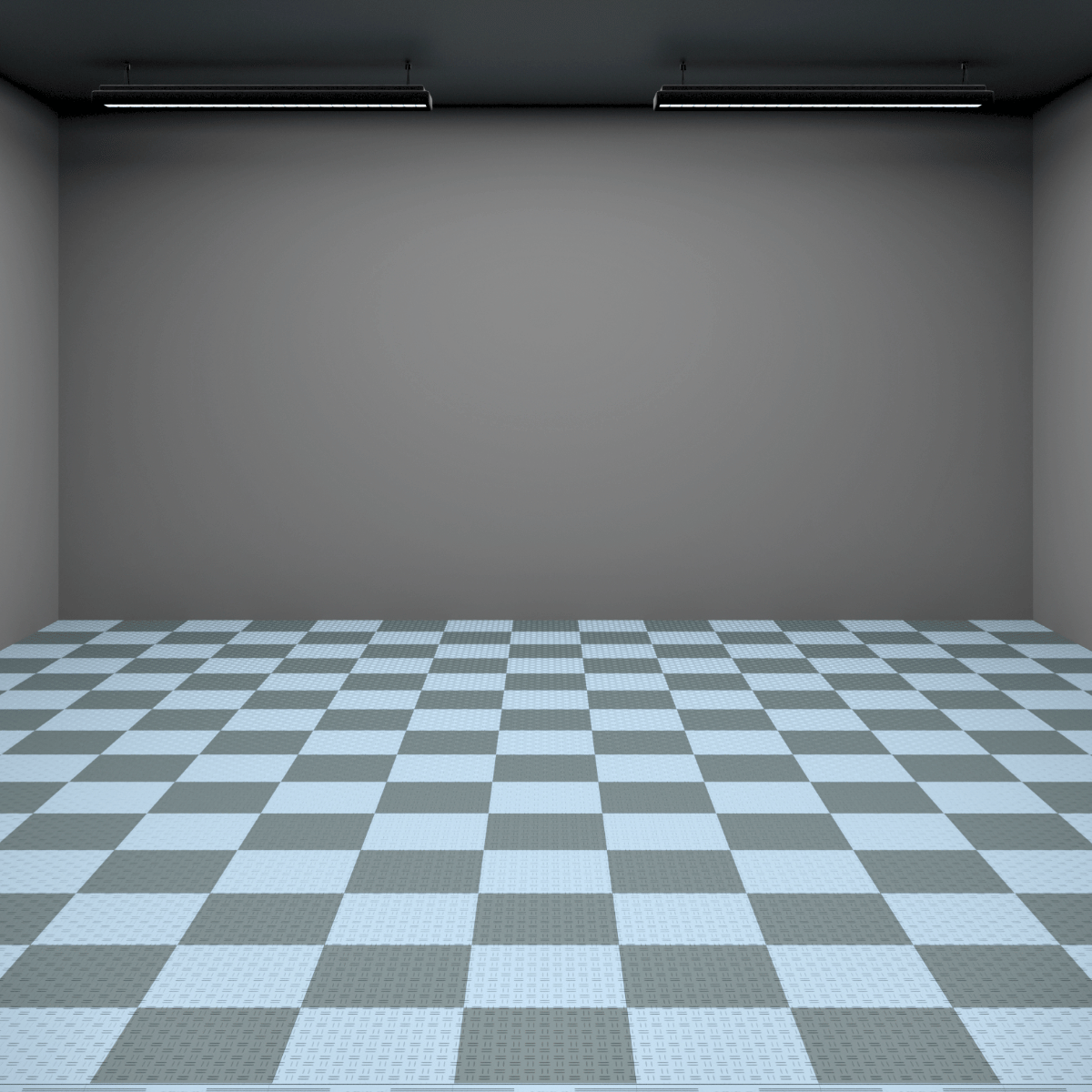

ULTRATUFF Double Garage Floor Kit, Chequer

ULTRATUFF Double Garage Floor Kit, Chequer

In stock - ready to ship
Regular price $1,999
Regular price $2,325 Sale price $1,999
Save $326
Taxes included. Shipping calculated at checkout.

ULTRATUFF™ Chequer garage floor kit. 240 modular tiles + 16 ULTRAEDGE ramps included. Details

Base Color
Pair Color
Quantity
View full details

The ULTRATUFF™ Chequer Kit is a durable modular floor for a full 6 × 6 m double garage. Every kit ships with 240 versatile tiles (225 for the floor plus 15 spares) and 16 ULTRAEDGE ramps, ready to click together without adhesive.

  • Complete kit — 240 ULTRATUFF™ tiles with 15 spares for cuts, plus 16 ULTRAEDGE ramps to finish the threshold.
  • Chequer — a dynamic two-tone chequer across the entire ULTRATUFF™ floor with diagonal colour contrast.
  • Diamond-pattern traction — the solid ULTRATUFF™ surface provides steady grip while the raised diamonds shed surface moisture.
  • Low maintenance — the solid ULTRATUFF™ surface sweeps and mops effortlessly. Side channels maintain airflow beneath the floor.
  • 20t/m² load rating — drive, park, and work on your ULTRATUFF™ Chequer floor — rated for any vehicle or equipment load.
  • Full DIY install — snap ULTRATUFF™ tiles together without adhesive. Most Chequer double garages are finished in 4–6 hours.
  • Made to endure — ULTRATUFF™ tiles won't fade in sun, stain from oil, or warp across −40° to +120°C. 100% virgin polypropylene construction.
  • Portable and serviceable — your ULTRATUFF™ Chequer floor moves when you do. A damaged tile swaps out without affecting the surrounding floor.

Technical Specifications

Design Layout Chequer
Tile Range ULTRATUFF
Total Tiles 240 (225 floor + 15 spares)
Front Ramps 16 ULTRAEDGE ramps
Floor Coverage 36 m² (standard 6 × 6 m double garage)
Surface Type Diamond-tread solid
Tile Size 400 × 400 × 18 mm
Load Rating 20 tonnes / m²
Material 100% Virgin Polypropylene
Installation Snap-lock click system, no adhesive
Estimated Install Time 4–6 hours
Compatibility All ULTRA Series tiles interlock
Temperature Range -40°C to +120°C
UV Stability Yes — colour-stable outdoors
Chemical Resistance Oil, fuel, brake fluid, solvents

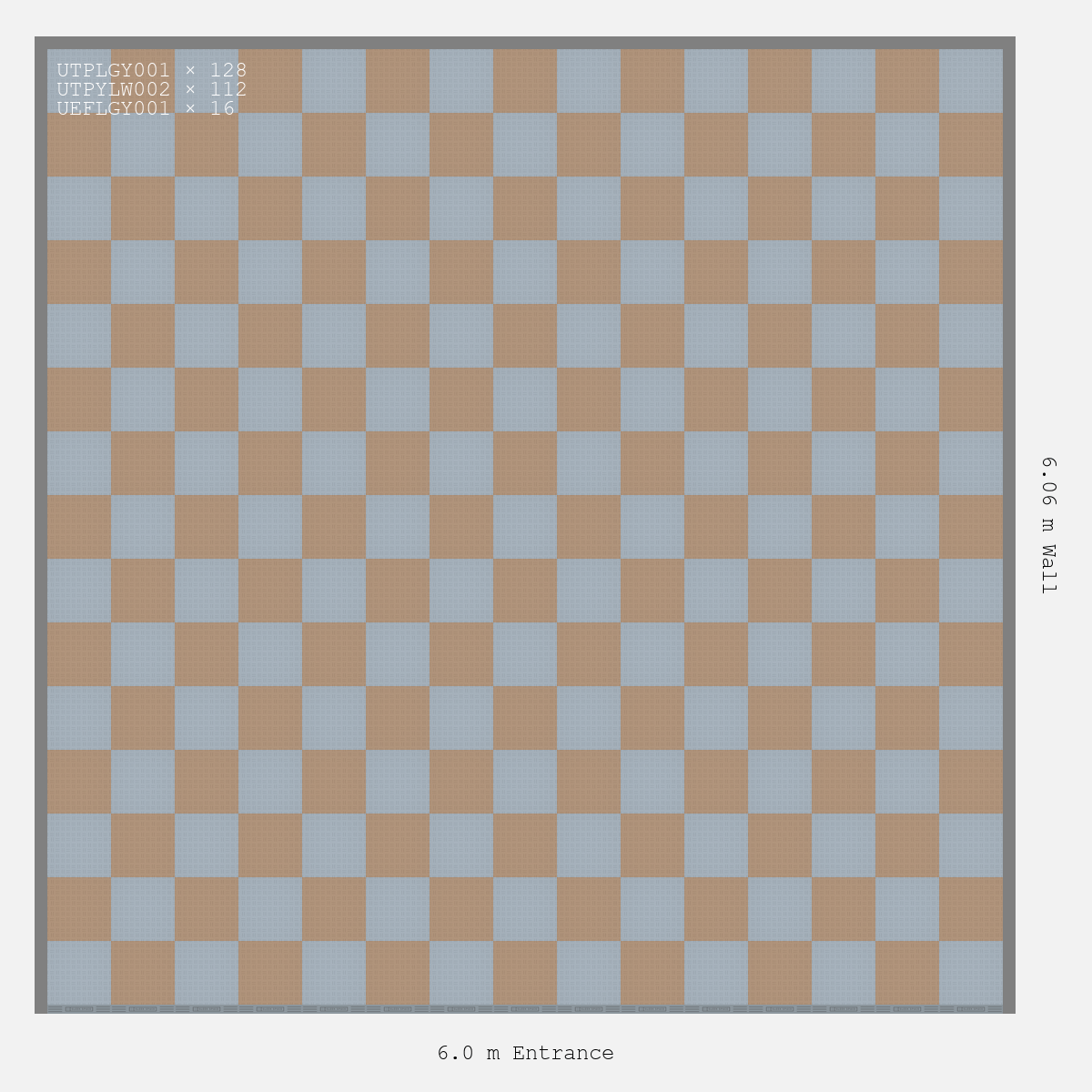

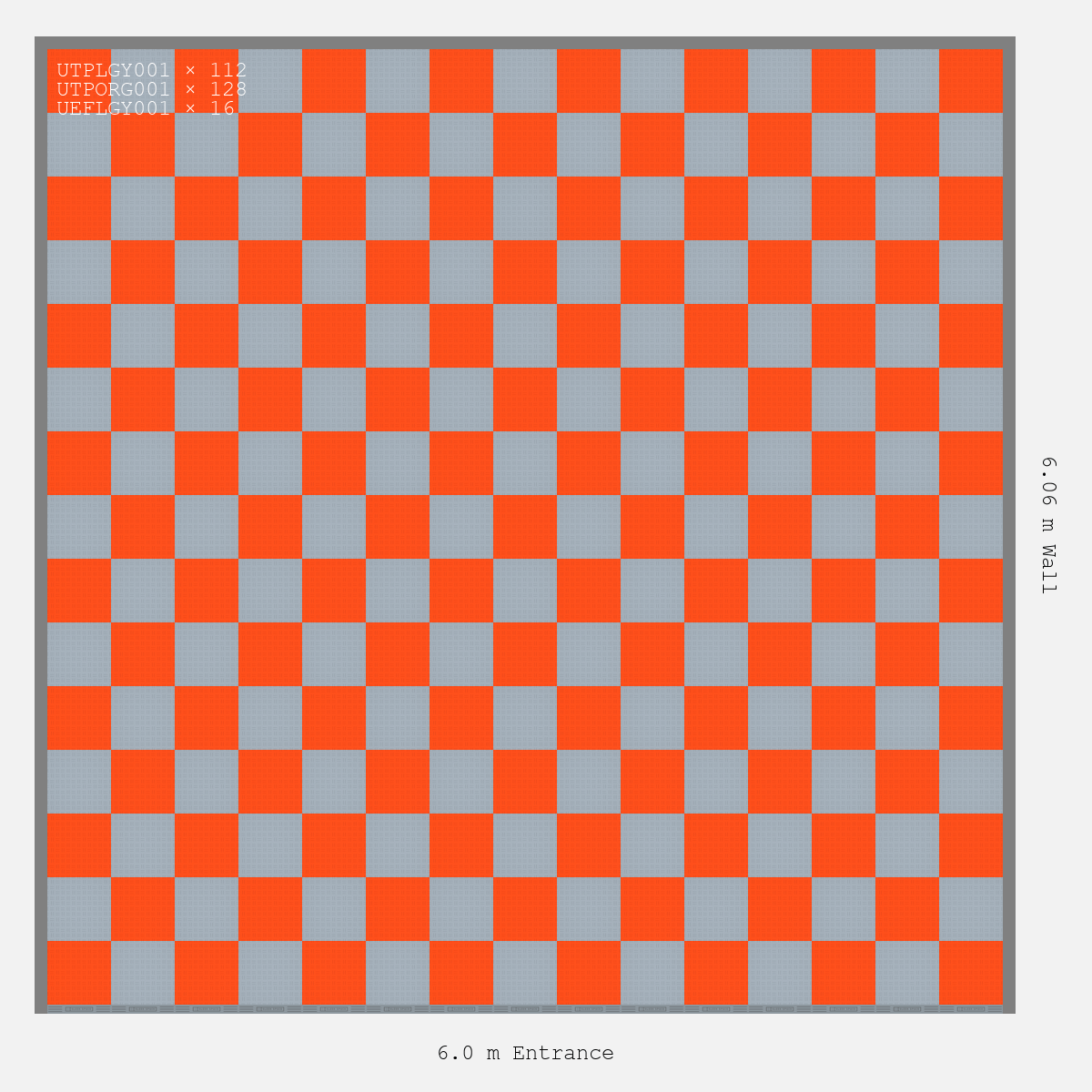

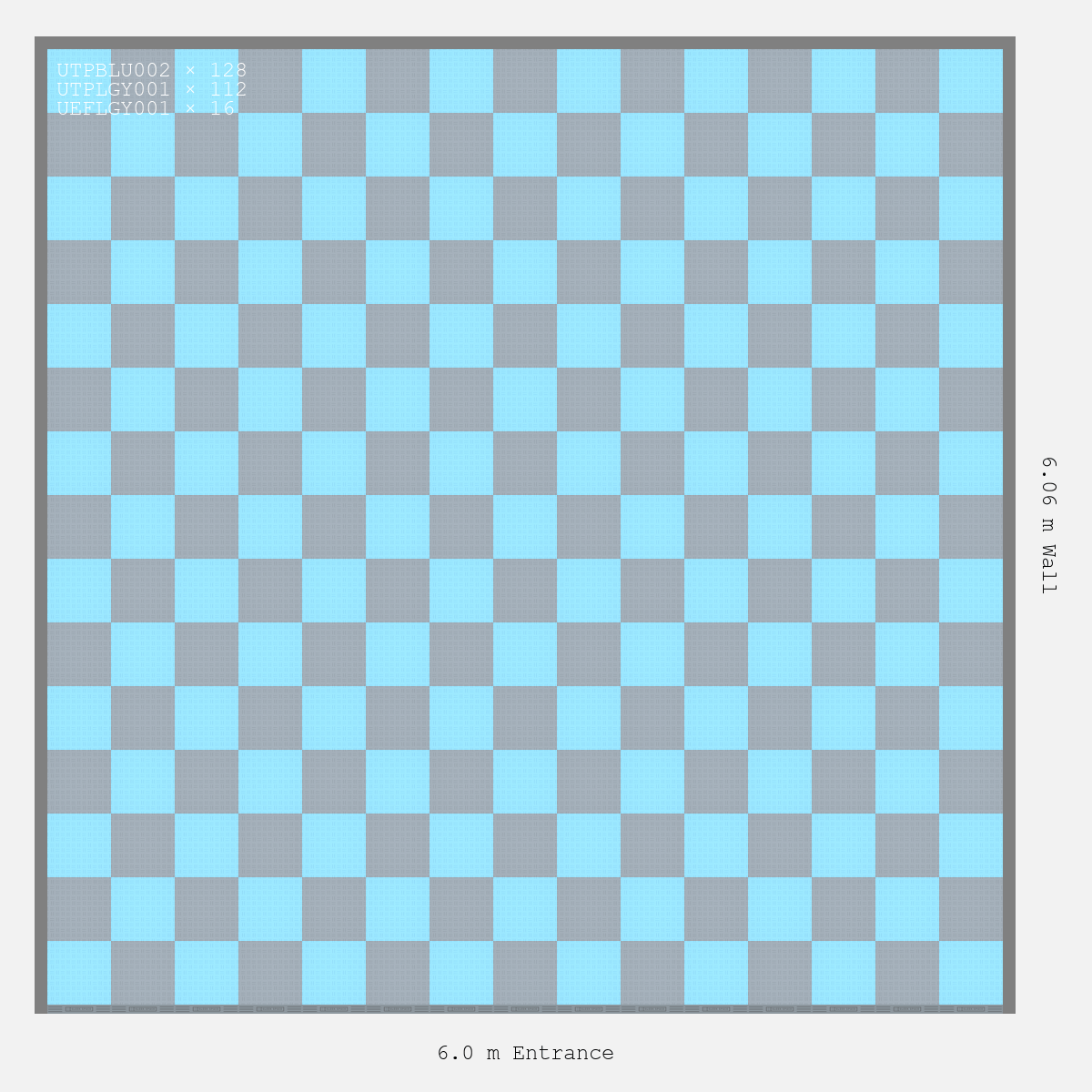

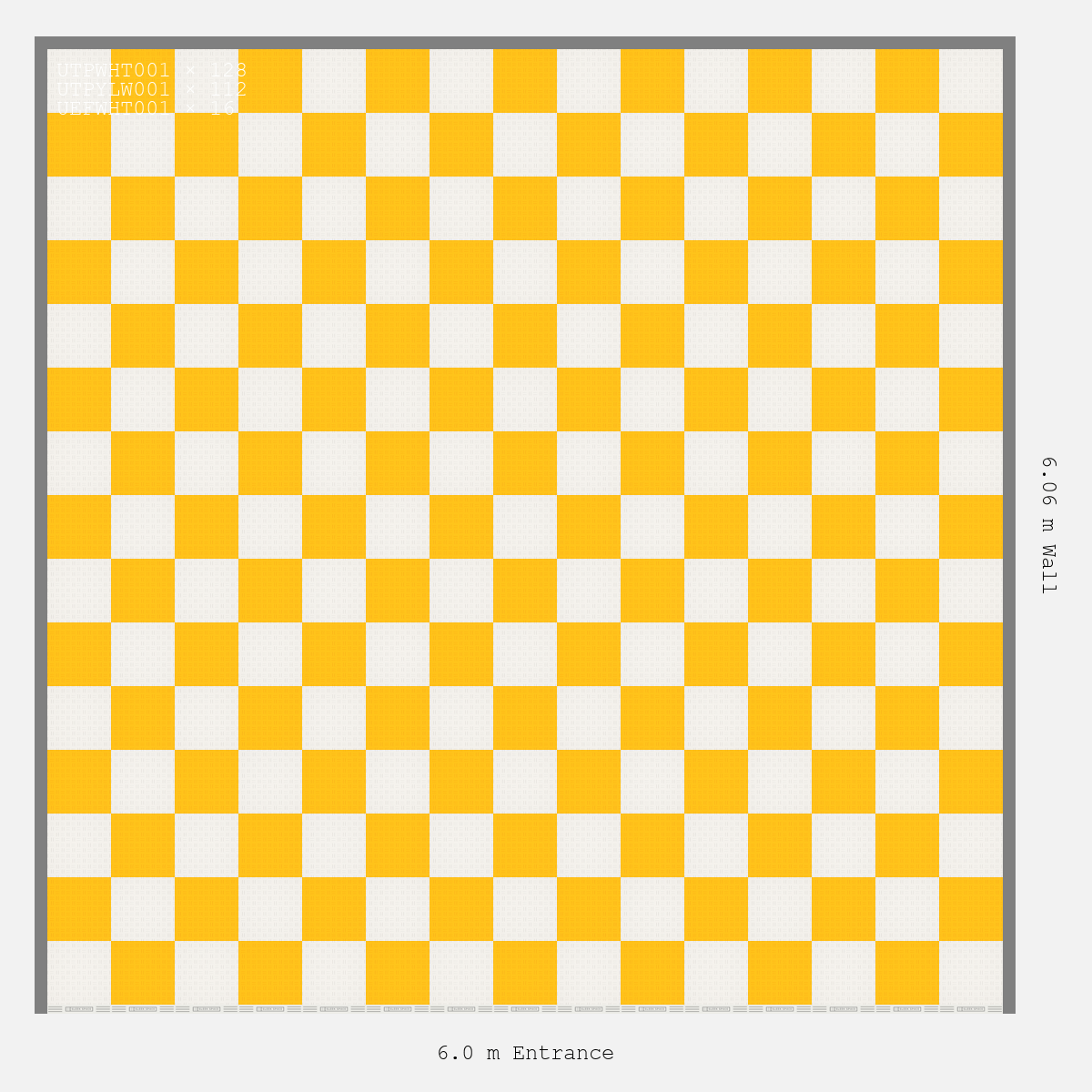

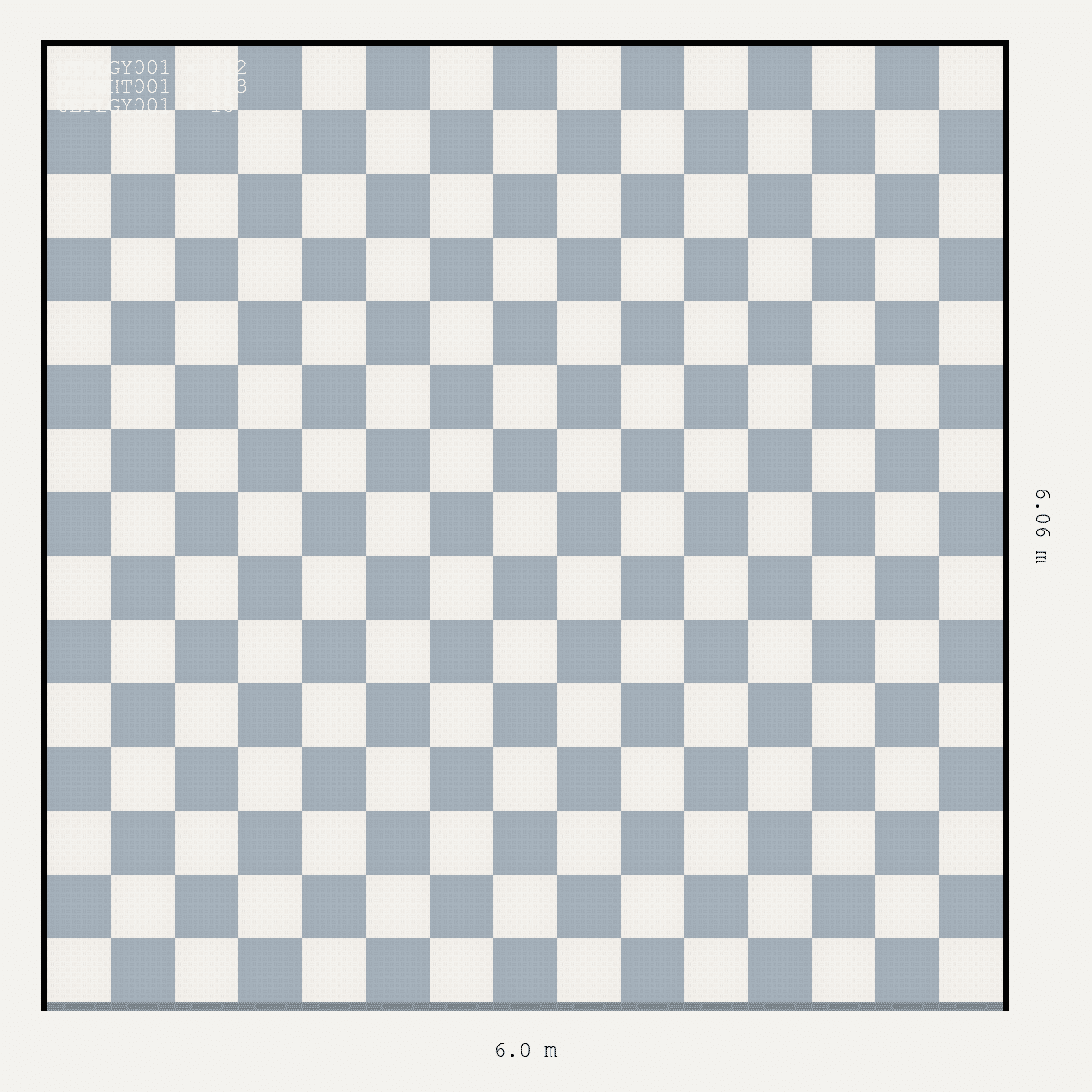

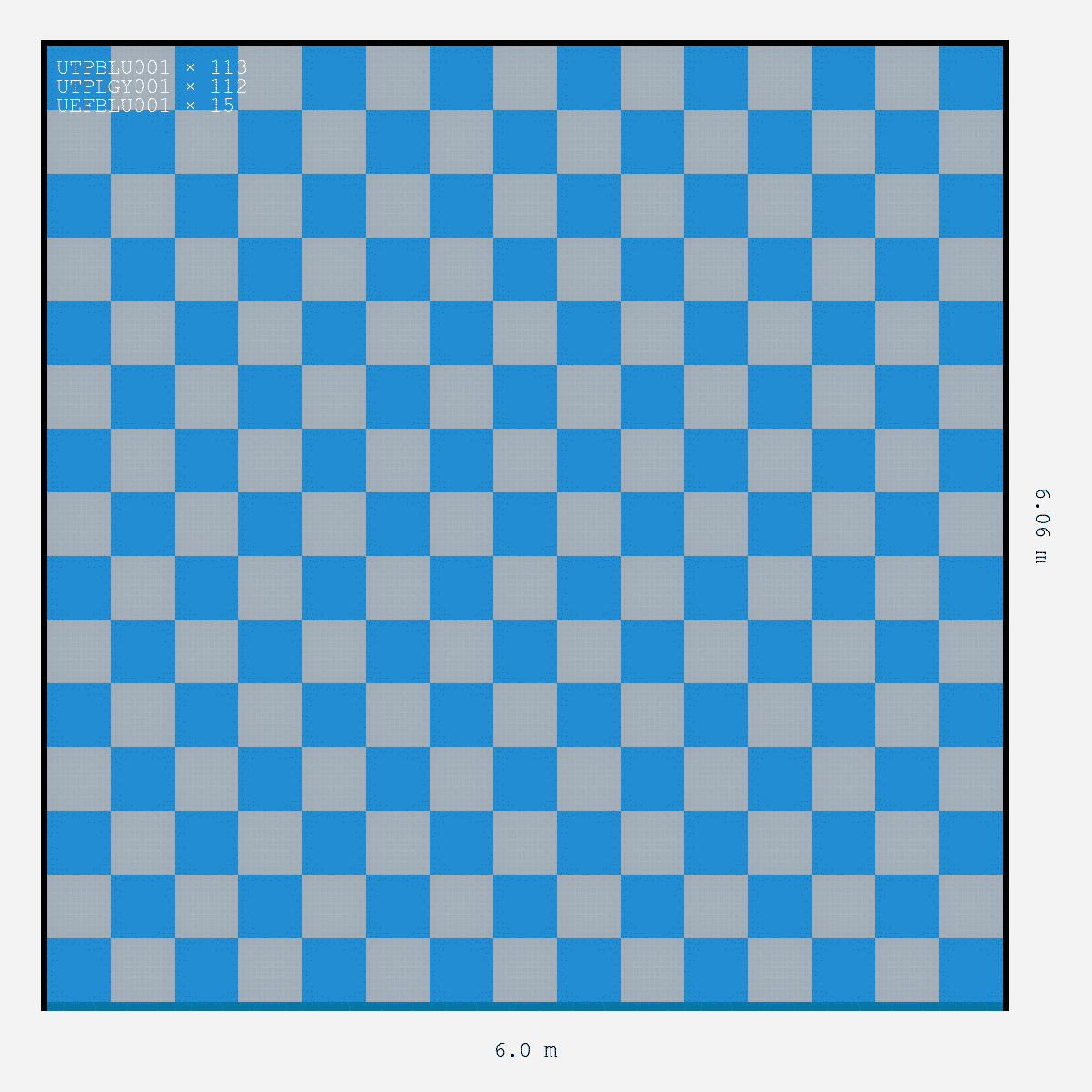

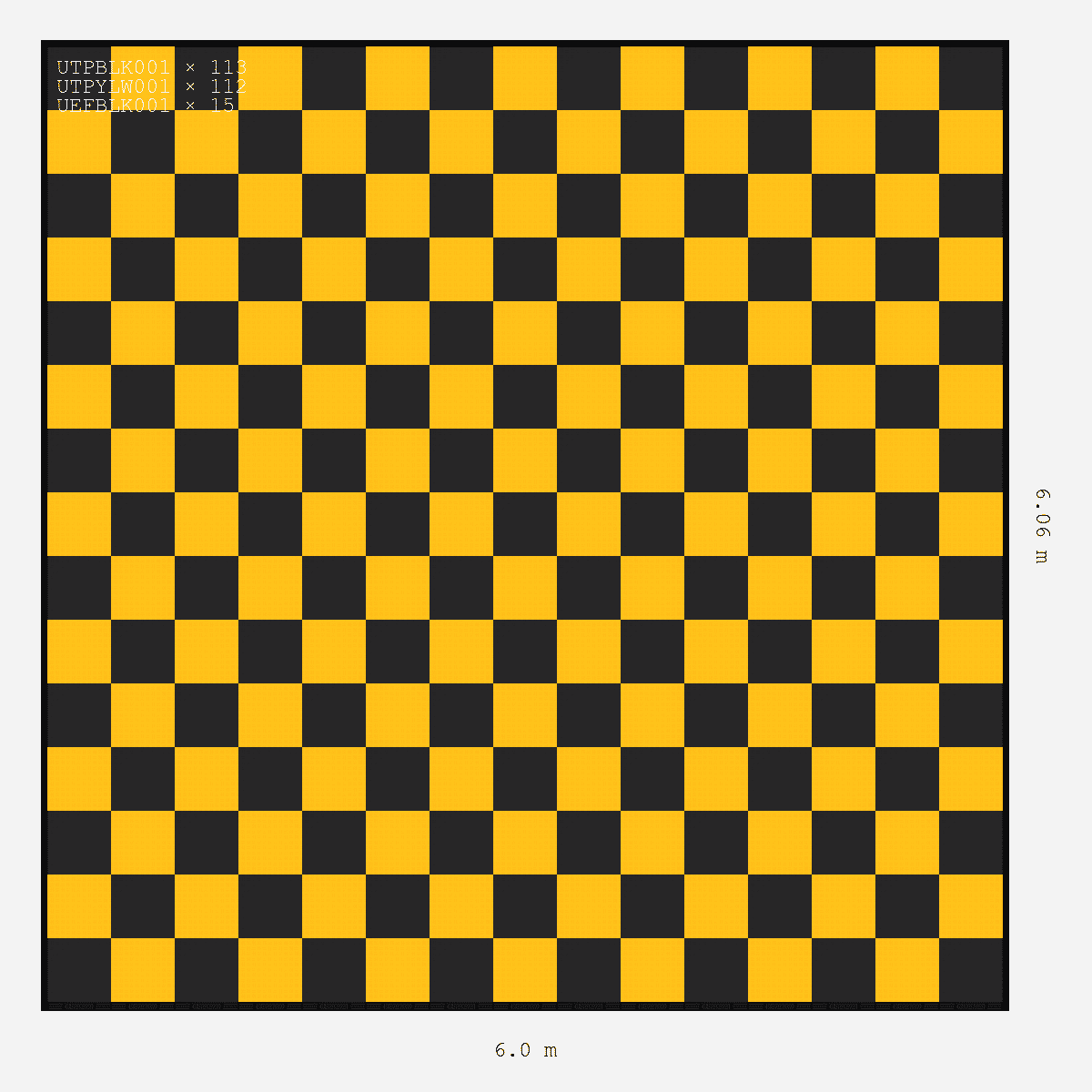

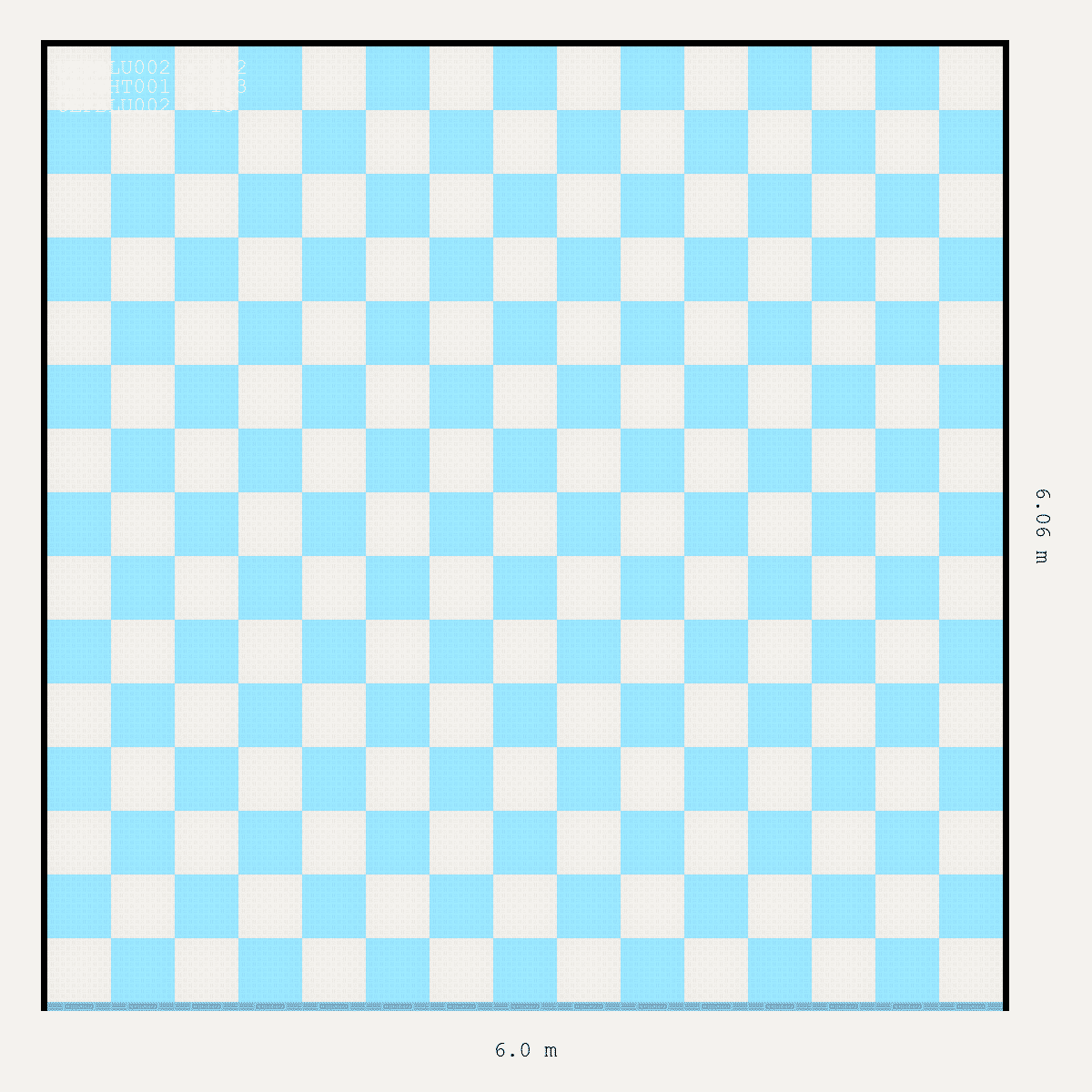

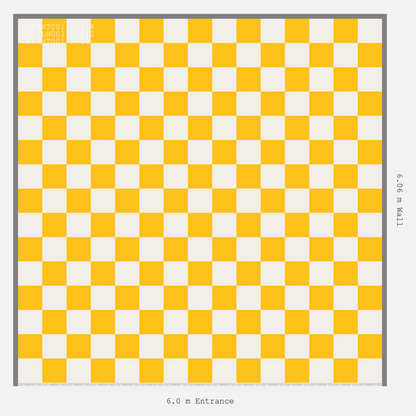

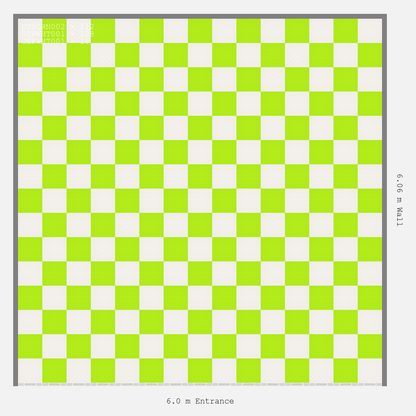

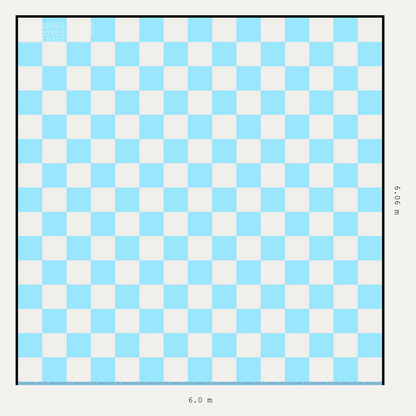

Alternate two colours tile by tile in each row. Offset the next row so matching colours sit diagonally. The chequered pattern builds automatically as you work across the floor.
Yes. Any two colours in the ULTRATUFF™ range work together in a chequer layout. Use the variant options to select your combination.
Only marginally. The physical snap-lock process is the same. The alternating colour sequence adds a few minutes of attention but no additional difficulty.
Yes. Both colours are UV-stabilised and chemically resistant. The solid diamond-tread surface cleans identically in any shade, so the contrast between colours remains sharp.

Installation Guide

What you'll need

  • Tape measure
  • Rubber mallet
  • Jigsaw (for edge cuts)
  • Marker or pencil
  • Broom

Time estimate

  • Single garage (20-25 sqm): 4-6 hours
  • Double garage (40-50 sqm): 6-10 hours
  • No curing time — drive on immediately

Installation steps

  1. 1

    Start from the entrance

    Begin laying tiles at the garage door corner. Leave a 5–10mm expansion gap at all walls.

  2. 2

    Lay the first row

    Complete your first row across the garage, clicking tiles together. The interlocking pegs and loops do the work.

  3. 3

    Fit entrance ramps

    Attach ramp trims to the first row and slide the row snug against the garage door.

  4. 4

    Centre your design (optional)

    If your design has a centred pattern, adjust the first row to leave equal gaps on both sides.

  5. 5

    Lay remaining tiles

    Continue laying rows towards the back and side walls, clicking each tile into the previous one.

  6. 6

    Trim edges and finish

    Cut edge tiles with a jigsaw, click them in, and your floor is ready to use immediately — no curing time.
