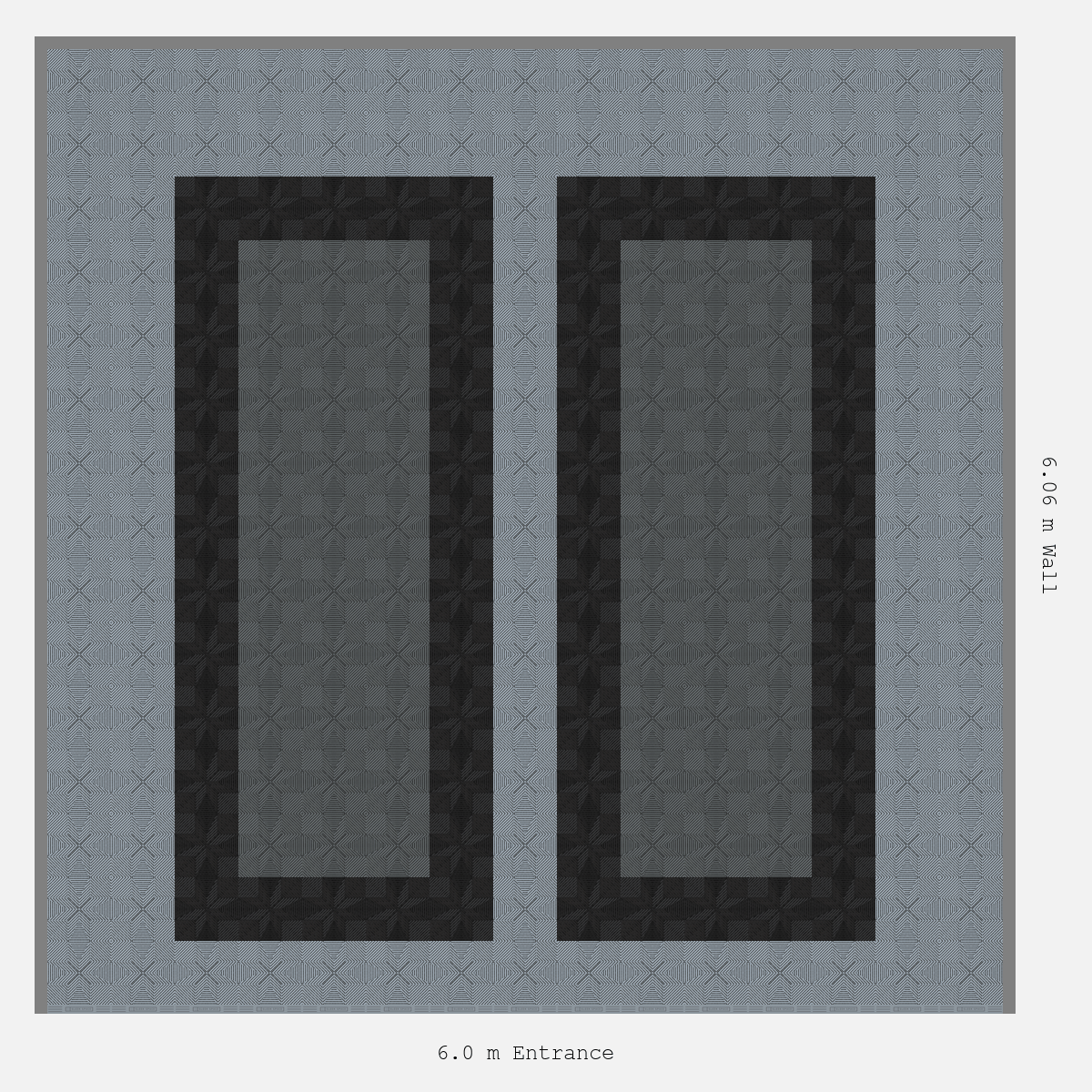

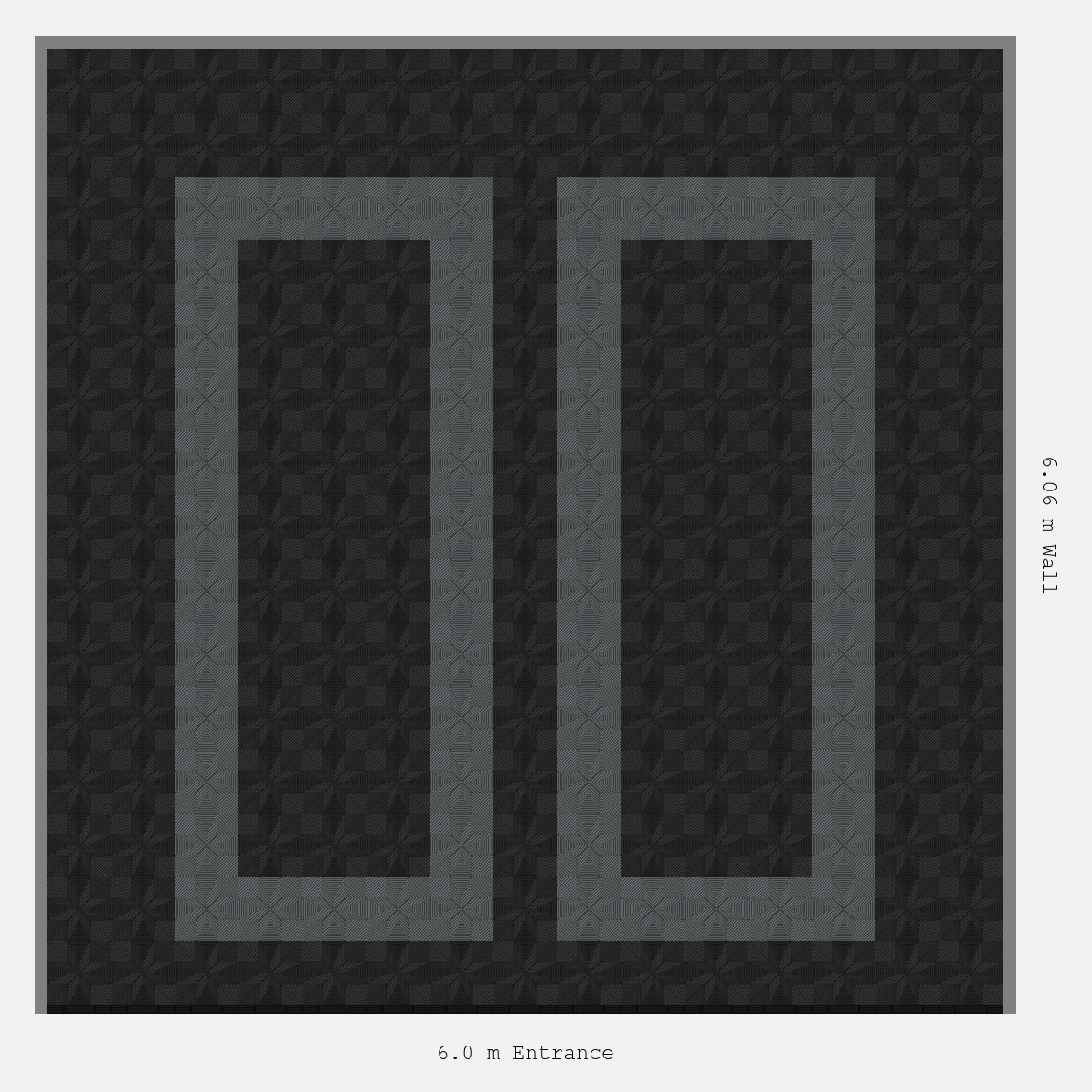

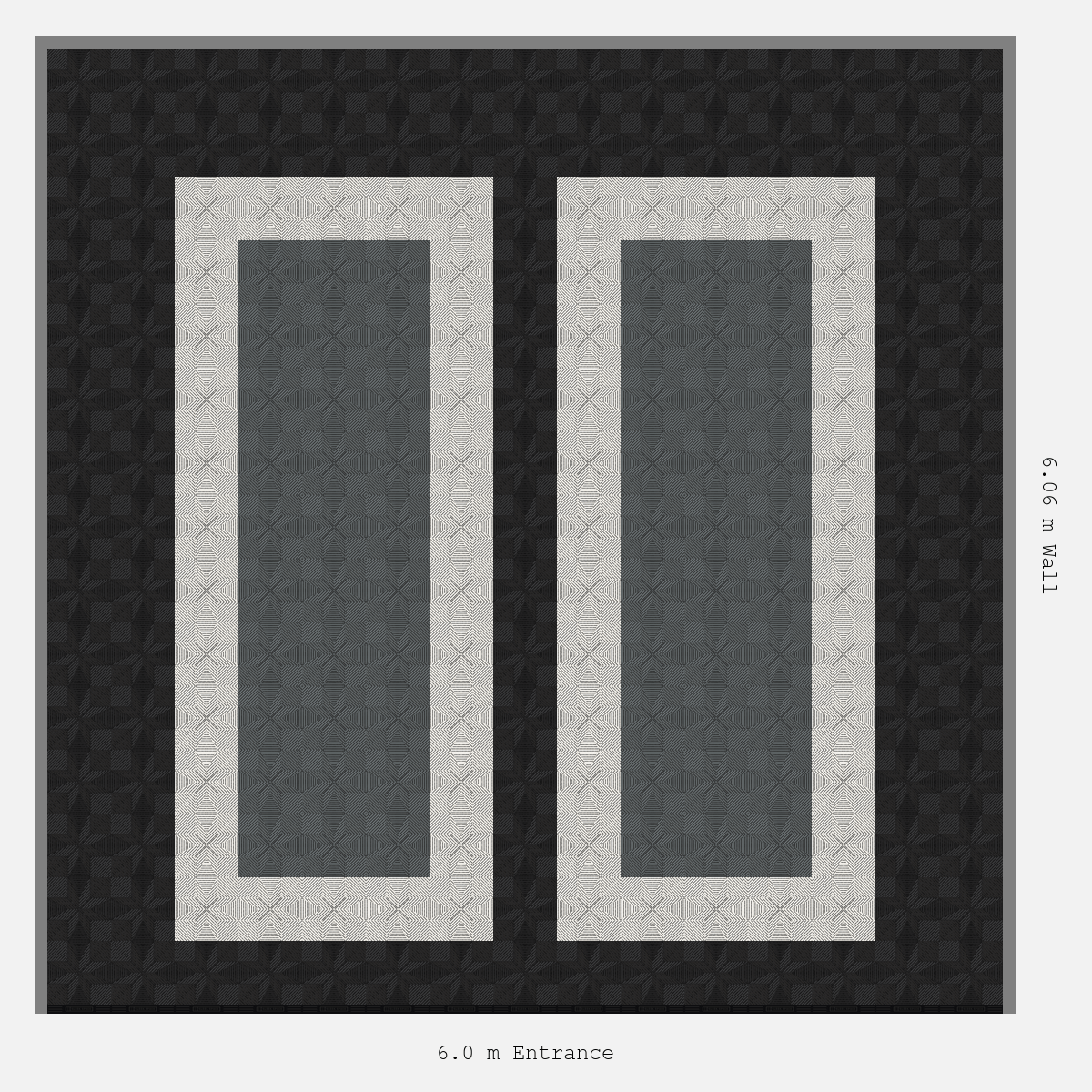

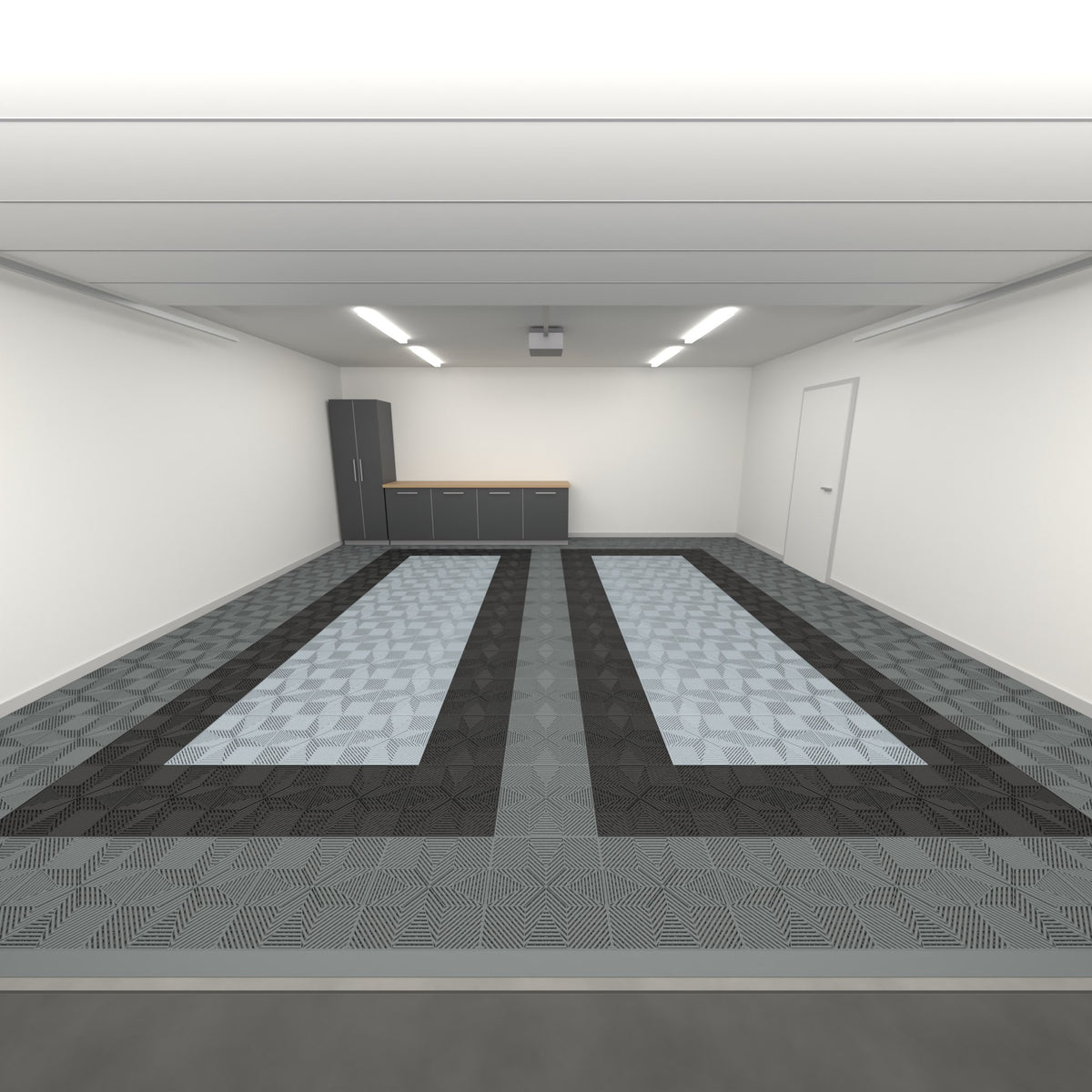

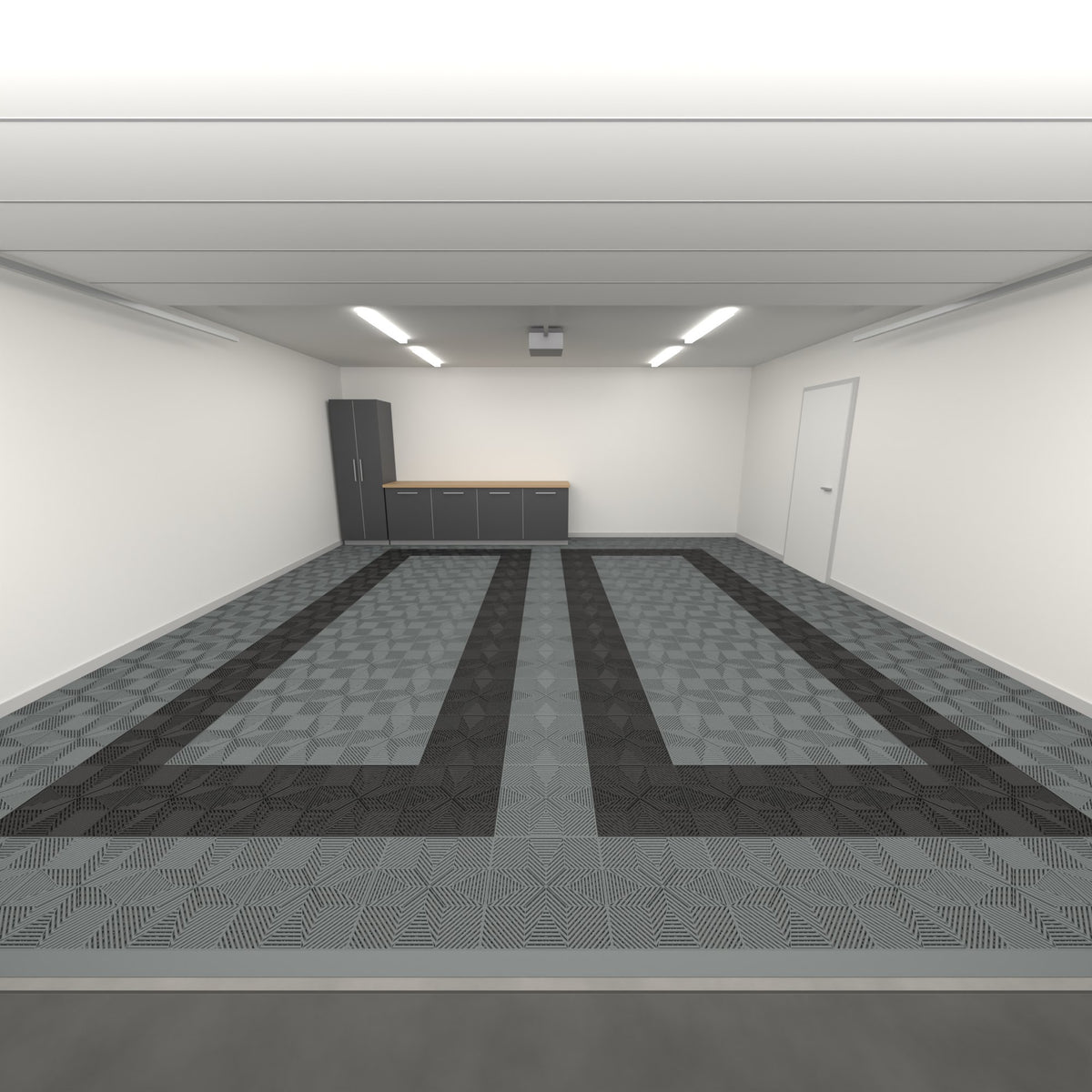

• ULTRAFLUX parking bay layout in Space Grey and Jet Black
    Package
1 1

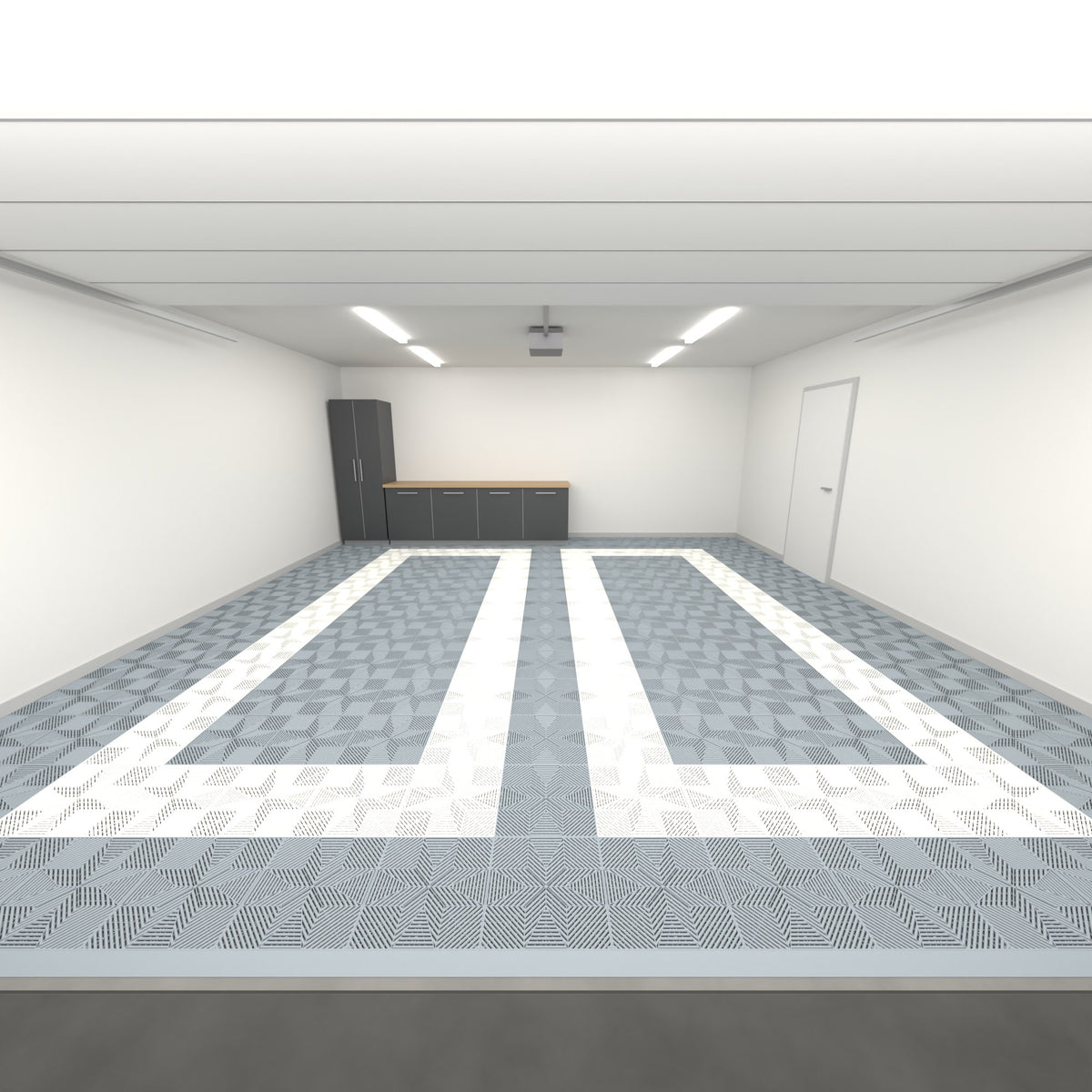

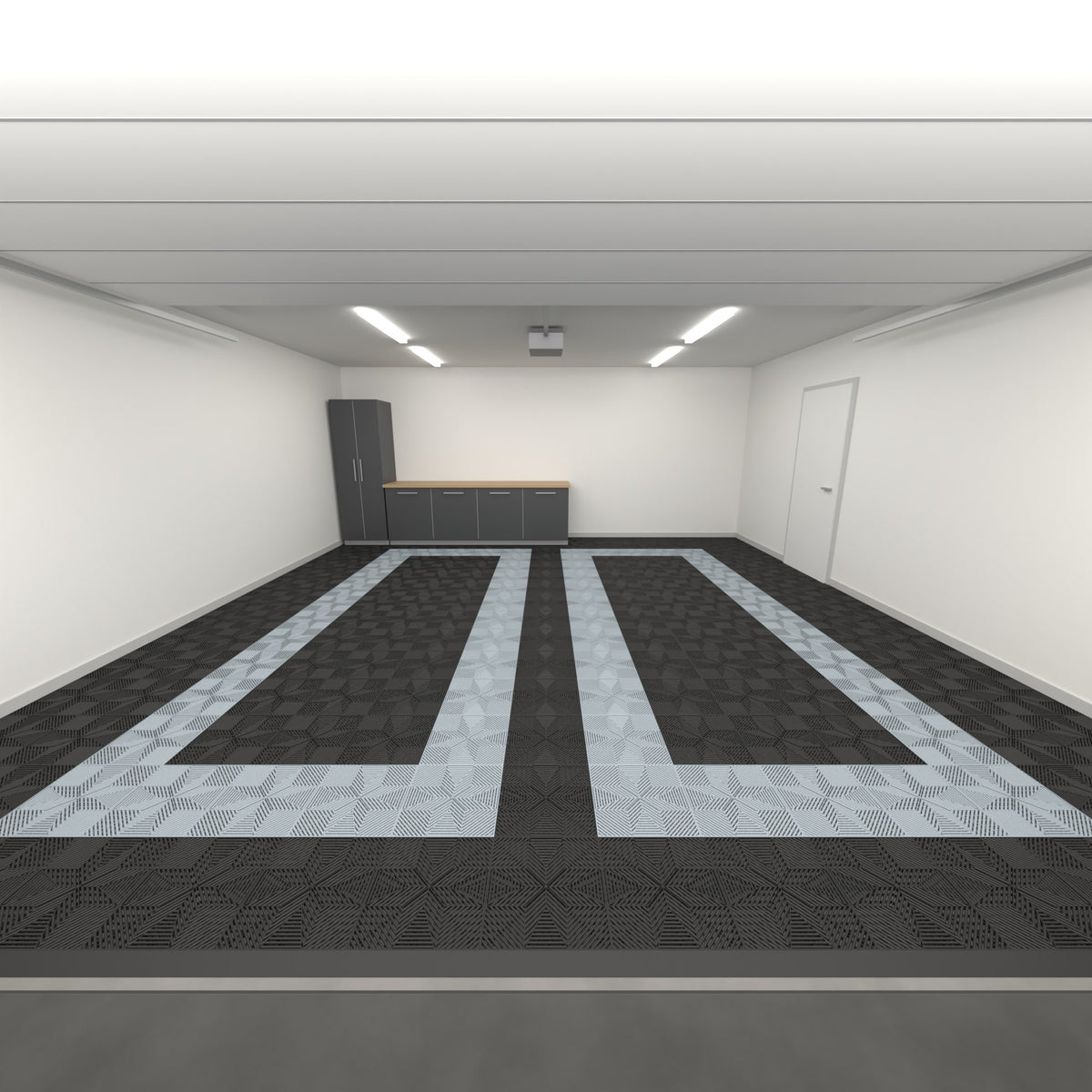

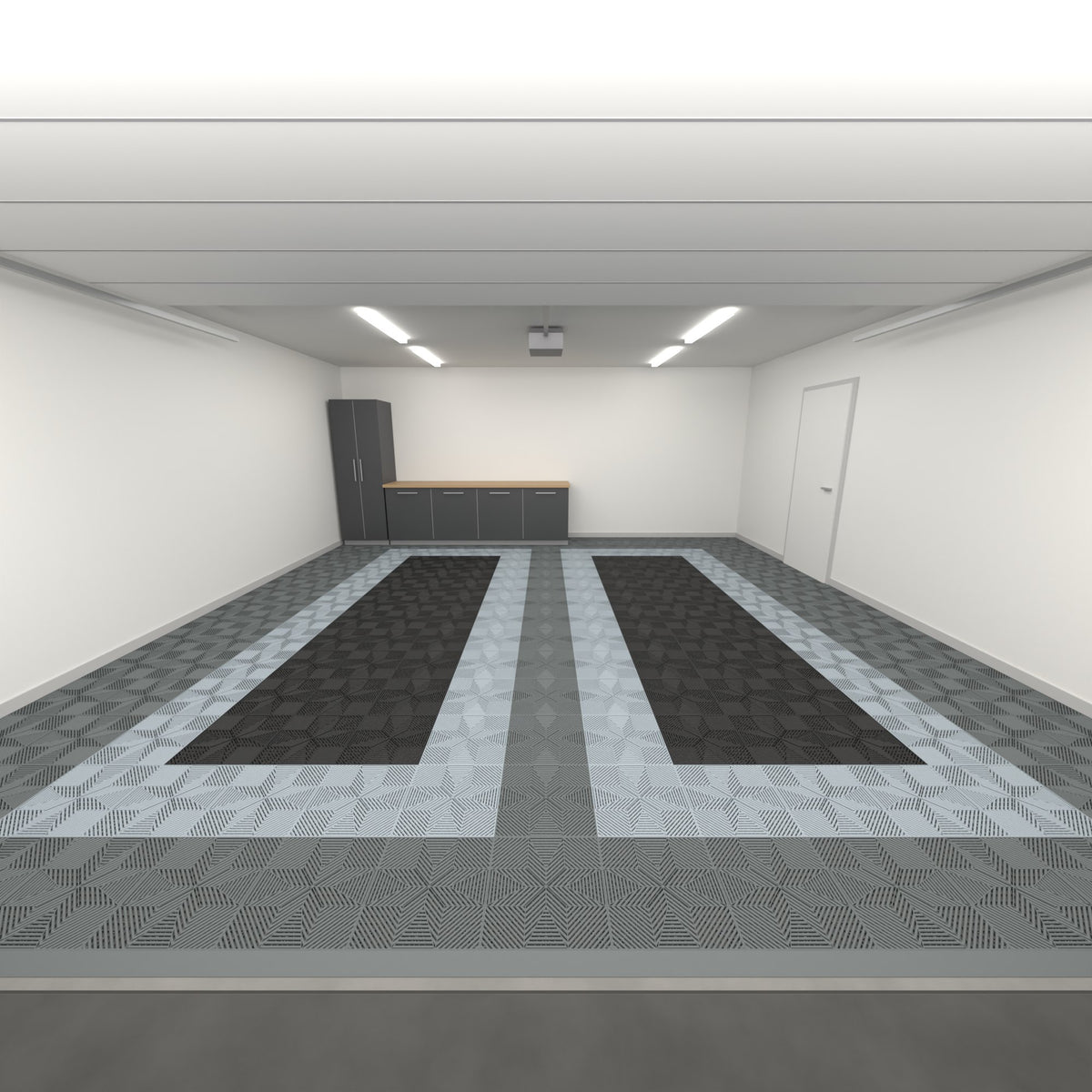

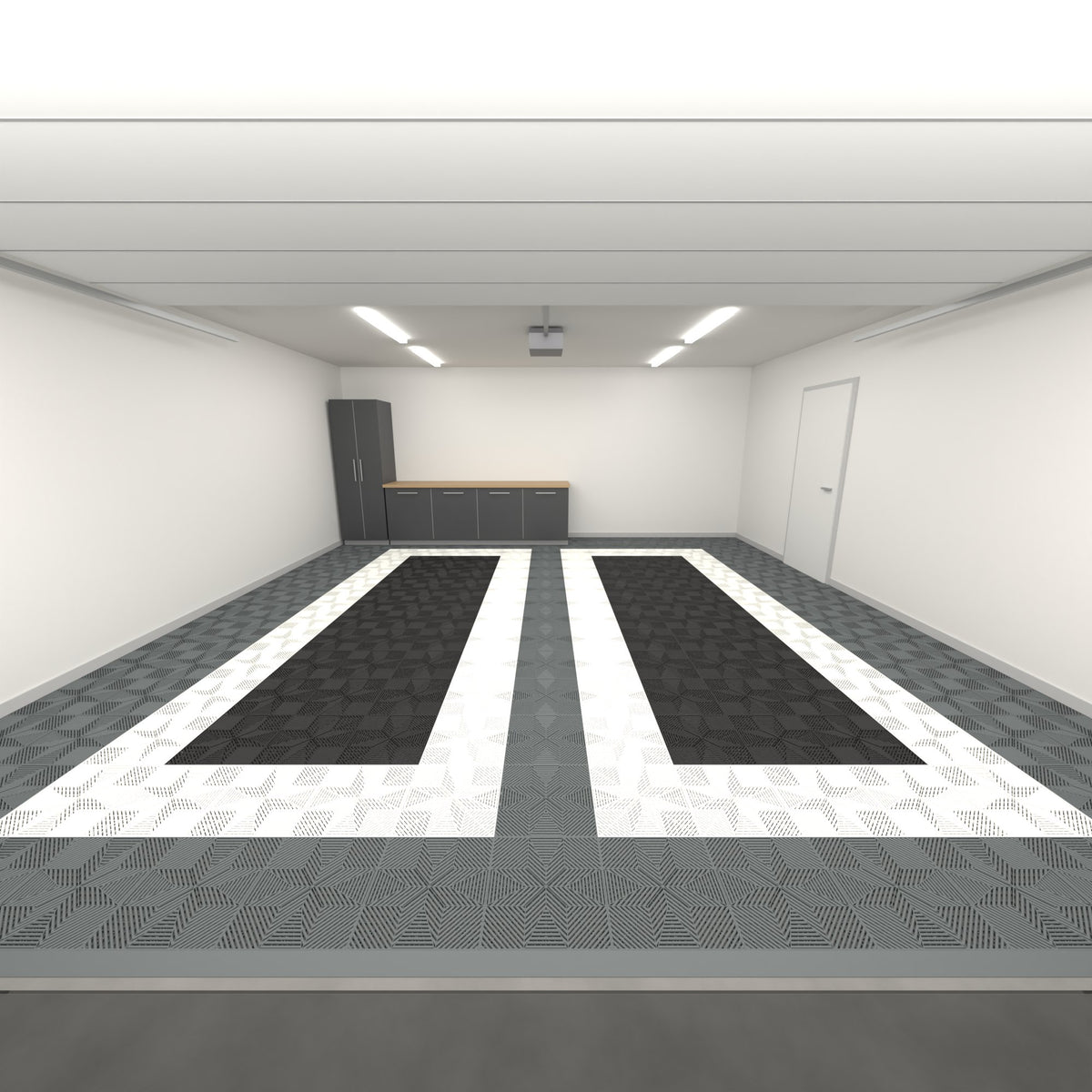

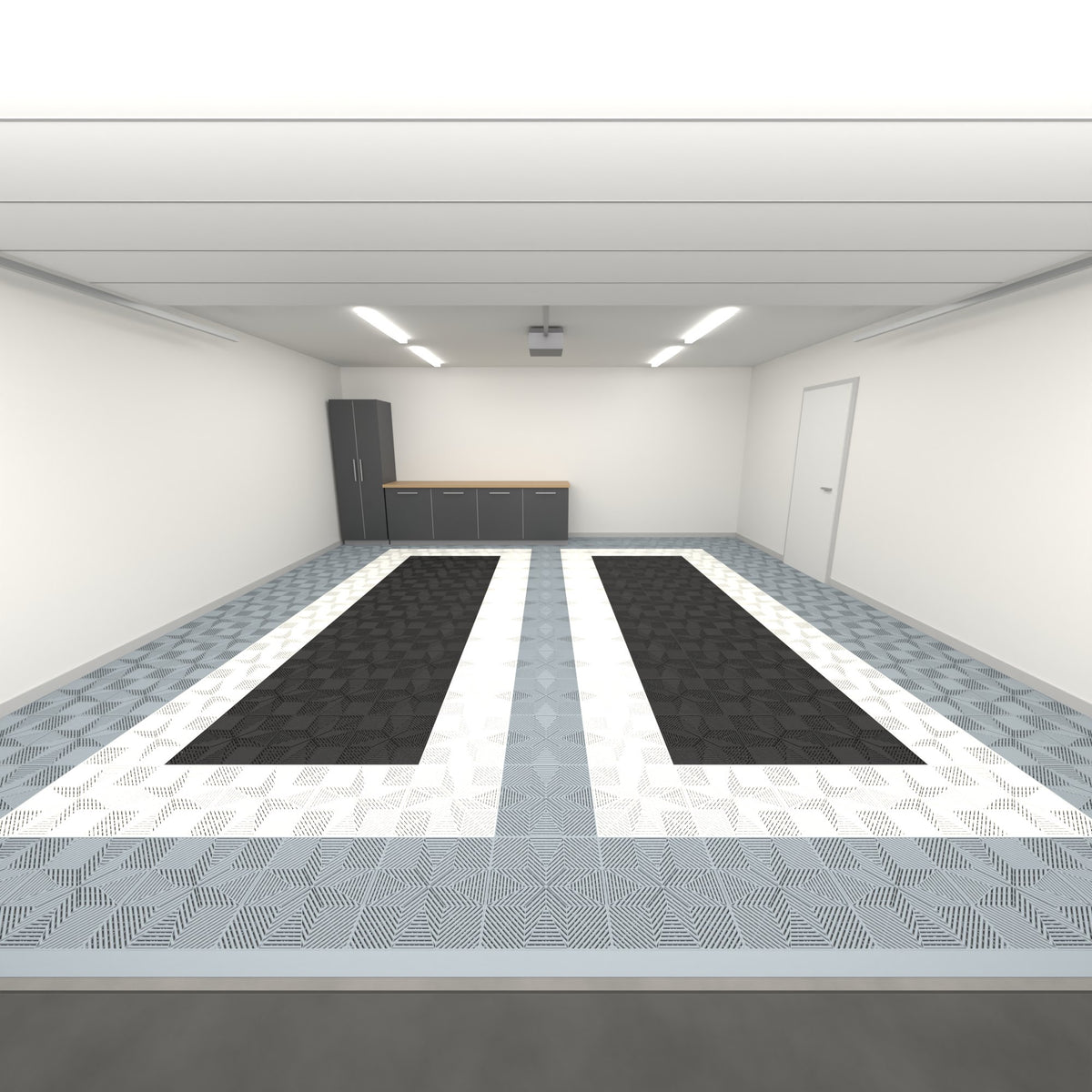

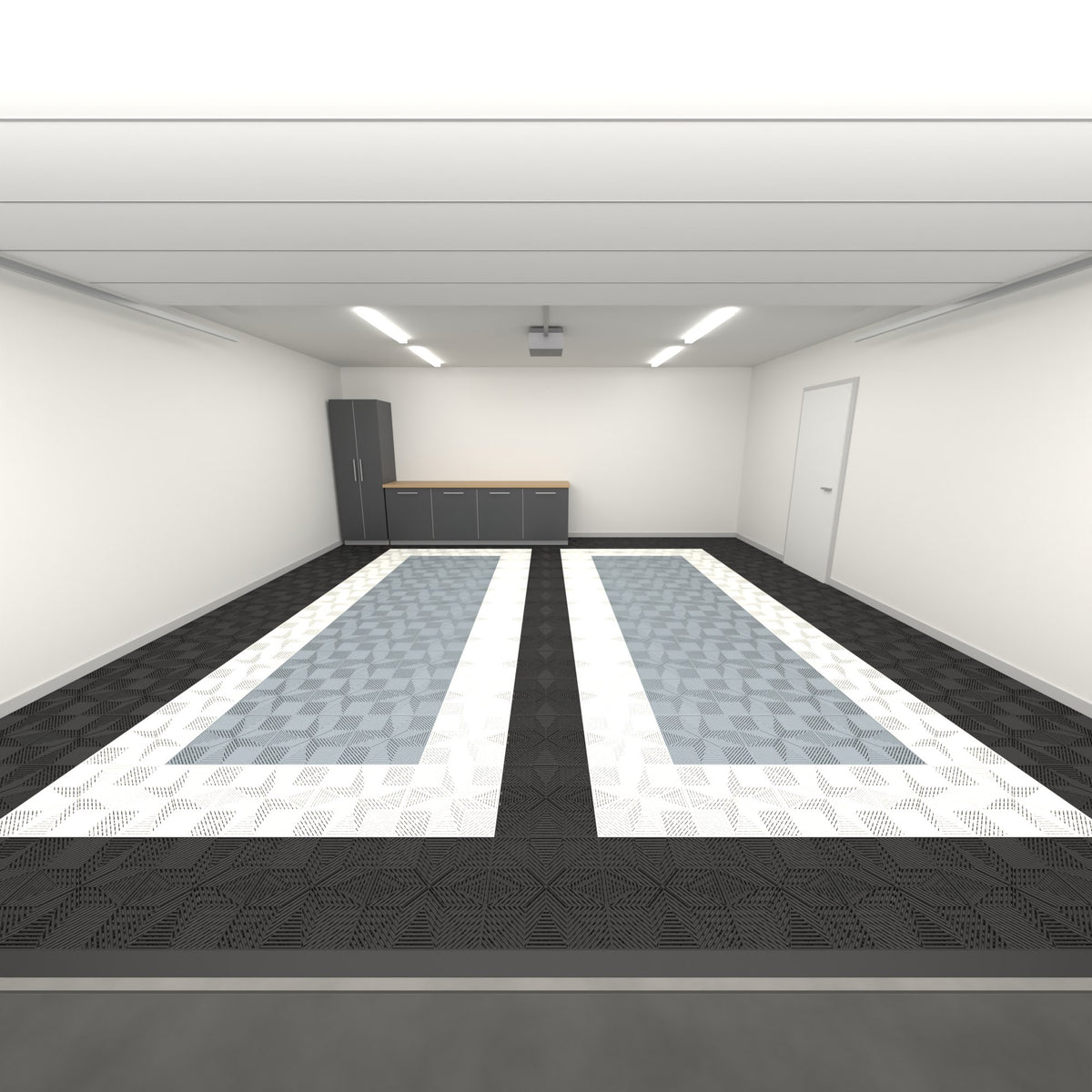

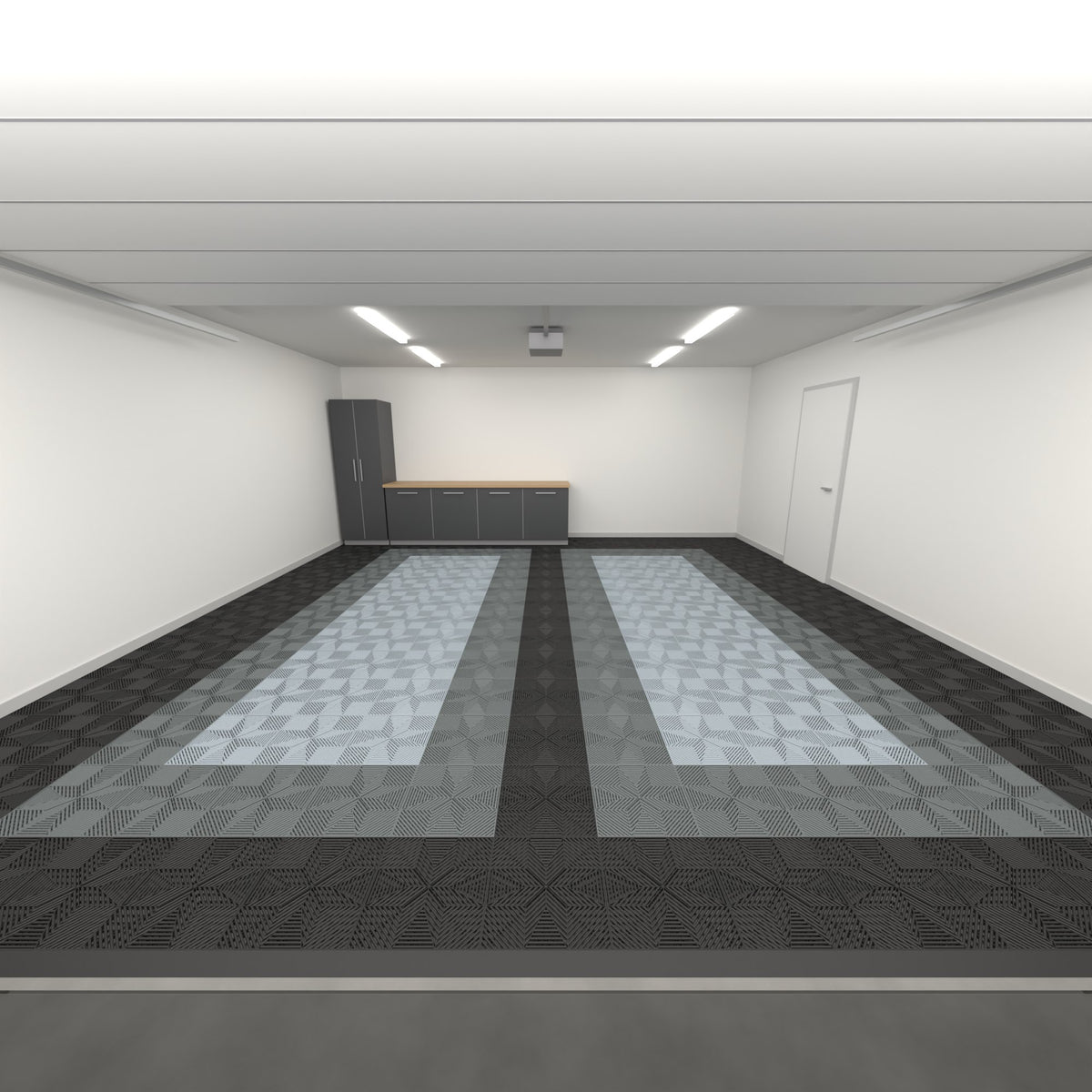

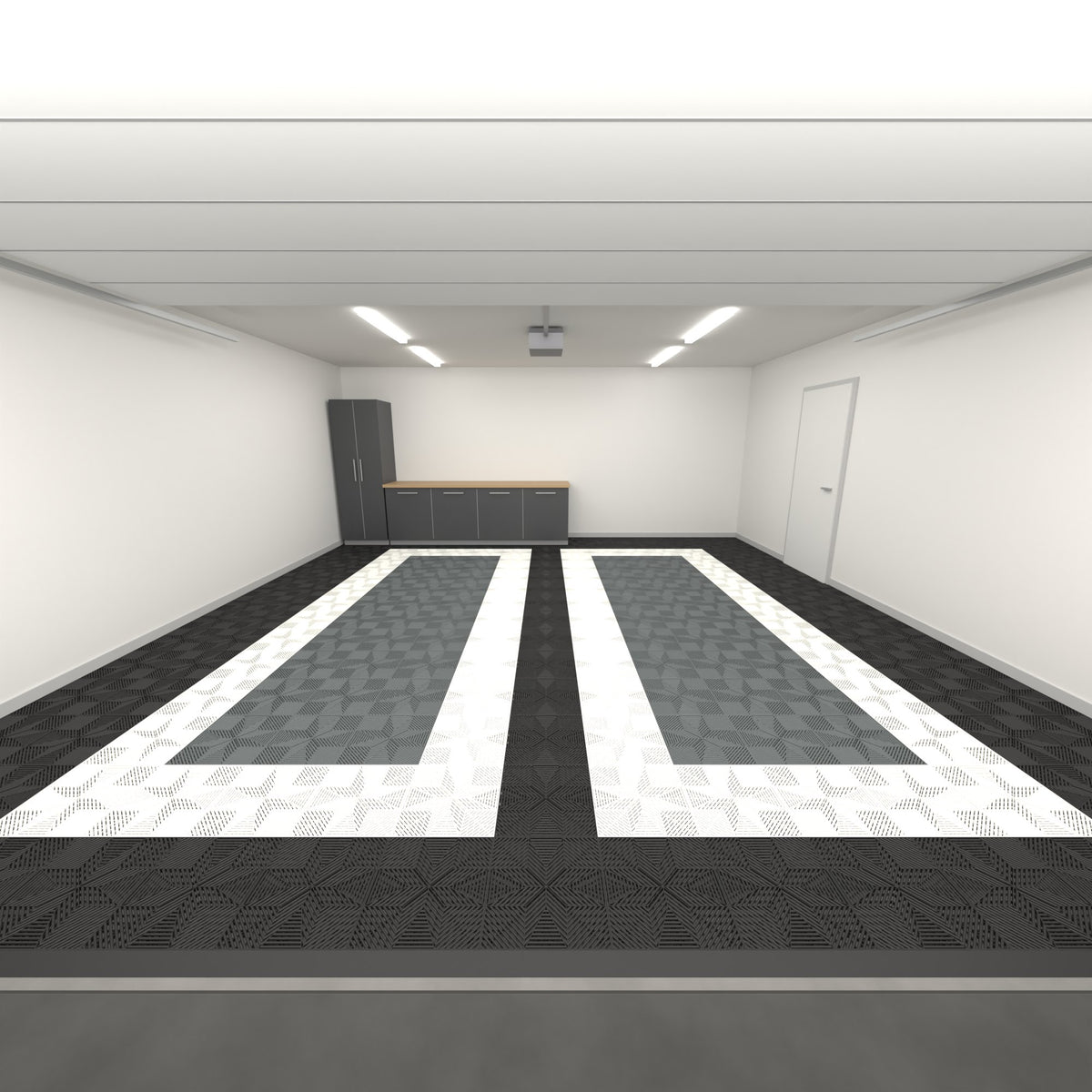

ULTRAFLUX Double Garage Floor Kit, Parking Bay Plain Infill

ULTRAFLUX Double Garage Floor Kit, Parking Bay Plain Infill

In stock - ready to ship
$1,999
$2,325 $1,999
Save $326
Taxes included. Shipping calculated at checkout.

ULTRAFLUX™ Parking Bay Plain Infill Floor Kit. Durable modular garage floor, DIY snap-lock install. Details

Base
Outline
Infill
Recommended By →
Aussie Garage Dadz Garage BadQ Garage Outlaw Garage Heath's Garage It's In The Detail
View full details

The ULTRAFLUX™ Parking Bay Plain Infill Floor Kit turns a bare 6 × 6 m garage into a finished space. A durable, versatile modular floor with 240 tiles (225 floor plus 15 spares) and 16 ULTRAEDGE ramps included — no adhesive, no trades, no curing time.

  • Complete kit — everything for a 6×6 m double garage: 240 ULTRAFLUX™ tiles (225 floor + 15 spares) and 16 ramps.
  • Parking Bay Plain Infill — colour-defined parking zones with a solid ULTRAFLUX™ plain infill surrounding each bay.
  • Geometric star-pattern surface — the angular ULTRAFLUX™ design catches light from multiple directions while providing ventilation.
  • Low maintenance — top and side channels on each ULTRAFLUX™ tile drain water and debris. Vacuum, sweep, or pressure wash to keep it clean.
  • 20t/m² load rating — the ULTRAFLUX™ surface handles sedans, four-wheel drives, and workshop gear effortlessly.
  • Full DIY install — click ULTRAFLUX™ tiles together row by row. No adhesive, no curing, no specialist trades. Ready in an afternoon.
  • Sun, spills, and temperature — ULTRAFLUX™ tiles are UV-stabilised and resist oil, fuel, brake fluid, and workshop chemicals. Rated −40°C to +120°C.
  • Yours to keep forever — disconnect your ULTRAFLUX™ Parking Bay Plain Infill floor and reinstall it at a new property. Individual tiles are replaceable without lifting the rest.

Tested & Recommended by Aussies

Aussie Garage – YouTube cover

Phil from Aussie Garage Lays ULTRAGRID

Phil walks you through his ULTRAGRID™ DIY install in black, blue, and gray—and shows how easy it really is.

Read article
Dadz Garage featuring Sleek Space interlocking floor tiles

Dadz Garage

Watch Dadz Garage transform a cluttered space into a sleek haven with Sleek Space ULTRAGRID™ flooring.

Read article
It's In The Detail garage with Sleek Space interlocking tiles

It's In The Detail

See how It’s In The Detail transformed a dull, lifeless garage into a sleek and vibrant space.

Read article
Aussie Garage transformation featuring Sleek Space interlocking floor tiles

Aussie Garage

Aussie Garage recently transformed their space with Sleek Space ULTRATUFF tiles. See how they did it.

Read article
View all articles

Technical Specifications

Design Layout Parking Bay Plain Infill
Tile Range ULTRAFLUX
Total Tiles 240 (225 floor + 15 spares)
Front Ramps 16 ULTRAEDGE ramps
Floor Coverage 36 m² (standard 6 × 6 m double garage)
Surface Type Geometric star pattern (ventilated)
Tile Size 400 × 400 × 18 mm
Load Rating 20 tonnes / m²
Material 100% Virgin Polypropylene
Installation Snap-lock click system, no adhesive
Estimated Install Time 4–6 hours
Compatibility All ULTRA Series tiles interlock
Temperature Range -40°C to +120°C
UV Stability Yes — colour-stable outdoors
Chemical Resistance Oil, fuel, brake fluid, solvents
No. The colour contrast between bay and infill is clearly visible across the angular surface. The star pattern adds visual texture within each zone but does not obscure the boundary between colours.
Yes. The modular tile system lets you position colour boundaries wherever suits your garage. Resize bays, shift positions, or change the arrangement any time.
No. The snap-lock assembly and automatic star-pattern alignment are the same. The only difference is planning where each colour goes before you start clicking tiles together.
Yes. The angular edges of each star element create natural traction points for tyres and foot traffic. Grip is reliable across the entire surface.

Installation Guide

What you'll need

  • Tape measure
  • Rubber mallet
  • Jigsaw (for edge cuts)
  • Marker or pencil
  • Broom

Time estimate

  • Single garage (20-25 sqm): 4-6 hours
  • Double garage (40-50 sqm): 6-10 hours
  • No curing time — drive on immediately

Installation steps

  1. 1

    Start from the entrance

    Begin laying tiles at the garage door corner. Leave a 5–10mm expansion gap at all walls.

  2. 2

    Lay the first row

    Complete your first row across the garage, clicking tiles together. The interlocking pegs and loops do the work.

  3. 3

    Fit entrance ramps

    Attach ramp trims to the first row and slide the row snug against the garage door.

  4. 4

    Centre your design (optional)

    If your design has a centred pattern, adjust the first row to leave equal gaps on both sides.

  5. 5

    Lay remaining tiles

    Continue laying rows towards the back and side walls, clicking each tile into the previous one.

  6. 6

    Trim edges and finish

    Cut edge tiles with a jigsaw, click them in, and your floor is ready to use immediately — no curing time.
