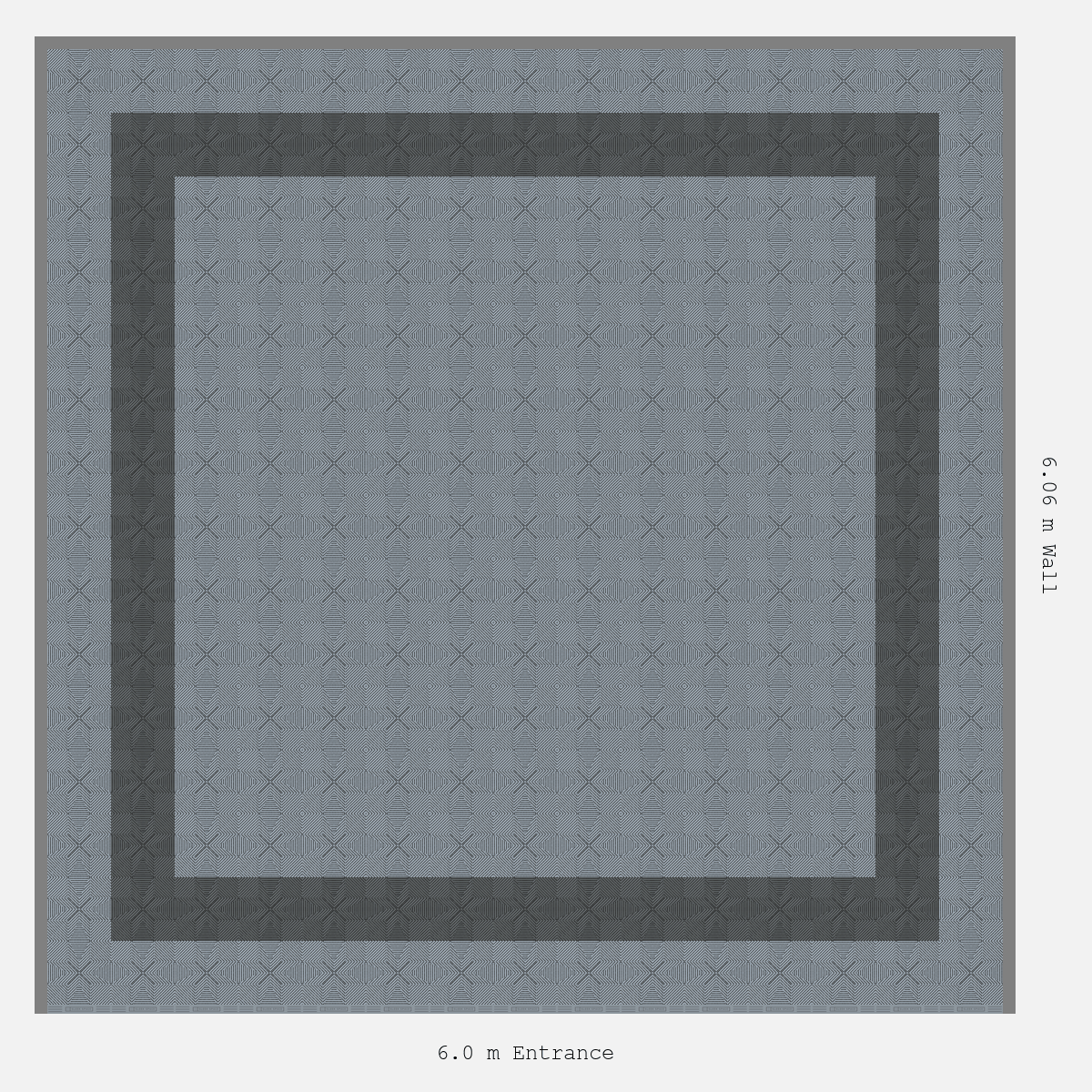

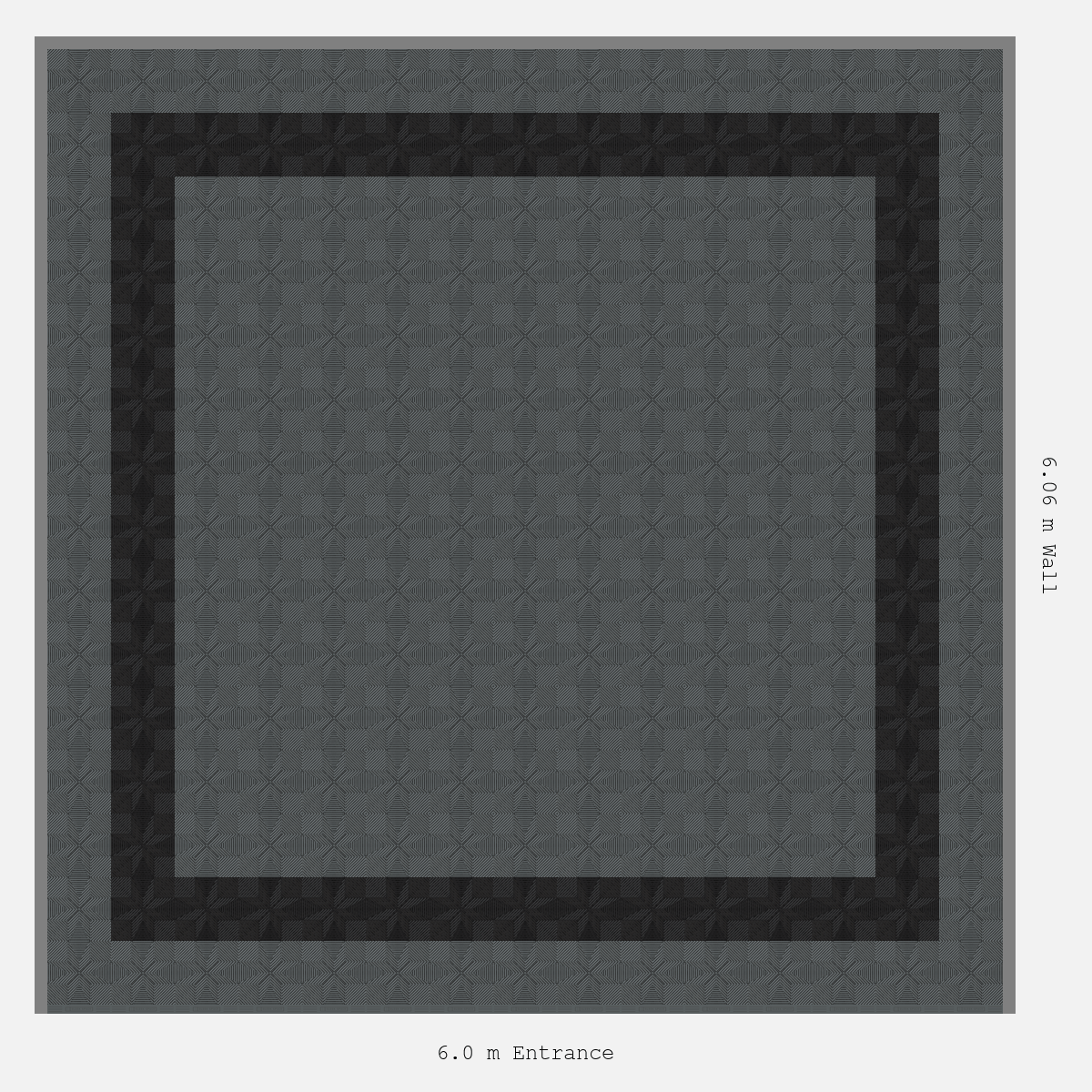

• ULTRAFLUX double border layout in Space Grey and Jet Black
    Package
1 1

ULTRAFLUX Double Garage Floor Kit, Border Plain Infill

ULTRAFLUX Double Garage Floor Kit, Border Plain Infill

In stock - ready to ship
$1,999
$2,325 $1,999
Save $326
Taxes included. Shipping calculated at checkout.

ULTRAFLUX™ Border Plain Infill Kit. Star-pattern ventilated modular tiles, 20t/m², no-adhesive install. Details

Outer/Infill
Inner
Recommended By →
Aussie Garage Dadz Garage BadQ Garage Outlaw Garage Heath's Garage It's In The Detail
View full details

Lay a durable, versatile modular floor across your 6 × 6 m double garage with the ULTRAFLUX™ Border Plain Infill Kit. Included: 240 tiles (225 floor tiles plus 15 spares) and 16 ULTRAEDGE ramps for a clean transition at the garage opening.

  • Complete kit — 240 ULTRAFLUX™ tiles (225 floor tiles plus 15 spares) and 16 ULTRAEDGE ramps for a full double garage.
  • Border Plain Infill — a defined ULTRAFLUX™ border row outlines the garage with a solid plain infill inside.
  • Ventilated star design — the geometric ULTRAFLUX™ pattern creates depth and visual energy while allowing debris to drain through.
  • Low maintenance — the ULTRAFLUX™ top and side channels shed water and debris on contact. Vacuum or pressure wash for a thorough clean.
  • 20t/m² load rating — ULTRAFLUX™ tiles distribute weight evenly, supporting vehicles and workshop equipment of any size.
  • Full DIY install — each ULTRAFLUX™ tile clicks into place by hand. A jigsaw trims the perimeter. Your Border Plain Infill floor is ready in hours.
  • 100% virgin polypropylene — UV-stabilised ULTRAFLUX™ colour that resists oil, fuel, solvents, and temperature extremes across −40°C to +120°C.
  • Not permanent — that's the point — move your ULTRAFLUX™ floor to a new garage anytime. Replace a single tile in minutes if one is damaged.

Tested & Recommended by Aussies

Aussie Garage – YouTube cover

Phil from Aussie Garage Lays ULTRAGRID

Phil walks you through his ULTRAGRID™ DIY install in black, blue, and gray—and shows how easy it really is.

Read article
Dadz Garage featuring Sleek Space interlocking floor tiles

Dadz Garage

Watch Dadz Garage transform a cluttered space into a sleek haven with Sleek Space ULTRAGRID™ flooring.

Read article
It's In The Detail garage with Sleek Space interlocking tiles

It's In The Detail

See how It’s In The Detail transformed a dull, lifeless garage into a sleek and vibrant space.

Read article
Aussie Garage transformation featuring Sleek Space interlocking floor tiles

Aussie Garage

Aussie Garage recently transformed their space with Sleek Space ULTRATUFF tiles. See how they did it.

Read article
View all articles

Technical Specifications

Design Layout Border Plain Infill
Tile Range ULTRAFLUX
Total Tiles 240 (225 floor + 15 spares)
Front Ramps 16 ULTRAEDGE ramps
Floor Coverage 36 m² (standard 6 × 6 m double garage)
Surface Type Geometric star pattern (ventilated)
Tile Size 400 × 400 × 18 mm
Load Rating 20 tonnes / m²
Material 100% Virgin Polypropylene
Installation Snap-lock click system, no adhesive
Estimated Install Time 4–6 hours
Compatibility All ULTRA Series tiles interlock
Temperature Range -40°C to +120°C
UV Stability Yes — colour-stable outdoors
Chemical Resistance Oil, fuel, brake fluid, solvents
Yes. The geometric pattern is continuous from tile to tile regardless of colour. The border and infill are distinguished by colour contrast alone — the star design is uninterrupted.

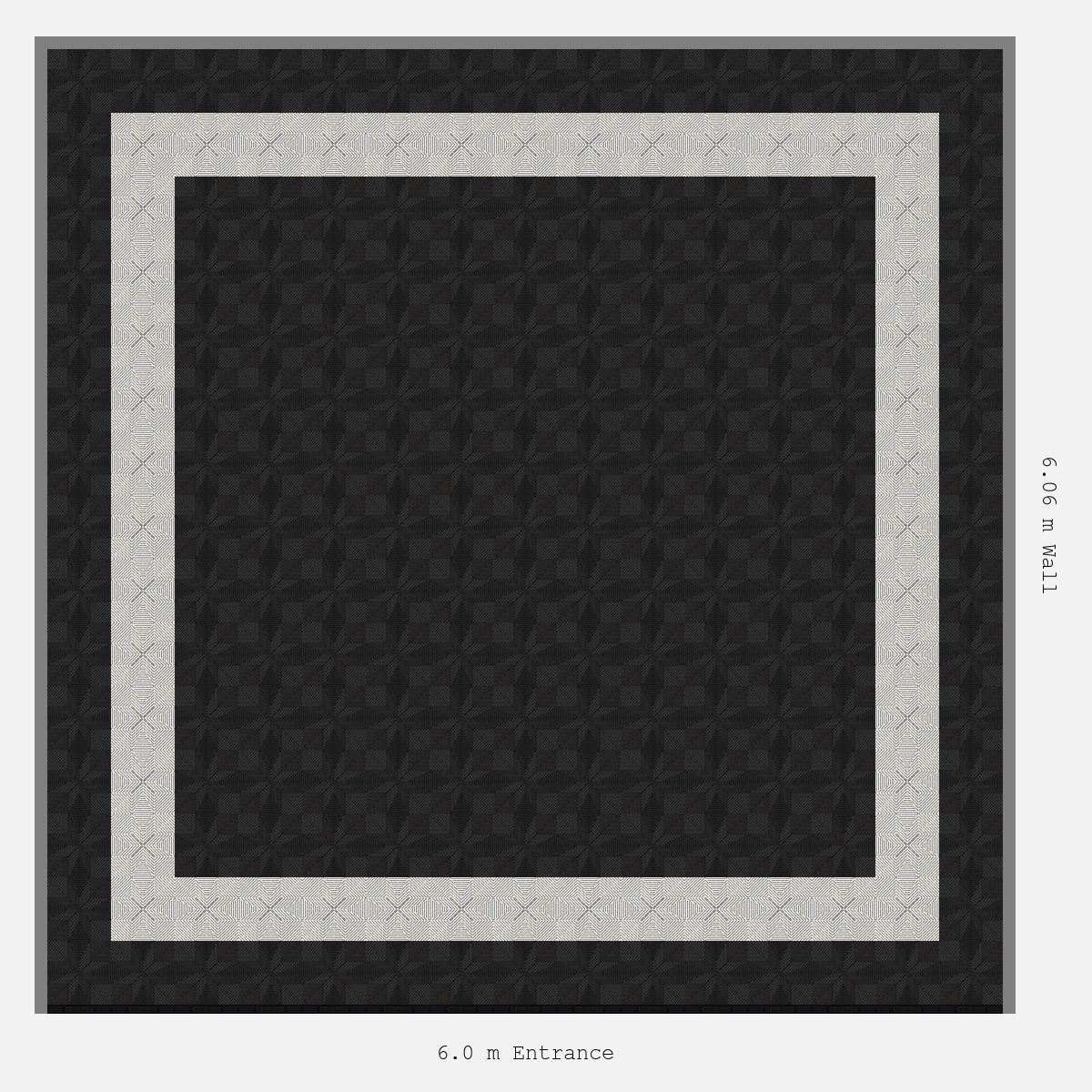

High-contrast pairs create the most defined frame — Jet Black border with Alpine White infill, for example. Tonal combinations create a subtler, more blended effect.
Yes. Add extra rows of border-colour tiles to increase the frame width. The star pattern continues seamlessly across the wider border.
Not at all. Both border and infill tiles provide the same star-pattern ventilation and drainage channels.

Installation Guide

What you'll need

  • Tape measure
  • Rubber mallet
  • Jigsaw (for edge cuts)
  • Marker or pencil
  • Broom

Time estimate

  • Single garage (20-25 sqm): 4-6 hours
  • Double garage (40-50 sqm): 6-10 hours
  • No curing time — drive on immediately

Installation steps

  1. 1

    Start from the entrance

    Begin laying tiles at the garage door corner. Leave a 5–10mm expansion gap at all walls.

  2. 2

    Lay the first row

    Complete your first row across the garage, clicking tiles together. The interlocking pegs and loops do the work.

  3. 3

    Fit entrance ramps

    Attach ramp trims to the first row and slide the row snug against the garage door.

  4. 4

    Centre your design (optional)

    If your design has a centred pattern, adjust the first row to leave equal gaps on both sides.

  5. 5

    Lay remaining tiles

    Continue laying rows towards the back and side walls, clicking each tile into the previous one.

  6. 6

    Trim edges and finish

    Cut edge tiles with a jigsaw, click them in, and your floor is ready to use immediately — no curing time.
