ULTRABEAM Hex Classic 7-Grid B, 2.5 x 2.4 m, lit on the ceiling of a 3 x 6 m single garage

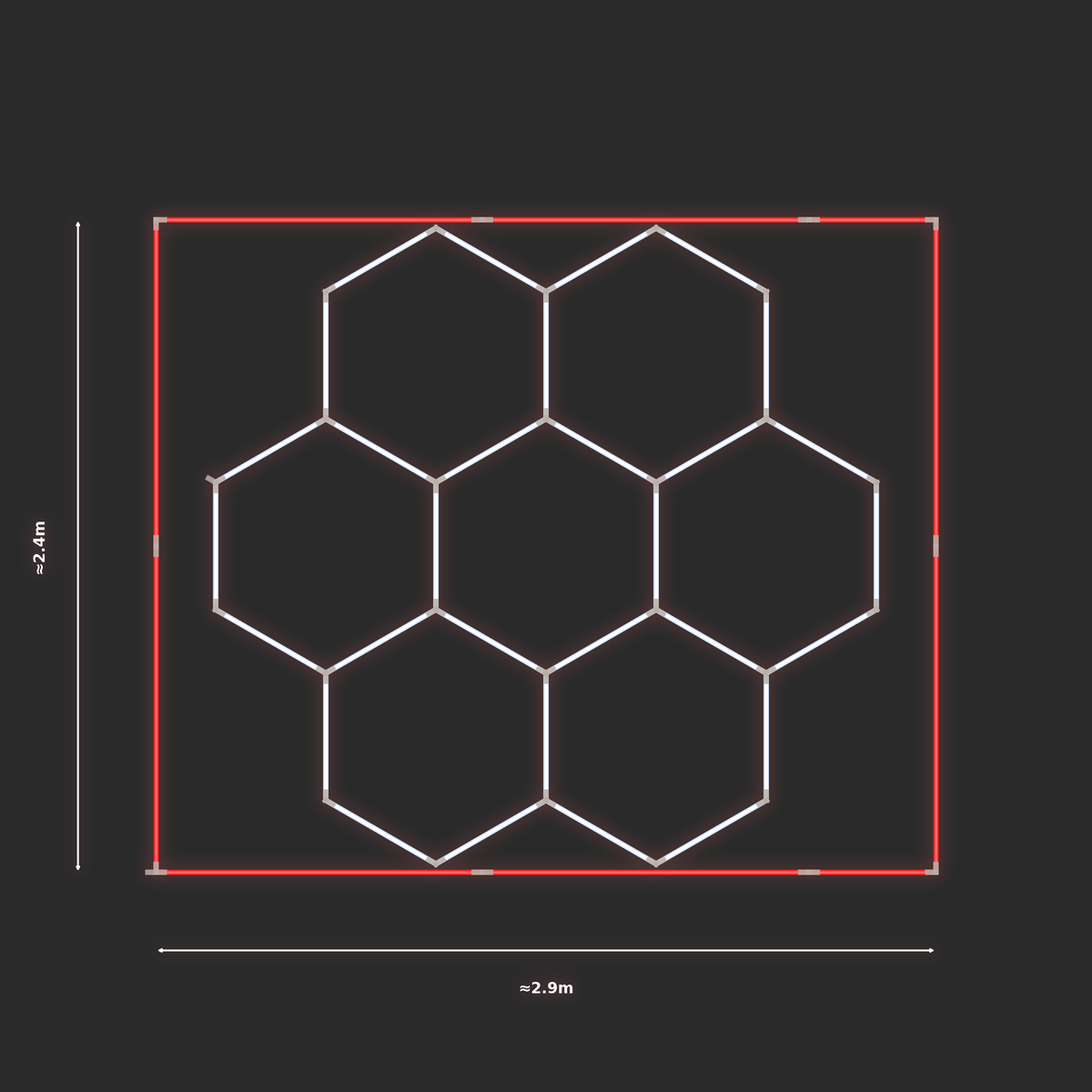

ULTRABEAM LED Light Kit Hex Classic 7-Grid B, Red border: its size, measured
Hex Classic 7-Grid B
2.9 x 2.4 m

ULTRABEAM™ LED Light Kit Hex Classic 7-Grid B

2.9 x 2.4 m, over one car bay

$799 $999 Save $200

Taxes included. Shipping calculated at checkout.

Quantity
1
In stock in Melbourne, ready to shipCertified for Australia 5-year warranty

About the Hex Classic 7-Grid B light kit

2.9 x 2.4 mSize
40Tubes
19,800Lumens
272 WWatts
1Power point
DaylightColour, 6500K

Hex Classic, 7 hexagons. Also as 3.3 x 1.7 m. See every size

Door motor in the middle? See what fits
Door motor in the middle: Hex Classic 5-Grid B, 2.4 x 1.7 m

Sits behind the door motor.

Hex Classic 5-Grid B, 2.4 x 1.7 m

$399 $499

See this kit
The whole ceiling lit in hexagons, the door motor running through it

Or fill the whole ceiling around your motor.

Open the light designer
$799Hex Classic 7-Grid B, 2.9 x 2.4 m

Before you order

This kit is 2.5 x 2.4 m. It lights one car and the floor around it.

Even light with no hard shadows, because it comes from the whole grid. 19,800 lumens of 6500K daylight from 30 tubes.

Lay it out on the floor, click the tubes into the connectors and test it. Then lift it and fix it to the ceiling. An afternoon with a helper.

Into a standard power point, with one 1.5 m cord for the whole kit. A border has its own cord, so it needs a second socket. To put it on a wall switch, use a licensed electrician.

30 tubes, the connectors, hanging cables, fixings and the power cord. The kit ships complete.

What arrives

Everything to hang it, in one box.

40 tubes, the connectors, hanging cables, fixings and 2 power cords, 1.5 m each. A cord for the light and one for the border.

  • ULTRABEAM™ TubesTubes
  • ULTRABEAM™ ConnectorsConnectors
  • ULTRABEAM™ Power cordPower cord
  • ULTRABEAM™ Hanging cablesHanging cables

How it goes up

Up in an afternoon.

A drill, a screwdriver, a ladder and a power point to plug it into.

  1. 1Lay it outOn the garage floor, the way it will hang.
  2. 2Click it togetherEach tube pushes into its connector.
  3. 3Test itPlug it in on the floor and check every tube lights.
  4. 4Hang itLift it with a helper and fix it flush or on its cables.

Seven hexagons across a near-square 2.4 by 2.5 metre footprint.

20,000 lumens of true daylight white over 6 square metres of ceiling. 30 individual tubes in a balanced wide layout. The kit for a workshop bench area, a small car bay, a retail counter, or a studio working zone where the room is roughly as wide as it is deep.

Why it works

  • Balanced coverage. 30 tubes spread evenly across the array. Square enough to fit centred over a workspace, wide enough to reach the side walls.
  • True colours. CRI 85+ daylight white shows your paint, your finish, your work as it really looks.
  • Plug and play. Standard AU 3-pin earthed outlet, no hardwiring. To put it on a wall switch, use a licensed electrician.
  • An hour or two to install. Lay it flat, click the tubes into the connectors, lift to the ceiling, mount, plug in. Digital install instructions sent on order.
  • Spare parts on hand. Replacement tubes, connectors and the power cord are stocked individually. If a part ever needs replacing in years to come, order the exact match.
  • Optional border. Frame your array with a perimeter of Cool Daylight, Blue or Red tubes. Adds visual edge and extra brightness.
  • All configurations designed in Australia. Layout, kit composition and customer support handled in-country.
  • Built to last. Aircraft-grade aluminium frame, sealed PC lens. 50,000 hour LEDs, 5-year warranty.
  • Safe and certified. RCM marked. EMC tested against AS/NZS safety standards.

In the box (baseline, no border)

  • 30 × LED tubes (443mm, 6500K daylight, 6W each)
  • All required hex connectors and suspension cables
  • Mounting hardware
  • 1.5 metre AU 3-pin earthed power cord with adapter

Per-variant totals in the Specifications tab below.

Specifications

Dimensions2.43m × 2.9m
Coverage area7.07 m²
LED tube count40
Total power272 W
Total lumens19,800 lm
Hex cells7

Electrical

Voltage100–240V AC
Colour temperature6500K daylight
CRI85+ (true colour rendering)
EfficacyAbout 110 lumens a watt
Lifetime50,000 hours
EnergyAbout 60% less power than equivalent fluorescent strips
DriverPer-tube driver

Build

Kit layouts designedAustralia
FrameAluminium
LensSealed PC, impact-resistant
ConnectorsProprietary angled, sealed mating
PlugAS/NZS 3112 3-pin earthed, 1.5m flex

Compliance

RCM markYes
EMC testedAS/NZS CISPR 15, 61547, 61000.3.2, 61000.3.3
Warranty5 years

Installation

TimeAn hour or two with a helper
ToolsDrill, screwdriver, ladder
ElectricianNot to plug in. A wall switch needs a licensed electrician.
MethodLay flat, click tubes into connectors, lift to ceiling, mount, plug in
MountingFlush mount or 1m suspension cables (included)
