The floor sets the foundation for your garage's entire aesthetic. With interlocking polypropylene tiles, you're not limited to a single colour stretched wall to wall. The right pattern can define zones, add visual interest, or create a showroom-quality finish that elevates the entire space.
Unlike epoxy or paint, modular tiles let you experiment with layouts before committing. You can preview patterns, swap colours, and even change your design years later without demolition. Here are eight proven layouts that transform Australian garages from storage spaces into purposeful environments.
1. Single Colour — The Minimalist Foundation
The cleanest approach is often the most effective. A single-colour installation delivers a seamless, professional appearance that works in any garage style.
Best tile ranges: ULTRACORE and ULTRATONE excel in single-colour applications. ULTRACORE's hidden-join system creates an almost monolithic surface appearance, while ULTRATONE's smooth finish offers a refined look at a fraction of the cost of poured resin.
Practical considerations: This is the fastest pattern to install, with no colour planning required. Dark greys and blacks hide tyre marks and oil stains effectively. Light greys and whites reflect more light, making the space feel larger. A standard double garage takes 4-6 hours to complete.
The single-colour approach also provides flexibility for future changes. Add a border or racing stripe years later by simply swapping tiles along the perimeter or centre line.

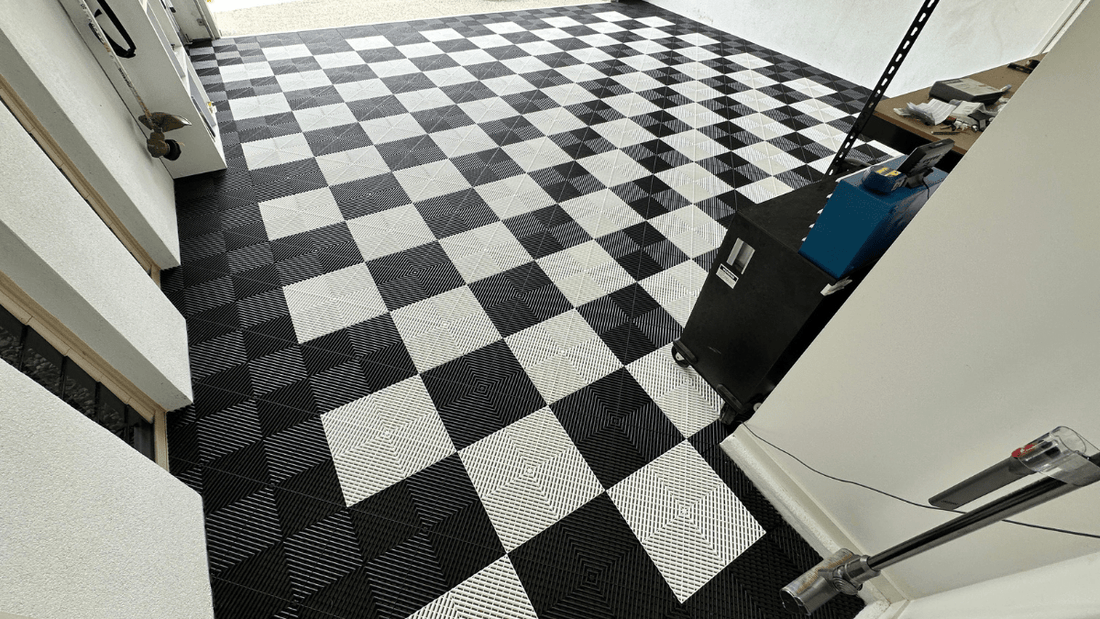

2. Checkerboard — The Classic Two-Colour Grid
Alternating tiles in two contrasting colours creates the timeless checkerboard pattern. It's the layout most associated with professional race team garages and automotive showrooms.
Best tile ranges: Any of the five ranges work well. ULTRAGRID's open-rib design pairs well with itself in contrasting colours. For a more refined look, combine ULTRATUFF in black and grey for subtle contrast, or black and white for high-impact drama.
Practical considerations: Plan your layout carefully. Start from the most visible corner and work outward to ensure symmetry. Checkerboard requires exactly half your order in each colour. The pattern naturally draws attention to any installation errors, so take time with alignment during the first few rows.
3. Border/Frame — Perimeter Accent Definition
A border pattern uses an accent colour around the garage's perimeter, creating a frame effect that defines the edges of the space. The centre area uses a primary colour, typically neutral.
Best tile ranges: The textural contrast between a smooth centre (ULTRACORE or ULTRATONE) and open-rib border (ULTRAGRID or ULTRAFLUX) adds visual interest beyond colour alone.
Practical considerations: Borders typically run one to three tiles deep. A single-tile border (400mm) provides subtle definition. A double or triple border (800-1200mm) makes a stronger statement. Start with the border frame, then fill the centre.
4. Racing Stripe — Centre Line Drama
A racing stripe runs down the centre of the garage or along individual parking bays. It's the pattern of choice for car enthusiasts who want automotive-inspired design without overwhelming the space.
Best tile ranges: ULTRATUFF works particularly well for racing stripes due to its diamond-tread pattern, which reinforces the automotive theme. Pair it with ULTRACORE for maximum contrast between textured stripe and smooth field.
Practical considerations: Stripes can run one to three tiles wide (400-1200mm). For double garages with two parking bays, dual racing stripes define each vehicle's position. This also works for workshop setups where the stripe marks a central walkway.
5. Diagonal — 45-Degree Visual Expansion
Rotating the tile layout 45 degrees creates a diagonal pattern that makes the garage appear larger. The angled lines draw the eye across the longest sight lines in the room.
Best tile ranges: Any range works, though two-colour diagonal checkerboards show the most dramatic effect. ULTRAFLUX's star pattern creates particularly interesting effects when laid at 45 degrees.
Practical considerations: Diagonal layouts require more cutting along walls. Calculate approximately 10-15 per cent extra material. Start from the centre of the room and work outward to maintain symmetry. The extra effort pays off in visual impact, particularly in narrow garages where the diagonal lines counteract the tunnel effect.
6. Zoned — Functional Area Definition
Zoned layouts use different colours to define functional areas within the garage. Common zones include parking bays, workshop areas, walkways, and storage.
Best tile ranges: This is where you can use all five ranges strategically. ULTRAGRID or ULTRAFLUX in workshop zones where drainage matters.
ULTRATONE or ULTRACORE in parking zones for smooth wheel travel. ULTRATUFF along walkways for grip and durability.Practical considerations: Sketch your zones before ordering. Consider daily use patterns — do you need a clean zone near the entry? A wet zone near the sink? Zoned patterns work best in larger garages where distinct activity areas emerge naturally.
7. Gradient/Ombre — Transitional Colour Flow
A gradient layout transitions gradually from dark to light across the floor. It's the most contemporary pattern option, suited to modern architectural garages.
Best tile ranges: Requires at least three colour values of the same range. ULTRACORE and ULTRATONE work particularly well due to their smooth surfaces, which showcase colour transitions without textural distraction.
Practical considerations: Transitioning from dark at the garage door to light at the back creates depth and makes the space feel longer. A typical gradient uses four to five colour values arranged in horizontal bands. This is the most design-forward pattern and works best in garages that serve as extensions of the home's living space.
8. Mixed-Range — Combining Vented and Solid Performance
Advanced installers can combine vented and solid tile ranges in a single floor, matching each tile type to its ideal function within the space.
Best tile ranges: ULTRAGRID, ULTRACORE, or ULTRAFLUX (all vented) in workshop zones or anywhere liquids might spill. ULTRATUFF or ULTRATONE (solid surface) in parking zones, storage areas, and walkways.
Practical considerations: All five ranges share the same 400x400mm footprint and interlocking system, so they connect seamlessly. The transition line between ranges becomes a subtle design element. This pattern prioritises performance — the choice of owners who understand their space's functional demands.
Planning Your Pattern
Before ordering, measure your garage accurately. At 400x400mm per tile, calculate coverage then add 5 per cent for cuts and adjustments.
Order samples to preview colours and textures in your actual garage lighting. Natural light, fluorescent tubes, and LED strips all affect how colours appear.
All five Sleek Space ranges support the same 20t/m2 load rating and 15-year warranty, regardless of pattern. Virgin polypropylene copolymer construction ensures colours won't fade under Australian sun exposure.
What Our Customers Say
"We could not be happier with our range and colour choice! Even with zero 'tradie' background, we prepared the floor, centered the design, laid the tiles, cut in the edges and installed the ramps in four and half hours. Very nice to walk on in bare feet and it has an extremely satisfying visual appeal, especially when the neighbours "ooh" and "ahh" at our sensational garage! 'Very happy to show off our new garage floor to anyone who is interesting in FNQ."
"Excellent service from the team at Sleek Space. I very much appreciated the time and advice from the team re the product and the drafting of designs, all achieved whilst I was overseas. Thank you to the helpful installer who did a wonderful job.The colours may be loud for some, but it’s what I wanted. Highly recommended, excellent product and team."
Frequently Asked Questions
Can I change my tile pattern after installation?
Yes. The interlocking system allows you to pull up tiles and rearrange at any time. Add a racing stripe to an existing single-colour floor, or convert to checkerboard by swapping alternating tiles.
Do different patterns affect installation time?
Single-colour installations are fastest at 4-6 hours for a standard double garage. Checkerboard and borders add minimal time. Diagonal layouts take longer due to perimeter cutting. Gradient patterns require the most planning but install at a similar speed once mapped.
How do I calculate quantities for two-colour patterns?
For checkerboard, order 50 per cent of each colour. For borders, measure the perimeter area in tiles for the accent colour, remainder in the primary. For racing stripes, measure length and width in tiles. Get an instant quote for accurate quantities.
Can I preview my pattern before ordering?
Order samples in the colours you're considering, then arrange them on your garage floor to preview the pattern in your actual lighting conditions. For installed examples, see our garage makeover ideas.
Will pattern lines show between tiles?
All interlocking tiles have visible join lines. ULTRACORE minimises this with its hidden-join design. ULTRAGRID and ULTRAFLUX have more pronounced texture transitions due to their vented rib structure. Join lines become less noticeable once the full pattern is installed.
Transform Your Garage Floor
The right pattern turns a functional garage into a considered space. Whether you choose minimalist single colour, classic checkerboard, or a performance-focused mixed-range layout, interlocking tiles give you options that permanent flooring can't match.
Free shipping Australia-wide means you can order samples to preview patterns in your space. With a 15-year warranty and 20t/m2 load rating across all five ranges, your chosen pattern will maintain its appearance under Australian conditions for years to come. For guidance on choosing between tile types, see our vented vs solid guide.
